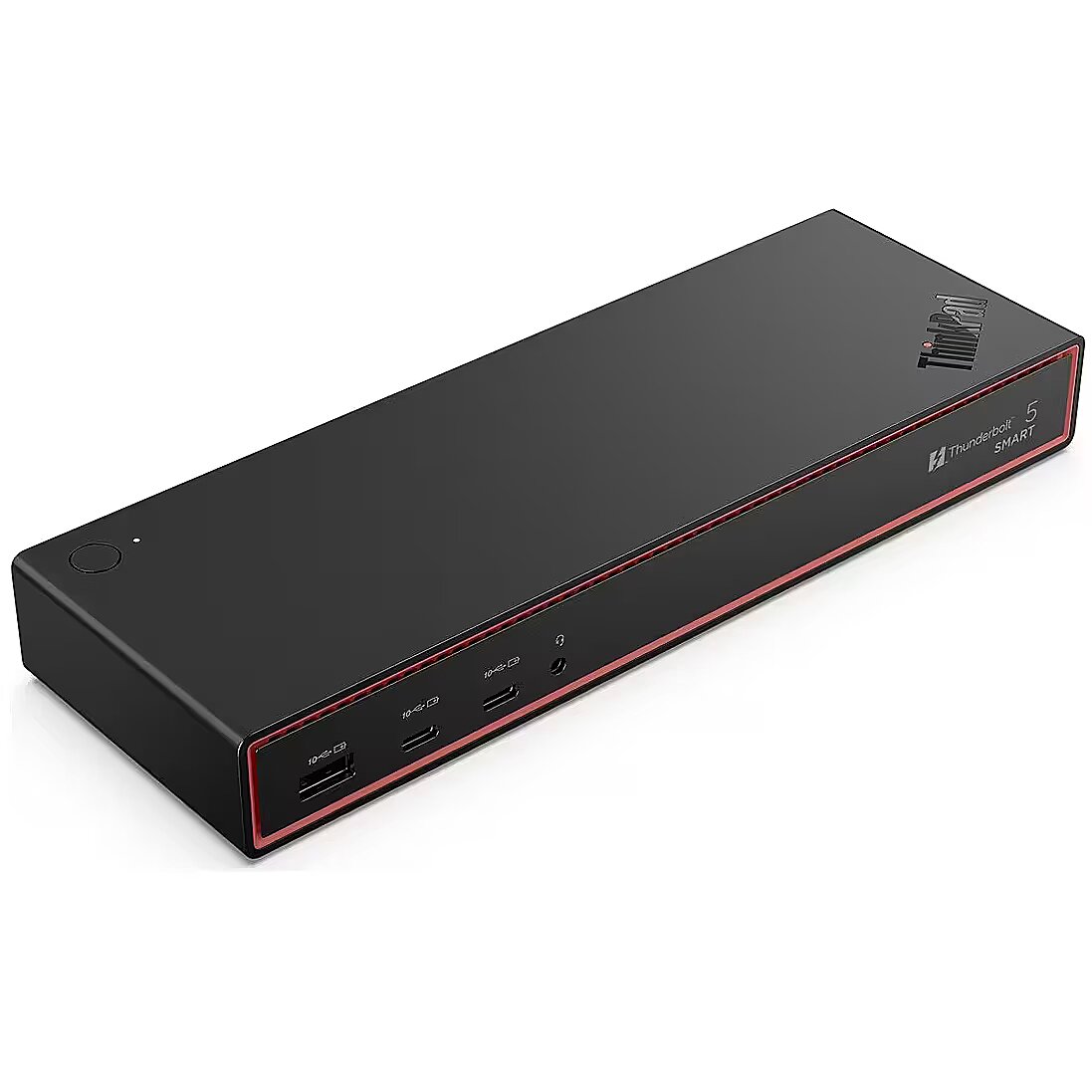

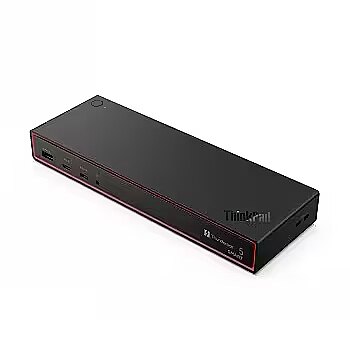

Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 - EU

ARTIKEL1 - TP THUNDERBOLT 5 SMART DOCK
ARTIKEL2 - WS 265W
Brand - Lenovo
BrandPartCode - 40BA0265EU
Breite - 0
Cable lock slot - Yes
Category - Laptop Docks & Port Replicators
Code - 40BA0265EU
Compatible operating systems - Windows 10 and Above, macOS Sequoia, macOS Sonoma
Connections - Audio (3.5mm)
Connections - DC-in
Connections - DisplayPort
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - Thunderbolt 5
Connections - USB-A
Connections - USB-C
Description - LENOVO TP THUNDERBOLT 5 SMART DOCK 7500
Dimensions W x D x H, mm - 235 x 80 x 30
DisplayPorts quantity - 2
EAN - 195892112907
EANCode -
Ethernet LAN (RJ-45) ports quantity - 1
Features > Colour of product - Eclipse Black
Gewicht - 1.71
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 0195892112907
GTIN - 195892112907
GTIN - 4582764149769
HDMI ports quantity - 1
Height - 74.000000
HERSTELLER - LENOVO
Hoehe - 0
HSTNUMMER - 40BA0265EU
Laenge - 0
Length - 165.000000
Link - https://psref.lenovo.com/accessory/40BA0265EU
LongDesc - New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
LongProductName - ThinkPad Thunderbolt 5 Smart Dock 7500 - EU/INA/VIE/ROK
LongSummaryDescription - Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 180 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Black, Colour name: Eclipse Black, HD type: 8K Ultra HD. Power source type: AC, Power supply: 265 W. Width: 235 mm, Depth: 80 mm, Height: 30 mm
Manufacturer - Lenovo
ManufacturerPartNumber - 40BA0265EU
Name - Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 - EU | DisplayPorts quantity 2 | HDMI ports quantity 1 | 180 W
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 2500 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 20 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 210 mm
Package features > Gross height (mm) - 155 mm
Package features > Gross width (mm) - 75 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 354 pc(s)
Package features > Tare weight (kg) - 0.227 kg
Package features > Volume (m3) - 0.00244125 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Warranty card - Yes
Packaging data - Package depth - 165 mm
Packaging data - Package height - 74 mm
Packaging data - Package weight - 1.73 kg
Packaging data - Package width - 260 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Certification - FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
Ukraine DoC
NOM
IFT
TELEC
UKCA
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
ARTCI
INCM
Thunderbolt Cert
EVO
Performance - Colour name - Eclipse Black
Performance - HD type - 8K Ultra HD
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 4
Performance - Product colour - Black
PeriodofWarranty - 36 M
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Host interface - Thunderbolt 5
Ports & interfaces - Thunderbolt 5 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.1
Ports & interfaces - USB Power Delivery up to - 180 W
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > USB port - 1 x USB-A 3.2 Gen 2 (10Gbps data, AOU 12W), 2 x USB-C data port (10Gbps data, AOU 15W), 2 x USB-A 3.2 Gen 2 (10Gbps data, 10W), 2 x TBT 5, Full Function(15W)
Power - Power source type - AC
Power - Power supply - 265 W
Power > Output power - 180 W
Power supply, W - 180
ProductName - ThinkPad Thunderbolt 5 Smart Dock 7500
ShortSummaryDescription - Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500, Wired, Thunderbolt 5, 180 W, 2500 Mbit/s, Black, Eclipse Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Stck_Kart - 8
Stck_Pal - 120
Storno - Y
Technical details > Gross weight - 1.216 kg
Technical details > Net weight - 0.989 kg
Technical details > Producer - Lenovo
Technical details > Producer product name - ThinkPad Thunderbolt 5 Smart Dock 7500 - EU
Thunderbolt ports quantity - 2
Title - Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 Wired Black
URL - https://psref.lenovo.com/accessory/40BA0265EU
USB-A (USB 3.2) ports quantity - 3
USB Type-C ports quantity - 2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 Year
Weight - 1.790000
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 585 g
Weight & dimensions - Width - 235 mm
Weight, g - Dock (with Cable)
Starting at 586 g (1.29 lbs)
Adapter
Starting at 800 g (1.76 lbs)
Width - 250.000000
