ARTIKEL1 - SH570R6 S1200 H570 300W
ARTIKEL2 - GLN HDMI DISPLAY-PORT PCIE M.2
Brand - Shuttle
BrandPartCode - SH570R6
Breite - 0
Category - PC/Workstation Barebones
Category_1 - Computers and Laptops
Category_2 - Computers - Computers All in One
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Cube
Design - Cooling type - Active
Design - Housing material - Aluminium
Design - LED indicators - Yes
Design - Product colour - Black
Design - Product type - PC barebone
EAN - 887993003498
EANCode - 0887993003498
EAN_code - 0887993005416
Expansion slots - PCI Express slots version - 4.0
Expansion slots - PCI Express x4 slots - 1
Expansion slots - PCI Express x16 slots - 1
Graphics - On-board graphics card - Yes
Gross Weight Kg - 4,77
GRUPPE1 - Computer Systems
GRUPPE2 - PC Barebone
GTIN - 0887993003498
GTIN - 887993003498
GTIN - 0887993005416
GTIN - 887993005416
HERSTELLER - SHUTTLE
Hoehe - 0
HSTNUMMER - SH570R6
Laenge - 0
Logistics data - Harmonized System (HS) code - 84713000

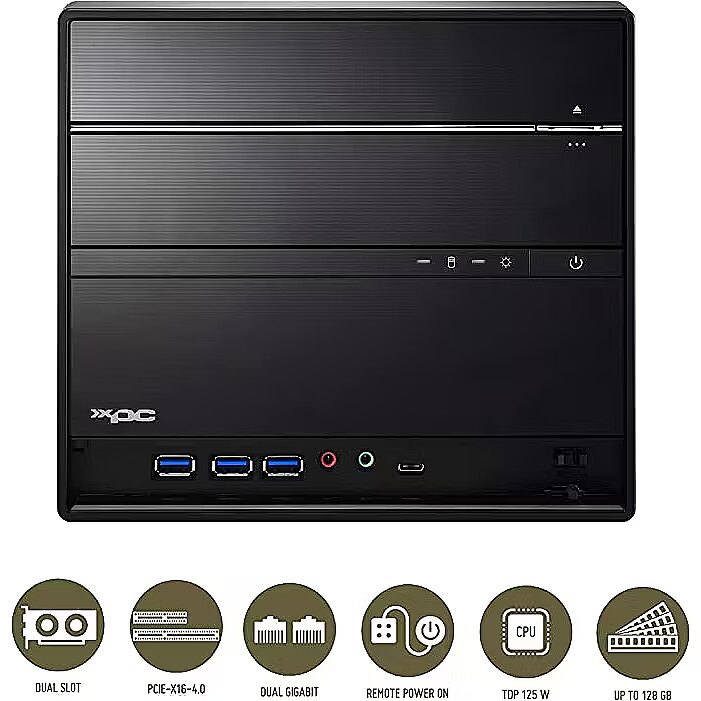

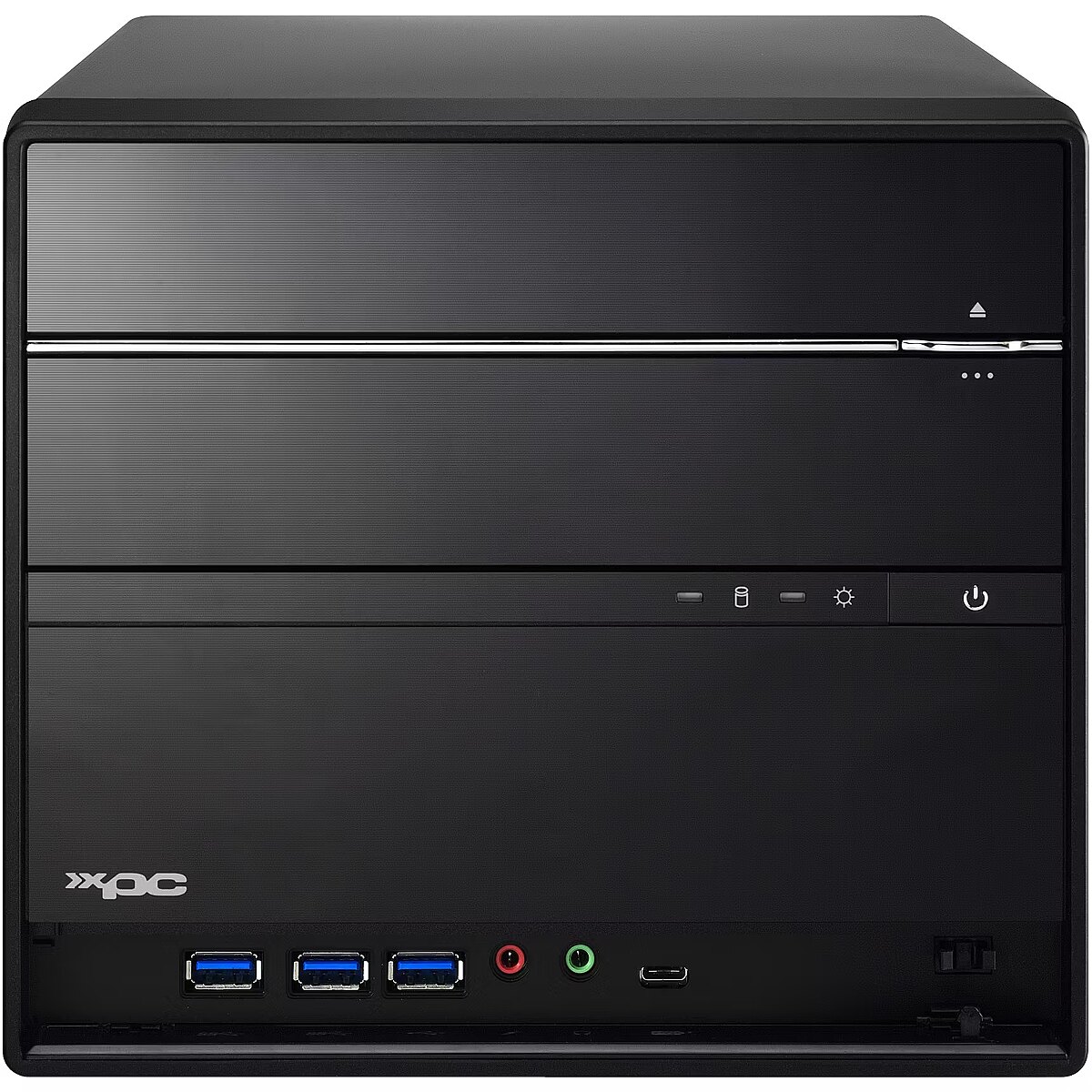

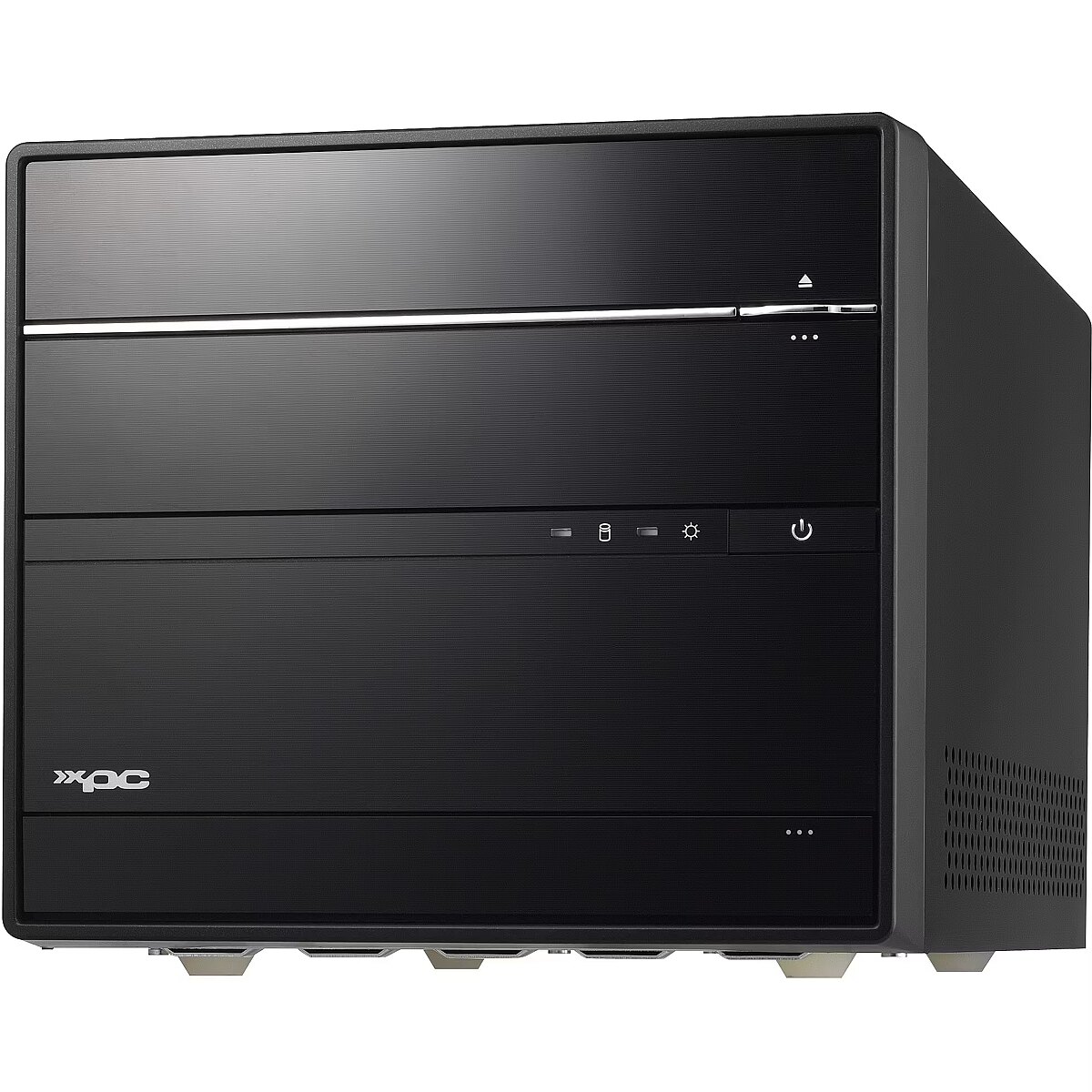

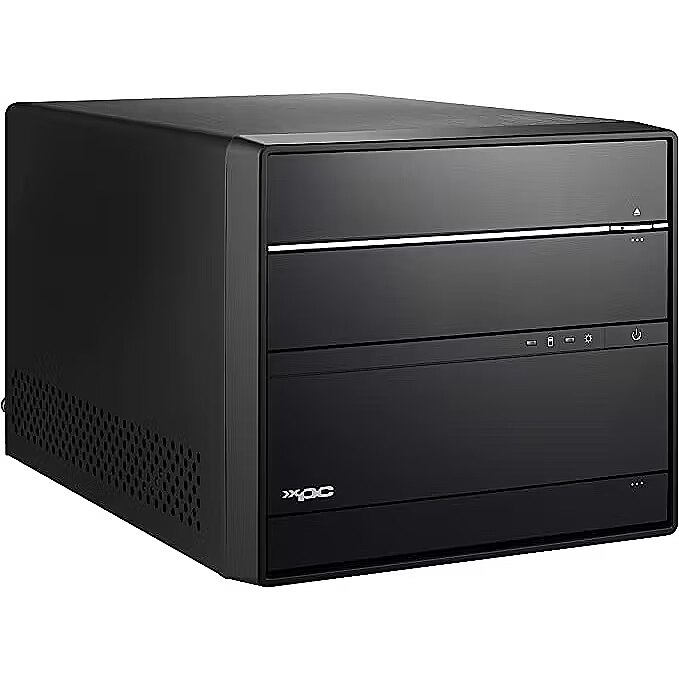

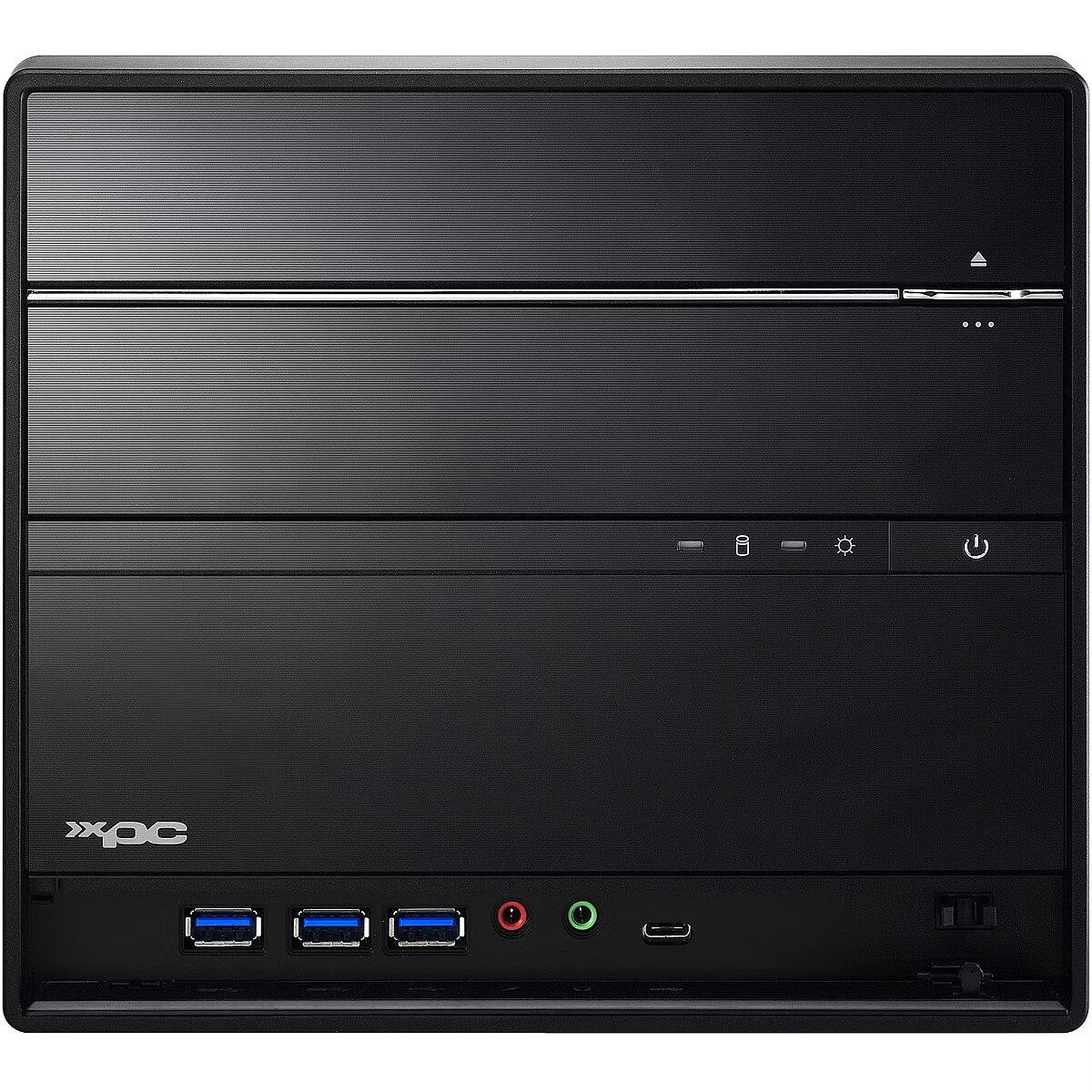

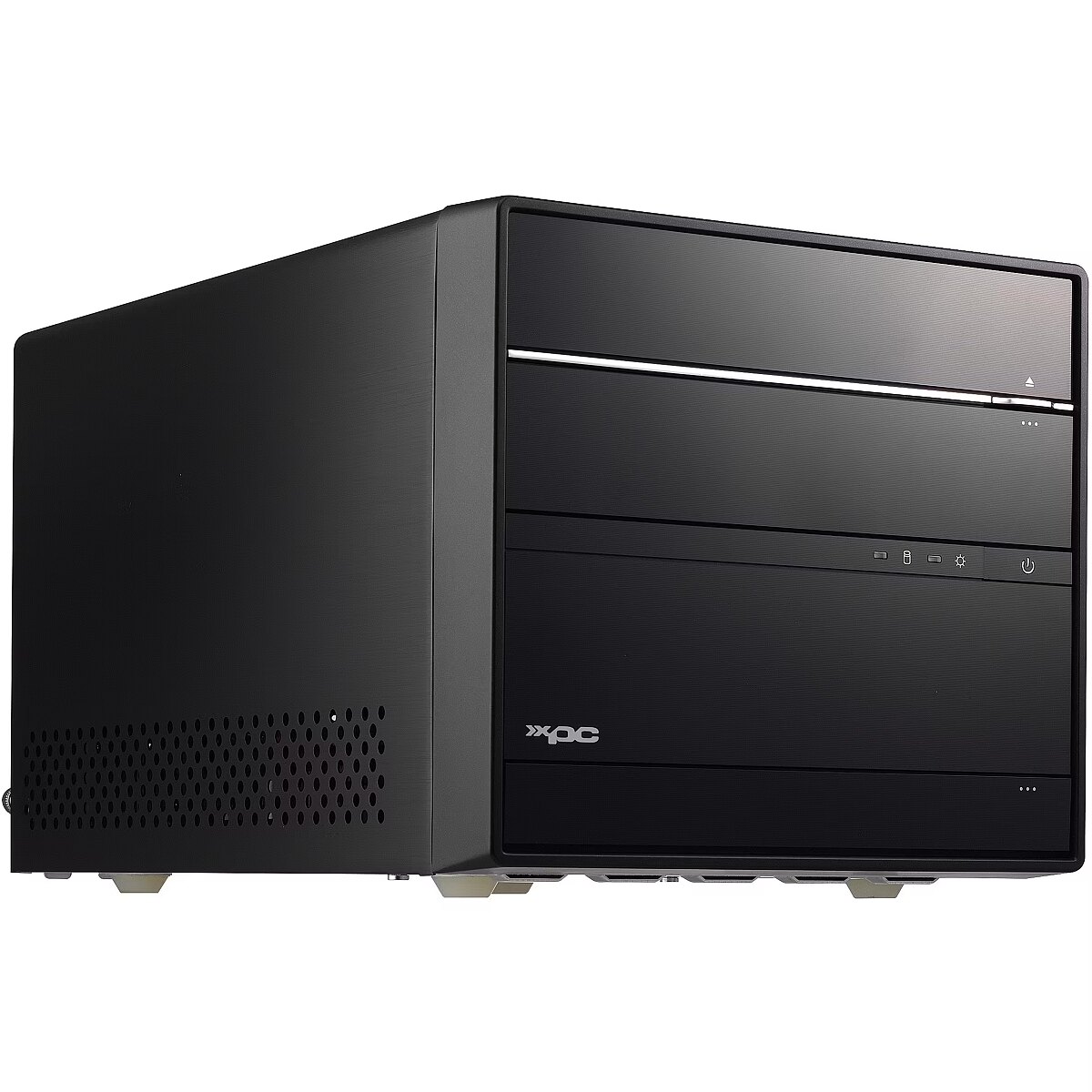

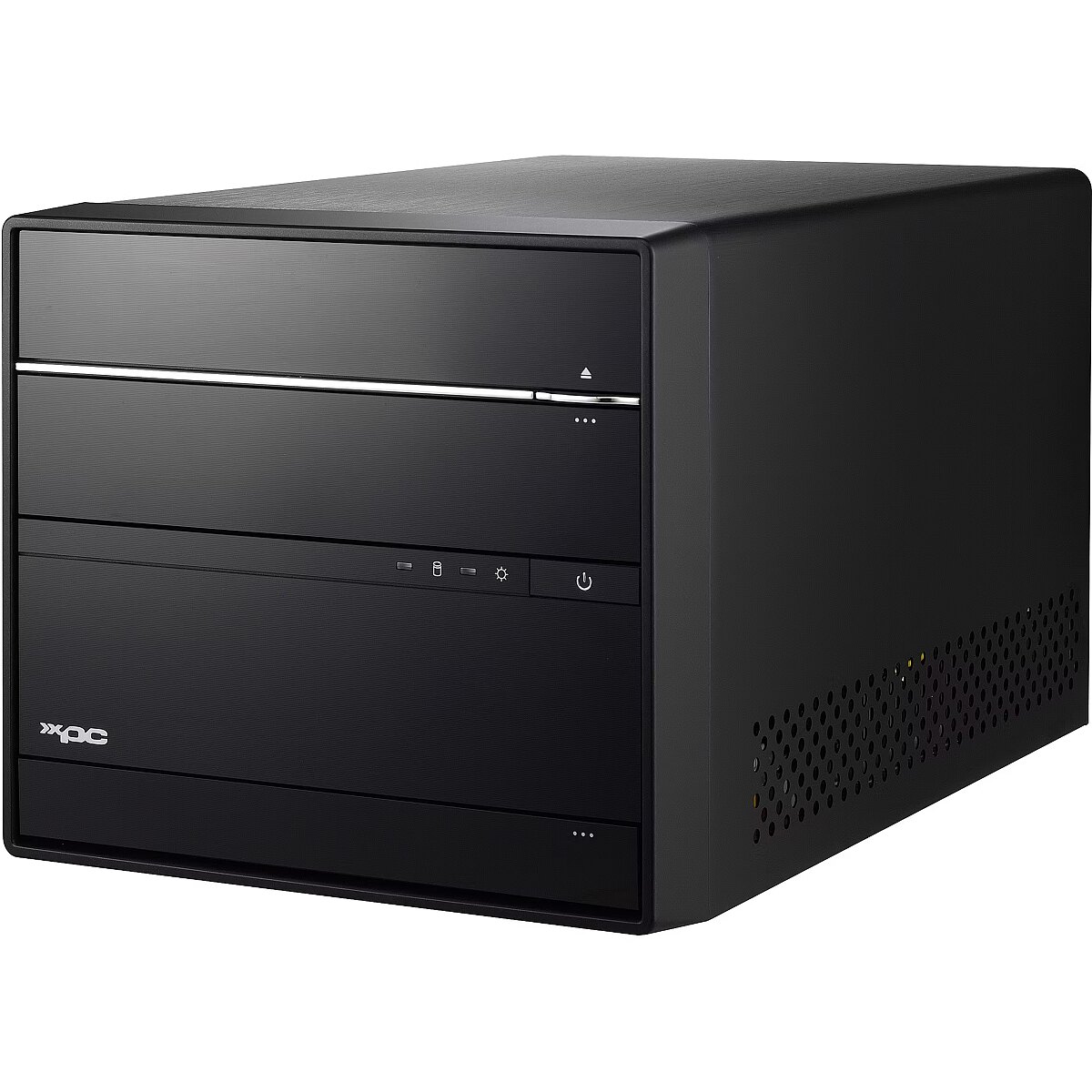

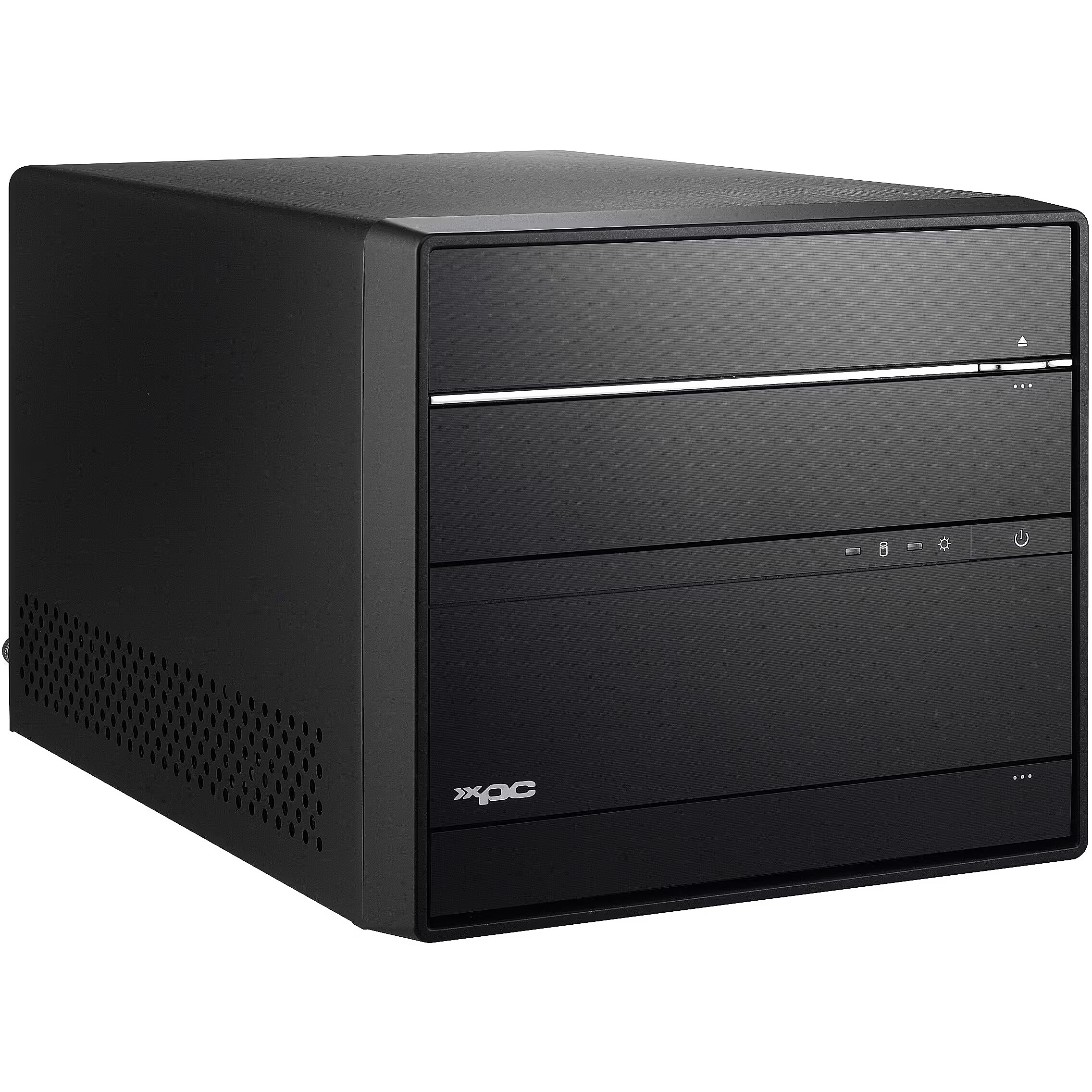

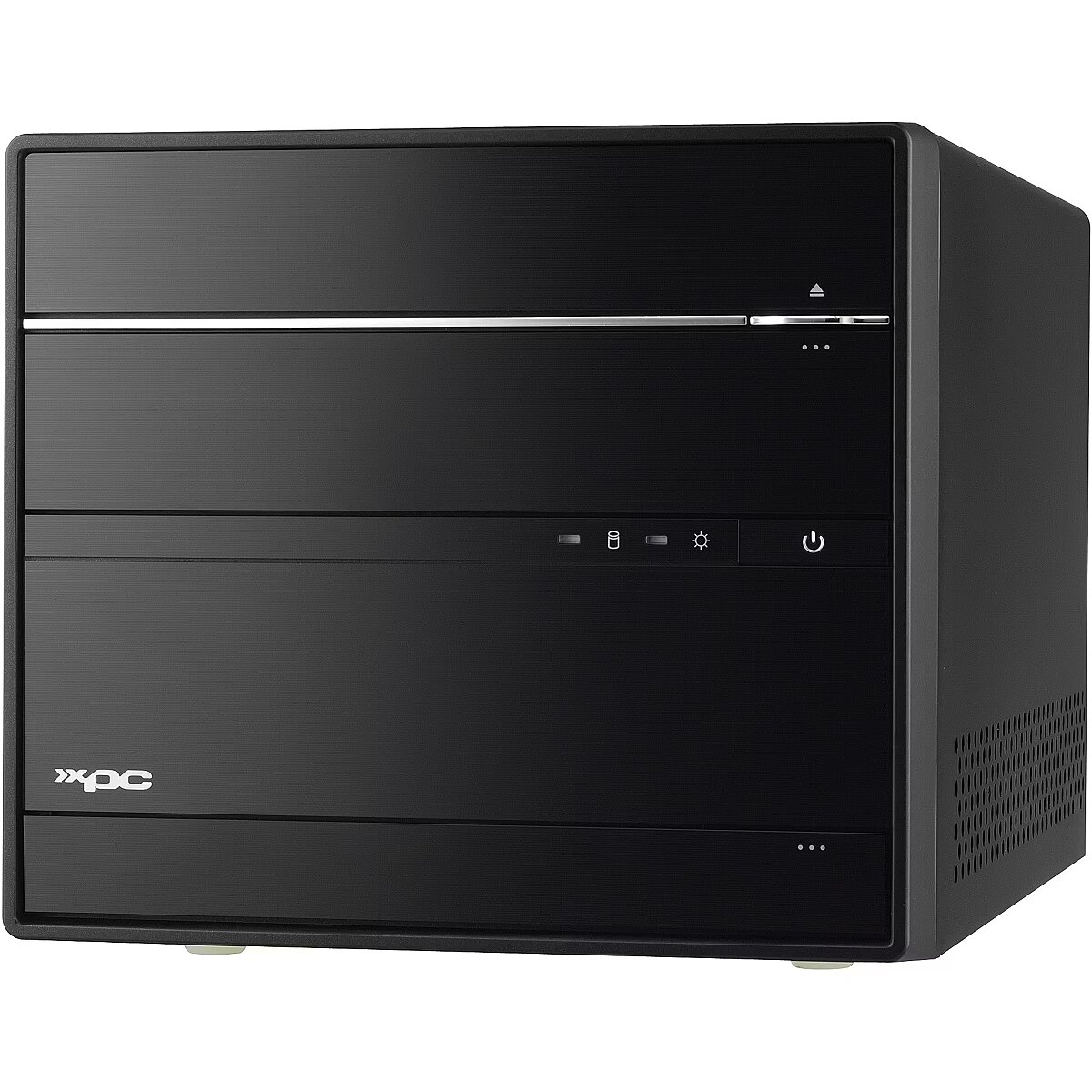

LongDesc - Supports 10th/11th generation Intel Core processors and up to three UHD displaysThe Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
LongProductName - Socket LGA1200, Intel H570, 4 x SATA, 4 x DDR4-3200, 2 x Gigabit LAN, 300W
LongSummaryDescription - Shuttle XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 300W PSU. Chassis type: Cube, Product type: PC barebone. Motherboard chipset: Intel H570, Processor socket: LGA 1200 (Socket H5), BIOS type: UEFI AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 4, Maximum internal memory: 128 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 300 W
Manufacturer - Shuttle
Manufacturer Code - SH570R6
Manufacturer Name - Shuttle
Manufacturer_code - SH570R6
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2666,2933,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Name - Shuttle XPC cube SH570R6, Barebone (black, without operating system)
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I210-AT, Intel® I219-LM
Network - Wi-Fi - No
Packaging content - Drivers included - Yes
Packaging content - Power cord included - Yes
Packaging content - Quick start guide - Yes
Performance - Audio chip - Realtek ALC897
Performance - Audio output channels - 5.1 channels
Performance - BIOS type - UEFI AMI
Performance - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Performance - Motherboard chipset - Intel H570
Performance - Number of processors supported - 1
Performance - Processor socket - LGA 1200 (Socket H5)
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power supply - 300 W
Power - Power supply type - Internal power supply unit
Processor - Built-in processor - No
Processor - Thermal Design Power (TDP) - 125 W
ProductName - XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 300W PSU
Short description - Shuttle Barebone SH570R6 Black S1200
ShortSummaryDescription - Shuttle XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 300W PSU, Cube, PC barebone, Intel H570, LGA 1200 (Socket H5), DDR4-SDRAM, 300 W
Software - Linux operating systems supported - Yes
Software - Windows operating systems supported - Windows 10, Windows 11
Stck_Kart - 1
Stck_Pal - 5
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Supported storage drive types - HDD & SSD
Storno - N
Title - Shuttle XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 300W PSU
URL - https://www.shuttle.eu/en/products/cube/sh570r6
WarrantyInfo -
Weight - 4,50
Weight & dimensions - Depth - 332 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Package weight - 4.5 kg
Weight & dimensions - Weight - 3.5 kg
Weight & dimensions - Width - 215 mm
