Axagon PCES-SA4X4 PCIe Controller 4x internal SATA 6G port + LP

Accessories included - PCI-Express controller with standard bracket, low profile bracket, multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box.
Box Weight Brutto (kg) - 0.1 kg
Brand - Axagon
BrandPartCode - PCES-SA4X4
Category - Interface Cards/Adapters
Category Code - HDA
Chipset type - ASMedia ASM1164
Code - PCES-SA4X4
Controller Features - Native Command Queuing Hot-plug Drive Support TRIM Support Boot from Connected Disk
Controller Form Factor - Plug-in Card
Controller type - SATA
Data Transfer Rate - 6 Gbps

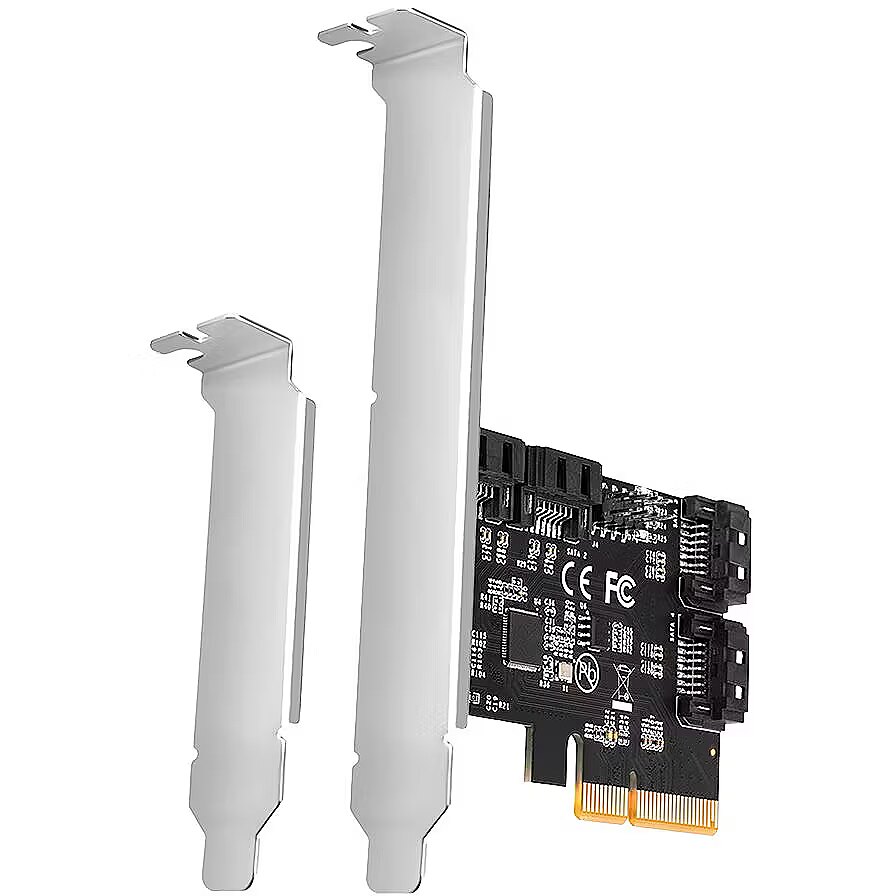

Description - PCES-SA4X4 PCIe controller 4x SATA 6G Four-channel SATA III PCI-Express controller with four internal SATA ports. Standard & Low profile. The AXAGON PCES-SA4X4 PCI-Express controller extends your desktop PC with four SATA III ports with a transmission rate up to 6Gb/s. The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems. Included low profile bracket allow controller installation into standard and also low-profile PC cases.
Description - The AXAGON PCES-SA4X4 PCI-Express controller extends your desktop PC with four SATA III ports with a transmission rate up to 6Gb/s. The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems. Included low profile bracket allow controller installation into standard and also low-profile PC cases. Input:
PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 /2.1.  Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots.  The bandwidth of 2-Lane PCI-Express 3.0 bus 4 GB/s bidirectional. Output:
4x independent Serial ATA port, SATA III 6G standard. 4x internal 7-pin SATA data connector.  Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities. Other features:
Full Plug and Play support.  Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).  Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).  Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).  Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4.  Fully supports Hot Plug connecting and disconnecting of SATA devices while running. Supports Native Command Queuing (NCQ). TRIM feature support for SSD disks. Port Multiplier Command Based Switching feature support. Boot support from connected disk incl. cooperation with computer motherboard BIOS / UEFI. 4x LED to indicate connected disks activity. Four 2-pin sockets for connecting the HDD LEDs of the computer case. The ASMedia ASM1164 chipset is used. Supported OS:
MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.x and above. Package contains:
PCI-Express controller with standard bracket,
low profile bracket,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Design - Certification - CE, RoHS
Design - Country of origin - China
Design - Easy to install - Yes
Design - Hot-Plug support - Yes
Design - Internal - Yes
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 145 mm
Dimensions -
dimension weight - 80 g
dimension width - 110 mm
EAN - 8595247906977
ean - 8595247906977
EAN Code - 8595247906977
Features - Data transfer rate (max) - 4 Gbit/s
Features - Native Command Queuing (NCQ) - Yes
Features - Plug and Play - Yes
Features - TRIM support - Yes
GTIN - 8595247906977
guarantee - 24
guarantee_type - normal
Included Accessories - • PCI-Express controller with standard bracket,
• low profile bracket
Interface - PCIe
Link - https://www.axagon.eu/en/produkty/pces-sa4x4
LongDesc - The AXAGON PCES-SA4X4 PCI-Express controller extends your desktop PC with four SATA III ports with a transmission rate up to 6Gb/s.The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems.Included low profile bracket allow controller installation into standard and also low-profile PC cases.Input: • PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 /2.1. • Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots. • The bandwidth of 2-Lane PCI-Express 3.0 bus 4 GB/s bidirectional.Output:• 4x independent Serial ATA port, SATA III 6G standard.• 4x internal 7-pin SATA data connector. • Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.Other features:• Full Plug and Play support. • Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s). • Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s). • Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s). • Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4. • Fully supports Hot Plug connecting and disconnecting of SATA devices while running.• Supports Native Command Queuing (NCQ).• TRIM feature support for SSD disks.• Port Multiplier Command Based Switching feature support.• Boot support from connected disk incl. cooperation with computer motherboard BIOS / UEFI.• 4x LED to indicate connected disks activity.• Four 2-pin sockets for connecting the HDD LEDs of the computer case.• The ASMedia ASM1164 chipset is used.Supported OS:• MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.x and above.Package contains:• PCI-Express controller with standard bracket,• low profile bracket,• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box.
LongProductName - PCES-SA4X4 PCIe controller - 4x internal SATA 6G port, ASM1164, SP & LP
LongSummaryDescription - Axagon PCES-SA4X4 PCIe controller - 4x internal SATA 6G port, ASM1164, SP & LP. Host interface: PCIe, Output interface: SATA, Host interface gender: Male. Product colour: Black, Country of origin: China, Certification: CE, RoHS. Data transfer rate (max): 4 Gbit/s. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 112 mm
Model - PCES-SA4X4
name - AXAGON PCES-SA4X4 PCIe controller 4x port SATA
Name - AXAGON PCIe Controller 4x SATA 6G | PCES-SA4X4
Number of Input-Output Channels - 4
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 145.00 mm
Package features > Gross height (mm) - 25.00 mm
Package features > Gross width (mm) - 112.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4256 pc(s)
Package features > Paper/Pasteboard - 16.80 g
Package features > Plastic (No PET) - 4.20 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 112 mm
Packaging data - Package height - 25 mm
Packaging data - Package type - Box
Packaging data - Package weight - 79 g
Packaging data - Package width - 145 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.1 kg
Pieces in pack - 1
Ports - 4 x SATA
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Host interface gender - Male
Ports & interfaces - Internal SATA ports quantity - 4
Ports & interfaces - NVMe - No
Ports & interfaces - Output interface - SATA
Ports & interfaces - SATA revision - 3.0
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230118151846602766&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCES-SA4X4
ProductDescription - Axagon Four-channel SATA III PCI-Express controller with four internal SATA ports. Standard & Low profile.
ProductName - PCES-SA4X4 PCIe controller - 4x internal SATA 6G port, ASM1164, SP & LP
Product Net Weight - 0.07 kg
ProductType - Adaptors
Provides Data Channel - SATA III
Requires Expansion Slot Standard - PCI Express 3.0 x4
Requires Operating System - Microsoft Windows Server 2008 Linux Microsoft Windows Server 2003 Microsoft Windows Server 2012 Microsoft Windows 7 or Later Microsoft Windows Server 2016 Microsoft Windows Server 2019 Microsoft Windows Server 2022
Retail Packaging Net Weight Carton - 0.1 kg
Retail Packaging Net Weight Plastic - 0.1 kg
SATA III - 4 (7-pin SATA)
ShortSummaryDescription - Axagon PCES-SA4X4 PCIe controller - 4x internal SATA 6G port, ASM1164, SP & LP, PCIe, SATA, Male, Full-height / Low-profile, PCIe 3.0, Black
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS, CE
Technical details - Warranty period - 2 year(s)
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.06 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - PCIe Controller 4x SATA 6G
Technical details > Producer product name - PCES-SA4X4
Title - Axagon PCES-SA4X4 PCIe controller - 4x internal SATA 6G port, ASM1164, SP & LP
Unit Box Height - 0.145
Unit Box Length - 0.025
Unit Box Width - 0.11
Unit Calculated Volume - 0.0003988 cubm
Unit Calculated Weight - 0.08 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pces-sa4x4
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pces-sa4x4?ami=214
vendpn - PCES-SA4X4
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
