Accessories included - Uchwyt ścienny Elementy montażowe Instrukcja użytkownika
Brand - Techly
BrandPartCode - ICA-LCD-2901WH
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category - TV Mounts & Stands
Color - White
Corner mount - No
Description - Uchwyt ścienny LCD/LED 19-37cali 25kg regulowany, biały Umożliwia bezpieczny montaż na ścianie wyświetlacza LED/LCD lub TV Konstrukcja ze stali gwarantuje maksimum bezpieczeństwa Mocowanie wyświetlacza w standardzie VESA Przegubowy wysięgnik z regulacją odległości od ściany Możliwość regulacji kąta pochylenia Możliwość regulacji obrotu w płaszczyźnie poziomej Idealny do zastosowania w domu, w biurze oraz do instalacji komercyjnych
Design - Housing material - Metal
Design - Product colour - White
Designation - Kosz zgodnie z zasadami recyklingu
dimension depth - 55 mm
dimension height - 275 mm

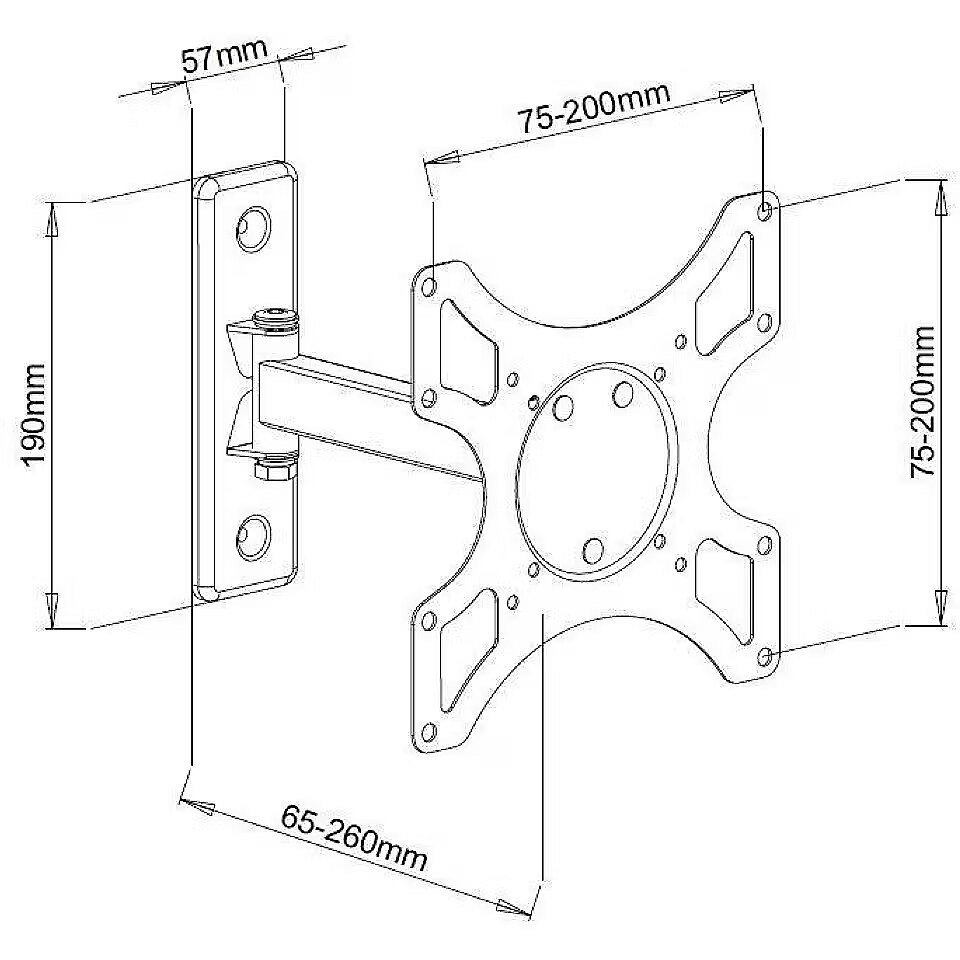

Dimensions - 190 x 57 x (65 260) mm
dimension weight - 1640 g
dimension width - 225 mm
ean - 8054529023837
Eans - 8054529023837
Ergonomics - Distance to the wall (max) - 26 cm
Ergonomics - Distance to the wall (min) - 6.5 cm
Ergonomics - Number of pivot points - 2
Ergonomics - Swivel angle - 180°
Ergonomics - Tilt angle range - 0 - 12°
GTIN - 8054529023837
guarantee - 36
guarantee_type - external
Horizontal adjustment - 180 °
Load (max) - 25 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - - Universal bracket for fixing a LED / LCD TV on the wall; easy and quick to install, it is ideal for home, office and commercial applications.Features- Bracket suitable for LCD LED 19-37";- Supports VESA 75x75, 100x100, 200x100, 200x200 mm;- Maximum weight supported: 25 kg;- 2 joints arm with maximum extension of 260 mm.Specifications- Tilt from 0 to -12°;- Horizontal orientation: 180°;- Minimum distance from the wall: 65 mm;- Maximum distance from the wall: 260 mm;- Dimensions: 190 x 57 mm wall plaque; 65-260 mm arm, 1.3kg;- White color.The package includes- Wall support for LCD LED;- Mounting accessories (screws, plugs ...) and installation instructions.
LongProductName - Wall Support for LCD LED 19-37" Tilting 2 joints, VESA ut to 200 x 200, 25 Kg Max, White
LongSummaryDescription - Techly ICA-LCD-2901WH. Maximum weight capacity: 25 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 94 cm (37"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: 0 - 12°, Distance to the wall (min): 6.5 cm, Distance to the wall (max): 26 cm. Product colour: White
Mounting - Maximum screen size - 94 cm (37")
Mounting - Maximum VESA mount - 200 x 200 mm
Mounting - Maximum weight capacity - 25 kg
Mounting - Minimum screen size - 48.3 cm (19")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100,200 x 100,200 x 200
Name - Techly Uchwyt ścienny LCD (23837) 37"
name - Wall mount for TV LCD/L ED swivel 19-37inch 25kg
Other features - Regulacja kąta pochylenia: 0 do -12°
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Screws included - Yes
producer - Techly
Producer - Techly
ProducerCode - 023837
ProductName - ICA-LCD-2901WH
Range (max) - 260 mm
Range (min) - 65 mm
Range adjustment - Yes
Screen size (max) - 37 ''
Screen size (min) - 19 ''
ShortDescription - Estetyczne regulowane mocowanie LCD do 37" do 25kg
ShortSummaryDescription - Techly ICA-LCD-2901WH, 94 cm (37"), 75 x 75 mm, 200 x 200 mm, 0 - 12°, Metal, White
Stuff - Steel
Title - Techly ICA-LCD-2901WH TV mount/stand 94 cm (37") White
Type - Wall
URL - https://www.techly.com/en/led-lcd-extendable-tv-brackets/1090-supporto-a-muro-per-tv-led-lcd-19-37-inclinabile-2-snodi-bianco-8054529023837.html
Usage - Monitors
Usage - TV
vendpn - 023837
Vertical adjustment - 12 °
VESA - 75 x 75
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
WarrantyInfo -
Weight - 1.3 kg
Weight & dimensions - Weight - 1.3 kg
