Newstar Monitor/TV ceiling mount, 37-75"

Name: Newstar Monitor/TV ceiling mount, 37-75"
Brand: Newstar
SKU: 1194538
Price: 320.08 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1194538 Product code: PLASMA-C100

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Maximum load (1 screen), kg: 50.00
Maximum screen diagonal, inches: 75
Minimum screen diagonal, inches: 37

Similar Products


	This product Newstar Monitor/TV ceiling mount, 37-75"	Newstar Quad monitor desk mount, 10-27"	Startech Free Standing Single Monitor Mount, up to 32"	Gembird Adjustable desk mounted double monitor arm, 17-32"	Samsung Frame 65 White Modern 2021, Openbox
Show similar specs. Hide similar specs.	320.08 €	198.14 €	102.82 €	32.29 €	39.99 €
Colour	Sudraba	Melna	Melna	Melna	Balta
Maximum load (1 screen), kg	50.00	8.00	7.00	9.00	N/A
Maximum screen diagonal, inches	75	27	34	32	65
Minimum screen diagonal, inches	37	10	32	17	65
Notebook holder	Nav	Nav	Nav	Nav	Nav
Number of supported screens	1	4	1	2	1
Rotation	Not	Is	Is	Is	Not
Swivel	Ir	Ir	Nav	Ir	Nav
Tilt	Is	Is	Is	Is	Not
Type of attachment	Griestu	Galda	Galda	Galda	Papildus aksesuārs
VESA support	200 x 200 200 x 300 200 x 400 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 440 x 400 500 x 400 600 x 200 600 x 300 600 x 400 680 x 300 800 x 200 800 x 400	75 x 75 100 x 100	75 x 75 100 x 100	75 x 75 100 x 100	Nav

All parameters

Colour : Sudraba

Maximum load (1 screen), kg : 50.00

Maximum screen diagonal, inches : 75

Minimum screen diagonal, inches : 37

Notebook holder : Nav

Number of supported screens : 1

Rotation : Not

Swivel : Ir

Tilt : Is

Type of attachment : Griestu

VESA support : 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 680 x 300, 800 x 200, 800 x 400

More detailed specification

Additional information in manufacturers website Newstar Monitor/TV ceiling mount, 37-75"

Accessories included - Mounting accessories
Brand - Neomounts
BrandPartCode - PLASMA-C100
Category - Signage Display Mounts
Color - Silver
Corner mount - No
Description -
Design - Housing material - Steel
Design - Product colour - Silver
Designation - CE+WEEE
dimension depth - 280 mm
dimension height - 880 mm
Dimensions - Depth: 8 cm
dimension weight - 16000 g
dimension width - 255 mm
ean - 8717371441067
Ergonomics - Depth adjustment - 8 cm
Ergonomics - Distance to the wall (min) - 7.8 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 670 - 1070 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Swivel angle - 60°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 25°
Ergonomics - Tilt angle range - 0 - 25°
GTIN - 8717371441067
guarantee - 60
guarantee_type - normal
Horizontal adjustment - 60 °
Load (max) - 50 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 18.3 kg
Logistics data - Master (outer) case height - 280 mm
Logistics data - Master (outer) case length - 260 mm
Logistics data - Master (outer) case net weight - 17.5 kg
Logistics data - Master (outer) case width - 880 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 21 pc(s)
Logistics data - Quantity per master (outer) case - 1 pc(s)

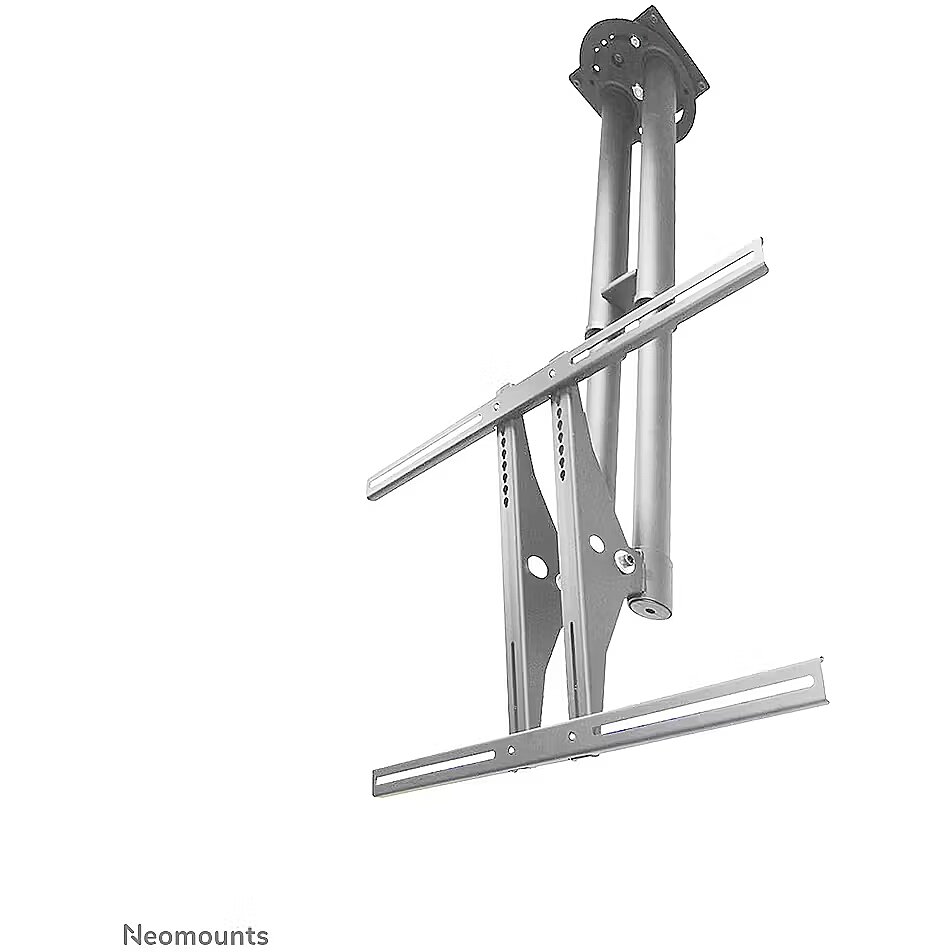

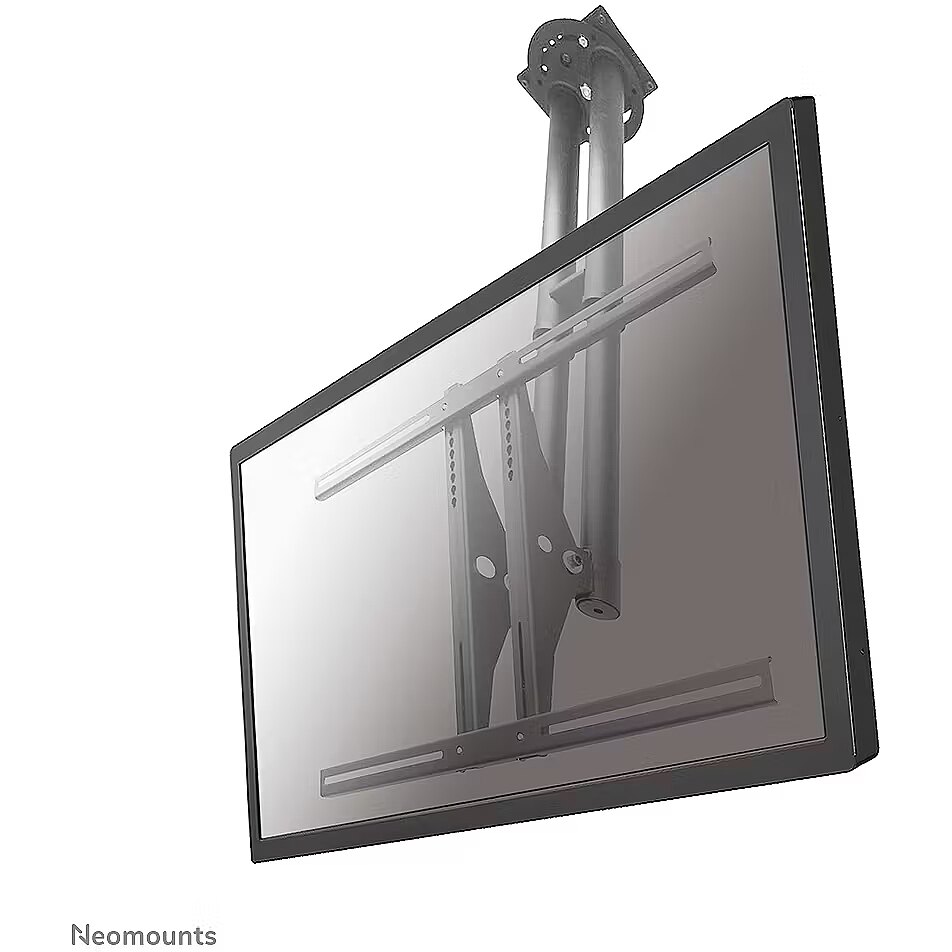

LongDesc - The Neomounts ceiling mount, model PLASMA-C100 is a tilt- and swivel ceiling mount for flat screens up to 75" (191 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 67 to 107 centimetres. If different heights are needed extension poles are available. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.Neomounts PLASMA-C100 has one pivot point and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 200x200 to 800x450mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts PLASMA-C100 Monitor/TV mount ceiling 1 screen - 37-75" - max 50 kg - VESA 200x200-800x450 - h 67-107 cm - silver
LongSummaryDescription - Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75" - h 67-107 cm. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 450 mm. Height adjustment range: 670 - 1070 mm, Tilt angle range: 0 - 25°, Swivel angle: 60°. Product colour: Silver
Mounting - Maximum screen size - 190.5 cm (75")
Mounting - Maximum VESA mount - 800 x 450 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Maximum weight capacity (per display) - 50 kg
Mounting - Minimum screen size - 94 cm (37")
Mounting - Minimum VESA mount - 200 x 200 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 800 x 400 mm
name - PLASMA-C100 CEILING MOUNT
Other features -
Other features - Country of origin - Taiwan
Packaging data - Package depth - 260 mm
Packaging data - Package height - 280 mm
Packaging data - Package weight - 17.5 kg
Packaging data - Package width - 880 mm
producer - Neomounts
ProductName - Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75" - h 67-107 cm
Range (max) - 107 cm
Range (min) - 67 cm
Range adjustment - Yes
Screen size (max) - 75 ''
Screen size (min) - 37 ''
ShortSummaryDescription - Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75" - h 67-107 cm, 50 kg, 94 cm (37"), 190.5 cm (75"), 200 x 200 mm, 800 x 450 mm, 670 - 1070 mm
Title - Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75" - h 67-107 cm
Type - Ceiling
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=PLASMA-C100
Usage - Monitors
Usage - TV
vendpn - PLASMA-C100
Vertical adjustment - 25 °
VESA - 200 x 200
VESA - 800 x 450
WarrantyInfo - 5 year
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 1070 mm
Weight & dimensions - Weight - 16.6 kg
