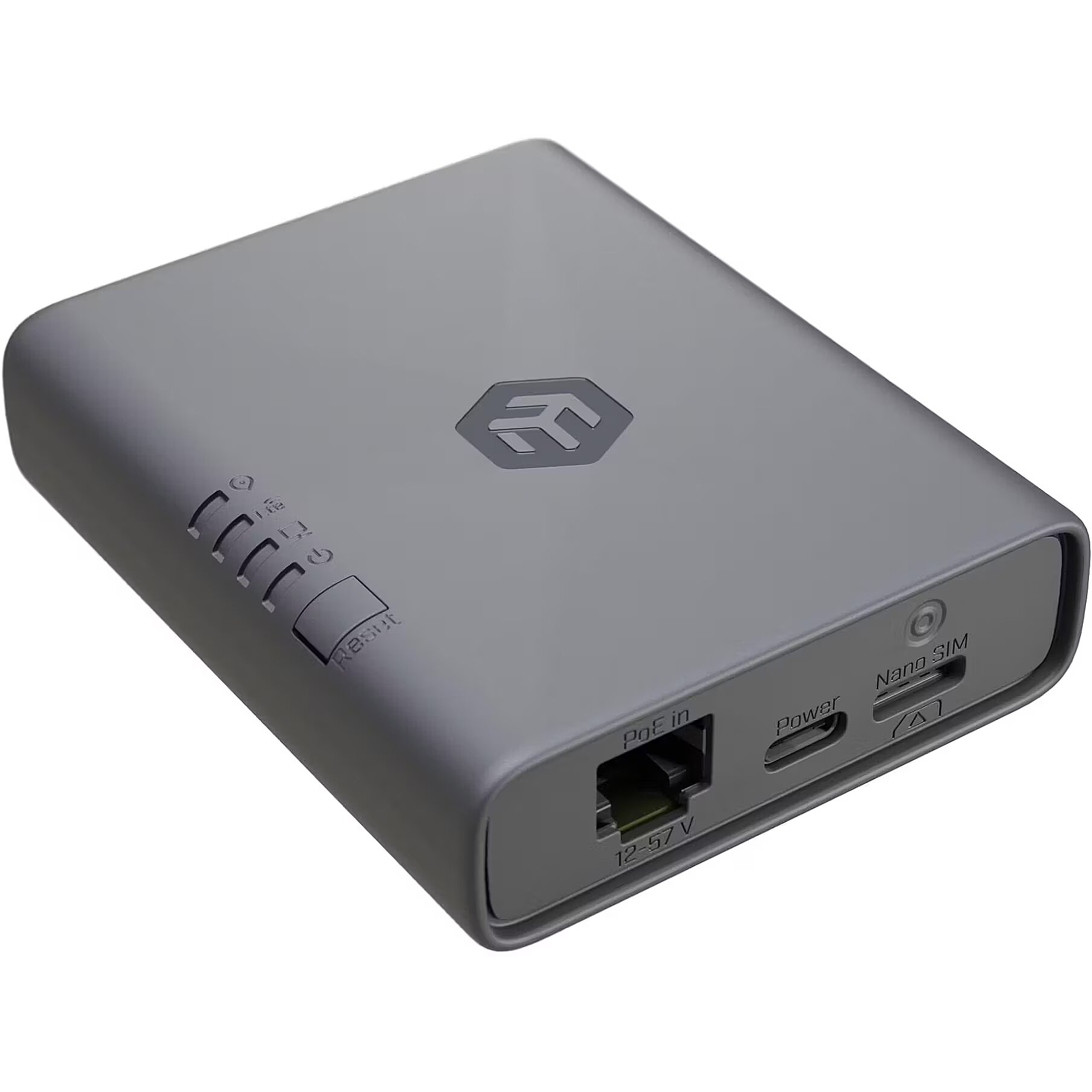

MikroTik KNOT Embedded LTE4

4G FDD-LTE bands supported Network - 800,900,1800,2100,2600 MHz
4G LTE category Network - 4
4G TDD-LTE bands supported Network - 2600 MHz
AC adapter included Packaging content - Yes
Antenna connector type Features - SMA
Antenna type Features - Internal
Bluetooth Low Energy (BLE) Network - Yes
Bluetooth Network - Yes
Bluetooth version Network - 5.1
brand - MikroTik
Built-in processor Performance - Yes
category - MikroTik > Mobilā tīkla produkti > 4G Rūteri
Category Code - GWC
Compliance certificates Certificates - CE, EAC, RoHS
Data network Network - 2G, 3G, 4G, LTE
Description - Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation. KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support. Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility. Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant. Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more! Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
EAN - 4752224009883
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
GPS (satellite) Features - Yes
height - 0.07 m
Input voltage Power - PoE 12-57, USB-C 5
Internal memory Performance - 256 MB
LED indicators Design - Yes
length - 0.11 m
Management platform Management features - RouterOS v7
Mean time between failures (MTBF) Features - 100000 h
Mobile network generation Network - 4G
Model - KNOT Embedded LTE4
Mounting type Design - DIN-rail
mpn - EC25-EU&KNe
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Number of processors installed Performance - 1
Number of simultaneous SIM cards Ports & interfaces - 1
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Power consumption (typical) Power - 7 W
Power over Ethernet (PoE) Power - Yes
Processor family Performance - ARM Cortex
Processor frequency Performance - 1200 MHz
Processor manufacturer Performance - ARM
Processor model Performance - Cortex-A7
Product colour Design - Grey
Product model code - EC25-EU&KNe
Product Net Weight - 0.1 kg
Short Message Service (SMS) Features - Yes
SIM card slot Ports & interfaces - Yes
SIM card type Ports & interfaces - NanoSIM + eSIM
SSD capacity Performance - 512 GB
Summary - Mikrotik KNOT Embedded LTE4. Product colour: Grey, Mounting type: DIN-rail. Antenna type: Internal, Antenna connector type: SMA, Mean time between failures (MTBF): 100000 h. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Mobile network generation: 4G. SIM card type: NanoSIM + eSIM
title - Mikrotik KNOT Embedded LTE4
Unit Box Height - 0.095
Unit Box Length - 0.105
Unit Box Width - 0.055
Unit Calculated Volume - 0.0005486 cubm
Unit Calculated Weight - 0.22 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://mikrotik.com/product/knot_embedded_lte4
Warranty - 12 months
weight - 0.3 kg
width - 0.1 m
