Accessories included - WR1300S Power Adapter Ethernet Cable Installation Guide
Antenna - Fixed external
Antenna gain - 5 dBi
Certificates - FCC CE
Color - White
Data Act - Link

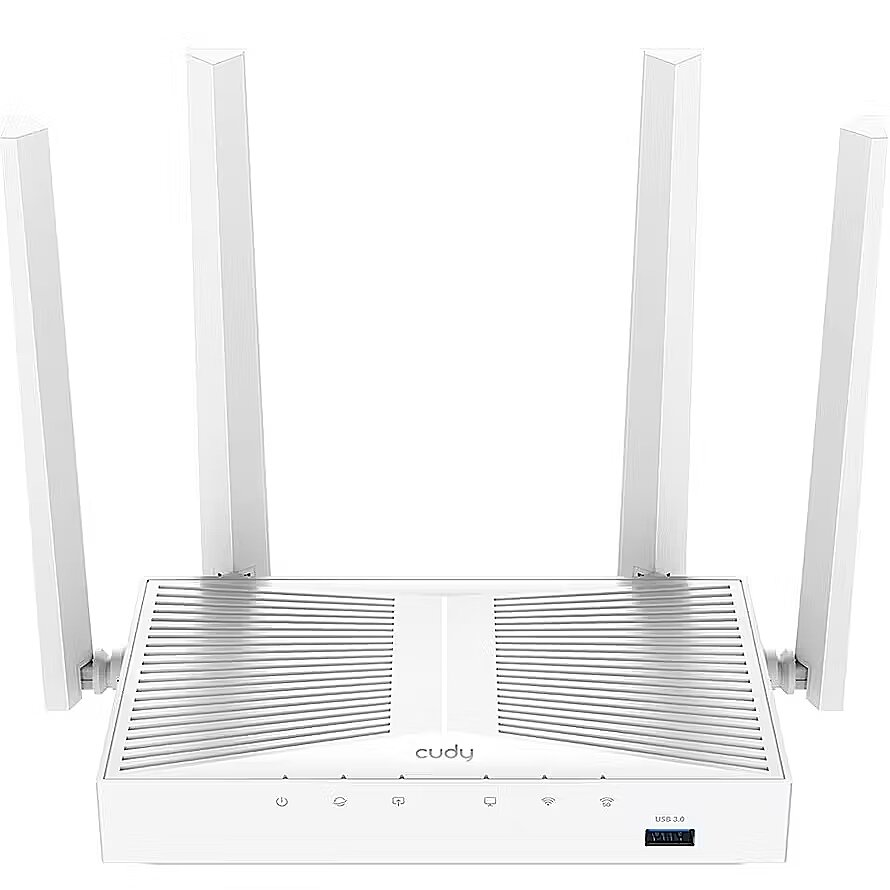

Description - AC1200 Gigabit Wi-Fi Mesh Router with USB Dual-band AC1200 Wi-Fi router with a USB port, ideal for hosting an SMB server, 4K streaming, and Internet speeds up to 1000 Mb/s. Specifications: Dual-band Wi-Fi 5 Wi-Fi speeds: 867 Mbps + 300 Mbps 5 × Gigabit Ethernet ports 4 high-power antennas Supports up to 50 connected devices 1 × USB 3.0 port Coverage: up to 100 m2 (1,100 ft2) Cudy Mesh, VPN Server and Client Cudy App, Cloud Control
Designation - CE+WEEE
dimension depth - 255 mm
dimension height - 60 mm
Dimensions - Router: 183.3 x 109 x 38 mm Antenna: 175 mm
dimension weight - 800 g
dimension width - 330 mm
ean - 6971690793753
Environment requirements - Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 95% non-condensing
guarantee - 24
guarantee_type - normal
I/O ports - 1 x USB 3.0 Type A
I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10/100/1000 Mbit/s
Management, monitoring, configuration - All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter Local Control Method: Config Web Page App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181 QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ
Model - WR1300S
name - Router WR1300S Mesh Gigabit WiFi AC1200 with USB, 5 × 10/100/1000Mbps RJ45 Ports, 4 x 5dB
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - CPU: 880 MHz Dual-Core, MIPS1004Kc Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR3 5 GHz Wi-Fi Speed: 867 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps
Power supply - Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC
producer - Cudy
Security - Wi-Fi Security: WPA/WPA2/WPA3 Parental Controls: Profiles Settings Offline Time Online Time Pause the Internet Web Filter Firewall: SPI Firewall DoS Protection Block PING
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Type - xDSL
vendpn - WR1300S
Weight - 284 g
