Antenna - Antenna design - Internal
Antenna - Antenna type - Internal
Antenna - Connectors - TS-9 external antenna connectors
Battery - Battery run time - 8 h
Battery - Rechargeable battery - Yes
Battery - Removable battery - Yes
Design - Built-in display - Yes
Design - Device type - Cellular network router
Design - Display type - TFT-LCD
Design - LED indicators - WLAN
Design - LED indicators - Yes
Design - Market positioning - Portable
Design - Product colour - White
Design - Product type - Tabletop router
Design - Reset button - Yes
Design - Suitable for indoor use - Yes
Design - WPS push button - Yes
dimensionalWeight - 112
dimensionalWeight - 125
Ethernet LAN features - Ethernet LAN - No
Features - Additional information - 1 x USB Type-C 3.0, 1 x SIM (Nano SIM 4FF), 2x TS-9 external antenna connectors Battery: 3000 mAh, replaceable, Platform: Qualcomm Snapdragon X12 + QCA6174A
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - WPS push button - Yes
Mobile network - 2G standards - GSM
Mobile network - 3G standards - HSDPA
Mobile network - 3G standards - HSUPA
Mobile network - 3G standards - UMTS
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - 4G standard - LTE Cat. 12/13 DL up to 600 Mbps, UL up to 150 Mbps FDD 1,2,3,4,5,26,7,8,20（12/17）,28,32 TDD 38,40,41,42,43 Support 3CA for download, 2CA for upload UMTS 1/2/4/5/8 GSM 850/900/1800/1900 MHz UMTS 1/2/4
Mobile network - Data network - 4G
Mobile network - Data network - GSM
Mobile network - Data network - UMTS
Mobile network - Data transfer rate (LTE) (download) - 300 Mbit/s
Mobile network - Data transfer rate (LTE) (upload) - 50 Mbit/s
Mobile network - Mobile network generation - 5G

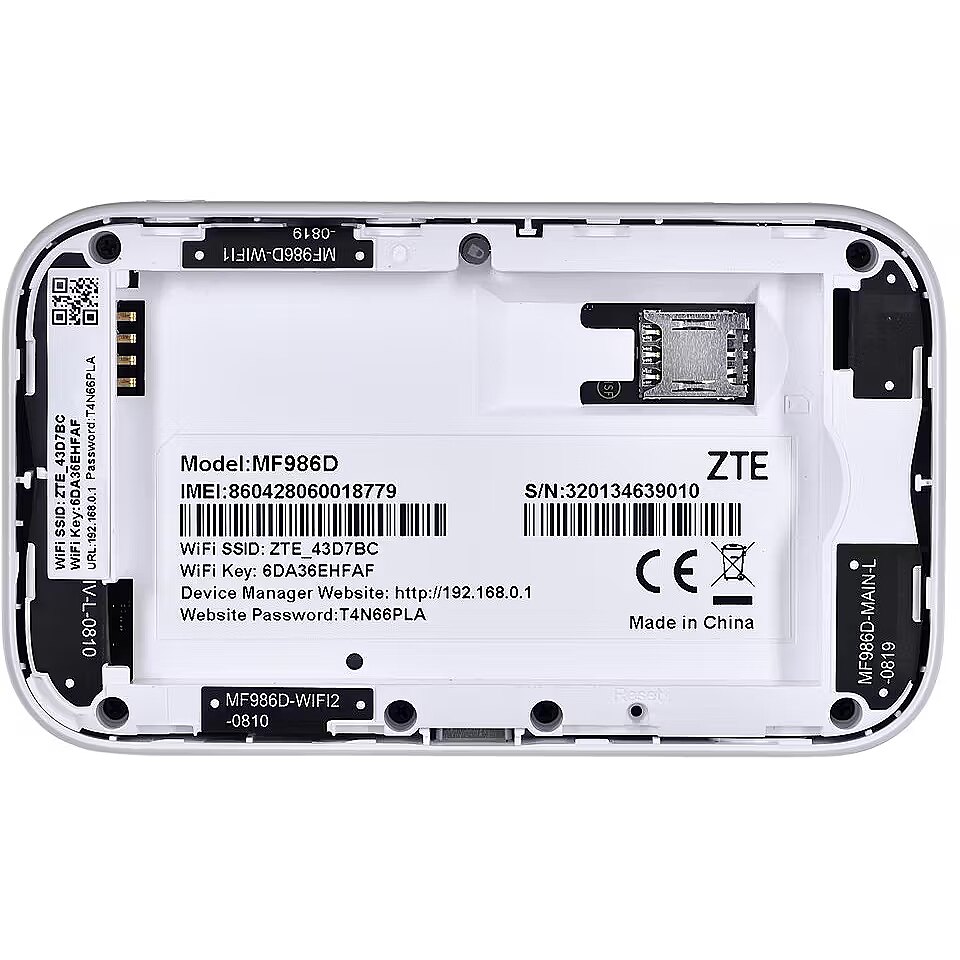

Mobile network - Number of SIM cards - 1
Mobile network - Replaceable battery - Yes
Mobile network - Short Message Service (SMS) - Yes
Mobile network - SIM card type - NanoSIM
Network - Auto MDI/MDI-X - Yes
Network - Ethernet LAN - No
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet

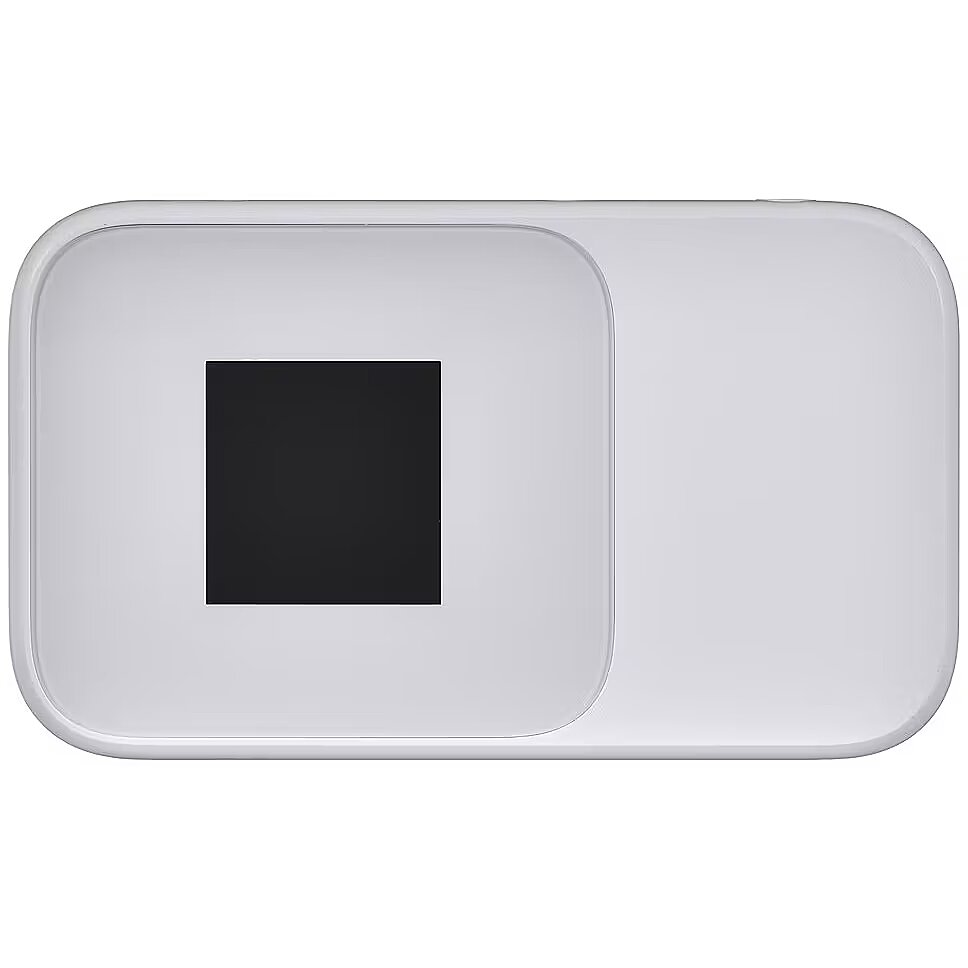

Network - Interface - LCD 1,44” 128x128 pix
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3u
Network - SSID-based VLAN assignment - Yes
Network - VPN Passthrough - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Storage temperature (T-T) - -20 - 45 °C
Output capacity - Built-in processor - Yes
Output capacity - Processor model - SDX12
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Power adapter included - Yes

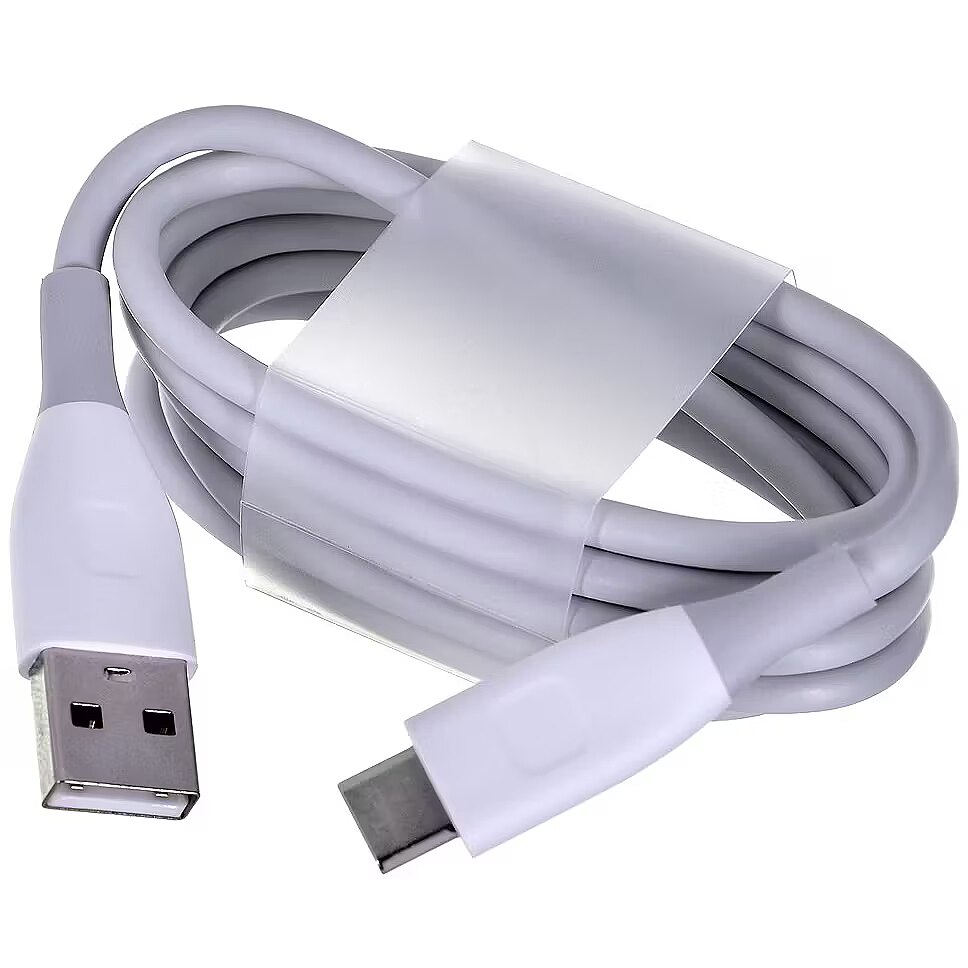

Packaging content - Set contents - Router, battery, 5V 2A charger, USB C cable, user manual, ErP declaration, warranty card
Ports & interfaces - Memory card reader microSD Memory card reader - Not
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-C

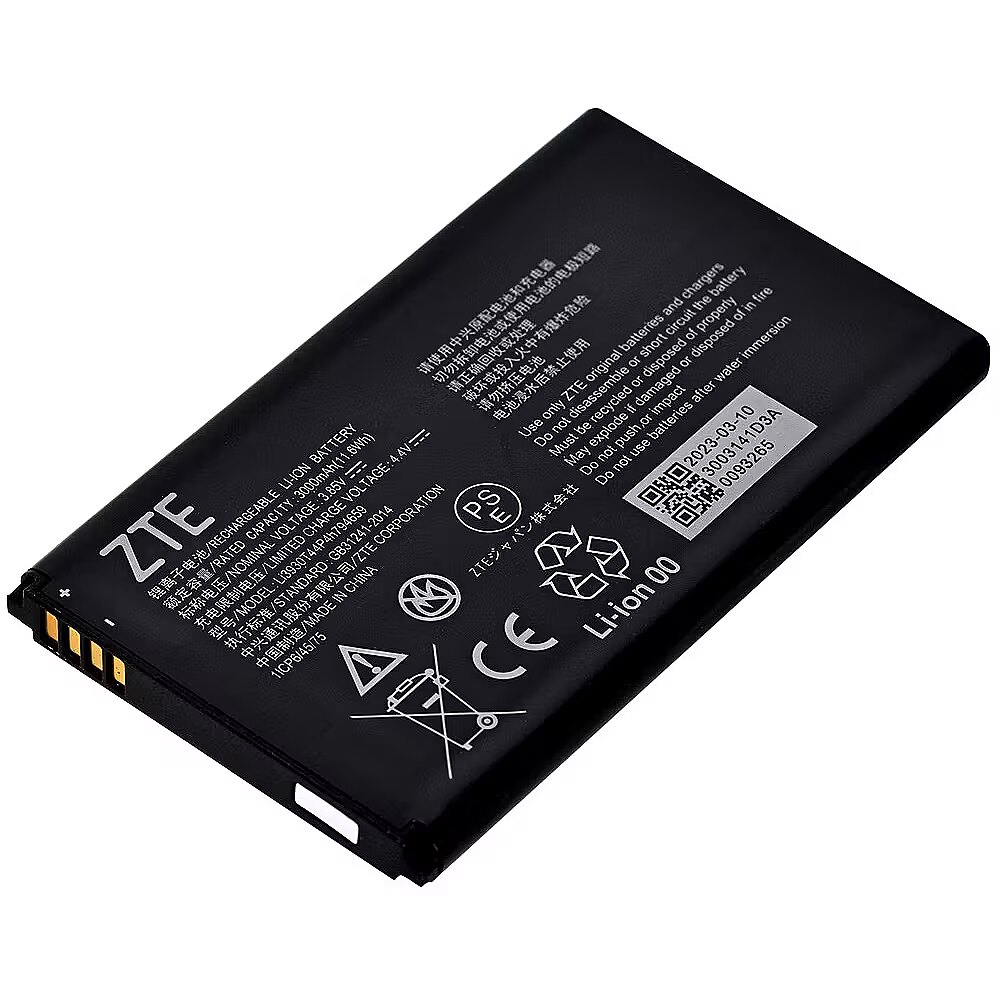

Power - Battery capacity - 3000 mAh
Power - Built-in battery - Yes
Power - Power source type - Battery
producerCode - MF986D

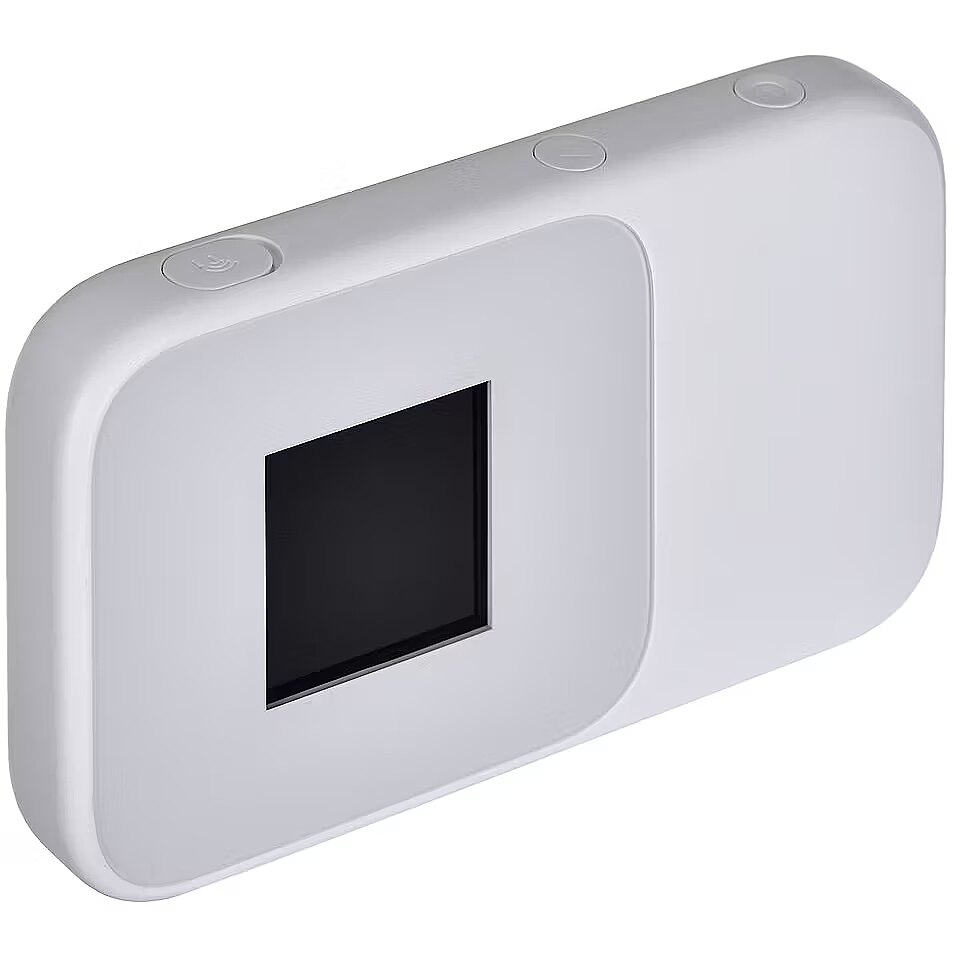

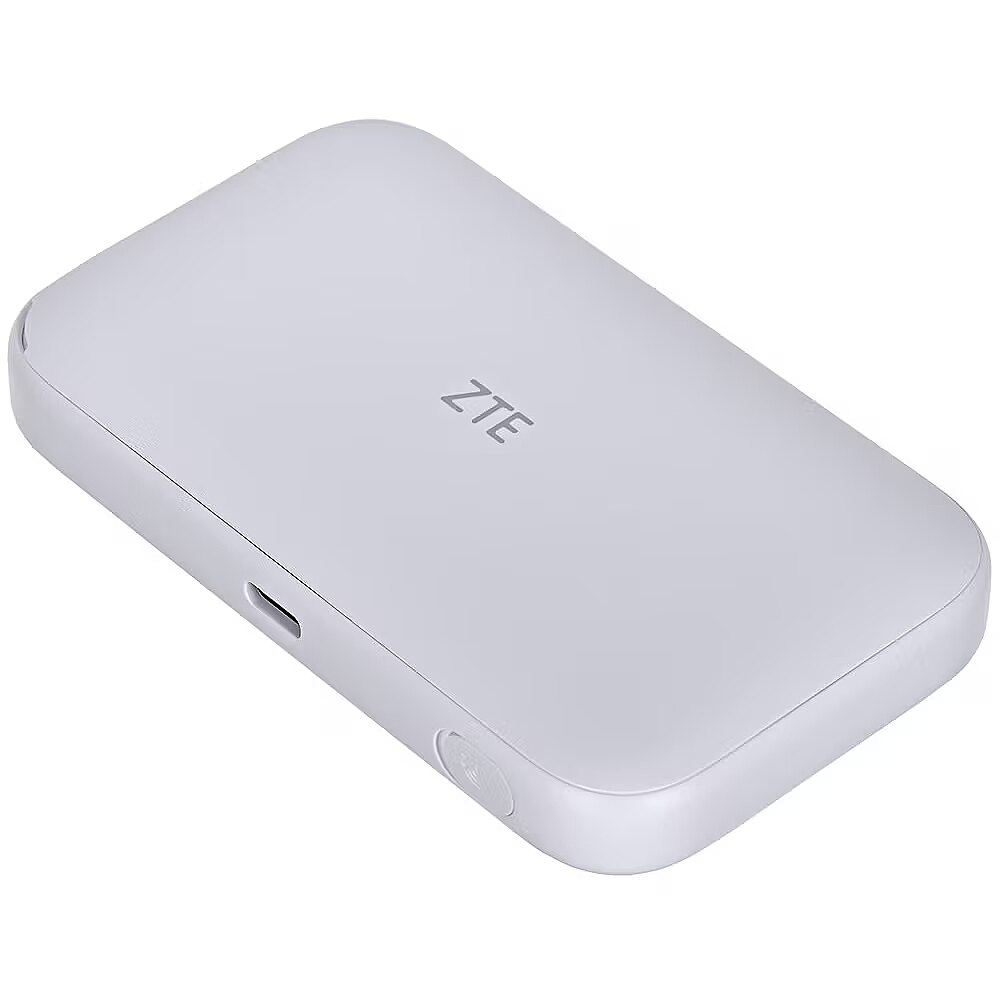

productName - Router ZTE MF986D 4G UFI LTE CAT12/13 1x USB Type C, 1x SIM socket 2x TS-9
productName - ZTE MF986D SIM LTE kat.12
productSize - Normal
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Do not dismantle the unit yourself, there is a risk of electric shock.
Safety warning - Warnings - Do not expose the device to extreme temperatures.
Safety warning - Warnings - Do not expose the device to water or moisture.
Security - Firewall - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - WMM
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Security - Security algorithms - WPA3-PSK
Security - Security algorithms - WPA3-SAE
sizeX - 120
sizeX - 121
sizeY - 55
sizeY - 59
sizeZ - 85
sizeZ - 88
System requirements - Browser supported - Microsoft Internet Explorer 9.0+, Microsoft Edge 14.0, Firefox 60.0, Chrome 60.0, Safari 10.0, Opera 51.2
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
weight - 220
weight - 268
Weight & dimensions - Depth - 14 mm
Weight & dimensions - Depth - 15.5 mm
Weight & dimensions - Height - 63 mm
Weight & dimensions - Height - 107 mm
Weight & dimensions - Weight - 128 g
Weight & dimensions - Weight - 150 g
Weight & dimensions - Width - 63 mm
Weight & dimensions - Width - 107 mm
Wireless LAN features - Functions - Firewall, port forwarding, IP/MAC/port/URL filter
Wireless LAN features - MU-MIMO - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11aс)
Wireless LAN features - Wi-Fi - Yes
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi frequency - 2.4 GHz / 5 GHz
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11ac
Wireless LAN features - Wi-Fi standards - 802.11ac 2.4
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - 802.11n
Wireless LAN features - Wi-Fi standards - IEEE 802.3
Wireless LAN features - Wi-Fi standards - IEEE 802.3u
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rates supported - 300 Mbit/s
Wireless LAN features - WLAN data transfer rates supported - 866 Mbit/s
