ARTIKEL1 - TF5539UHSC-W1AG 55IN TOUCH
ARTIKEL2 - 3840X2160 500CD/QM 15TP PCAP 2XH
Brand - iiyama
BrandPartCode - TF5539UHSC-W1AG
Breite - 0
Category - Computer Monitors
Category 1 - Displays
Category 2 - Large Format Displays
Design - Front bezel colour - White
Design - Glass thickness - 4 mm
Design - Housing material - Metal
Design - Product colour - White
Display - Anti-glare screen - Yes
Display - Colour depth - 8 bit
Display - Contrast ratio (typical) - 1100:1
Display - Digital horizontal frequency - 30 - 83 kHz
Display - Display brightness - 500 cd/m²
Display - Display brightness (typical) - 500 cd/m²
Display - Display diagonal - 139.7 cm (55")
Display - Display diagonal (metric) - 139 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 15
Display - Panel type - IPS
Display - Pixel pitch - 0.315 x 0.315 mm
Display - Response time - 8 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 121.2 cm
Display - Viewable size, vertical - 68.3 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570118076
EANCode - 4948570118076

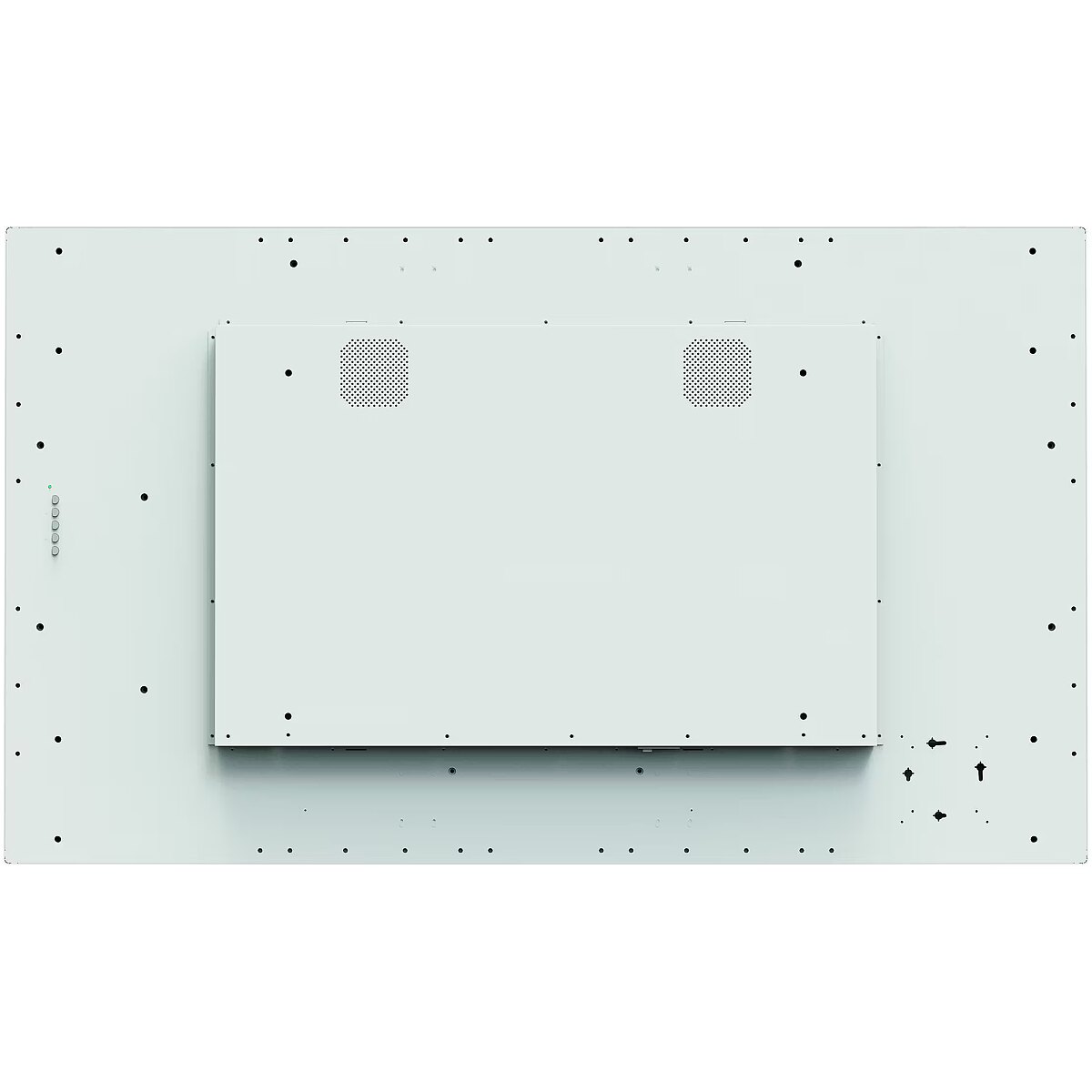

Ergonomics - Panel mounting interface - 600 x 400 mm
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Gewicht - 46
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570118076
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TF5539UHSC-W1AG
Laenge - 1.4
Logistics data - Harmonized System (HS) code - 85285210
Logistics data - Pallet net height - 124.5 cm
Logistics data - Pallet net length - 198.6 cm
Logistics data - Pallet net width - 142 cm
Logistics data - Products per pallet - 10 pc(s)

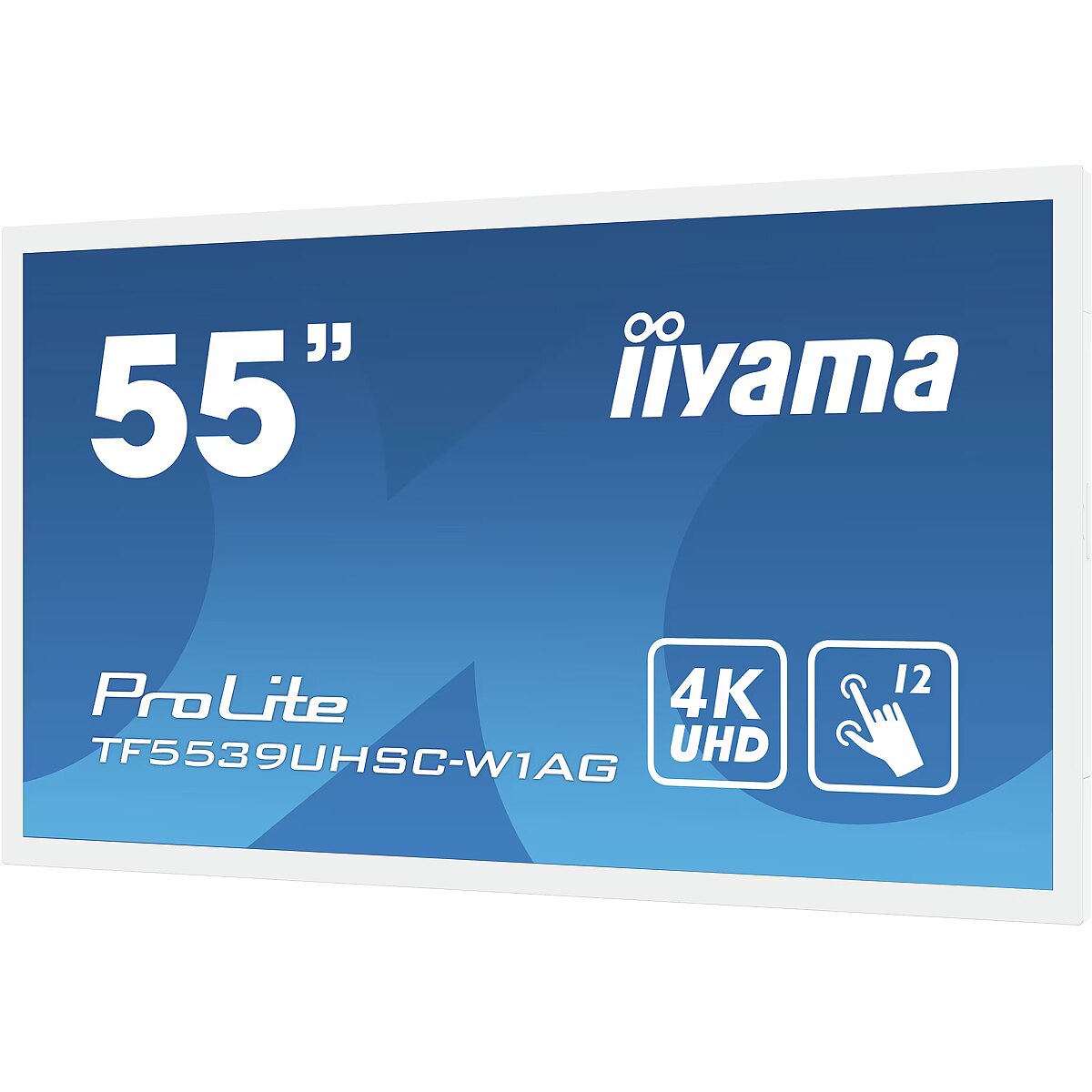

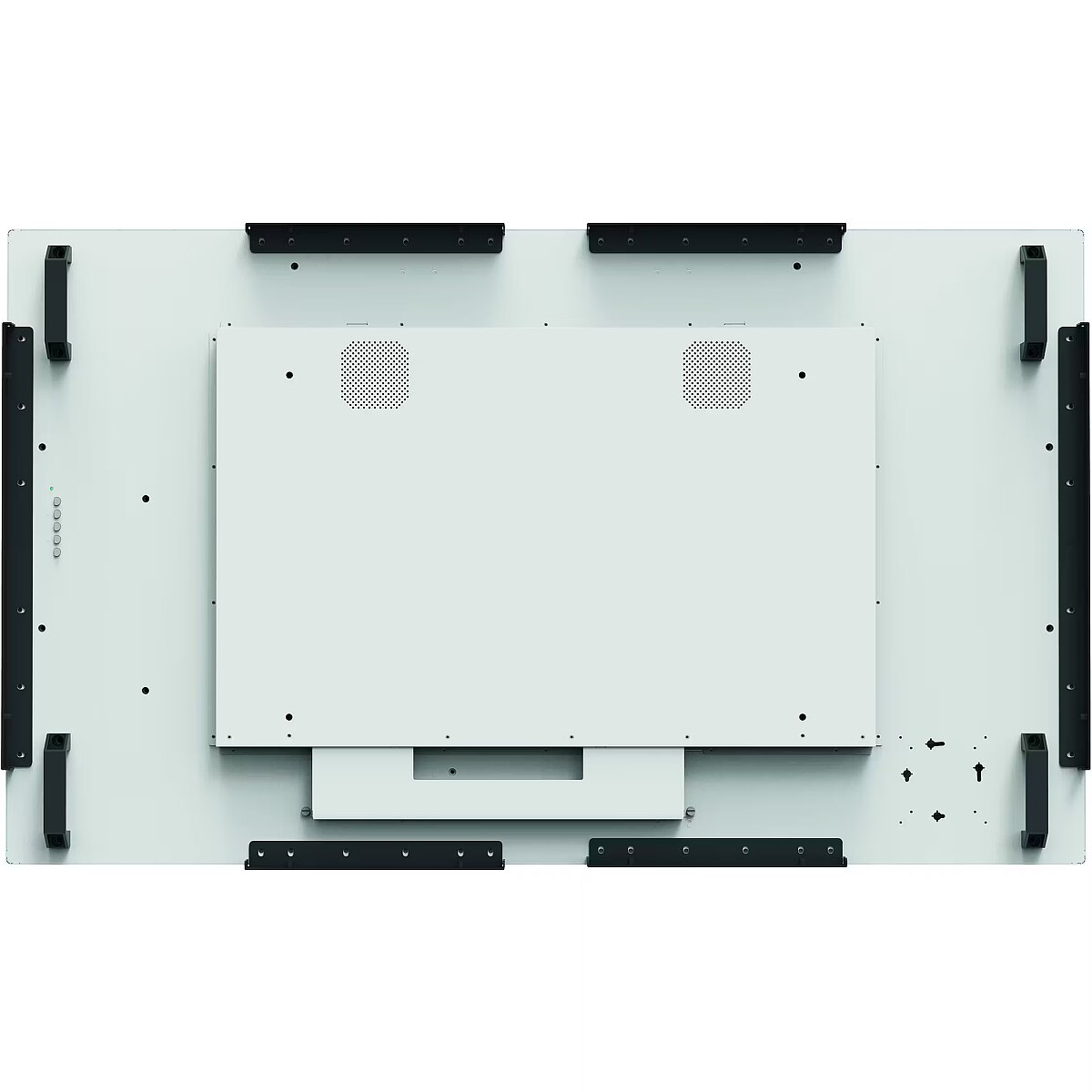

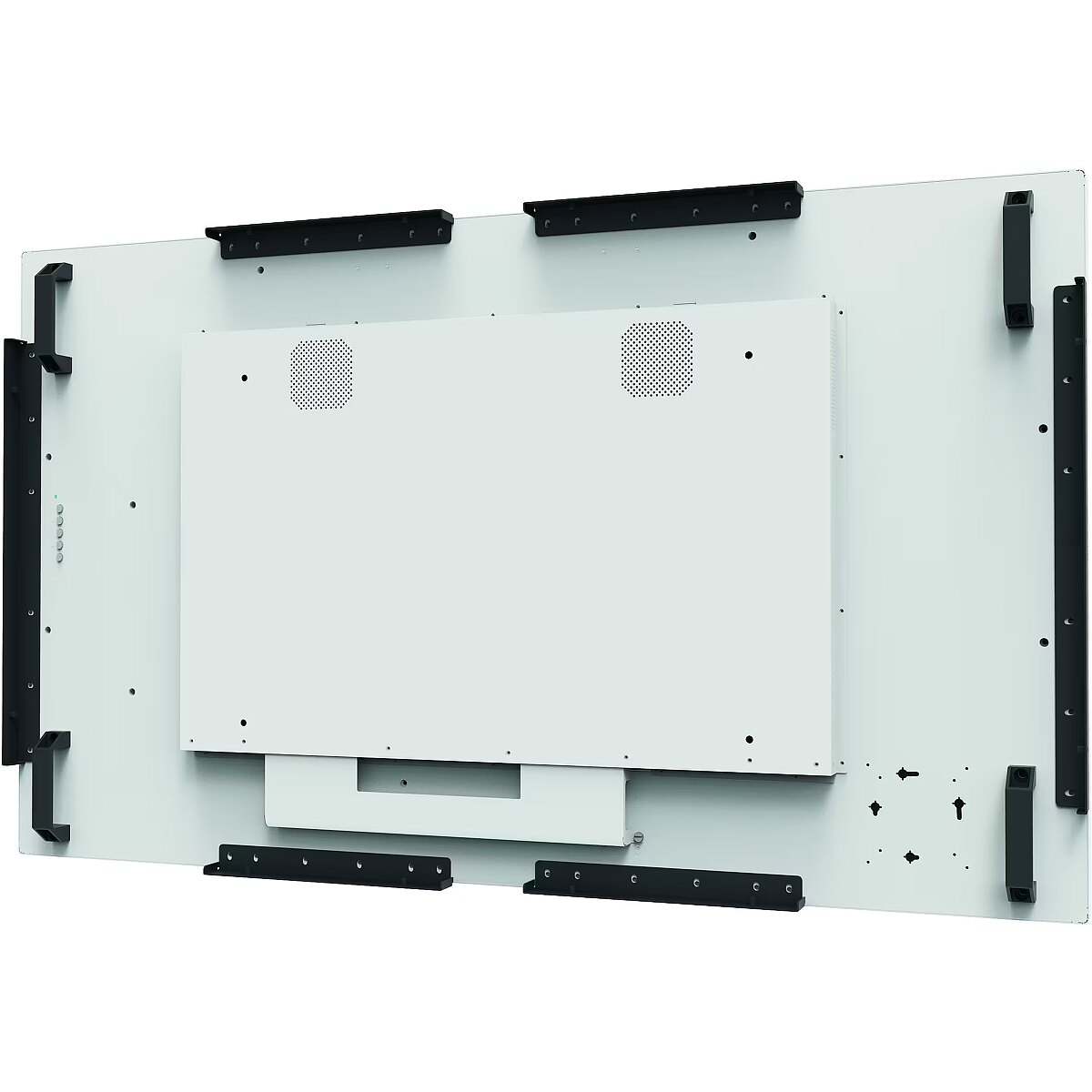

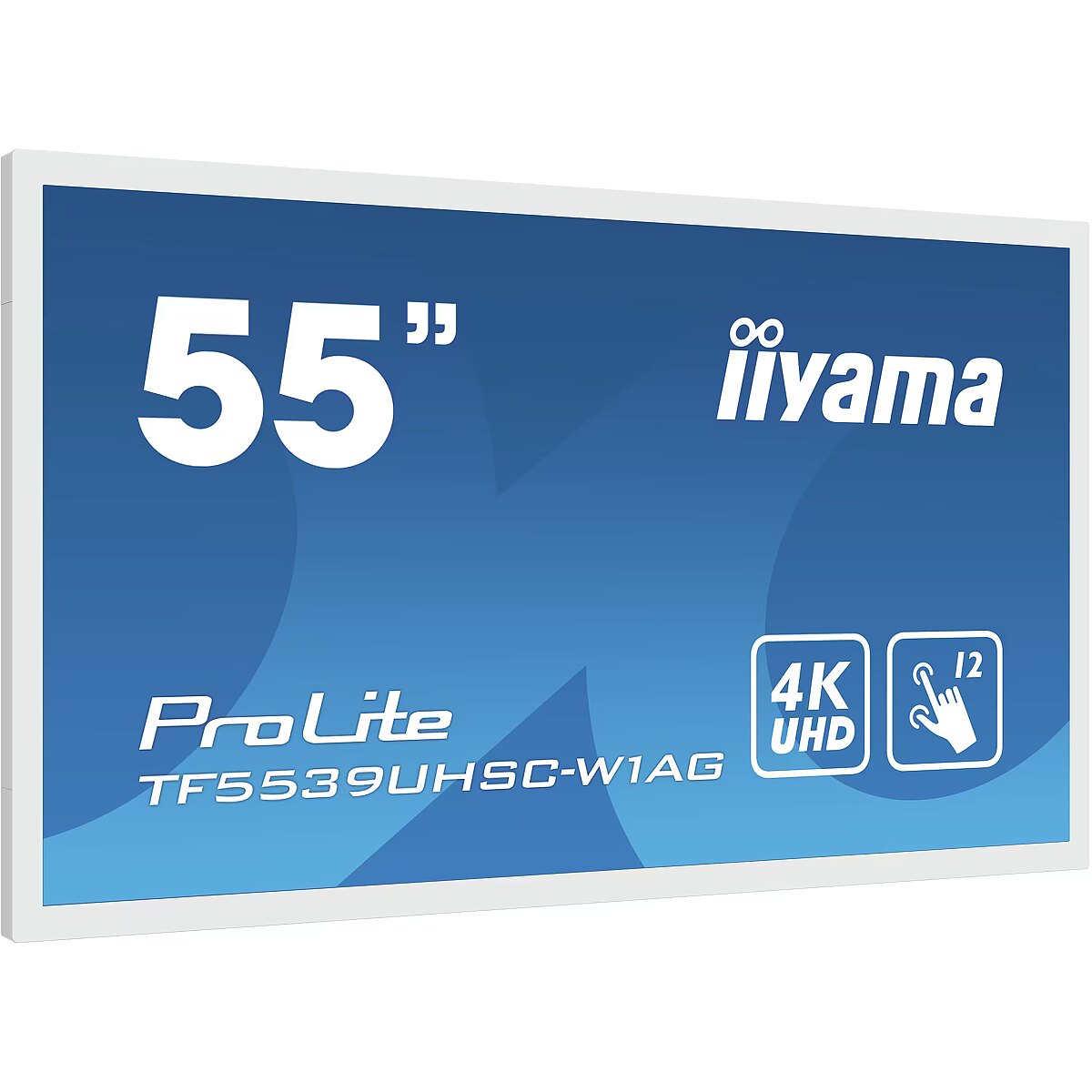

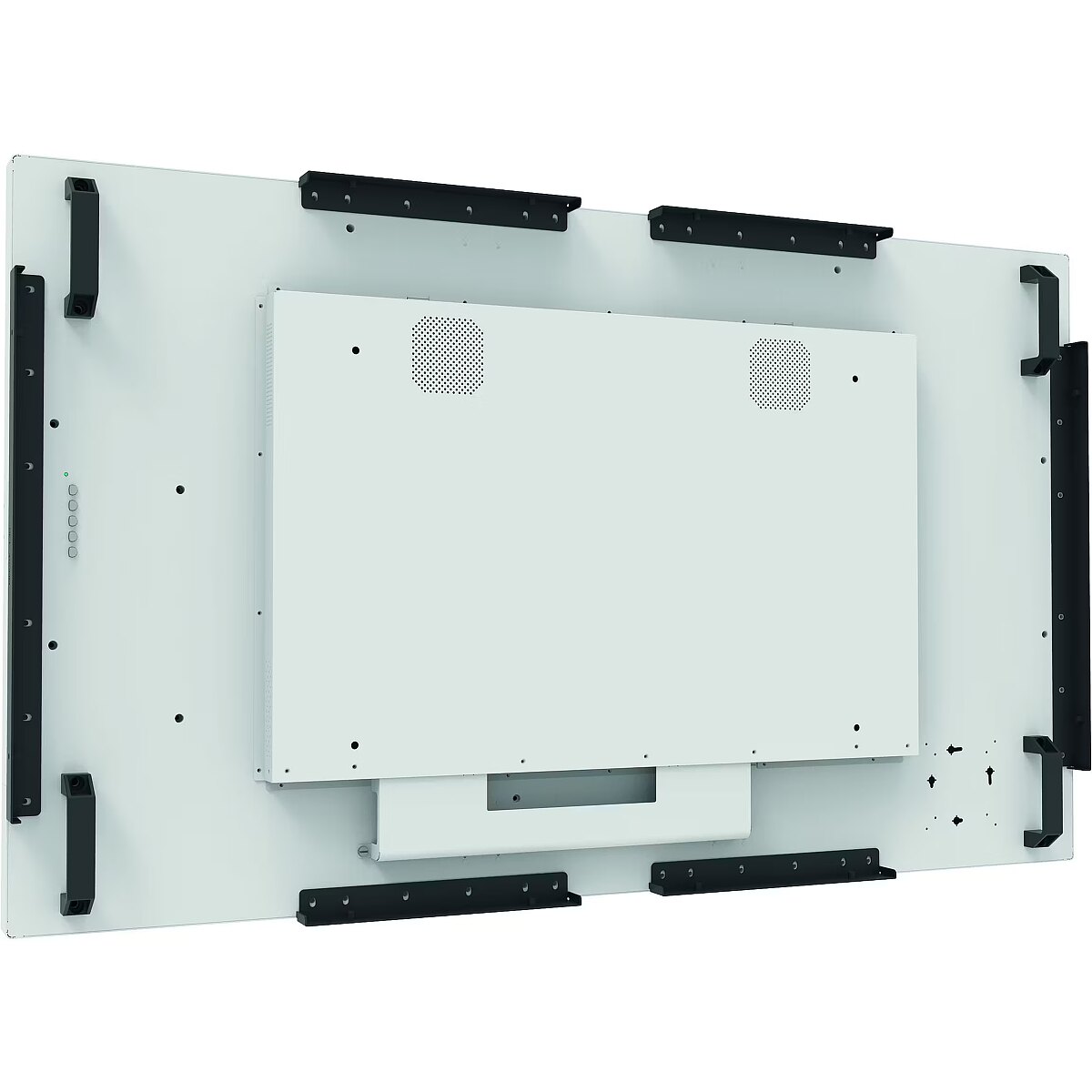

LongDesc - The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.
LongProductName - 55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use
LongSummaryDescription - iiyama ProLite TF5539UHSC-W1AG. Display diagonal: 139.7 cm (55"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
Manufacturer - iiyama
MPN - TF5539UHSC-W1AG
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 16 W
Name - IIYAMA 139.0cm(55") TF5539UHSC-W1AG 16:9 Touch HDMI+DP (Speditionsversand)
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Ethernet LAN (RJ-45) ports - 1
Other features - International Protection (IP) code - IP54
Other features - Mean time between failures (MTBF) - 50000 h

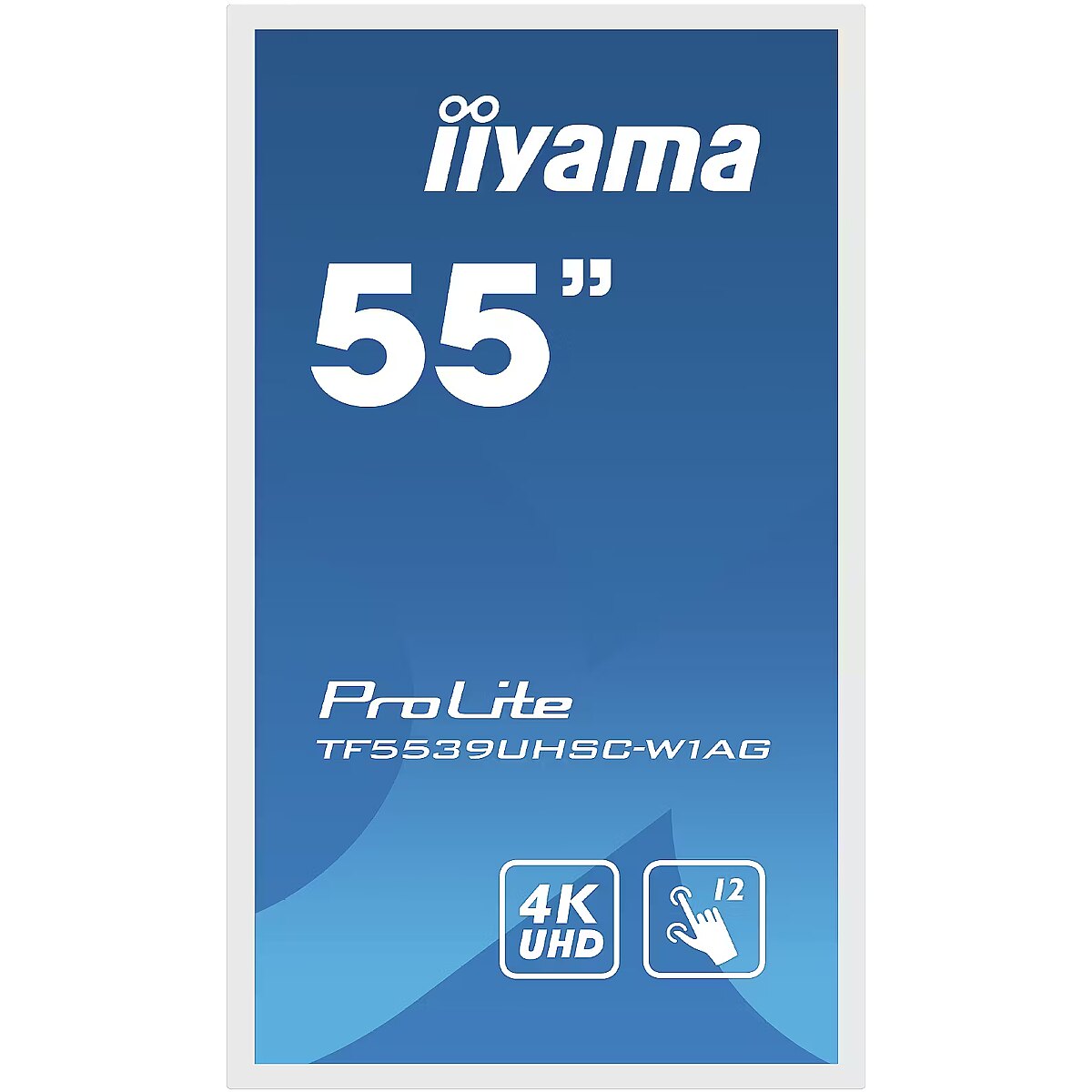

Other features - Placement supported - Horizontal/Vertical
Other features - Positional accuracy - 3 mm
Packaging content - Cables included - DisplayPort, HDMI, LAN (RJ-45), USB
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 1400 mm
Packaging data - Package height - 930 mm
Packaging data - Package weight - 46.5 kg
Packaging data - Package width - 1400 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Operating hours (hours/days) - 24/7

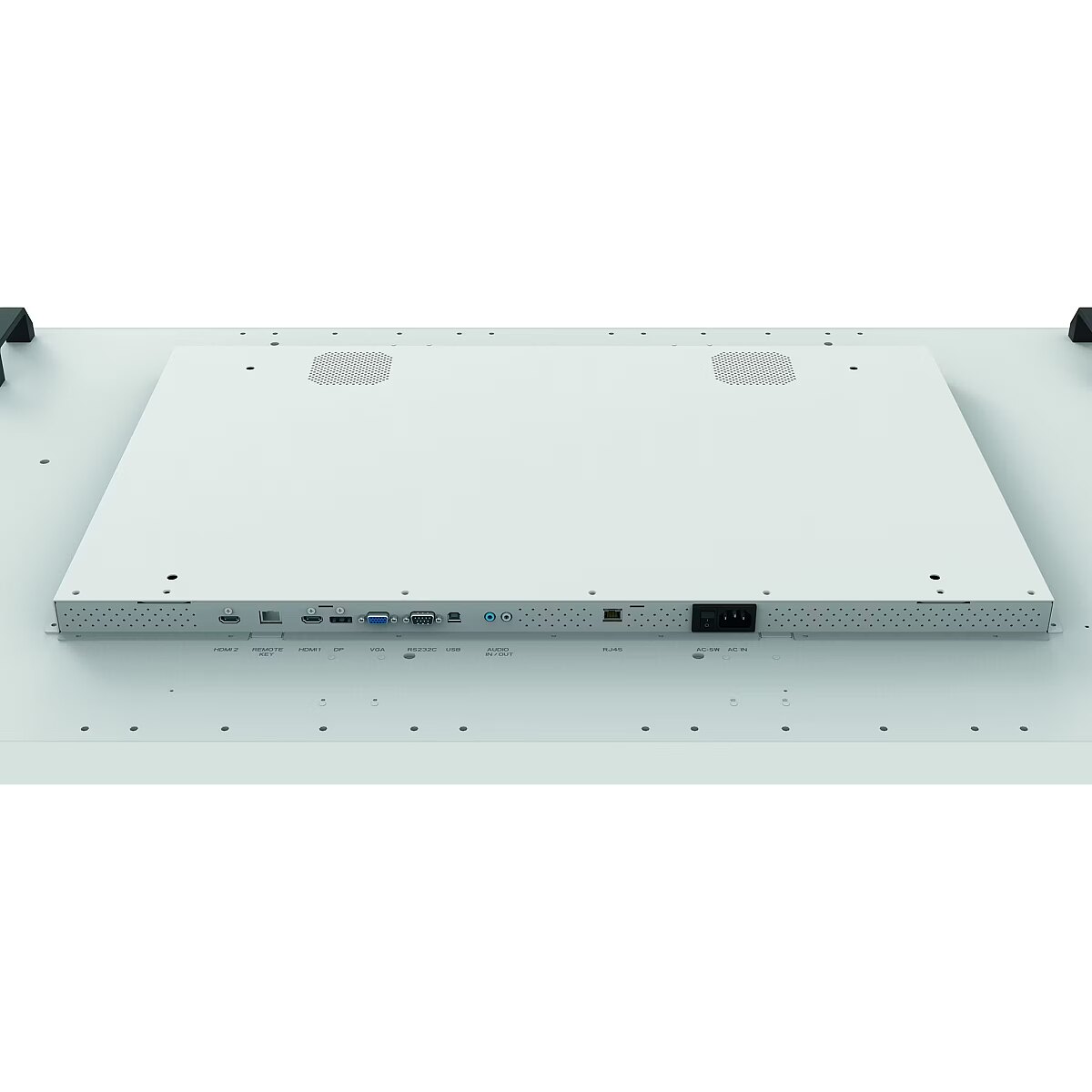

Ports & interfaces - Audio input - 1
Ports & interfaces - Audio output - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4/2.0
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (SDR) - G
Power - European Product Registry for Energy Labelling (EPREL) code - 431973
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 1.5 W
Power - Power consumption (typical) - 155 W
Power - Power supply type - Internal
ProductName - TF5539UHSC-W1AG
ShortSummaryDescription - iiyama ProLite TF5539UHSC-W1AG, 139.7 cm (55"), 3840 x 2160 pixels, 4K Ultra HD, LED, 8 ms, White
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - iiyama ProLite TF5539UHSC-W1AG computer monitor 139.7 cm (55") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Multi-user White
URL - https://iiyama.com/
WarrantyInfo -
Weight - 48
Weight & dimensions - Depth (without stand) - 68 mm
Weight & dimensions - Depth (with stand) - 68 mm
Weight & dimensions - Height (without stand) - 749.4 mm
Weight & dimensions - Height (with stand) - 749.4 mm
Weight & dimensions - Weight (without stand) - 41 kg
Weight & dimensions - Weight (with stand) - 41 kg
Weight & dimensions - Width (without stand) - 1271.5 mm
Weight & dimensions - Width (with stand) - 1271.5 mm
