ARTIKEL1 - QX-43 43IN 3840X2160 UHD MVA
ARTIKEL2 - 500CD D-SUB DVI-D HDMI DP
Brand - AG Neovo
BrandPartCode - QX430011E0100
Breite - 0.7
Category - Surveillance Monitors
Design - Mounting type - Freestanding/Wall-mounted
Design - Product colour - Black
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 108 cm (42.5")
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display type - LED
Display - Horizontal scan range - 31 - 92 kHz
Display - Panel type - VA
Display - Pixel pitch - 0.245 x 0.245 mm
Display - Response time - 5 ms
Display - Vertical scan range - 48 - 85 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739593969
Gewicht - 32.5
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4710739593969
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0.19
HSTNUMMER - QX430011E0100
Laenge - 1.16
LongDesc - The QX-43 43-Inch 4K surveillance display is designed for high-resolution security systems. Multi-screen viewing enables the simultaneous display of multiple signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-43 provides the gain in clarity required for real-time and up-close monitoring in traffic management centres, casinos, emergency operations centres and other public installations.EXPERIENCE THE 4K DIFFERENCEDon’t miss a single detail with this powerful 4K display. View smooth 4K video and graphics with a new level of detail and clarity. Offering 8.3 million pixels, the QX-43 43-Inch 4K surveillance display provides sufficient resolution for even the most demanding surveillance and digital signage applications.EASY CONTROL AND INTEGRATIONIts built-in RS-232 and Ethernet control capabilities make the QX-43 easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, the QX-43 can be managed in multiple scenarios and applications.MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENSBeyond the traditional two-input Picture-by-Picture (PIP) feature, the multi-screen viewer can display up to four full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true Full HD content.INDUSTRY-LEADING RELIABILITYDesigned for 24/7 operation, these durable metal-housed displays protected with NeoV™ Optical Glass screen take advantage of superior components to ensure a long product lifetime. Its integrated HeatControl sensors automatically activate the internal cooling fans, which is crucial when the temperature rises in mission-critical installations.PID COMMAND & CTRL SOFTWAREPID Command & Ctrl is a software that allows users to control this 43-Inch 4K surveillance display via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.
LongProductName - 42.5”, UHD 3840 x 2160, 0.245 mm, 500 cd/m, 20000000:1 (DCR), 178°/178°, 16.7M, 5 ms, HDMI, DVI, VGA, RS232, RJ45, USB
LongSummaryDescription - AG Neovo QX-43. Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 108 cm (42.5"), Display resolution: 3840 x 2160 pixels, Display type: LED. Speaker power: 10 W, Panel mounting interface: 400 x 200,400 x 400 mm. Power source type: AC, Power consumption (typical): 63.5 W, Power consumption (standby): 0.5 W. Weight: 27 kg, Height: 589.6 mm, Depth: 87 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Batteries included - Yes
Performance - Built-in speaker(s) - Yes
Performance - Number of built-in speakers - 2
Performance - Panel mounting interface - 400 x 200,400 x 400 mm
Performance - Speaker power - 10 W
Performance - VESA mounting - Yes
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RJ-45 ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 100-240 V
Power - Energy consumption (SDR) per 1000 hours - 64 kWh
Power - Energy efficiency class (SDR) - G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 63.5 W
Power - Power source type - AC
ProductName - QX-43
ShortSummaryDescription - AG Neovo QX-43, Freestanding/Wall-mounted, Black, 108 cm (42.5"), 3840 x 2160 pixels, LED, VA
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details - Compliance certificates - RoHS

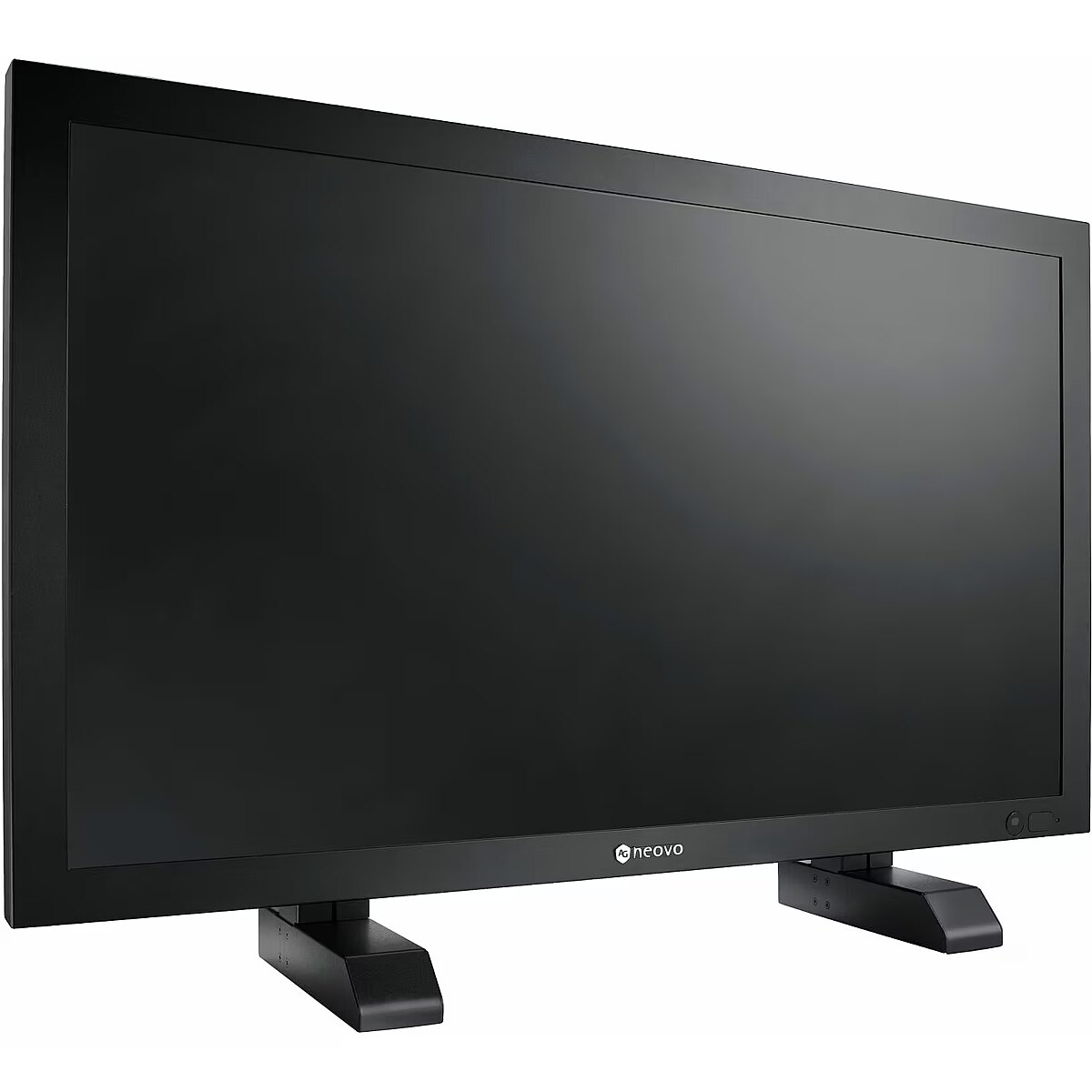

Title - AG Neovo QX-43 108 cm (42.5") 3840 x 2160 pixels
URL - https://ua.agneovo.com/it/content/qx-series.asp
WarrantyInfo -
Weight & dimensions - Depth - 87 mm
Weight & dimensions - Height - 589.6 mm
Weight & dimensions - Package depth - 185 mm
Weight & dimensions - Package height - 688 mm
Weight & dimensions - Package weight - 31.9 kg
Weight & dimensions - Package width - 1135 mm
Weight & dimensions - Weight - 27 kg
Weight & dimensions - Width - 1002.5 mm
