ARTIKEL1 - TE8615A-B2AG 86IN UHD IR 40P T
ARTIKEL2 - AG WITH INTERACTIVE ANDROID EDLA
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 60 W
Brand - iiyama
BrandPartCode - TE8615A-B2AG
Breite - 1.28
Category - Signage Displays
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 8 GB
Computer system - Internal storage capacity - 128 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A53+Cortex-A72
Computer system - Processor cores - 8
Design - Anti-glare screen - Yes
Design - Bezel colour - Black
Design - Bezel width (bottom) - 4.1 cm
Design - Bezel width (side) - 1.65 cm
Design - Bezel width (top) - 1.65 cm
Design - Orientation - Horizontal

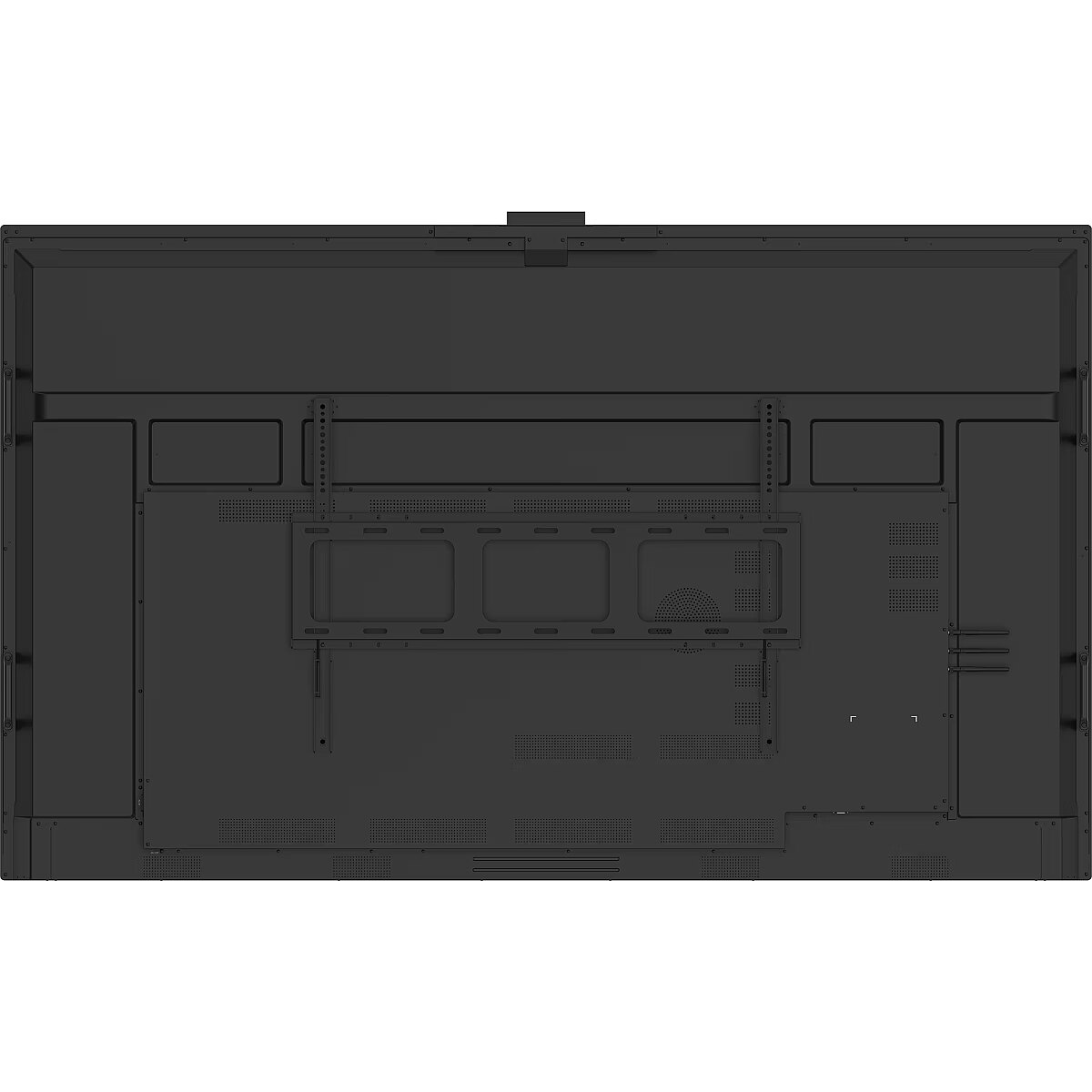

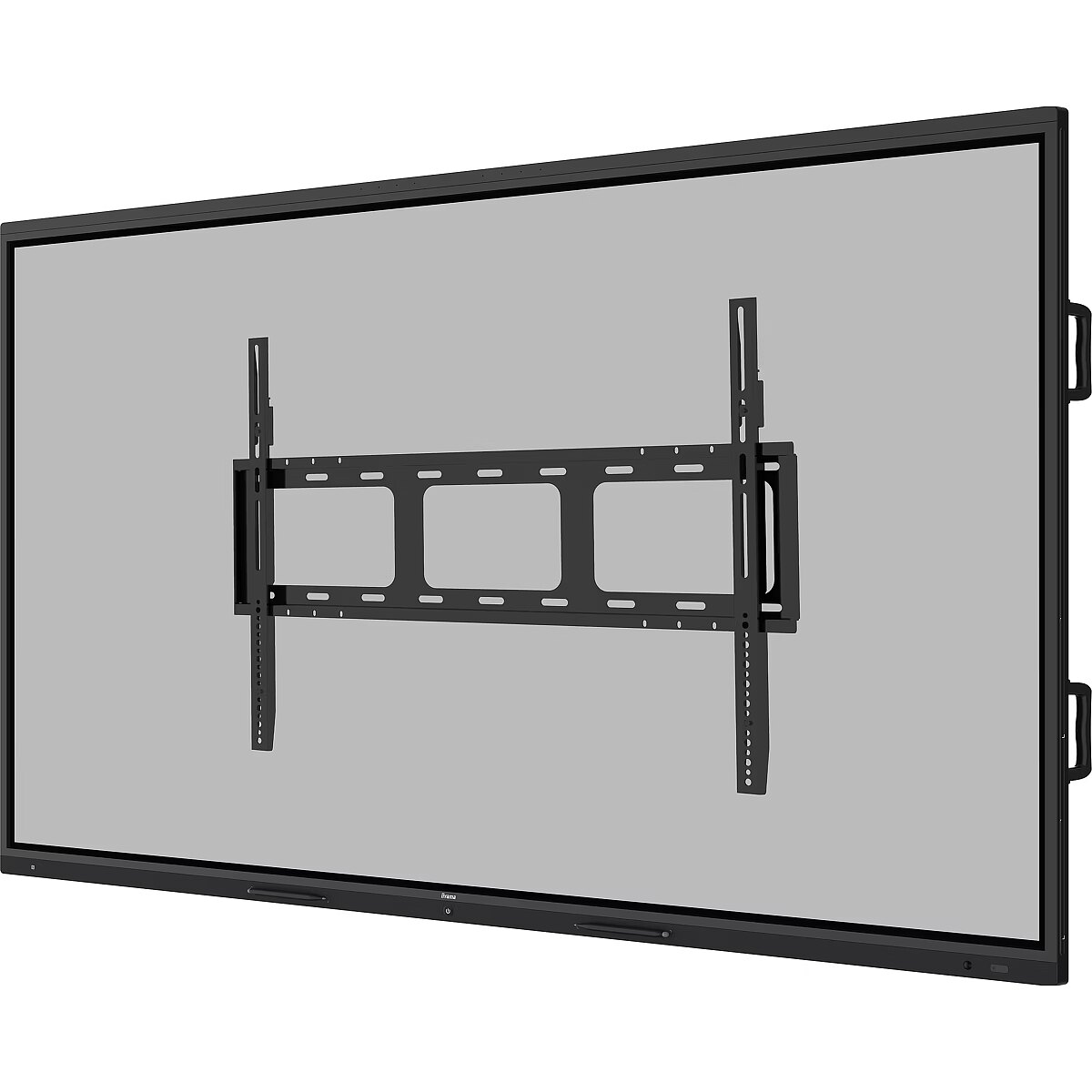

Design - Panel mounting interface - 800 x 600 mm
Design - Placement supported - Indoor
Design - Positioning accuracy - 1 mm
Design - Product colour - Black
Design - Product design - Interactive flat panel

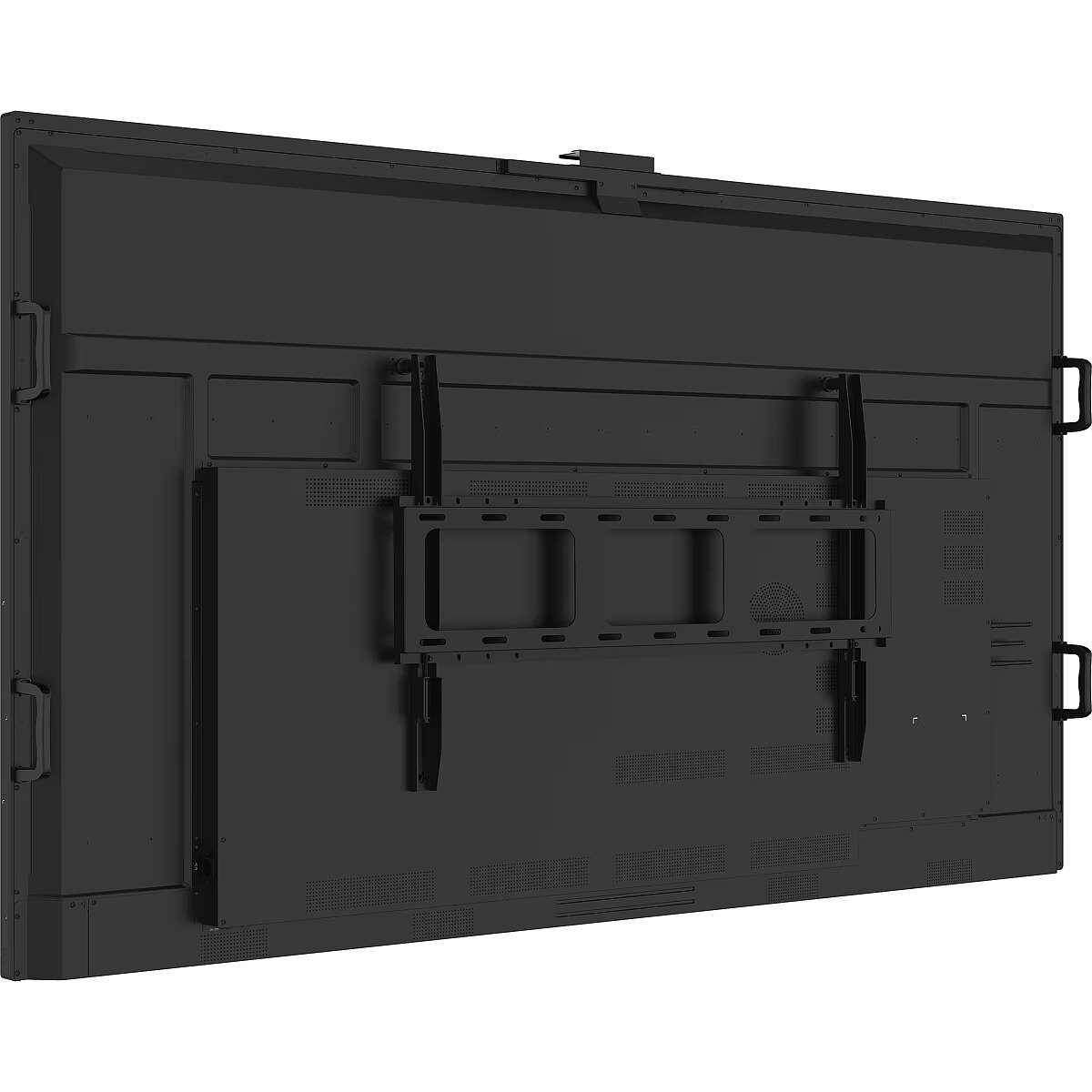

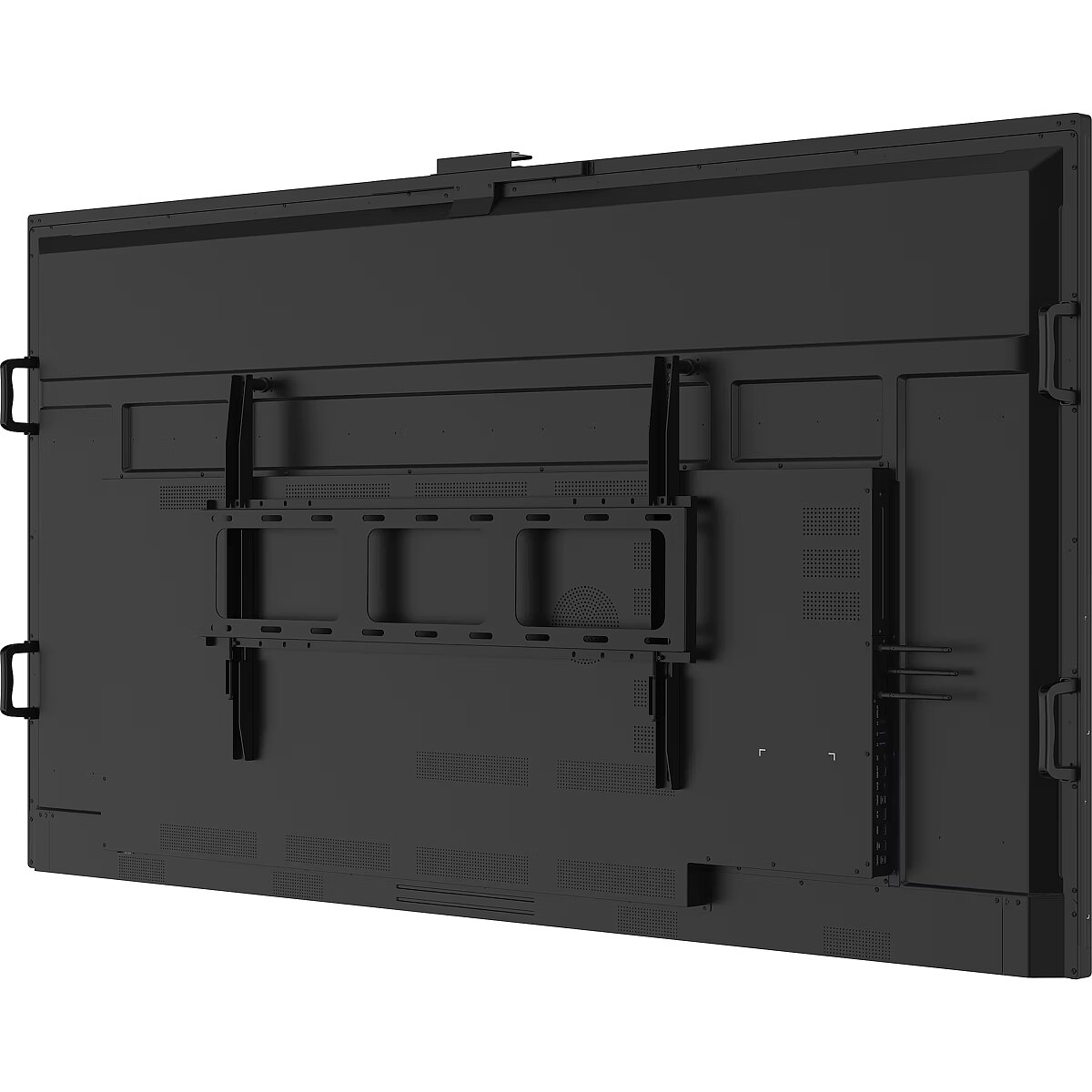

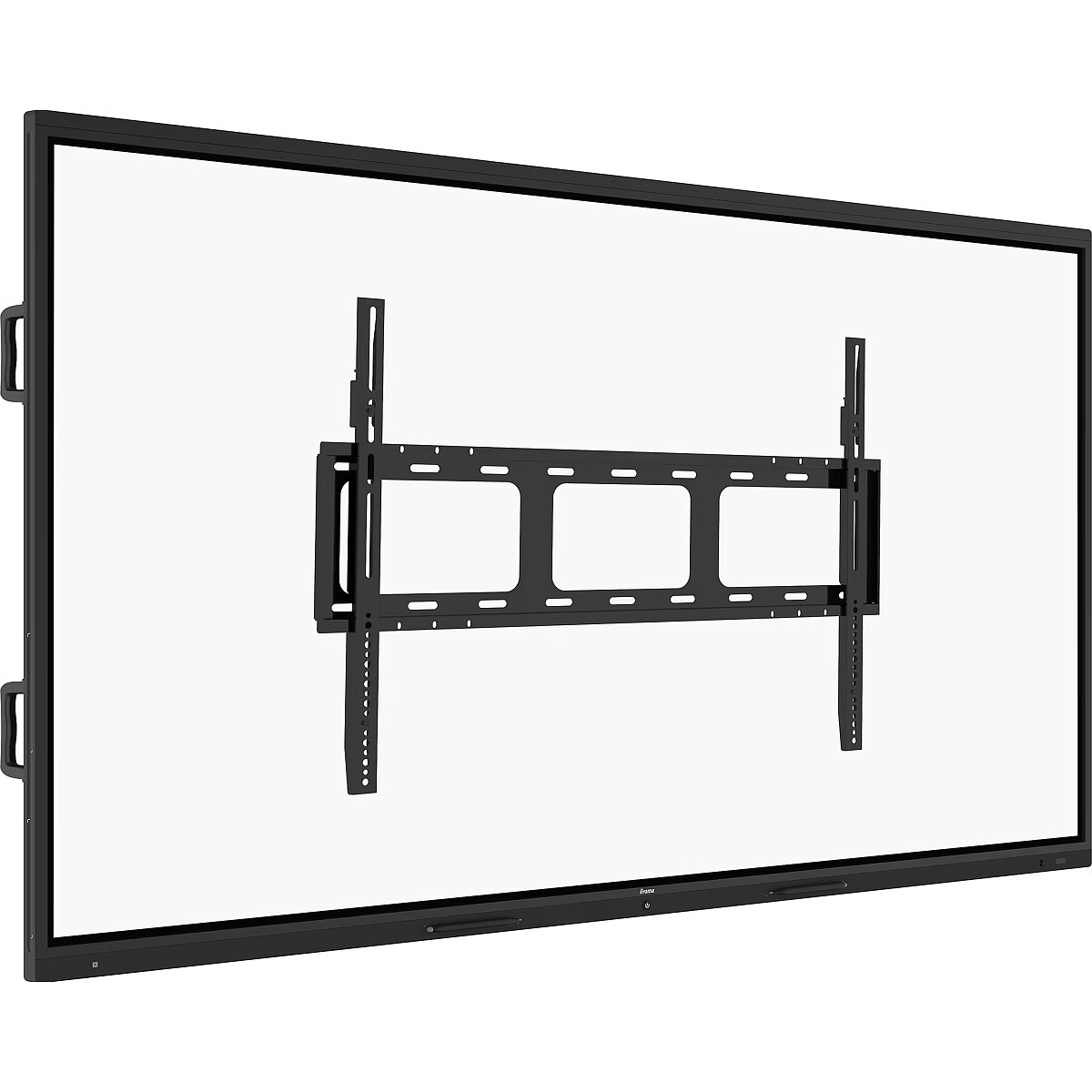

Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (dynamic) - 5000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 550 cd/m²
Display - Display diagonal - 2.17 m (85.6")
Display - Display diagonal (metric) - 217.4 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Glass thickness - 3.2 mm
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 30 - 135 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 40
Display - Panel type - IPS
Display - Pixel pitch - 0.493 x 0.493 mm
Display - Response time - 8 ms
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Infrared
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570127504
Gewicht - 81.5
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570127504
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TE8615A-B2AG
Laenge - 2.1
Logistics data - Products per pallet - 4 pc(s)

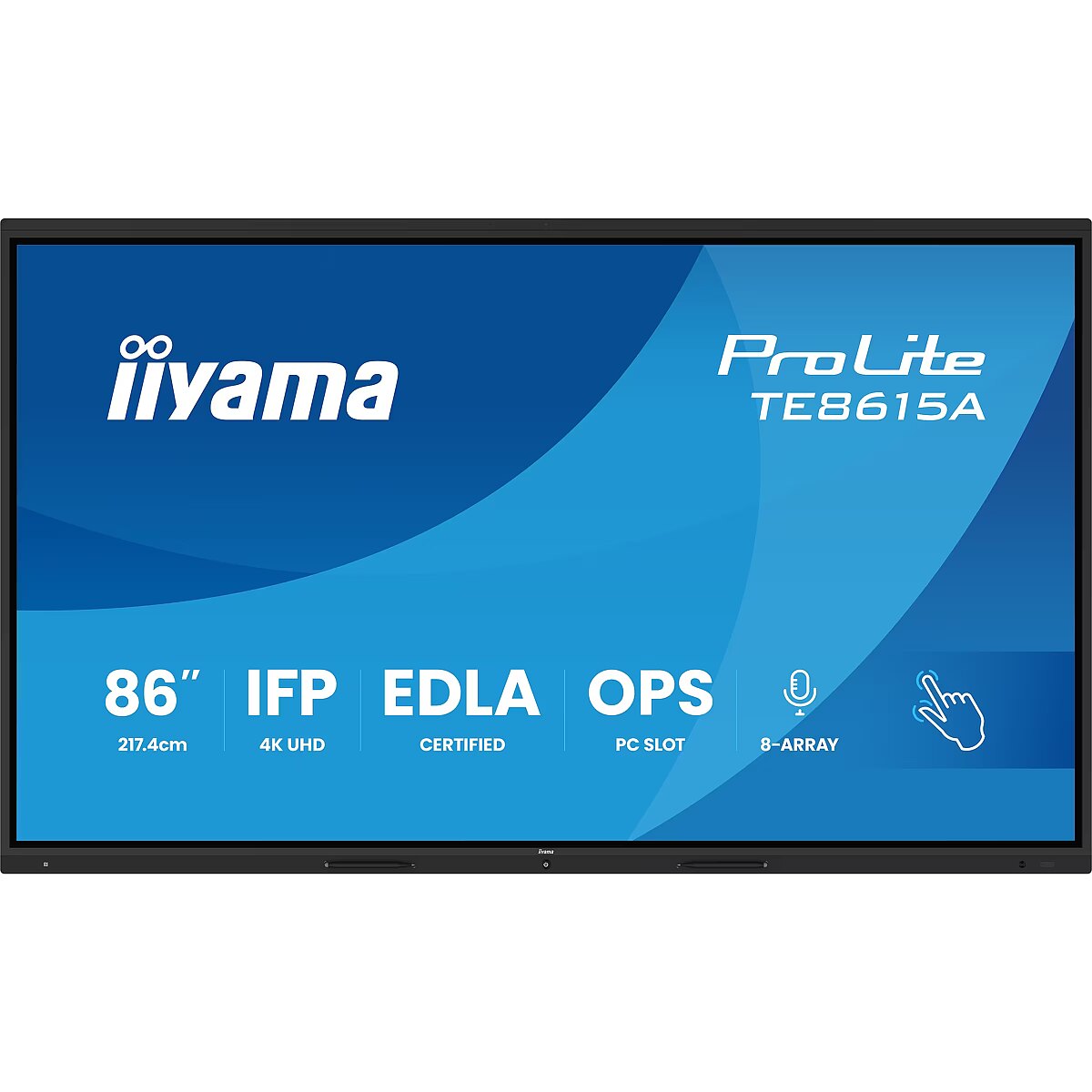

LongDesc - Elegance and functionality come together in the ProLite TE8615A-B2AG. This 86” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE8615A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6E, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE8615A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE8615A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
LongProductName - 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance
LongSummaryDescription - iiyama TE8615A-B2AG. Product design: Interactive flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Bluetooth - Yes
Other features - Bluetooth version - 5.0
Other features - Built-in microphone - Yes
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Power supply type - Internal
Other features - Quick start guide - Yes

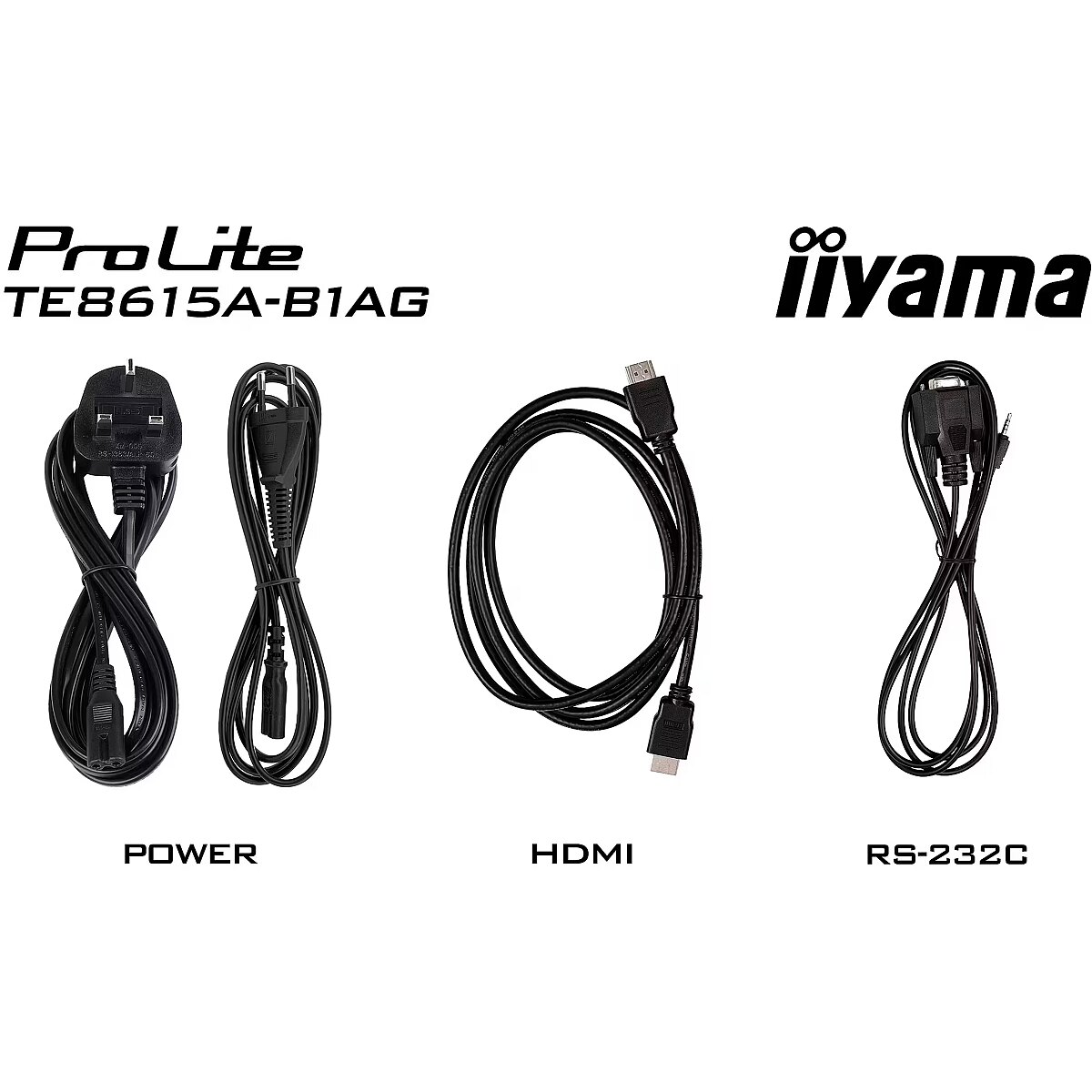

Packaging content - Cables included - AC, USB, HDMI
Packaging content - Number of stylus pens - 4
Packaging content - Remote control included - Yes
Packaging content - Stylus pen - Yes
Packaging data - Package depth - 185 mm
Packaging data - Package height - 1265 mm
Packaging data - Package weight - 82.7 kg
Packaging data - Package width - 2095 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 13
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Estonian, Hungarian, LAT, Lithuanian, Ukrainian
Performance - Operating hours (hours/days) - 24/7
Performance - Picture-in-Picture - Yes
Performance - Purpose - Education
Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - Card reader integrated - Yes
Ports & interfaces - Compatible memory cards - MicroSD (TransFlash)
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI output ports quantity - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - OPS module slot - Yes
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB 2.0 Type-B ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB connector type - USB Type-A, USB Type-B, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 4
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 261 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 300 W
ProductName - TE8615A-B2AG
ShortSummaryDescription - iiyama TE8615A-B2AG, Interactive flat panel, 2.17 m (85.6"), 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - N
Technical details - Audio in (mini jack) - Yes
Technical details - Compliance certificates - CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Technical details - OPS slot - 1
Technical details - Playback media - Y
Technical details - Sustainability certificates - EPEAT, ErP, EPEAT Bronze
Technical details - User controls - personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
Technical details - Warranty period - 5 year(s)
Title - iiyama TE8615A-B2AG Signage Display Interactive flat panel 2.17 m (85.6") Wi-Fi 550 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
URL - https://iiyama.com/
WarrantyInfo -

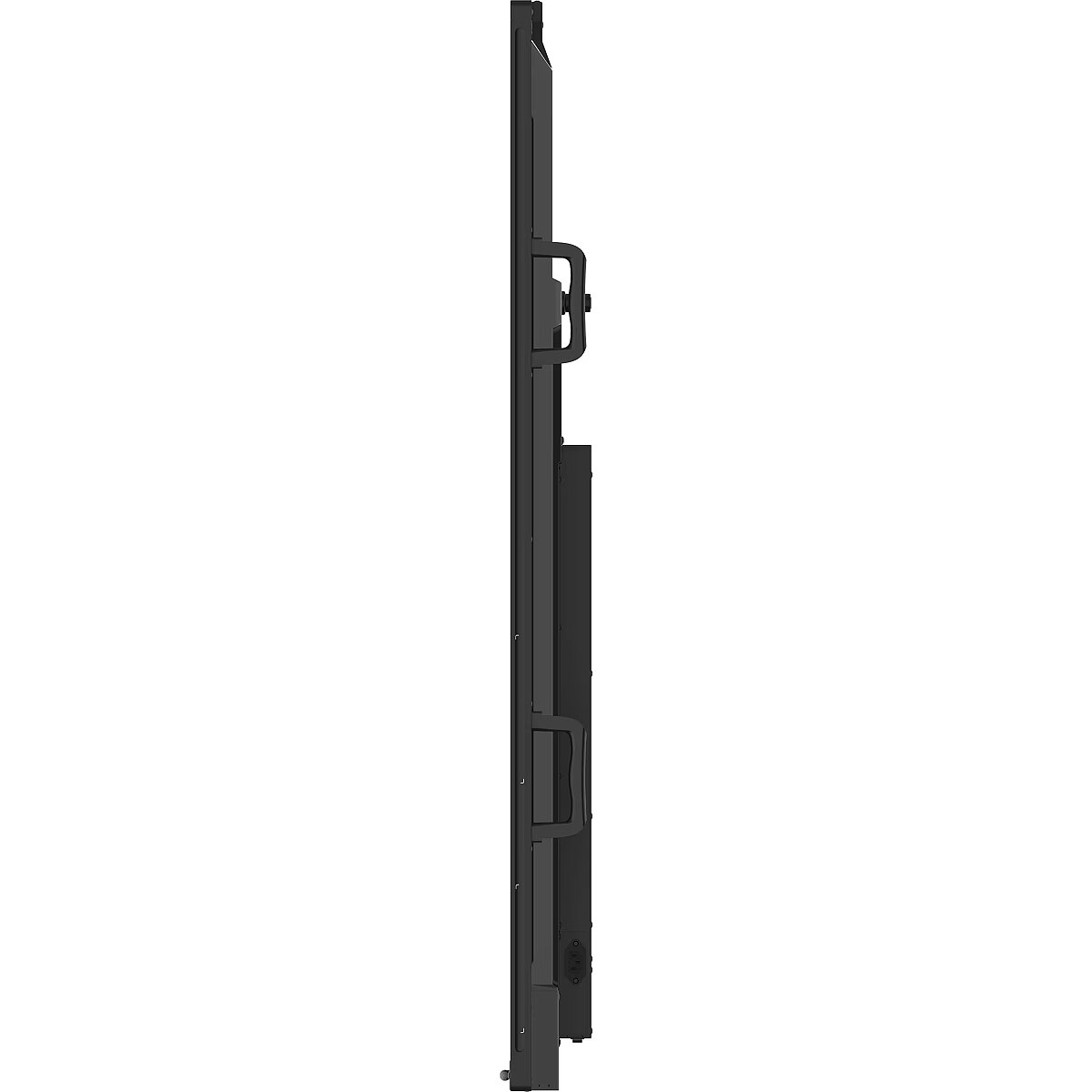

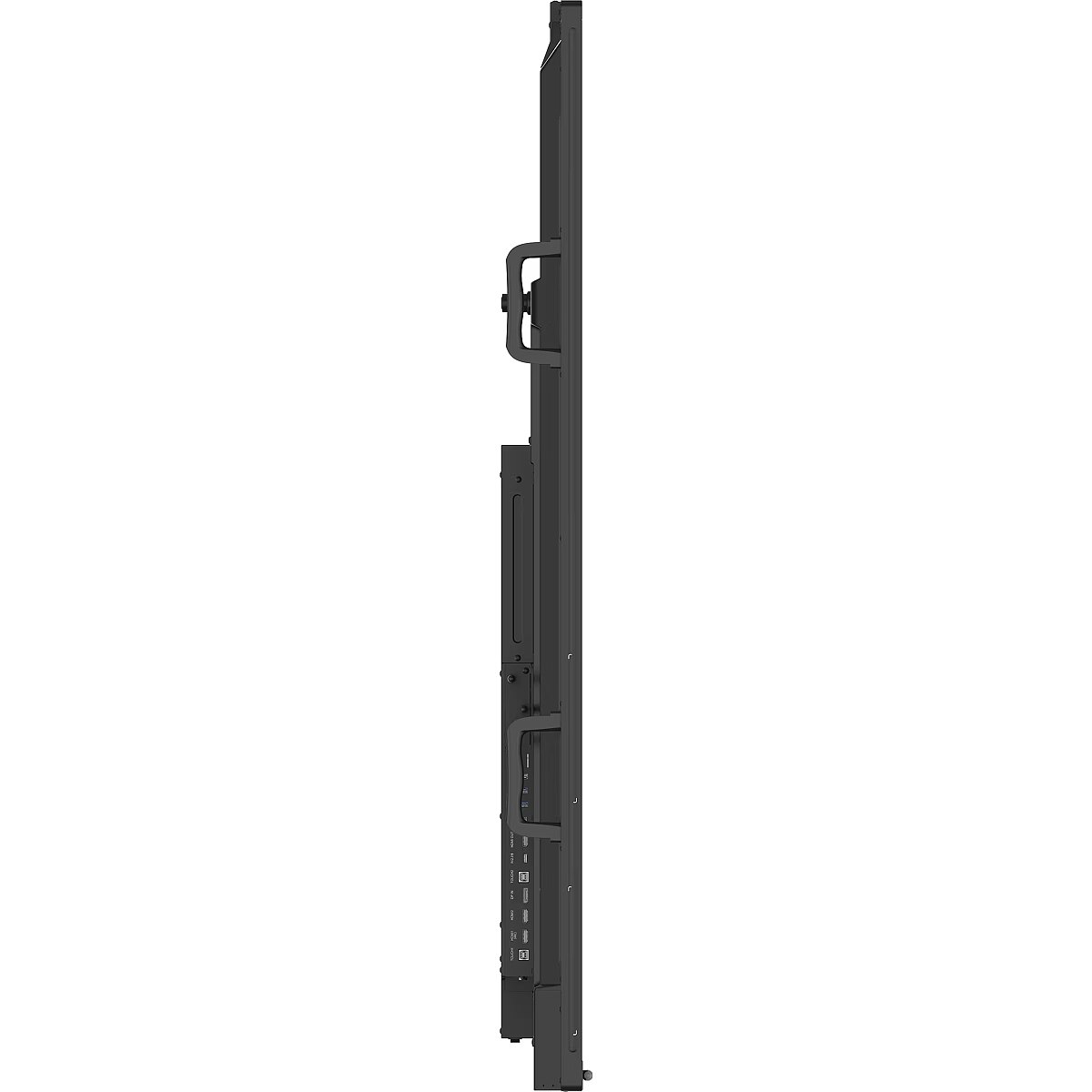

Weight & dimensions - Depth - 87.1 mm
Weight & dimensions - Display depth - 87.1 mm
Weight & dimensions - Display height - 1174.3 mm
Weight & dimensions - Display weight - 68 kg
Weight & dimensions - Display width - 1955.6 mm
Weight & dimensions - Height - 1174.3 mm
Weight & dimensions - Weight - 68 kg
Weight & dimensions - Width - 1955.6 mm
