ARTIKEL1 - 55IN ALL-IN-ONE INTERACTIVE DIS
ARTIKEL2 - DEEPCONTRAST PCAP 20-POINTS TOUC
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Brand - iiyama
BrandPartCode - T5529AS-B1AG
Breite - 0
Category - Signage Displays
Certificates - Certification - CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Computer system - Built-in processor - Yes
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - ARM Mali-G51
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A73
Computer system - Processor cores - 4
Computer system - Processor manufacturer - ARM
Design - Anti-glare screen - Yes
Design - Bezel colour - Black

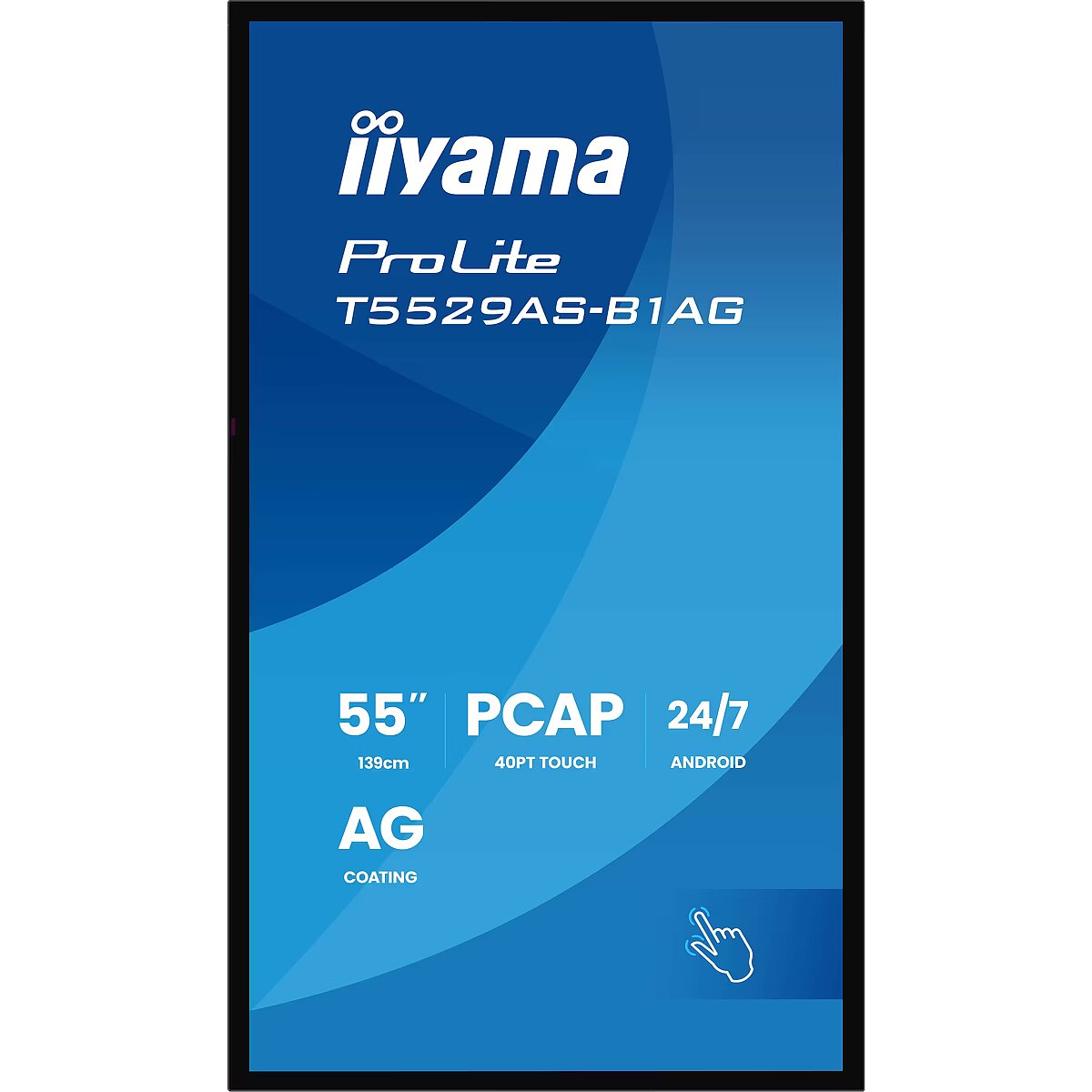

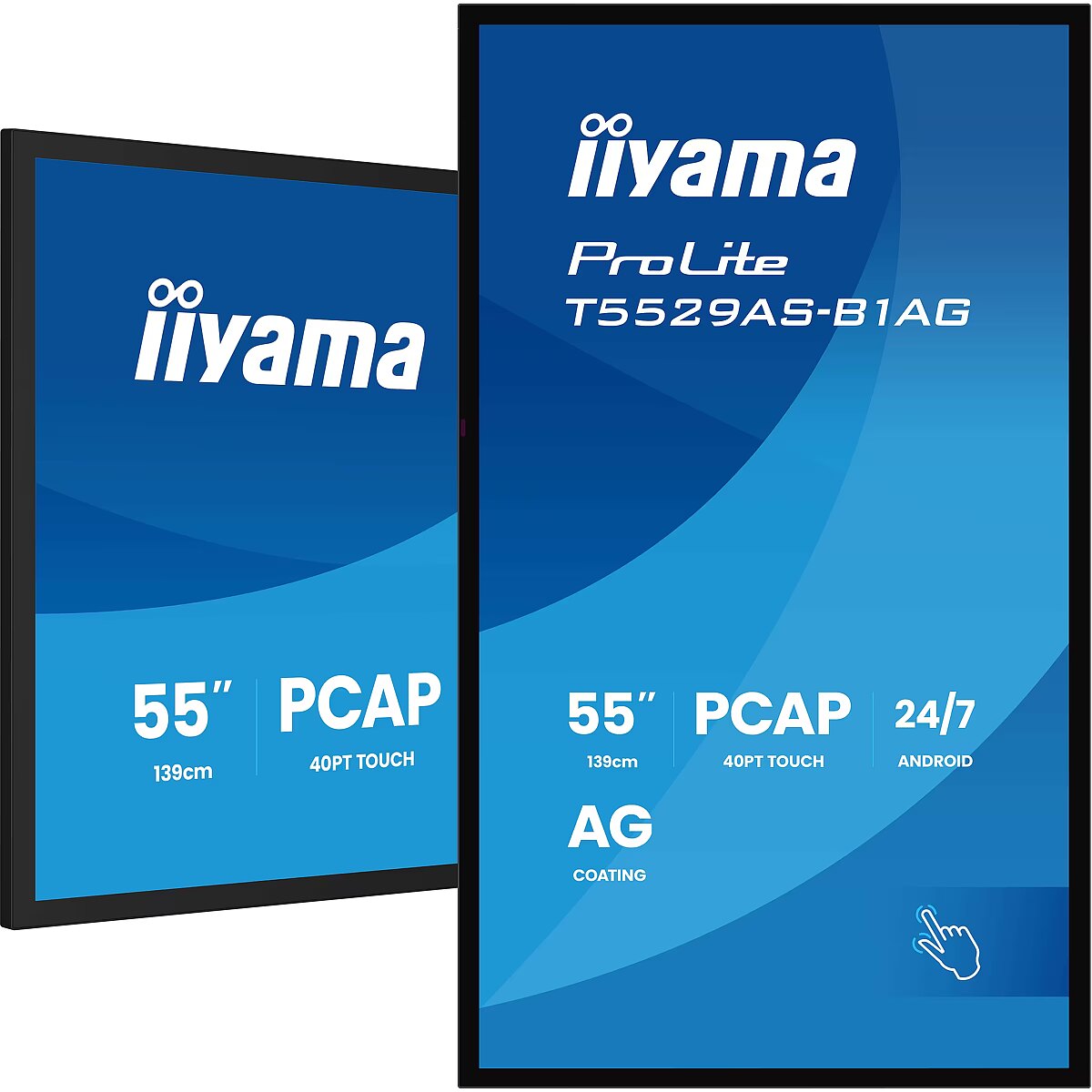

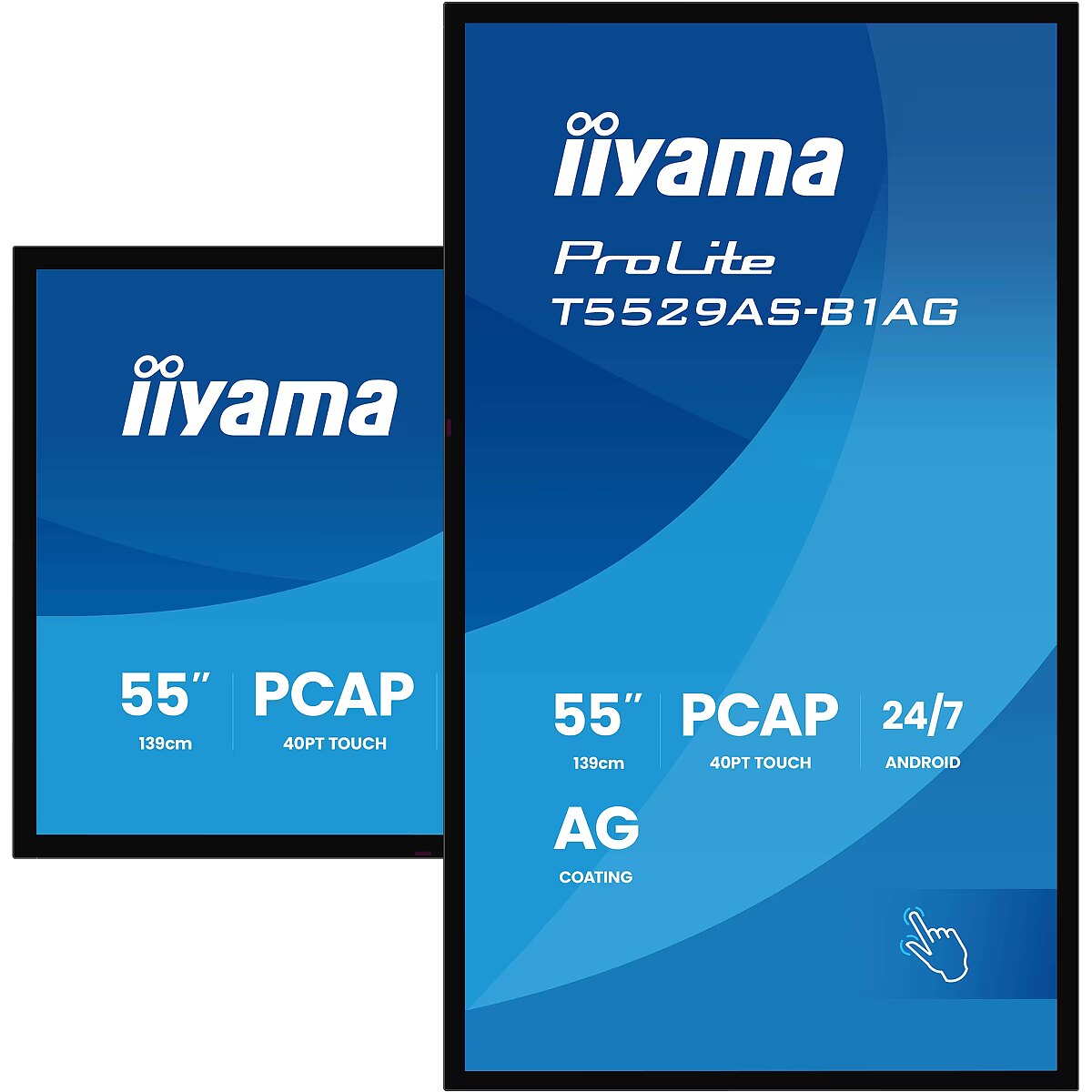

Design - Orientation - Horizontal/Vertical

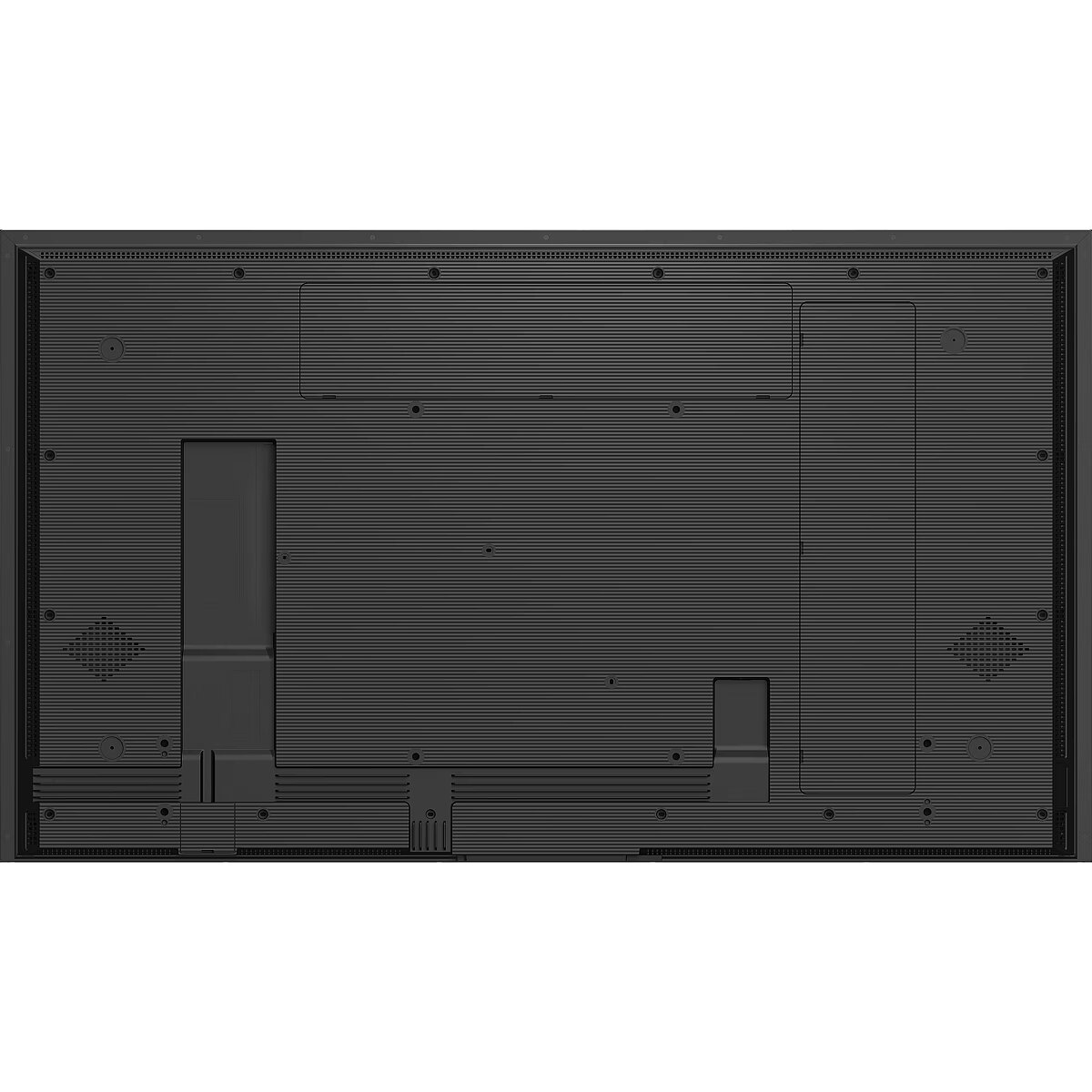

Design - Panel mounting interface - 300 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Kiosk design
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1209.6 x 680.4 mm
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness - 450 cd/m²
Display - Display diagonal - 138.7 cm (54.6")
Display - Display diagonal (metric) - 139 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Glass thickness - 3.7 mm
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 28 - 160 kHz
Display - LED backlight - Yes
Display - LED backlighting type - Direct-LED
Display - Multi-touch - Yes
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 20
Display - Panel type - VA
Display - Pixel pitch - 0.315 x 0.315 mm
Display - Response time - 6.5 ms
Display - Surface hardness - 8
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570125586
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570125586
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - T5529AS-B1AG

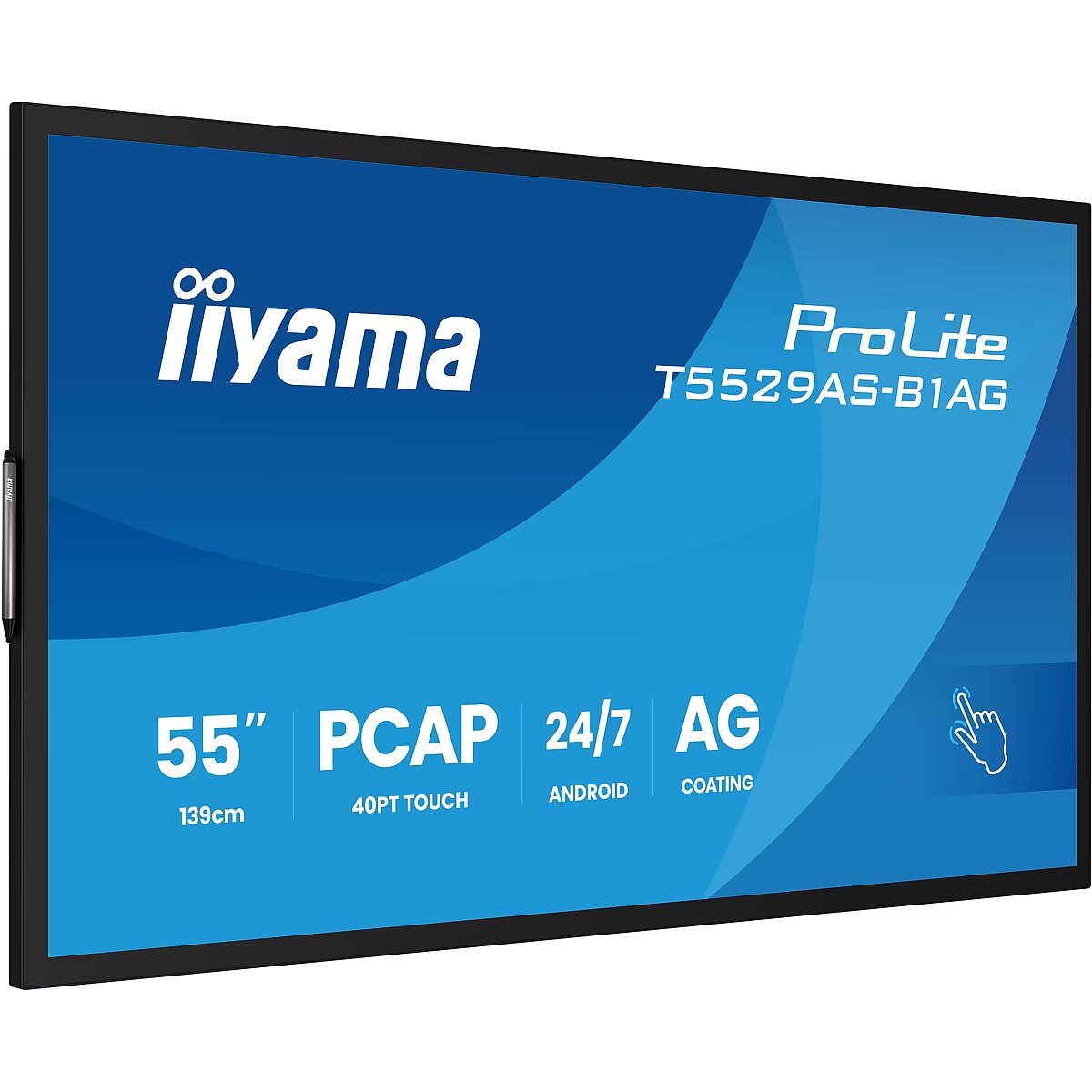

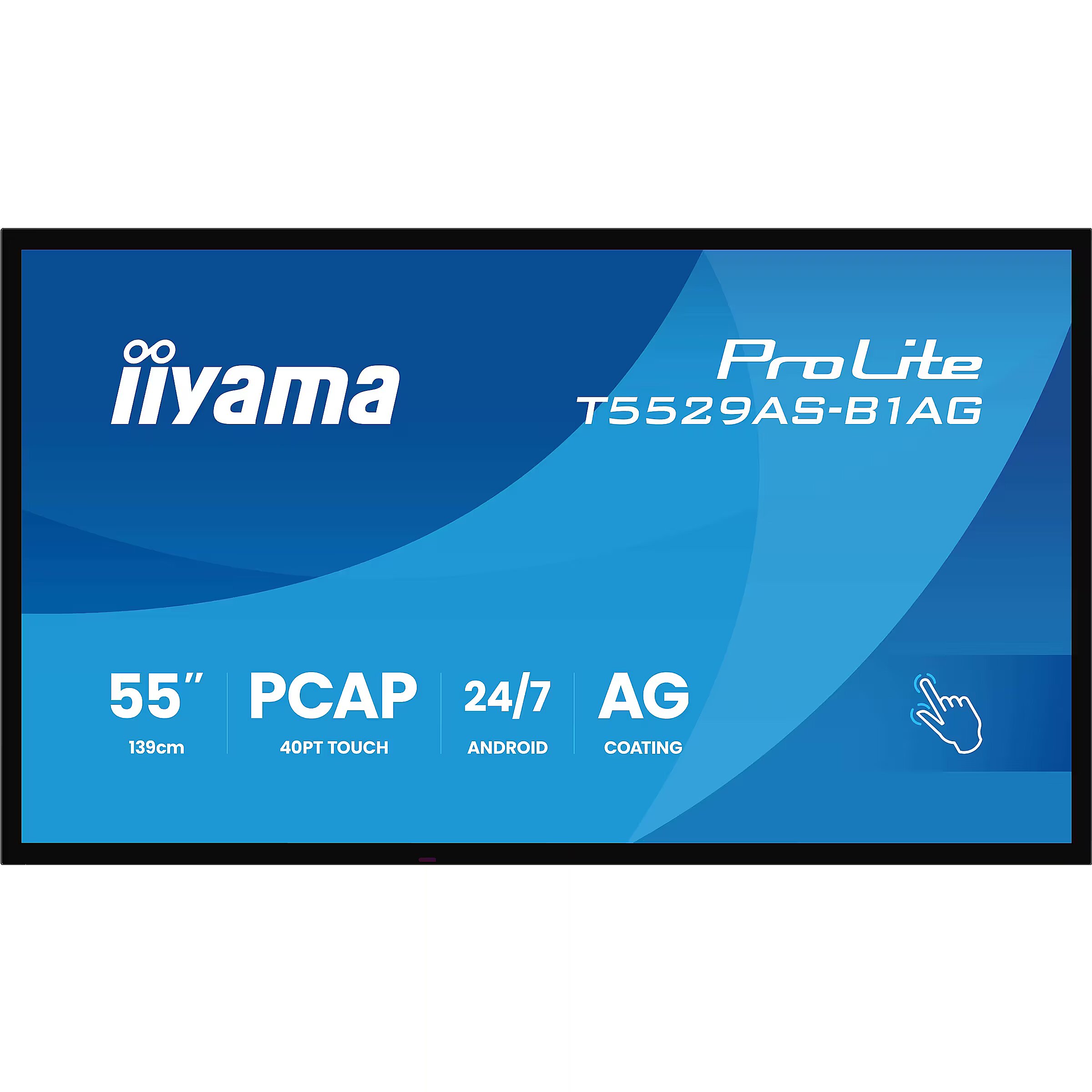

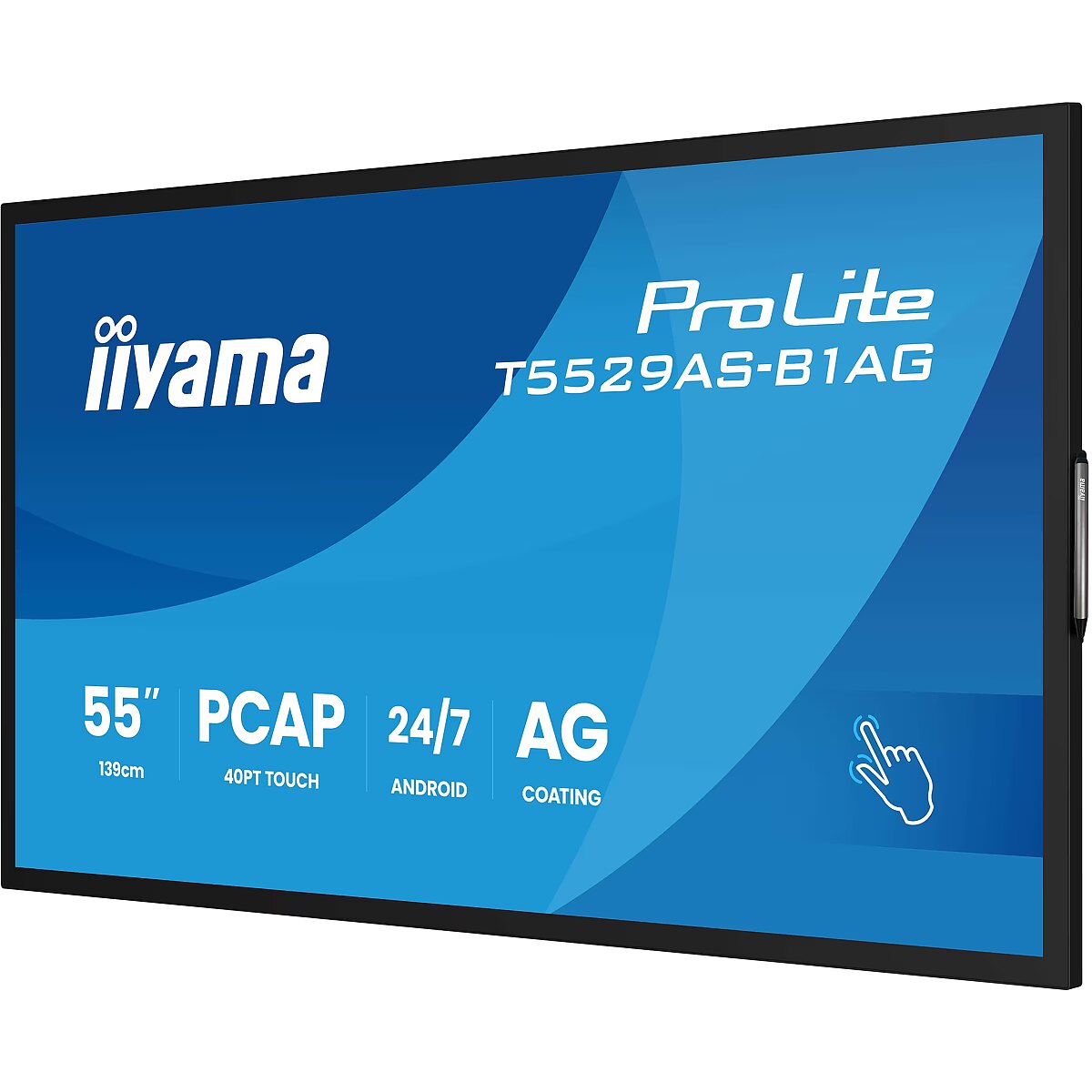

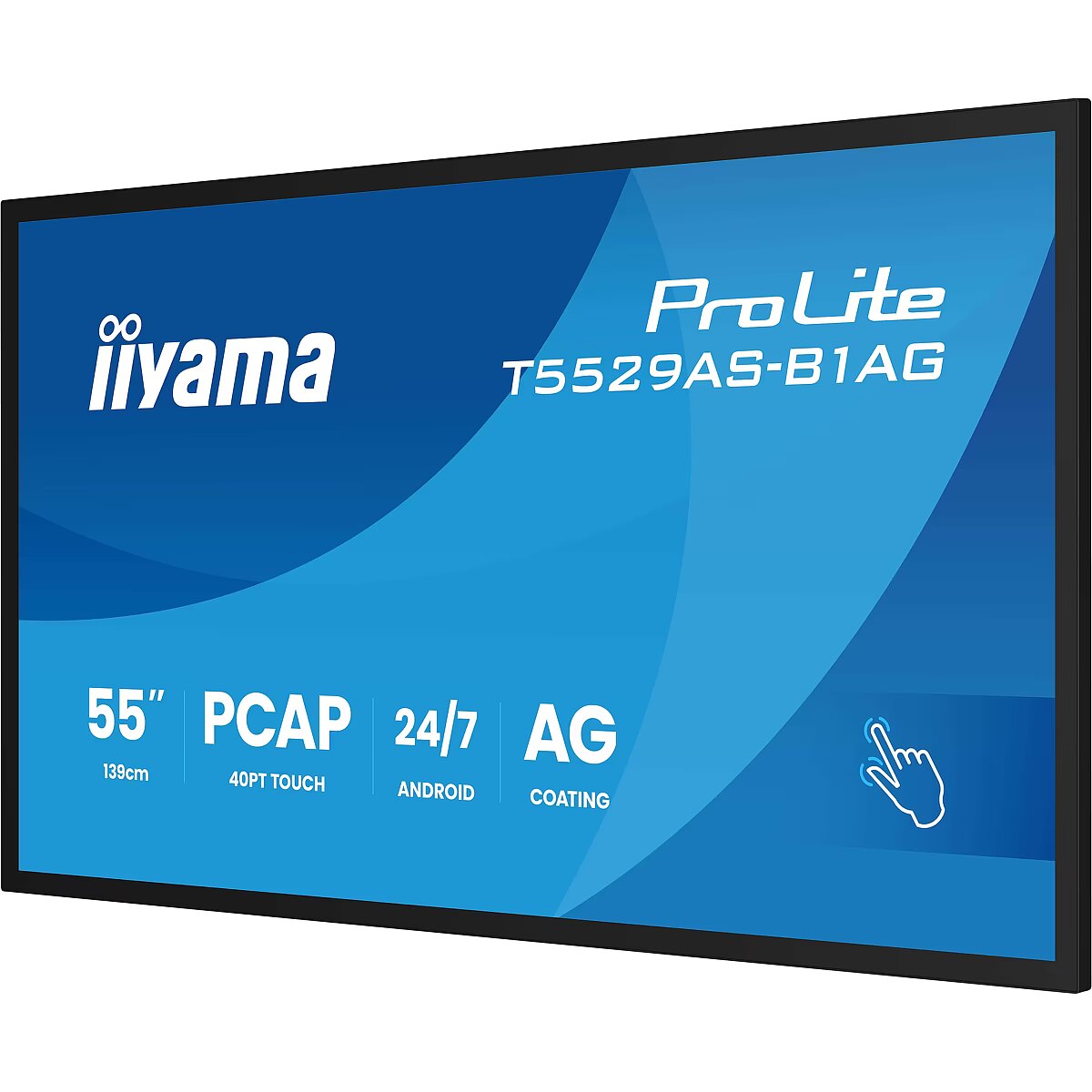

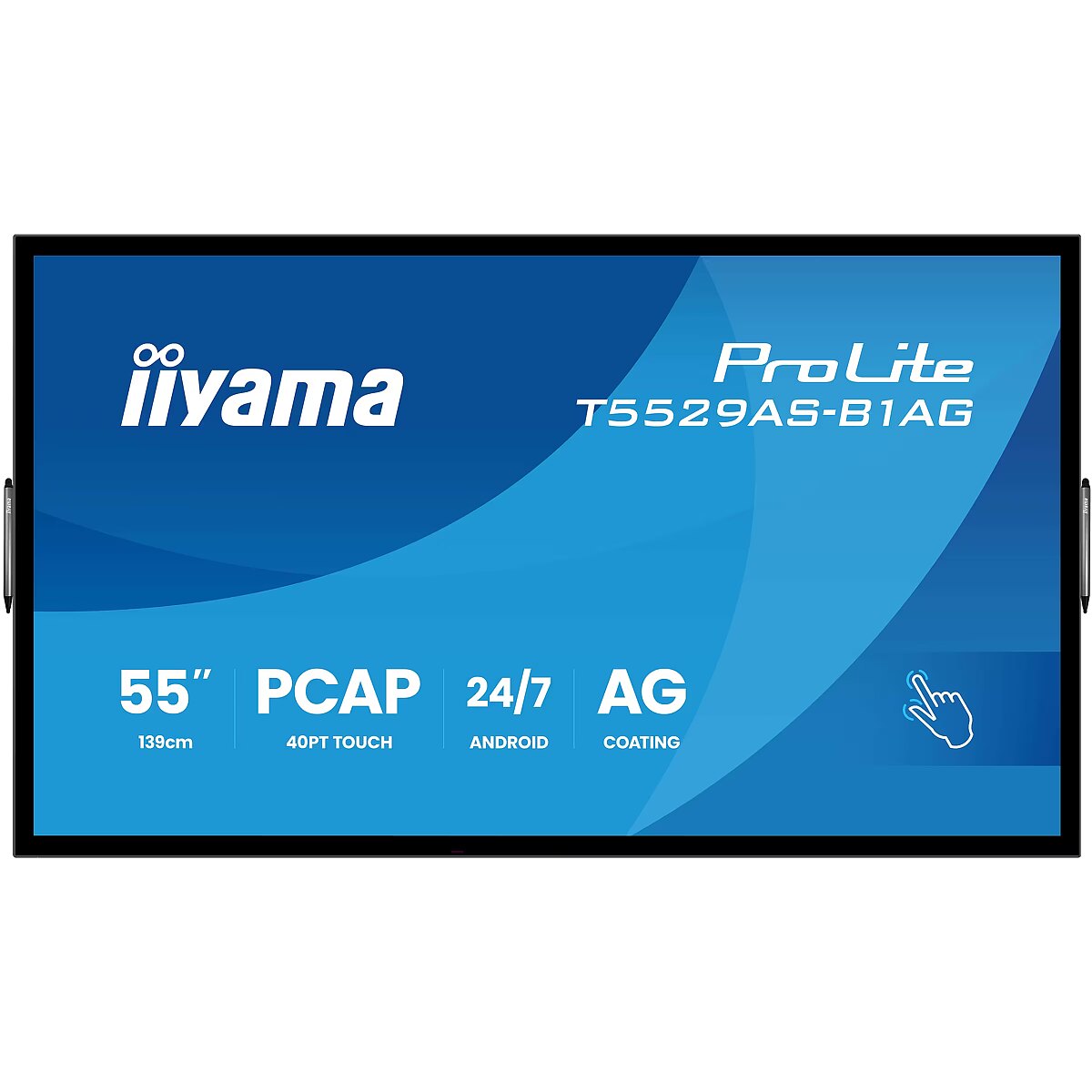

LongDesc - The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.
LongProductName - 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces
LongSummaryDescription - iiyama T5529AS-B1AG. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Operational conditions - Operating relative humidity (H-H) - -20 - 60%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Backlight type - Direct LED
Other features - Brightness - 450 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Power supply type - Internal
Other features - Quick start guide - Yes
Other features - Viewable size, horizontal - 121 cm
Other features - Viewable size, vertical - 68 cm
Packaging content - Batteries included - Yes

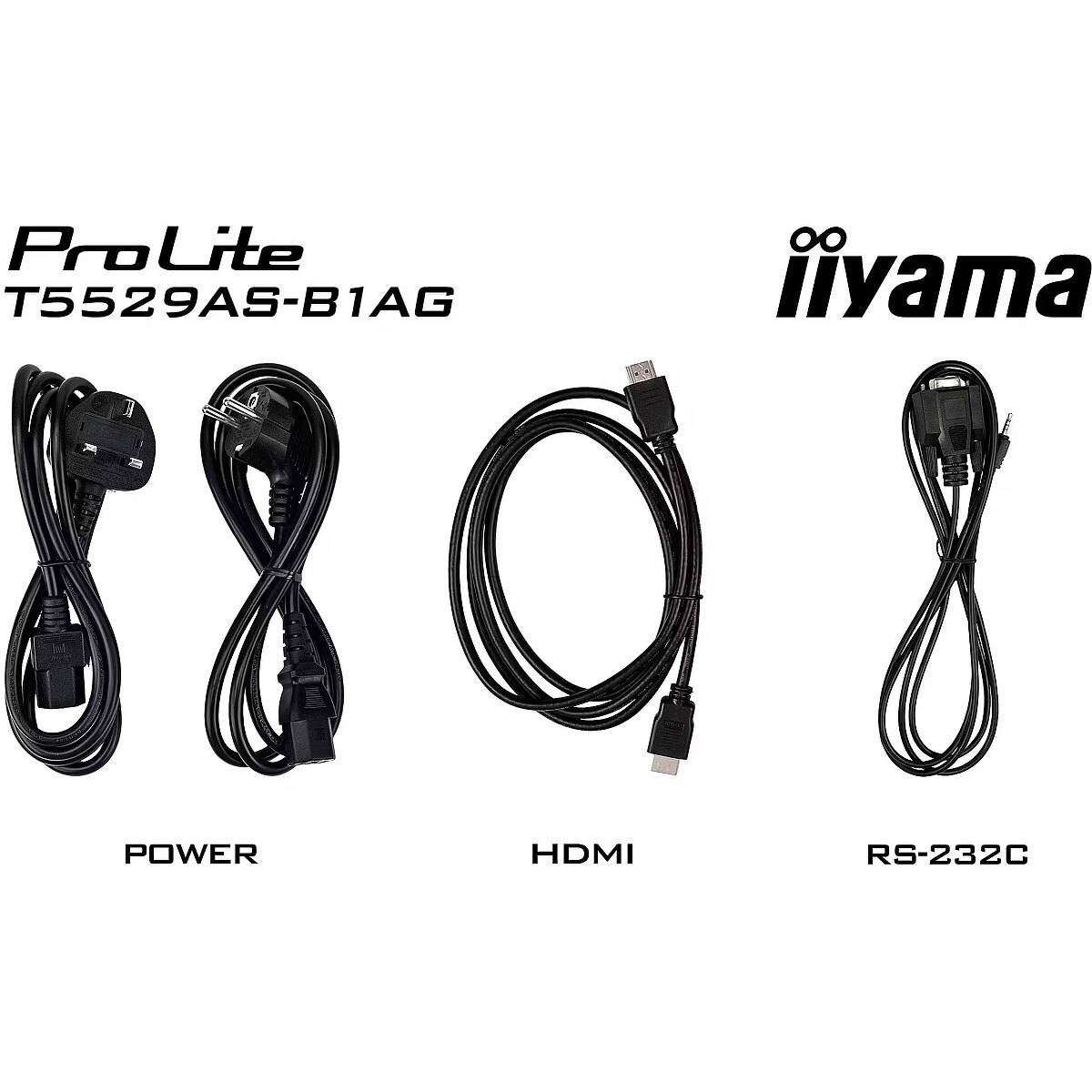

Packaging content - Cables included - AC, HDMI, RS-232

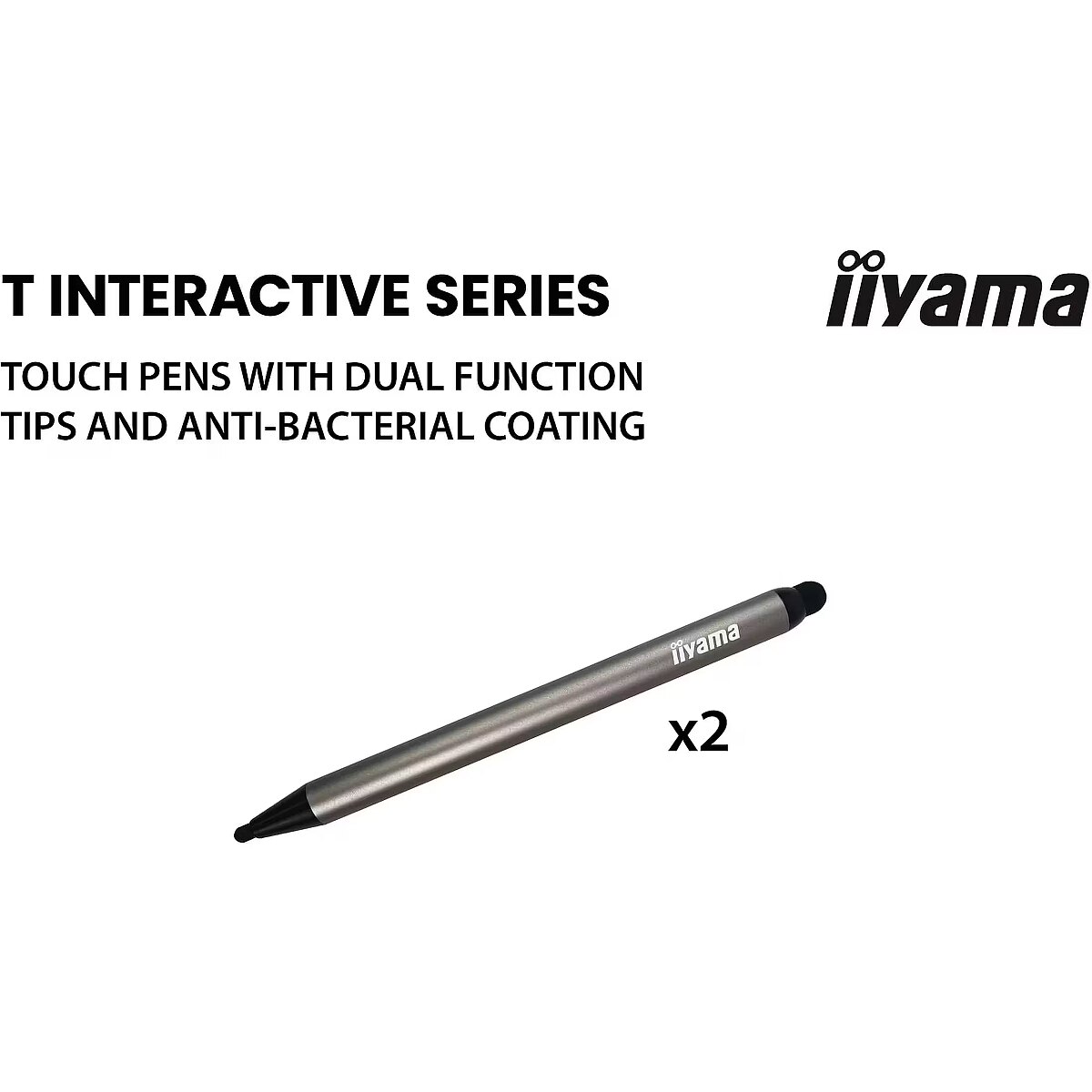

Packaging content - Number of stylus pens - 2
Packaging content - Remote control included - Yes
Packaging content - Stylus pen - Yes
Packaging data - Package depth - 164 mm
Packaging data - Package height - 850 mm
Packaging data - Package weight - 32.7 kg
Packaging data - Package width - 1400 mm
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 8
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4/2.0
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 15 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 104 W
ProductName - T5529AS-B1AG
ShortSummaryDescription - iiyama T5529AS-B1AG, Kiosk design, 138.7 cm (54.6"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Technical details - Sustainability certificates - ErP
Technical details - User controls - picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
Title - iiyama T5529AS-B1AG Signage Display Kiosk design 138.7 cm (54.6") LED Wi-Fi 450 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth - 42.3 mm
Weight & dimensions - Depth (with stand) - 42.3 mm
Weight & dimensions - Display depth - 42.3 mm
Weight & dimensions - Display height - 728.8 mm
Weight & dimensions - Display weight - 26.8 kg
Weight & dimensions - Display width - 1258.2 mm
Weight & dimensions - Height - 728.8 mm
Weight & dimensions - Height (with stand) - 728.8 mm
Weight & dimensions - Weight - 26.8 kg
Weight & dimensions - Weight (with stand) - 26.8 kg
Weight & dimensions - Width - 1258.2 mm
Weight & dimensions - Width (with stand) - 1258.2 mm
