ID: 1201863
Product code: 86UH5N-M
In stock 2 units
Warranty: 3 years

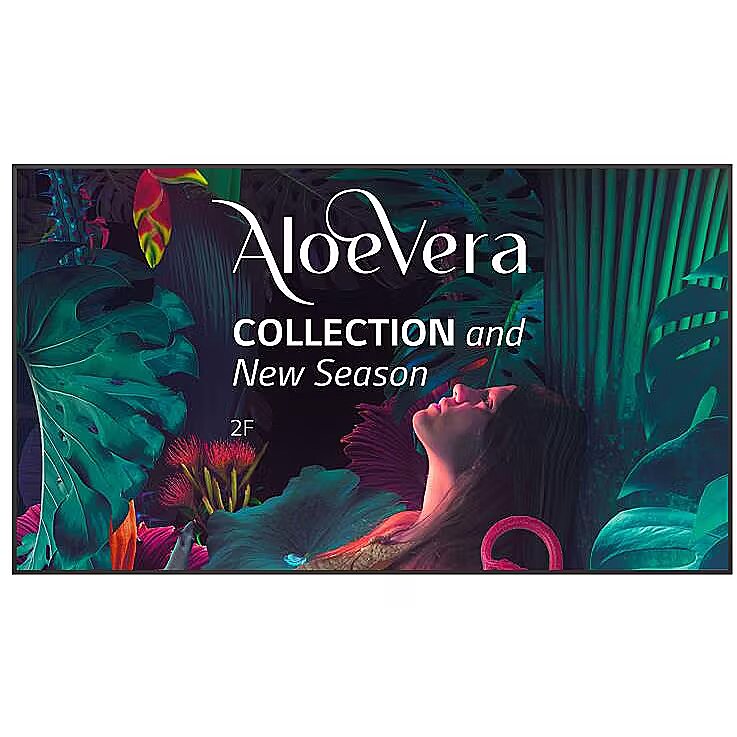

LG 86UH5N-M
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
Delivery throughout Latvia.Within 1-2 working days21.99 €
Main product parameters All parameters
- Screen diagonal, inches: 86
- Screen resolution: 3840 x 2160
- Touchscreen: None
All parameters
Brightness, cd/m2
: 500
Contrast ratio
: 1200:1
Model
: 86UH5N-M
RJ-45 Ports
: Is
Screen diagonal, inches
: 86
Screen resolution
: 3840 x 2160
Touchscreen
: None
Vesa Attachment
: 600 x 400
More detailed specification
Accessories included -
AC input frequency Power - 50-60 Hz
AC input voltage Power - 100-240 V
Aspect ratio - 16:9
Audio - Built-in speaker(s) - Yes
Audio - RMS rated power - 20 W
Audio output Other features - 1
Automatic brightness control Performance - Yes
Auto Pivot - No
Batteries included Packaging content - Yes
Bezel width (bottom) Design - 1.34 cm
Bluetooth - No
Bluetooth - Yes
Brand - LG
BrandPartCode - 86UH5N-M
Brightness - 500 nits
Built-in speaker(s) Audio - Yes
Built-in speakers - Yes
Cables included Packaging content - AC, Phone
Category - Signage Displays
Category Code - LCD
Certificates - CB
Certificates - CE
Certificates - Energy Star
Certificates - KC
Color - Black
Colour depth Display - 8 bit
Colour gamut Display - 95%
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Internal memory - 16 GB
Computer system - Operating system installed - WebOS
Computer system - Operating system version - 6.0
Computer system Computer system - Yes
Computer system type Computer system - System on Chip (SoC)
Connections - Digital Audio Out (Optical)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - IR
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast ratio (dynamic) Display - 1000000:1
Contrast ratio (typical) - 1200:1
Contrast ratio (typical) Display - 1200:1
Curved - 0 R
Data Act - Link
Depth - 29.7 mm
Description - Eye-catching Large Screen
The large screen effectively attracts attention. The 86-inch model, in particular, supports a 120Hz refresh rate, enabling smooth content display.
Robust, Fire-Resistant Construction
The product's outer casing is designed to effectively prevent the spread of fire, making it ideal for installation in public spaces.
Slim Depth and Uniform Bezel
Despite its large screen, the UH5N-M features a slim design, which benefits interior design. To avoid visual distractions when positioned in portrait mode, the bezel is uniformly thick on all sides, ensuring symmetry at the top, bottom, left, and right. This makes the model suitable for a variety of styles.
Versatile Use with Multi-USB Function
With support for two USB ports, the UH5N-M offers versatile use. For example, you can simultaneously display content on the screen and use other connected devices. This includes convenient tasks such as downloading PPT files from external storage devices while simultaneously using a mouse or keyboard during a meeting.
High-Resolution Display
Offering a resolution four times higher than Full HD, users will appreciate the visual experience. Additionally, the anti-reflective coating on the screen reduces reflections in bright environments, increasing visibility and readability for comfortable viewing.
Convenient webOS Platform
The UH5N-M is equipped with a powerful SoC that allows for multitasking without the need for an external media player. The webOS platform offers application development tools with an intuitive user interface, enhancing the user experience. It also facilitates the connection of external sensors and webOS partner apps, creating a system integrator (SI)-friendly environment.
Durability for Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust thanks to a protective coating and IP5x certification, ensuring stable operation.
Advanced Security Features
The UH5N-M offers advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, which protects sensitive data from unauthorized access or attacks. LG UHD Signage displays also feature trusted information security certifications, protecting customer data and business operations. For example, this model is ISO/IEC 15408 Common Criteria EAL2 certified.
SuperSign Solutions
SuperSign is an integrated and intuitive digital content management solution that allows you to creatively and structure content in your space, providing a seamless customer experience. Various versions are available, such as SuperSign Cloud; discover and use the one that best suits your needs.
Description - Large UHD Signage Display with Slim Design
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation. Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces. * Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7. Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options. Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting. High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen. Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment. Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation. Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified. SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.Resolution : 3,840 × 2,160 (UHD)Brightness : 500 nits (Typ.)Surface Treatment (Haze) : 25%Bezel Width : 13.4 mm
Description - LG 86UH5N-M 86" UHD IPS 500 NITS 24/7 SOC WIFI HAZE
Design - Bezel width (bottom) - 1.34 cm
Design - Orientation - Horizontal
Design - Panel mounting interface - 600 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 2070 mm
dimension height - 250 mm
Dimensions W x D x H, mm - 1928.8 x 29.7 x 1099.8
dimension weight - 66000 g
dimension width - 1250 mm
Display - Colour depth - 8 bit
Display - Colour gamut - 95%
Display - Contrast ratio (dynamic) - 1000000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - LED backlight - Yes
Display - LED backlighting type - Edge-LED
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 120 Hz
Display - Panel life - 50000 h
Display - Panel type - IPS
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness, cd/m² - 500
Display brightness Display - 500 cd/m²
Display depth Weight & dimensions - 29.7 mm
Display diagonal, " - 86
Display diagonal Display - 2.18 m (86")
Display height Weight & dimensions - 1099.8 mm
Display number of colours Display - 1.07 billion colours
DisplayPorts quantity Ports & interfaces - 1
Display resolution, pixels - 3840 x 2160
Display resolution Display - 3840 x 2160 pixels
Display surface - Matt
Display technology Display - LED
Display weight Weight & dimensions - 52.7 kg
Display width Weight & dimensions - 1928.8 mm
DVI port Ports & interfaces - No
Dynamic contrast - 1 000 000:1
ean - 8806096233740
Energy class - not applicable
Energy efficiency class - B
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Features - Heat dissipation (max) - 1013 BTU/h
Green certifications - Energy Star
GTIN - 0195174097427
GTIN - 195174097427
GTIN - 8806096233740
guarantee - 36
guarantee_type - external
Haze rate Display - 25%
HDCP Performance - Yes
HDCP version Performance - 1.4/2.2/2.3
HDMI input ports quantity Ports & interfaces - 3
HDMI ports quantity Ports & interfaces - 3
HD type Display - 4K Ultra HD
Heat dissipation (max) Features - 1013 BTU/h
Heat dissipation Power - 672 BTU/h
Height - 1099.8 mm
Height - 1240.000000
Height adjustment - No
I/O connectors - 1 x Audio out
I/O connectors - 1 x DisplayPort
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 2 x RS-232 (COM)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x HDMI
Internal memory Computer system - 16 GB
Internal player - Yes
International Protection (IP) code Performance - IP5X
IP classification - IP5X
Kensington Security Slot - Nie
LED backlight Display - Yes
LED backlighting type Display - Edge-LED
Length - 2100.000000
LongDesc - Large UHD Signage Display with Slim DesignEye-catching Large ScreenA large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.Sturdy Design with Fire Flame ResistanceThe outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.Slim Depth with Even BezelDespite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.Versatile Operation with Multi-USBWith support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.Convenient webOS PlatformThe UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.Durability that Provides ReliabilityOptimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.Enhanced Security FeaturesThe UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
LongProductName - 86", 4K UHD (3840 x 2160), IPS 500 nit, 8 ms, IP5X, Wi-Fi, webOS 6.0
LongSummaryDescription - LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Manufacturer - LG Electronics
ManufacturerPartNumber - 86UH5N-M
Matrix type - Advanced PLS
Model - 86UH5N-M
Model name - 86UH5N-M
name - Monitor 86UH5N-M UHD IPS 500cd/m2 24/7
Native aspect ratio Display - 16:9
Native refresh rate Display - 120 Hz
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Number of colors - 1,07 mld
On Screen Display (OSD) Performance - Yes
Operating hours (hours/days) Performance - 24/7
Operating relative humidity (H-H) Operational conditions - 10 - 80%
Operating system installed Computer system - WebOS
Operating system provided - webOS 6.0
Operating system version Computer system - 6.0
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operation time - 24/7
Optional accessory -
Orientation Design - Horizontal
Other features -
Other features - Audio output - 1
Other features - Plug and Play - Yes
Package depth Packaging data - 253 mm
Package height Packaging data - 1250 mm
Package weight Packaging data - 65.5 kg
Package width Packaging data - 2100 mm
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, Phone
Packaging content - Remote control included - Yes
Packaging data - Package depth - 253 mm
Packaging data - Package height - 1250 mm
Packaging data - Package weight - 65.5 kg
Packaging data - Package width - 2100 mm
Panel life Display - 50000 h
Panel mounting interface Design - 600 x 400 mm
Panel type - ADS
Panel type Display - IPS
Performance - Automatic brightness control - Yes
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2/2.3
Performance - International Protection (IP) code - IP5X
Performance - On Screen Display (OSD) - Yes
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
PeriodofWarranty -
Pivot - Yes
Placement supported Design - Indoor
Plug and Play Other features - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 3
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50-60 Hz
Power - AC input voltage - 100-240 V
Power - Heat dissipation - 672 BTU/h
Power - Power consumption (max) - 297 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 197 W
Power consumption - 205 W
Power consumption (max) Power - 297 W
Power consumption (max.), W - 297
Power consumption (standby), W - 0.5
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 197 W
Power consumption, W - 205
producer - LG Electronics
Product colour Design - Black
Product design Design - Digital signage flat panel
ProductName - 86UH5N-M
Product name - Digital signage LFD
Purpose Performance - Universal
Real Time Clock (RTC) Technical details - Yes
Refresh rate - 120 Hz
Refresh rate, Hz - 120
Remote (IR) input Ports & interfaces - 1
Remote control included Packaging content - Yes
Resolution - 3840 x 2160
Response time - 8 ms
Response time, ms - 8
Response time Display - 8 ms
RMS rated power Audio - 20 W
RS-232C Ports & interfaces - Yes
Screen size (diag.) - 86''
ShortSummaryDescription - LG 86UH5N-M, Digital signage flat panel, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Speaker power, W - 2 x 10
Speakers built-in - Yes
Static contrast - 1 200:1
Summary - LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Technical details - Real Time Clock (RTC) - Yes
Title - LG 86UH5N-M Signage Display Digital signage flat panel 2.18 m (86") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Touch screen - No
Touchscreen Display - No
Touch sensitive screen - No
Transreflective technology - LED
TV tuner built-in - No
Unit Box Height - 0.245
Unit Box Length - 2.09
Unit Box Width - 2.15
Unit Calculated Volume - 1.1009075 cubm
Unit Calculated Weight - 72 kg
URL - https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
USB connector type Ports & interfaces - USB Type-A
USB port Ports & interfaces - Yes
USB ports quantity Ports & interfaces - 2
USB version Ports & interfaces - 2.0
Vendor Homepage - https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
vendpn - 86UH5N-M
VESA - 600 x 400
VESA-standard, mm - 600 x 400
VESA mounting Design - Yes
Viewing angle, horizontal - 178 °
Viewing angle, horizontal, ° - 178
Viewing angle, horizontal Display - 178°
Viewing angle, vertical - 178 °
Viewing angle, vertical, ° - 178
Viewing angle, vertical Display - 178°
Warranty -
Warranty - 36 months
WarrantyInfo -
Web camera - None
Weight - 53 kg
Weight - 66.700000
Weight & dimensions - Display depth - 29.7 mm
Weight & dimensions - Display height - 1099.8 mm
Weight & dimensions - Display weight - 52.7 kg
Weight & dimensions - Display width - 1928.8 mm
Weight, kg - 53
Wi-Fi - Yes
Wi-Fi Network - Yes
Width - 250.000000
Width - 1928.8 mm
WiFi - No
AC input frequency Power - 50-60 Hz
AC input voltage Power - 100-240 V
Aspect ratio - 16:9
Audio - Built-in speaker(s) - Yes
Audio - RMS rated power - 20 W
Audio output Other features - 1
Automatic brightness control Performance - Yes
Auto Pivot - No
Batteries included Packaging content - Yes
Bezel width (bottom) Design - 1.34 cm
Bluetooth - No
Bluetooth - Yes
Brand - LG
BrandPartCode - 86UH5N-M
Brightness - 500 nits
Built-in speaker(s) Audio - Yes
Built-in speakers - Yes
Cables included Packaging content - AC, Phone
Category - Signage Displays
Category Code - LCD
Certificates - CB
Certificates - CE
Certificates - Energy Star
Certificates - KC
Color - Black
Colour depth Display - 8 bit
Colour gamut Display - 95%
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Internal memory - 16 GB
Computer system - Operating system installed - WebOS
Computer system - Operating system version - 6.0
Computer system Computer system - Yes
Computer system type Computer system - System on Chip (SoC)
Connections - Digital Audio Out (Optical)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - IR
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast ratio (dynamic) Display - 1000000:1
Contrast ratio (typical) - 1200:1
Contrast ratio (typical) Display - 1200:1
Curved - 0 R
Data Act - Link
Depth - 29.7 mm
Description - Eye-catching Large Screen
The large screen effectively attracts attention. The 86-inch model, in particular, supports a 120Hz refresh rate, enabling smooth content display.
Robust, Fire-Resistant Construction
The product's outer casing is designed to effectively prevent the spread of fire, making it ideal for installation in public spaces.
Slim Depth and Uniform Bezel
Despite its large screen, the UH5N-M features a slim design, which benefits interior design. To avoid visual distractions when positioned in portrait mode, the bezel is uniformly thick on all sides, ensuring symmetry at the top, bottom, left, and right. This makes the model suitable for a variety of styles.
Versatile Use with Multi-USB Function
With support for two USB ports, the UH5N-M offers versatile use. For example, you can simultaneously display content on the screen and use other connected devices. This includes convenient tasks such as downloading PPT files from external storage devices while simultaneously using a mouse or keyboard during a meeting.
High-Resolution Display
Offering a resolution four times higher than Full HD, users will appreciate the visual experience. Additionally, the anti-reflective coating on the screen reduces reflections in bright environments, increasing visibility and readability for comfortable viewing.
Convenient webOS Platform
The UH5N-M is equipped with a powerful SoC that allows for multitasking without the need for an external media player. The webOS platform offers application development tools with an intuitive user interface, enhancing the user experience. It also facilitates the connection of external sensors and webOS partner apps, creating a system integrator (SI)-friendly environment.
Durability for Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust thanks to a protective coating and IP5x certification, ensuring stable operation.
Advanced Security Features
The UH5N-M offers advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, which protects sensitive data from unauthorized access or attacks. LG UHD Signage displays also feature trusted information security certifications, protecting customer data and business operations. For example, this model is ISO/IEC 15408 Common Criteria EAL2 certified.
SuperSign Solutions
SuperSign is an integrated and intuitive digital content management solution that allows you to creatively and structure content in your space, providing a seamless customer experience. Various versions are available, such as SuperSign Cloud; discover and use the one that best suits your needs.
Description - Large UHD Signage Display with Slim Design
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation. Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces. * Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7. Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options. Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting. High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen. Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment. Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation. Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified. SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.Resolution : 3,840 × 2,160 (UHD)Brightness : 500 nits (Typ.)Surface Treatment (Haze) : 25%Bezel Width : 13.4 mm
Description - LG 86UH5N-M 86" UHD IPS 500 NITS 24/7 SOC WIFI HAZE
Design - Bezel width (bottom) - 1.34 cm
Design - Orientation - Horizontal
Design - Panel mounting interface - 600 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 2070 mm
dimension height - 250 mm
Dimensions W x D x H, mm - 1928.8 x 29.7 x 1099.8
dimension weight - 66000 g
dimension width - 1250 mm
Display - Colour depth - 8 bit
Display - Colour gamut - 95%
Display - Contrast ratio (dynamic) - 1000000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - LED backlight - Yes
Display - LED backlighting type - Edge-LED
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 120 Hz
Display - Panel life - 50000 h
Display - Panel type - IPS
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness, cd/m² - 500
Display brightness Display - 500 cd/m²
Display depth Weight & dimensions - 29.7 mm
Display diagonal, " - 86
Display diagonal Display - 2.18 m (86")
Display height Weight & dimensions - 1099.8 mm
Display number of colours Display - 1.07 billion colours
DisplayPorts quantity Ports & interfaces - 1
Display resolution, pixels - 3840 x 2160
Display resolution Display - 3840 x 2160 pixels
Display surface - Matt
Display technology Display - LED
Display weight Weight & dimensions - 52.7 kg
Display width Weight & dimensions - 1928.8 mm
DVI port Ports & interfaces - No
Dynamic contrast - 1 000 000:1
ean - 8806096233740
Energy class - not applicable
Energy efficiency class - B
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Features - Heat dissipation (max) - 1013 BTU/h
Green certifications - Energy Star
GTIN - 0195174097427
GTIN - 195174097427
GTIN - 8806096233740
guarantee - 36
guarantee_type - external
Haze rate Display - 25%
HDCP Performance - Yes
HDCP version Performance - 1.4/2.2/2.3
HDMI input ports quantity Ports & interfaces - 3
HDMI ports quantity Ports & interfaces - 3
HD type Display - 4K Ultra HD
Heat dissipation (max) Features - 1013 BTU/h
Heat dissipation Power - 672 BTU/h
Height - 1099.8 mm
Height - 1240.000000
Height adjustment - No
I/O connectors - 1 x Audio out
I/O connectors - 1 x DisplayPort
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 2 x RS-232 (COM)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x HDMI
Internal memory Computer system - 16 GB
Internal player - Yes
International Protection (IP) code Performance - IP5X
IP classification - IP5X
Kensington Security Slot - Nie
LED backlight Display - Yes
LED backlighting type Display - Edge-LED
Length - 2100.000000
LongDesc - Large UHD Signage Display with Slim DesignEye-catching Large ScreenA large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.Sturdy Design with Fire Flame ResistanceThe outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.Slim Depth with Even BezelDespite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.Versatile Operation with Multi-USBWith support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.Convenient webOS PlatformThe UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.Durability that Provides ReliabilityOptimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.Enhanced Security FeaturesThe UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
LongProductName - 86", 4K UHD (3840 x 2160), IPS 500 nit, 8 ms, IP5X, Wi-Fi, webOS 6.0
LongSummaryDescription - LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Manufacturer - LG Electronics
ManufacturerPartNumber - 86UH5N-M
Matrix type - Advanced PLS
Model - 86UH5N-M
Model name - 86UH5N-M
name - Monitor 86UH5N-M UHD IPS 500cd/m2 24/7
Native aspect ratio Display - 16:9
Native refresh rate Display - 120 Hz
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Number of colors - 1,07 mld
On Screen Display (OSD) Performance - Yes
Operating hours (hours/days) Performance - 24/7
Operating relative humidity (H-H) Operational conditions - 10 - 80%
Operating system installed Computer system - WebOS
Operating system provided - webOS 6.0
Operating system version Computer system - 6.0
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operation time - 24/7
Optional accessory -
Orientation Design - Horizontal
Other features -
Other features - Audio output - 1
Other features - Plug and Play - Yes
Package depth Packaging data - 253 mm
Package height Packaging data - 1250 mm
Package weight Packaging data - 65.5 kg
Package width Packaging data - 2100 mm
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, Phone
Packaging content - Remote control included - Yes
Packaging data - Package depth - 253 mm
Packaging data - Package height - 1250 mm
Packaging data - Package weight - 65.5 kg
Packaging data - Package width - 2100 mm
Panel life Display - 50000 h
Panel mounting interface Design - 600 x 400 mm
Panel type - ADS
Panel type Display - IPS
Performance - Automatic brightness control - Yes
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2/2.3
Performance - International Protection (IP) code - IP5X
Performance - On Screen Display (OSD) - Yes
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
PeriodofWarranty -
Pivot - Yes
Placement supported Design - Indoor
Plug and Play Other features - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 3
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50-60 Hz
Power - AC input voltage - 100-240 V
Power - Heat dissipation - 672 BTU/h
Power - Power consumption (max) - 297 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 197 W
Power consumption - 205 W
Power consumption (max) Power - 297 W
Power consumption (max.), W - 297
Power consumption (standby), W - 0.5
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 197 W
Power consumption, W - 205
producer - LG Electronics
Product colour Design - Black
Product design Design - Digital signage flat panel
ProductName - 86UH5N-M
Product name - Digital signage LFD
Purpose Performance - Universal
Real Time Clock (RTC) Technical details - Yes
Refresh rate - 120 Hz
Refresh rate, Hz - 120
Remote (IR) input Ports & interfaces - 1
Remote control included Packaging content - Yes
Resolution - 3840 x 2160
Response time - 8 ms
Response time, ms - 8
Response time Display - 8 ms
RMS rated power Audio - 20 W
RS-232C Ports & interfaces - Yes
Screen size (diag.) - 86''
ShortSummaryDescription - LG 86UH5N-M, Digital signage flat panel, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Speaker power, W - 2 x 10
Speakers built-in - Yes
Static contrast - 1 200:1
Summary - LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Technical details - Real Time Clock (RTC) - Yes
Title - LG 86UH5N-M Signage Display Digital signage flat panel 2.18 m (86") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Touch screen - No
Touchscreen Display - No
Touch sensitive screen - No
Transreflective technology - LED
TV tuner built-in - No
Unit Box Height - 0.245
Unit Box Length - 2.09
Unit Box Width - 2.15
Unit Calculated Volume - 1.1009075 cubm
Unit Calculated Weight - 72 kg
URL - https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
USB connector type Ports & interfaces - USB Type-A
USB port Ports & interfaces - Yes
USB ports quantity Ports & interfaces - 2
USB version Ports & interfaces - 2.0
Vendor Homepage - https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
vendpn - 86UH5N-M
VESA - 600 x 400
VESA-standard, mm - 600 x 400
VESA mounting Design - Yes
Viewing angle, horizontal - 178 °
Viewing angle, horizontal, ° - 178
Viewing angle, horizontal Display - 178°
Viewing angle, vertical - 178 °
Viewing angle, vertical, ° - 178
Viewing angle, vertical Display - 178°
Warranty -
Warranty - 36 months
WarrantyInfo -
Web camera - None
Weight - 53 kg
Weight - 66.700000
Weight & dimensions - Display depth - 29.7 mm
Weight & dimensions - Display height - 1099.8 mm
Weight & dimensions - Display weight - 52.7 kg
Weight & dimensions - Display width - 1928.8 mm
Weight, kg - 53
Wi-Fi - Yes
Wi-Fi Network - Yes
Width - 250.000000
Width - 1928.8 mm
WiFi - No
