AC input frequency Power - 50-60 Hz
AC input voltage Power - 100-240 V
Analog signal format system Performance - PAL/SECAM
Audio - Built-in speaker(s) - Yes
Audio - RMS rated power - 20 W
Audio Return Channel (ARC) Ports & interfaces - Yes

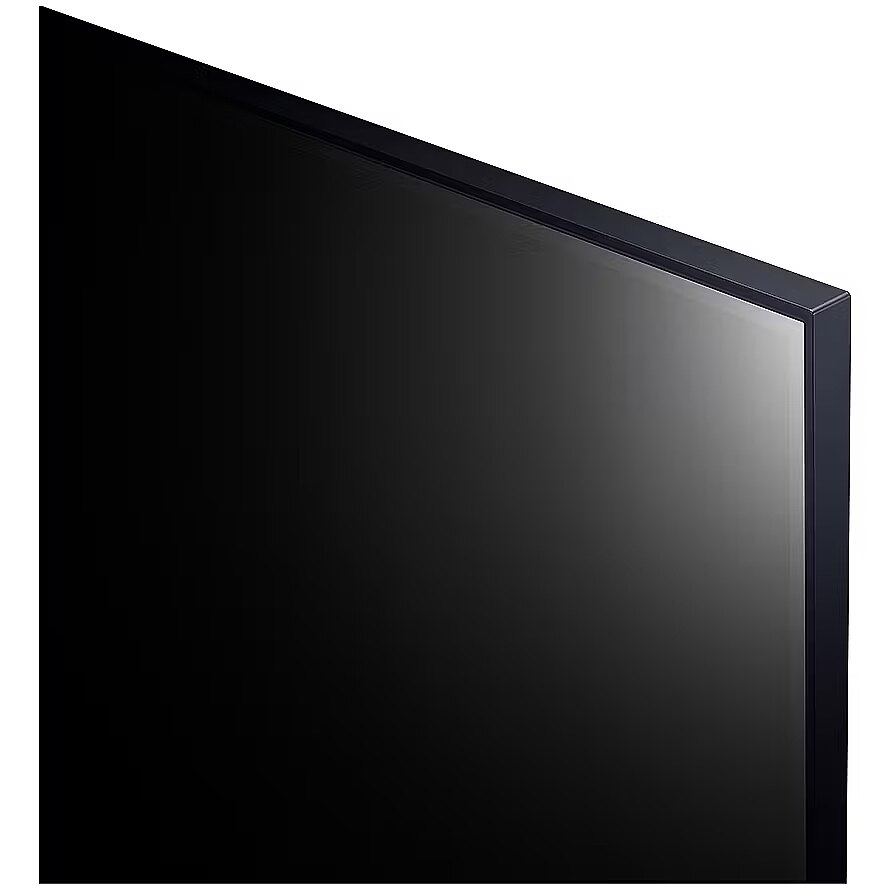

Bezel width (bottom) Design - 19.9 mm
Bezel width (side) Design - 15.9 mm
Bezel width (top) Design - 15.9 mm
Bluetooth Low Energy (BLE) Other features - Yes
Bluetooth Other features - Yes
Brand - LG
BrandPartCode - 86UN640S0LD.AEU
Browsing Performance - Yes
Built-in speaker(s) Audio - Yes
Built-in speakers - Yes
Cable lock slot type Other features - Kensington
Cables included Packaging content - AC
Category - Signage Displays
Category Code - LCD
Colour name Design - Ashed Blue
Common interface Plus (CI+) Other features - Yes
Common interface Plus (CI+) version Other features - 1.4
Computer system - Operating system installed - WebOS
Computer system - Operating system version - 22
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast ratio (typical) - 1200:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/1599587/fiches?language=EN
Depth (with stand) Weight & dimensions - 362 mm

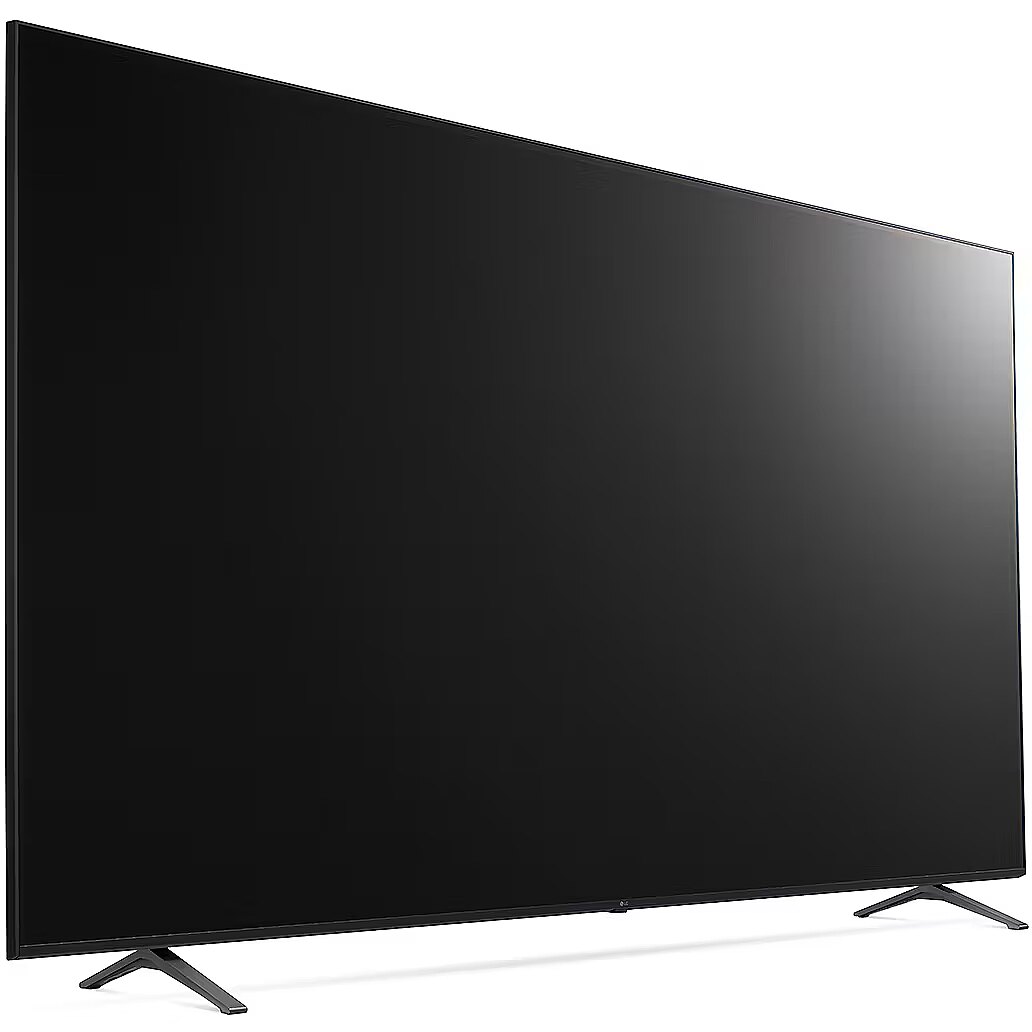

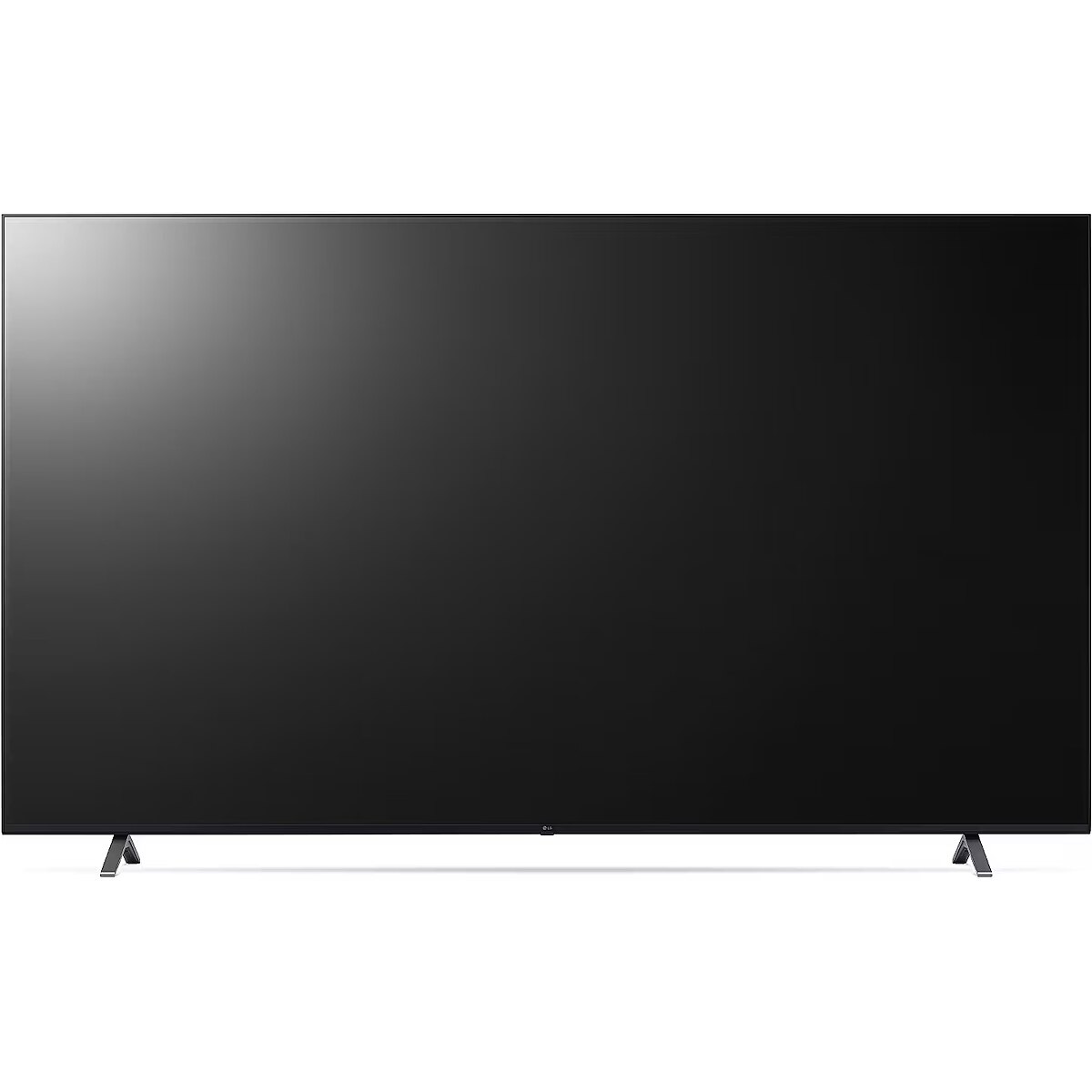

Description - LG 86UN640S0LD 86" UHD IPS 330 NITS 16/7 DVB-T2/S2/C WIFI
Description - LG TV Signage with Essential Function Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed. * 'LG Conventional' refers to LG UT640S series. High-Performance with LG webOS22
LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.** * SoC : System On Chip
** GUI : Graphical User Interface Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly. Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices. * LG SuperSign CMS is sold separately Easy Group Control
The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported. Compatible with AV Control Systems
The UN640S series supports Crestron Connected® * for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency. * Initial setting from display is required for Crestron Connected® compatibility.
** Network based control Compatible with Video Conference System
For effective visual meeting, the UN640S series supports its compatibility* with Cisco solutions that offers powerful and integrated control** for a smarter video conference. * Cisco compatibility will be certified in Q3 of 2023.
** Using an HDMI cable connection (HDMI cable is optional) Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently. Real-time Promotion & Content Sharing
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And Content Mirroring among devices is available on a same Wi-Fi network. Wireless Access Point
UN640S series operates as a virtual router which can be an wireless access point for mobile devices. Easy Menu Setup for Vertical Needs
UN640S series increases users' convenience by organizing frequently used menus* by industry. * Pre-set Support Vertical : Corporate / Government / Retail, Meeting room Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses. * The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.Brightness(Typ.) : 330 nitsResolution : 4K Ultra HD (3,840 x 2,160)Improved Design with Slim DepthwebOS-based High PerformanceEasy Content Management / Group ManagementSuperSign Control+ (Free version) / CMS Compatibility
Design - Bezel width (bottom) - 1.99 cm
Design - Bezel width (side) - 1.59 cm
Design - Bezel width (top) - 1.59 cm
Design - Colour name - Ashed Blue
Design - Orientation - Horizontal
Design - Panel mounting interface - 600 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Blue
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Digital audio out Technical details - 1
Digital signal format system Performance - DVB-C/DVB-S2/DVB-T2
Dimensions (W x D x H) with stand, mm - 1927 x 362 x 1167
Dimensions W x D x H, mm - 1927 x 59.9 x 1104
Display - Display brightness - 330 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display diagonal (metric) - 217 cm
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LCD
Display - HD type - 4K Ultra HD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG)
Display - Native aspect ratio - 16:9
Display - Touchscreen - No
Display brightness Display - 330 cd/m²

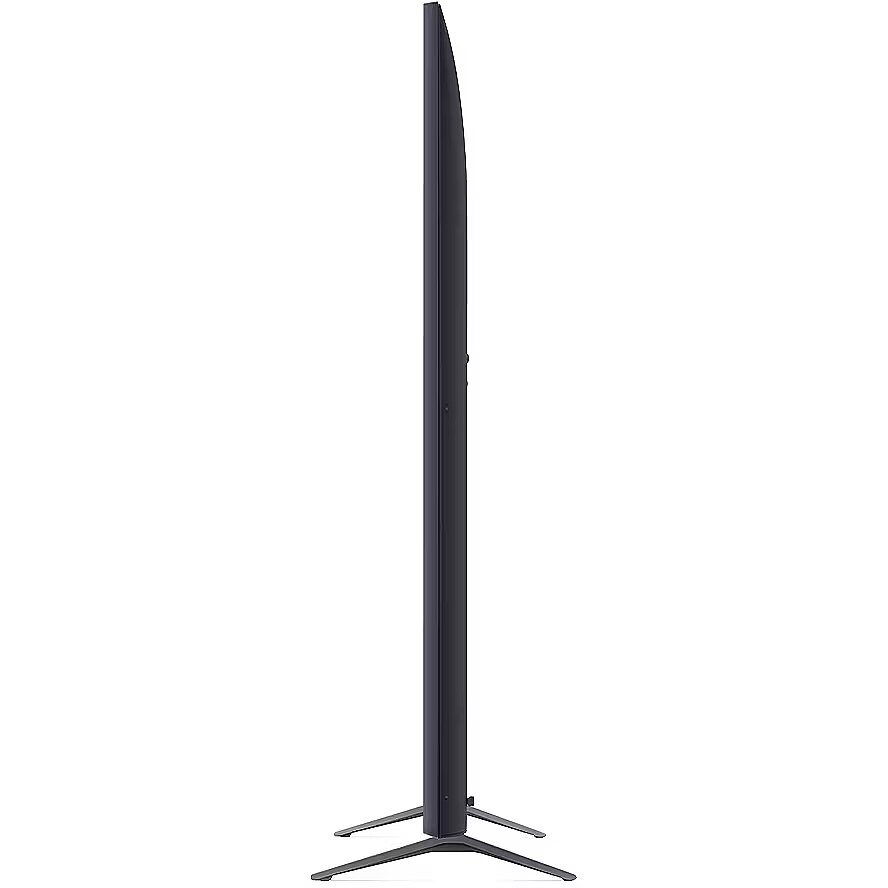

Display depth Weight & dimensions - 59.9 mm
Display diagonal (metric) Display - 217 cm
Display diagonal, " - 86
Display diagonal Display - 86 "
Display height Weight & dimensions - 1104 mm
Display resolution, pixels - 3840 x 2160
Display resolution Display - 3840 x 2160 pixels
Display technology Display - LCD
Display weight Weight & dimensions - 45200 g
Display width Weight & dimensions - 1927 mm
DVI port Ports & interfaces - No
Energy consumption (HDR) per 1000 hours Power - 232 kWh
Energy consumption (SDR) per 1000 hours Power - 160 kWh
Energy efficiency class - G
Energy efficiency class (HDR) Power - G
Energy efficiency class (SDR) Power - G
Energy efficiency class Energy Efficiency - G
EPREL Registration Number Energy Efficiency - 1599587
EPREL Version Number Energy Efficiency - 2
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
GTIN - 8806084508232
HDMI ports quantity Ports & interfaces - 3
HDMI version Ports & interfaces - 2.0
HD type Display - 4K Ultra HD
Headphone outputs Other features - 1
Height - 1215.000000
Height (with stand) Weight & dimensions - 1167 mm
High Dynamic Range (HDR) supported Display - Yes
High Dynamic Range (HDR) technology Display - High Dynamic Range 10 Pro (HDR10 Pro)/Hybrid Log-Gamma (HLG)
Hotel mode Other features - Yes
Length - 2100.000000
LongDesc - LG TV Signage with Essential FunctionSuperb Picture Quality with Ultra HD ResolutionWith the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.Improved Design with Slim DepthThis series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.* 'LG Conventional' refers to LG UT640S series.High-Performance with LG webOS22LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.*** SoC : System On Chip** GUI : Graphical User InterfaceEmbedded Content & Group ManagementThe embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.Versatile Content Management with LG SuperSign CMSLG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.* LG SuperSign CMS is sold separatelyEasy Group ControlThe UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.Compatible with AV Control SystemsThe UN640S series supports Crestron Connected® * for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.* Initial setting from display is required for Crestron Connected® compatibility.** Network based controlCompatible with Video Conference SystemFor effective visual meeting, the UN640S series supports its compatibility* with Cisco solutions that offers powerful and integrated control** for a smarter video conference.* Cisco compatibility will be certified in Q3 of 2023.** Using an HDMI cable connection (HDMI cable is optional)Display Power Management SupportDisplay Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.Real-time Promotion & Content SharingWith Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And Content Mirroring among devices is available on a same Wi-Fi network.Wireless Access PointUN640S series operates as a virtual router which can be an wireless access point for mobile devices.Easy Menu Setup for Vertical NeedsUN640S series increases users' convenience by organizing frequently used menus* by industry.* Pre-set Support Vertical : Corporate / Government / Retail, Meeting roomReal-time LG ConnectedCare ServiceMaintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
LongProductName - 86", 4K UHD (3840 x 2160), 330 nits, HDR 10 Pro, LG Sound Sync, DVB-T2/C/S2, Wi-Fi, Bluetooth, Hotel Mode, Soft AP, BEACON, webOS22
LongSummaryDescription - LG 86UN640S. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 330 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating system installed: WebOS. Product colour: Blue
Manufacturer - LG Electronics
ManufacturerPartNumber - 86UN640S0LD
Model - 86UN640S0LD
Native aspect ratio Display - 16:9
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Number of speaker outputs Ports & interfaces - 1
Operating system installed Computer system - WebOS
Operating system version Computer system - 22
Operation time - 16/7
Orientation Design - Horizontal
Other features - Bluetooth - Yes
Other features - Bluetooth Low Energy (BLE) - Yes
Other features - Cable lock slot type - Kensington
Other features - Common interface Plus (CI+) - Yes
Other features - Common interface Plus (CI+) version - 1.4
Other features - Headphone outputs - 1
Other features - Hotel mode - Yes
Other features - Power management - Yes
Other features - Teletext function - Yes
Other features - Timer - Yes
Package depth Packaging data - 228 mm
Package height Packaging data - 1215 mm
Package weight Packaging data - 58400 g
Package width Packaging data - 2115 mm
Packaging content - Cables included - AC
Packaging content - Remote control included - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 228 mm
Packaging data - Package height - 1215 mm
Packaging data - Package weight - 58.4 kg
Packaging data - Package width - 2115 mm
Panel mounting interface Design - 600 x 400 mm
Performance - Analog signal format system - PAL, SECAM
Performance - Browsing - Yes
Performance - Digital signal format system - DVB-C, DVB-S2, DVB-T2
Performance - Purpose - Universal
Performance - TV tuner integrated - Yes
PeriodofWarranty -
Pivot - No
Placement supported Design - Indoor
Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Number of speaker outputs - 1
Ports & interfaces - RF input - 2
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50-60 Hz
Power - AC input voltage - 100-240 V
Power - Energy consumption (HDR) per 1000 hours - 232 kWh
Power - Energy consumption (SDR) per 1000 hours - 160 kWh
Power - Energy efficiency class (HDR) - G
Power - Energy efficiency class (SDR) - G
Power - Power consumption (max) - 340 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 312 W
Power consumption (max) Power - 340 W
Power consumption (standby), W - 0.5
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 312 W
Power consumption, W - 312
Power management Other features - Yes
Product colour Design - Blue
Product design Design - Digital signage flat panel
ProductName - 86UN640S
Purpose Performance - Universal
Real Time Clock (RTC) Technical details - Yes
Remote control included Packaging content - Yes
RF input Ports & interfaces - 2
RMS rated power Audio - 20 W
RS-232C Ports & interfaces - Yes
ShortSummaryDescription - LG 86UN640S, Digital signage flat panel, 2.18 m (86"), LCD, 3840 x 2160 pixels, Wi-Fi
Stand included Packaging content - Yes
Summary - LG 86UN640S. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 330 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating system installed: WebOS. Product colour: Blue
Technical details - Digital audio out - 1
Technical details - Real Time Clock (RTC) - Yes
Teletext function Other features - Yes
Timer Other features - Yes
Title - LG 86UN640S Digital signage flat panel 2.18 m (86") LCD Wi-Fi 330 cd/m² 4K Ultra HD Blue WebOS
Touchscreen Display - No
Touch sensitive screen - No
Tuner type - DVB-C
Tuner type - DVB-S2
Tuner type - DVB-T2
TV tuner integrated Performance - Yes
Unit Box Height - 1.235
Unit Box Length - 2.1
Unit Box Width - 0.225
Unit Calculated Volume - 0.5835375 cubm
Unit Calculated Weight - 58.4 kg
URL - https://www.lg-informationdisplay.com/product/digital-signage/standard/50UN640S-EU-CIS
USB port Ports & interfaces - Yes
USB ports quantity Ports & interfaces - 1
USB version Ports & interfaces - 2.0
Vendor Homepage - https://www.lg-informationdisplay.com/product/digital-signage/standard/50UN640S-EU-CIS
VESA-standard, mm - 600 x 400
VESA mounting Design - Yes
Warranty - 12/24 months
WarrantyInfo -
Weight - 55.000000
Weight & dimensions - Depth (with stand) - 362 mm
Weight & dimensions - Display depth - 59.9 mm
Weight & dimensions - Display height - 1104 mm
Weight & dimensions - Display weight - 45.2 kg
Weight & dimensions - Display width - 1927 mm
Weight & dimensions - Height (with stand) - 1167 mm
Weight & dimensions - Weight (with stand) - 45.9 kg
Weight & dimensions - Width (with stand) - 1927 mm
Weight (with stand) Weight & dimensions - 45900 g
Weight, g - 45200
Wi-Fi - Yes
Wi-Fi Network - Yes
Width - 225.000000
Width (with stand) Weight & dimensions - 1927 mm
