Startech HDMI OVER CAT5 EXTENDER .

ARTIKEL1 - HDMI OVER CAT5 EXTENDER
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - ST121HDBTPW
Breite - 0.2
Category - AV Extenders
EANCode - 0065030854177
Features - Audio output channels - 7.1 channels
Features - Audio system - Multichannel
Features - Cable types supported - Cat5e, Cat6
Features - Certification - CE, FCC, TAA
Features - Daisy chain - No
Features - HDBaseT certified - Yes
Features - LED indicators - Status
Features - Material - Aluminium
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 4096 x 2160 pixels
Features - Maximum transfer distance - 100 m
Features - Product colour - Black
Features - Rubber feet - Yes
Features - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Features - Supported video modes - 720p, 1080p, 2160p
Features - Type - AV transmitter & receiver
Gewicht - 1.14
GRUPPE1 - Cables
GRUPPE2 - Peripheral Switch
GTIN - 0065030854177
GTIN - 065030854177
GTIN - 0690025794925
GTIN - 690025794925
HERSTELLER - STARTECH
Hoehe - 0.07
HSTNUMMER - ST121HDBTPW
Laenge - 0.3
Logistics data - Master (outer) case height - 325 mm
Logistics data - Master (outer) case length - 450 mm
Logistics data - Master (outer) case width - 405 mm
Logistics data - Products per master (outer) case - 12 pc(s)
LongDesc - Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to ReceiverThis HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.What is HDBaseT?HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.Extend More than Video with HDBaseTFor greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.Astonishing 4K picture quality from an impressive distanceWith the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.Hassle-free, Professional Installation with a Single CableThis extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
LongProductName - StarTech.com 330 ft. (100 m) HDMI Over CAT5e / CAT6 Extender - HDMI over CAT5e - HDBaseT Extender - 4K30 - HDMI Video Extender , TAA (ST121HDBTPW)
LongSummaryDescription - StarTech.com HDMI over CAT5e HDBaseT Extender - 4K - TAA. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. AC input voltage: 100-240 V, Operating voltage: 12 V, Input current: 0.5 A. Width: 67 mm, Depth: 80 mm, Height: 25 mm. Package width: 196 mm, Package depth: 295 mm, Package height: 72 mm. Cables included: LAN (RJ-45), Included power plug types: AU, EU, NA, UK
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -10 - 60 °C

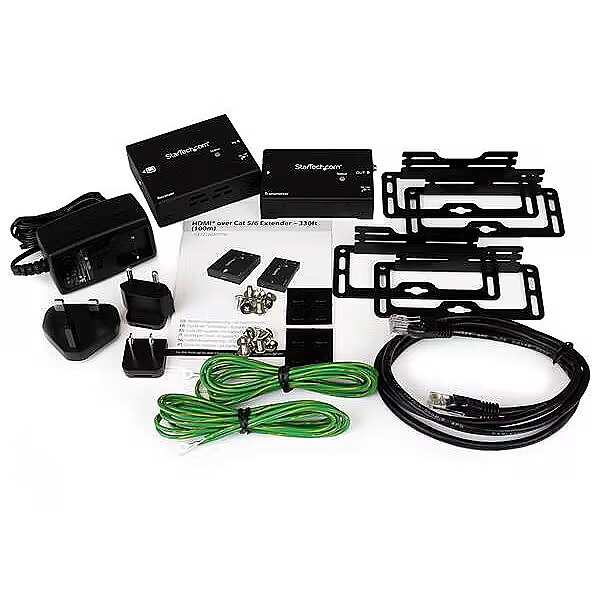

Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Grounding wire - Yes
Packaging content - Included power plug types - AU, EU, NA, UK
Packaging content - Manual - Yes
Packaging content - Mounting brackets included - Yes
Packaging data - Package depth - 295 mm
Packaging data - Package height - 72 mm
Packaging data - Package weight - 1.2 kg
Packaging data - Package width - 196 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI in - 1
Ports & interfaces - Number of HDMI outputs - 1
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Power - AC input voltage - 100-240 V
Power - External power adapter - Yes
Power - Input current - 0.5 A
Power - Operating voltage - 12 V
Power - Output current - 1.5 A
Power - Power consumption (typical) - 18 W
Power - Power plug type - Type M
ProductName - HDMI over CAT5e HDBaseT Extender - 4K - TAA
ShortSummaryDescription - StarTech.com HDMI over CAT5e HDBaseT Extender - 4K - TAA, 4096 x 2160 pixels, AV transmitter & receiver, 100 m, Black
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Technical details - Audio support - Yes
Technical details - Compliance certificates - RoHS
Title - StarTech.com HDMI over CAT5e HDBaseT Extender - 4K - TAA
URL - https://www.startech.com/en-us/ST121HDBTPW
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Weight - 423 g
Weight & dimensions - Width - 67 mm
