Brand - ATEN
BrandPartCode - VS381B
Category - Video Switches
Code - VS381B-AT
EAN - 4710469340383
Features - 3D - Yes
Features - Bandwidth - 18 Gbit/s
Features - Bandwidth - 600 MHz
Features - Dolby technologies - Dolby Vision
Features - External power adapter - Yes
Features - HDCP - Yes
Features - HDCP version - 2.2
Features - HD type - 4K Ultra HD
Features - Input impedance - 100 Ω
Features - Material - Metal
Features - Maximum operating distance - 5 m
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 4096 x 2160 pixels
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Supported graphics resolutions - 3840 x 2160, 4096 x 2160
GTIN - 0672792012198
GTIN - 672792012198
GTIN - 4710469340383
Link - https://www.aten.com/global/en/products/professional-audiovideo/video-switches/vs381b/
Logistics data - Harmonized System (HS) code - 85176990

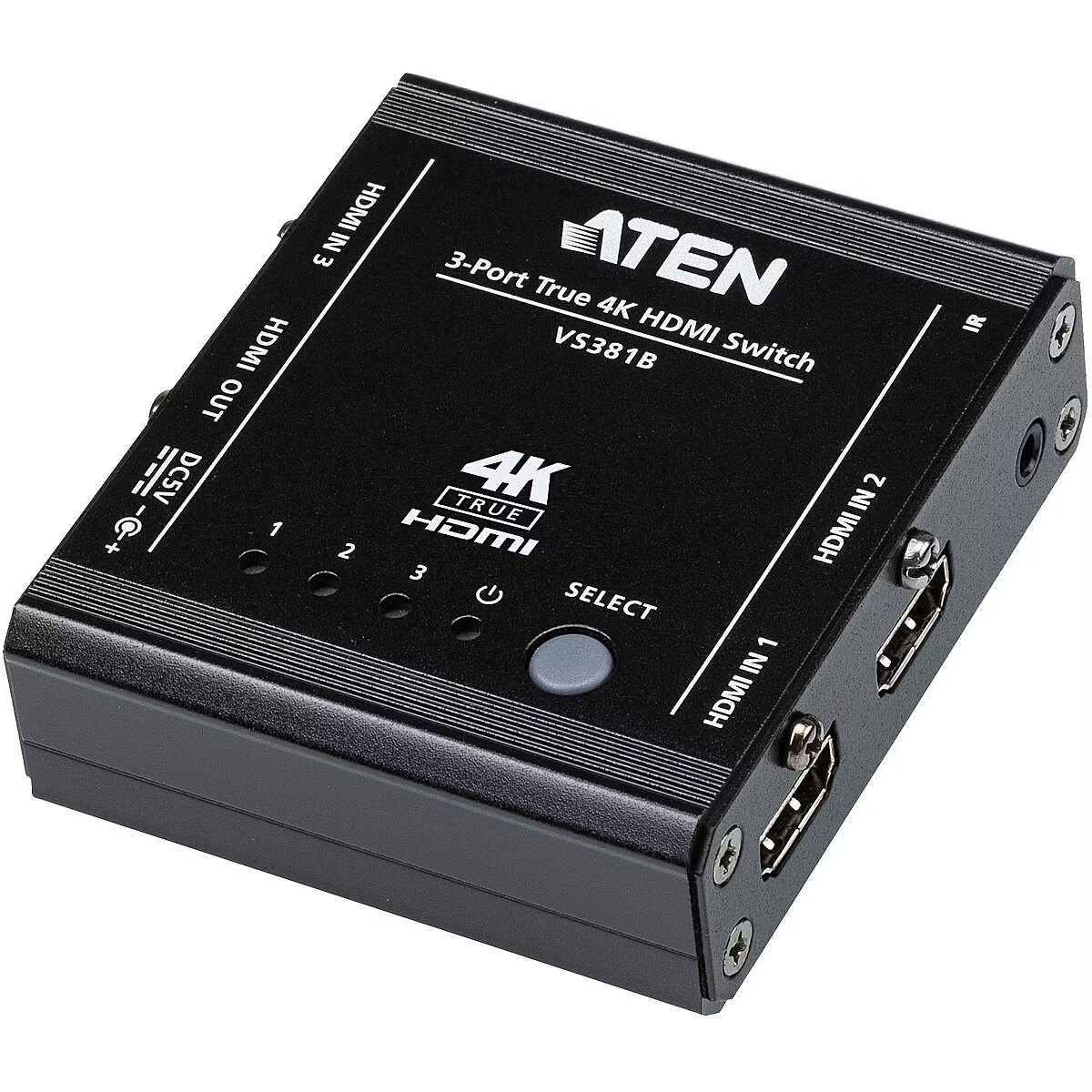

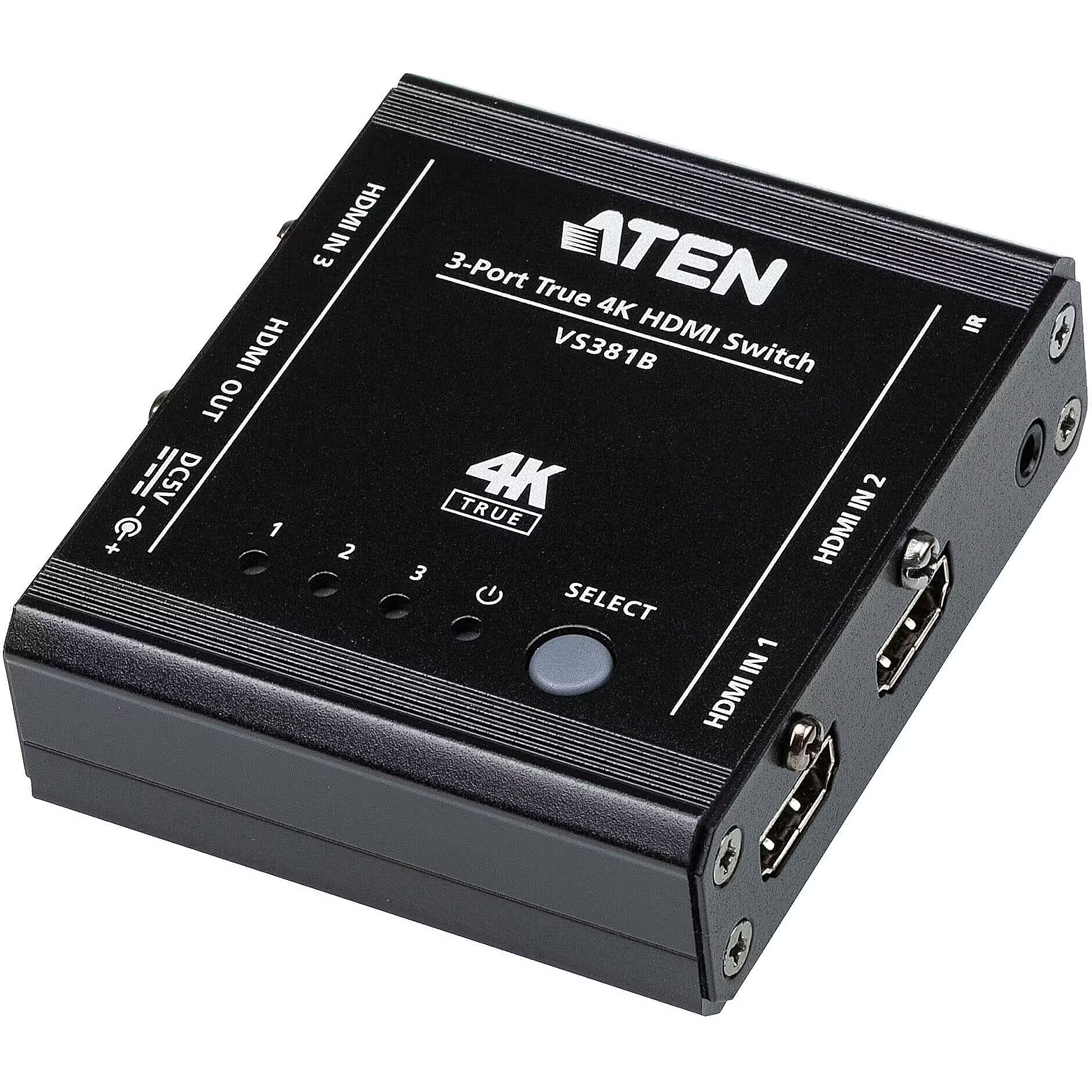

LongDesc - The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.Package Contents- 1x VS381B 3-Port True 4K HDMI Switch- 1x USB to DC Power Cord- 1x IR Remote Control- 1x IR Receiver- 1x User Instructions
LongProductName - 3-Port True 4K HDMI Switch
LongSummaryDescription - ATEN 3-Port True 4K HDMI Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 1.46 W. Width: 71.6 mm, Depth: 79 mm, Height: 25.5 mm
Name - Aten | 3-Port True 4K HDMI Switch | VS381B | Input: 3 x HDMI Type A Female; Output: 1 x HDMI Type A Female
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 71.6 mm
Package features > Gross height (mm) - 25.5 mm
Package features > Gross width (mm) - 79 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 25 pc(s)
Package features > Paper/Pasteboard - 3000.00 g
Package features > Plastic (No PET) - 390.00 g
Package features > Tare weight (kg) - 3.39 kg
Package features > Volume (m3) - 0.0001442382 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI in - 3
Ports & interfaces - HDMI ports quantity - 4
Ports & interfaces - Number of HDMI outputs - 1
Ports & interfaces - Video port type - HDMI
Ports & interfaces > Video port type - Input: 3 x HDMI Type A Female; Output: 1 x HDMI Type A Female
Power - Power consumption (typical) - 1.46 W
Producer product family - 3-Port True 4K HDMI Switch
Producer product name - VS381B
ProductName - 3-Port True 4K HDMI Switch
ShortSummaryDescription - ATEN 3-Port True 4K HDMI Switch, HDMI, Metal, Black, 60 Hz, 5 m, 3840 x 2160, 4096 x 2160
Technical details > Gross weight - 3.54 kg
Technical details > Net weight - 0.15 kg
Technical details > Producer - Aten
Title - ATEN 3-Port True 4K HDMI Switch
URL - https://www.aten.com/global/en/products/professional-audiovideo/video-switches/vs381b/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 79 mm
Weight & dimensions - Height - 25.5 mm
Weight & dimensions - Weight - 150 g
Weight & dimensions - Width - 71.6 mm
