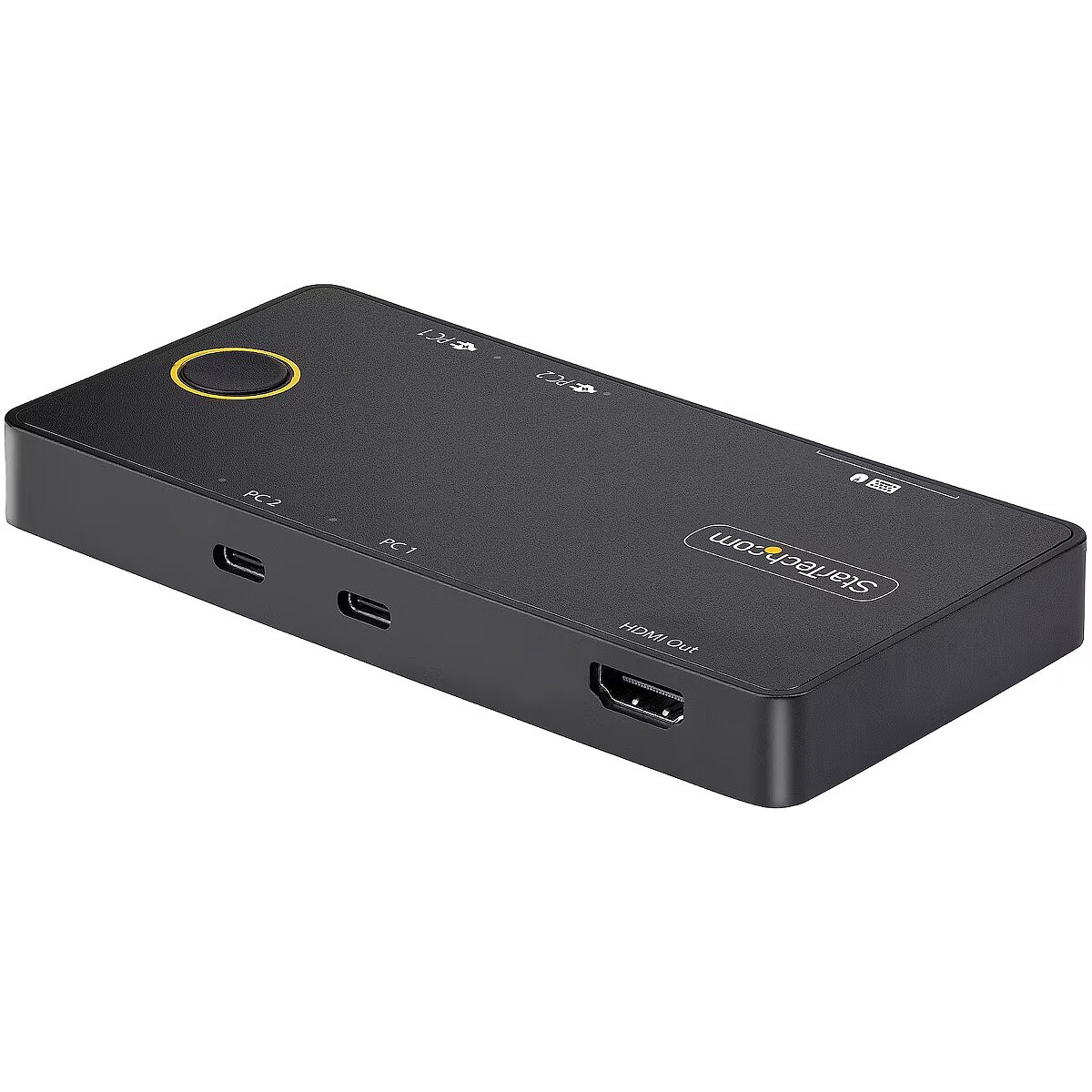

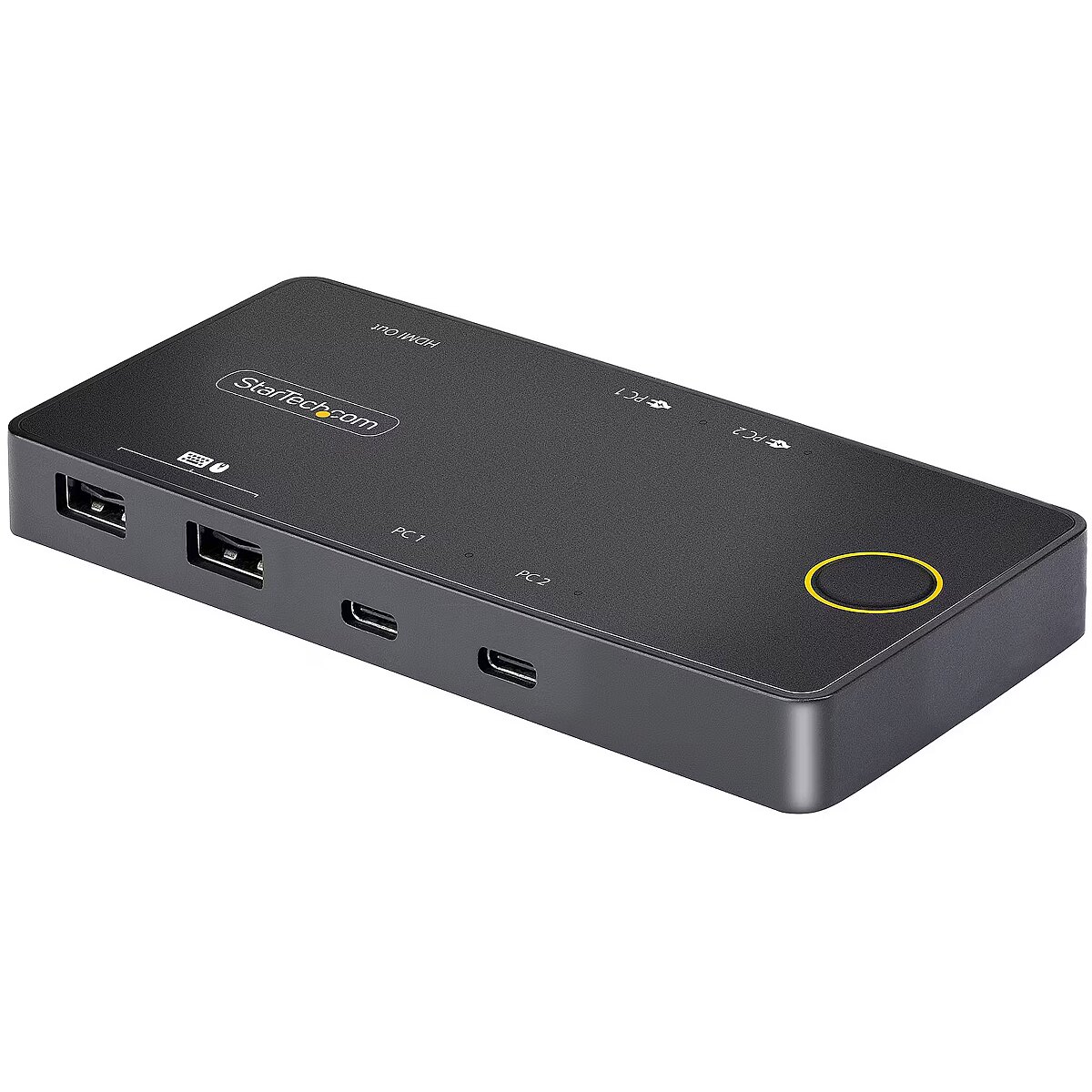

Startech USB-C KVM SWITCH 4K 60HZ 100W PD PASS-THROUGH

ARTIKEL1 - USB-C KVM SWITCH 4K 60HZ
ARTIKEL2 - 100W PD PASS-THROUGH
Brand - StarTech.com
BrandPartCode - C2-H46-UC2-PD-KVM
Breite - 0
Category - KVM Switches
Design - Cable length - 1 m
Design - Hot keys - No
Design - Housing material - Acrylonitrile butadiene styrene (ABS)
Design - LED indicators - Power
Design - Mean time between failures (MTBF) - 50000 h
Design - Product colour - Black
Design - Push button - Yes
Design - Rack mounting - No
Display - Built-in display - No
EANCode - 0065030897648
Gewicht - 0.44
GRUPPE1 - Network
GRUPPE2 - KVM Switch Entry Level
GTIN - 0065030897648
GTIN - 065030897648
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - C2-H46-UC2-PD-KVM
Laenge - 0
Logistics data - Master (outer) case height - 310 mm
Logistics data - Master (outer) case length - 470 mm
Logistics data - Master (outer) case width - 410 mm
Logistics data - Products per master (outer) case - 20 pc(s)

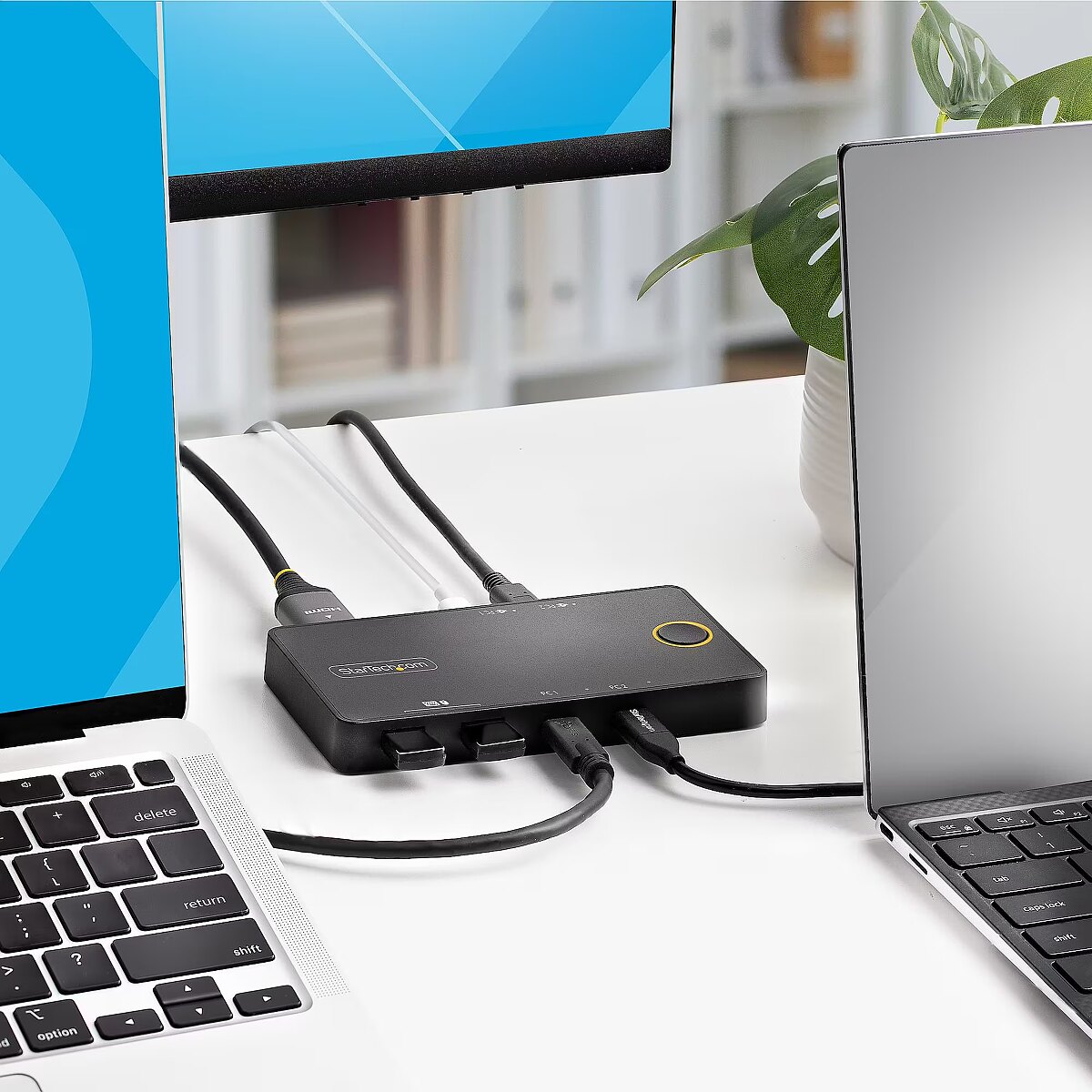

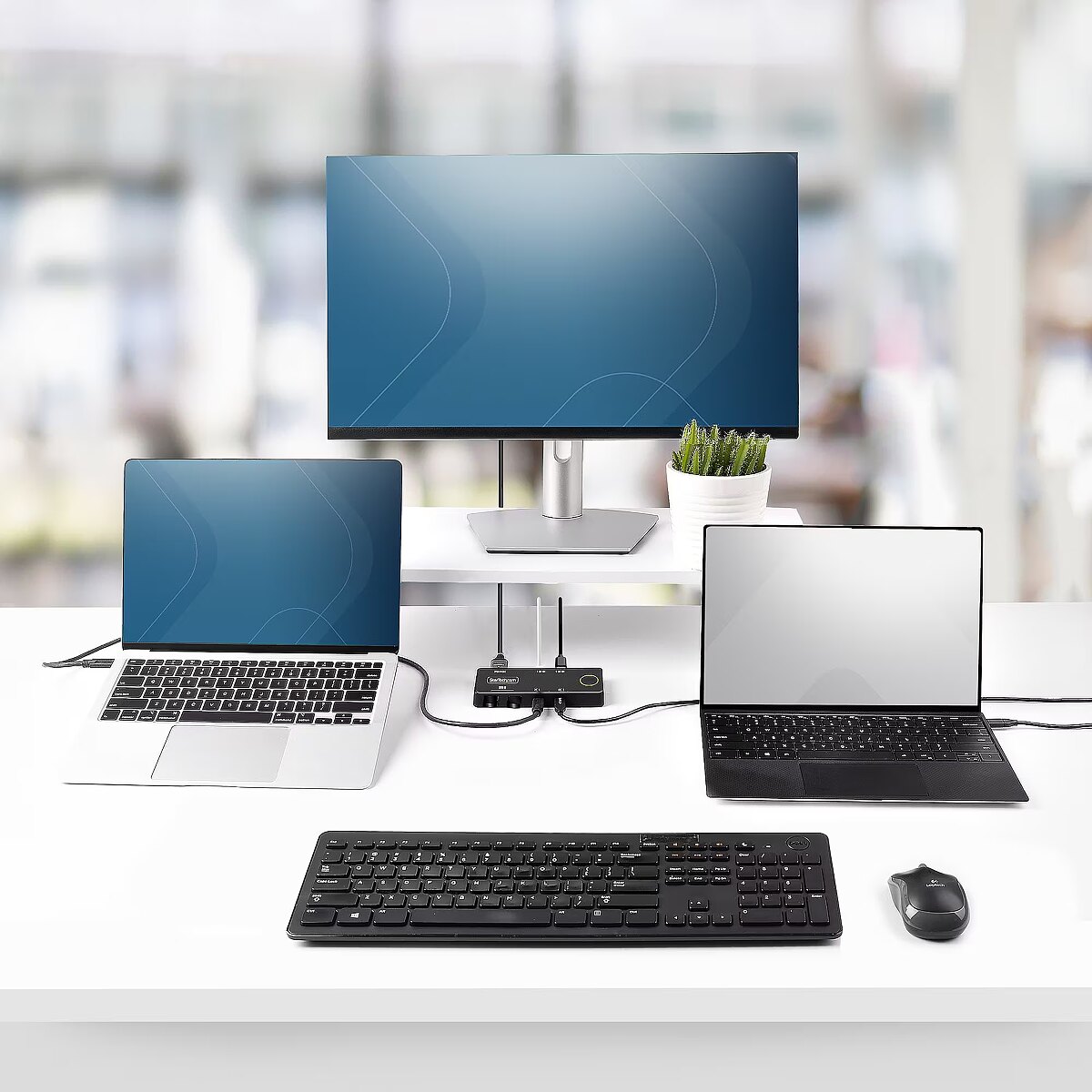

LongDesc - Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selectionThis USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.100W Power Delivery Pass-throughDual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.Universal CompatibilityThe 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Ready for Quick DeploymentThe KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, 100W Power Delivery Pass-through for Each Laptop/Tablet, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible (C2-H46-UC2-PD-KVM)
LongSummaryDescription - StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 75 Hz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Cable length: 1 m. Power consumption (typical): 10 W, USB Power Delivery up to: 100 W. Compliance certificates: CE, RoHS
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features - IP control - No

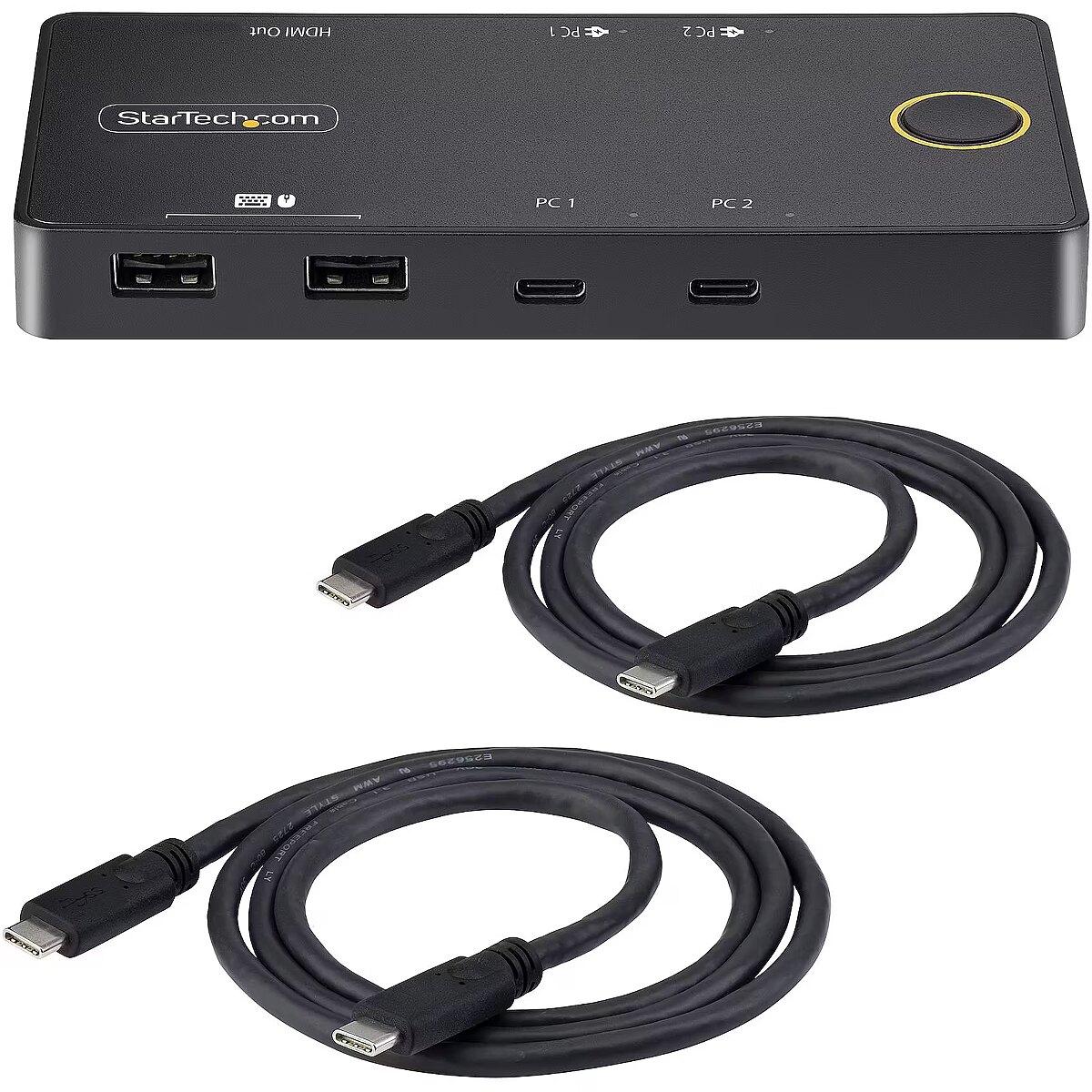

Packaging content - Cables included - USB Type-C
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 172 mm
Packaging data - Package height - 85 mm
Packaging data - Package weight - 440 g
Packaging data - Package width - 120 mm
Performance - Audio channels - 7.1
Performance - Chipset - VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817
Performance - Data transfer rate (max) - 0.48 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Maximum resolution - 4096 x 2160 pixels
Performance - Plug and Play - Yes
Performance - Video bandwidth - 75 Hz
Ports & interfaces - Console HDMI ports quantity - 1
Ports & interfaces - Console ports - HDMI, USB A, USB C
Ports & interfaces - Console USB ports quantity - 4
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Video port type - HDMI
Power - Power consumption (typical) - 10 W
Power - USB Power Delivery (USB PD) - Yes
Power - USB Power Delivery up to - 100 W
ProductName - 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor
ShortSummaryDescription - StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor, 4096 x 2160 pixels, 4K Ultra HD, 10 W, Black
Stck_Kart - 10
Stck_Pal - 0
Storno - Y
Sustainability - Compliance certificates - CE, RoHS
Sustainability - Sustainability compliance - Yes
Title - StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor
URL - https://www.startech.com/en-us/C2-H46-UC2-PD-KVM
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Weight - 200 g
Weight & dimensions - Width - 70 mm
