Cooler Master Masterbox 520 Mesh, ARGB, Black

Category - Root/Electronics/PC parts/Computer casings
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
Color - Black
Cooling - Front fans diameters supported - 120
Cooling - Front fans diameters supported - 140 mm
Cooling - Front fans installed - 3x 120 mm
Cooling - Front radiator sizes supported - 120
Cooling - Front radiator sizes supported - 140
Cooling - Front radiator sizes supported - 240
Cooling - Front radiator sizes supported - 280
Cooling - Front radiator sizes supported - 360 mm
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 120
Cooling - Top radiator sizes supported - 140
Cooling - Top radiator sizes supported - 240 mm
Cooling - Top radiator sizes supported - 280
Cooling - Top radiator sizes supported - 360 mm
Description - MasterBox 520 Mesh is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high-quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 Mesh has something in for you. Pre-installed with three CF120 ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.
FineMesh Performance Front Panel Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Three CF120 ARGB Fans Included Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.

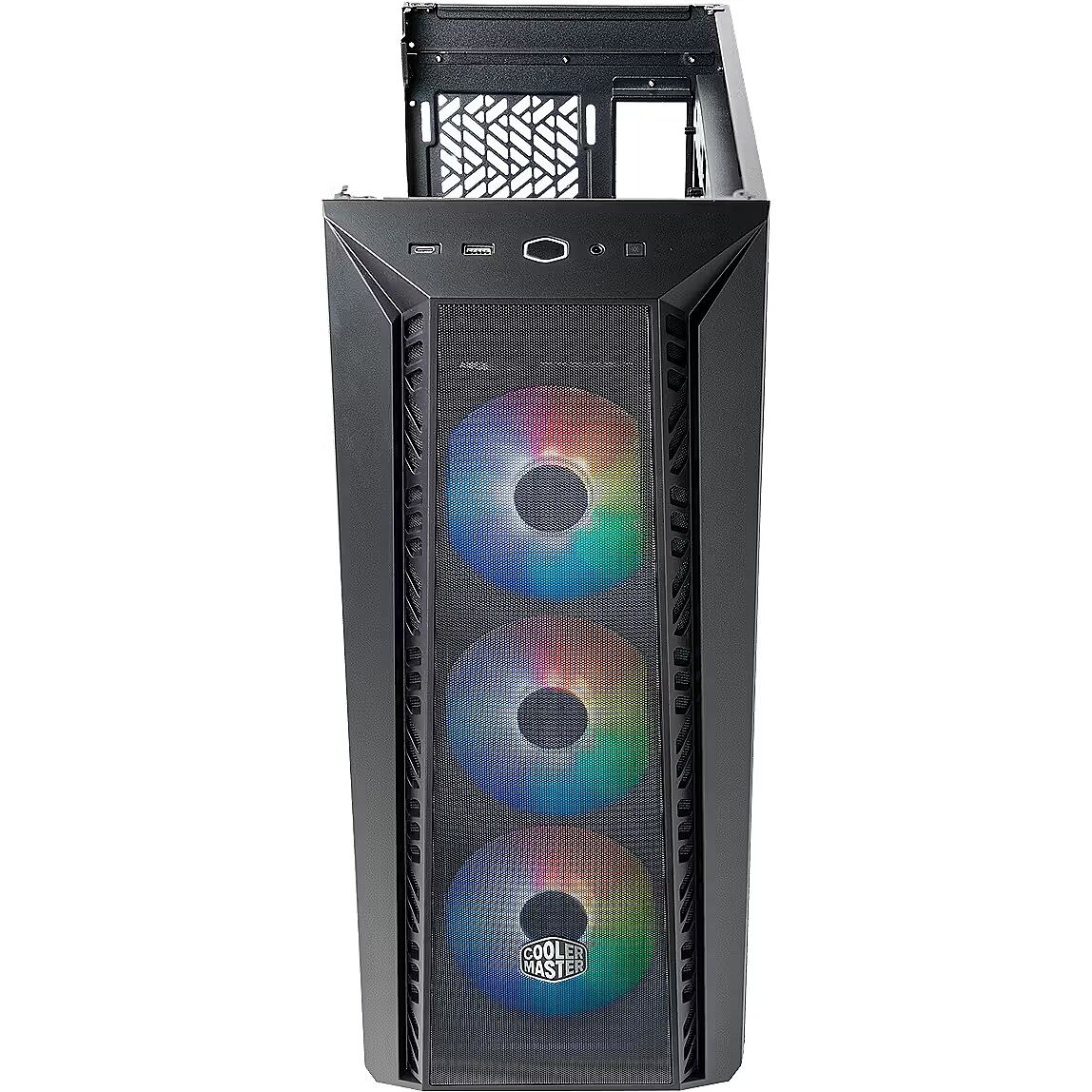

Removable Top Panel The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Screwless & Tool-Free TG Side Panel The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
Versatile Cooling Options Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Removable HDD cage The HDD cage is completely removable for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - Material - ABS
Design - Material - Steel
Design - Material - Tempered glass
Design - Maximum CPU cooler height - 16.5 cm
Design - Maximum graphics card length - 41 cm
Design - Maximum PSU length - 20 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Product colour - Black
Design - Reset button - Yes
Design - RGB control button - Yes
Design - Side window - Yes
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - EATX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Supported motherboard form factors - SSI CEB
Design - Type - PC
dimensionalWeight - 18190
dimension depth - 555 mm
dimension height - 580 mm
Dimensions - 502 x 210 x 498 mm
dimension weight - 9100 g
dimension width - 290 mm
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' intern. - 3
ean - 4719512126486
Eans - 4719512126486
EAN_code - 4719512126486
Fan - 12 cm
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.0
Front panel connectors - 1 x USB 3.1 Typ C
guarantee - 24
guarantee_type - normal
Manufacturer - Cooler Master
Manufacturer_code - MB520-KGNN-S00
Name - Cooler Master MasterBox 520 Mesh, Tower Case (black)
Name - Cooler Master MasterBox 520 Mesh ARGB
name - PC Case MasterBox 520 Mesh with window ARGB
No. of drive bays - 6
Other features -
Other features - Volume - 50 L
Packaging data - LED controller - Yes
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX
producer - Cooler Master
Producer - CoolerMaster
producerCode - MB520-KGNN-S00
ProducerCode - MB520-KGNN-S00
productName - Cooler Master MasterBox 520 Mesh Midi Tower Black
productSize - Normal
ShortDescription - Midi Tower | czarna | bez zasilacza | 1 x USB 3.1, 1 x USB-C 3.1, audio | 502 x 210 x 498 mm
Side panel - Yes
sizeX - 285
sizeY - 555
sizeZ - 575
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
vendpn - MB520-KGNN-S00
warrantyLength - 24
warrantyType - G
Weight - 7.13 kg
Weight - 9,00
weight - 9160
Weight & dimensions - Depth - 502 mm
Weight & dimensions - Height - 498 mm
Weight & dimensions - Weight - 7.13 kg
Weight & dimensions - Width - 210 mm
