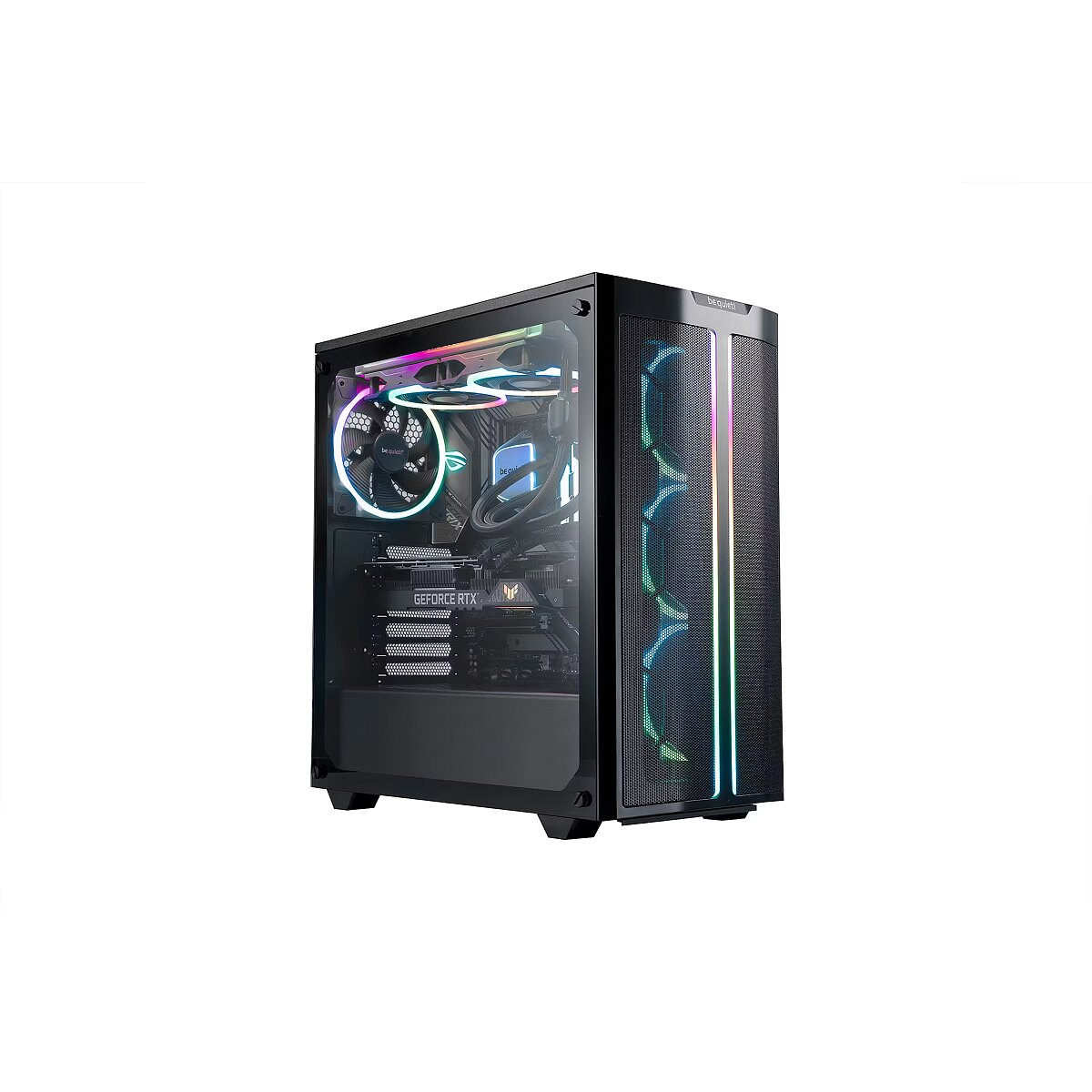

Be Quiet Pure Base 500 FX, Black, Tempered Glass

2.5" Internal Drive Bays - 4
3.5" Internal Drive Bays - 2
Air Duct - No
ARTIKEL1 - PURE BASE 500 FX BLACK
ARTIKEL2 - MIDI TOWER
ATX Mainboard Form Factor - Yes
Audio-In Input/Output connectors - 1
Brand - be quiet!
BrandPartCode - BGW43
Breite - 0
Case Type - MidiTower
Case width - 232 mm
category - Cases Midi-Tower
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category 1 - Gehäuse
Category 2 - Midi-/Mini-Tower
Category Code - CAS
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
CnCode CnCode - 84733080
code - BGW43
Color - Black
Colour - Black
Cooling & Ventilation System - Front: 3x Light Wings PWM 120 / 1700; Rear: 1x Light Wings PWM 140 / 1500
Cooling - Fan power consumption - 4.56 W
Cooling - Fan rated current - 0.07 A
Cooling - Fan rated voltage - 5 - 13.2 V
Cooling - Fan speed - 1500 - 1700 RPM
Cooling - Front fans diameters supported - 120
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans diameters supported - 140 mm
Cooling - Front fans installed - 3x 120 mm
Cooling - Front radiator sizes supported - 120
Cooling - Front radiator sizes supported - 120,140,240,280,360 mm
Cooling - Front radiator sizes supported - 140 mm
Cooling - Front radiator sizes supported - 240
Cooling - Front radiator sizes supported - 280 mm
Cooling - Front radiator sizes supported - 360 mm
Cooling - Liquid cooling capability - Yes
Cooling - Maximum airflow - 56 cfm
Cooling - Noise level (high speed) - 23.3 dB
Cooling - Noise level (low speed) - 20.6 dB
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans installed - 1x 140 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Rear radiator sizes supported - 120,140 mm
Cooling - Rear radiator sizes supported - 140 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 120
Cooling - Top radiator sizes supported - 120,240 mm
Cooling - Top radiator sizes supported - 240 mm
Description - Pure Base 500 FX ARGB case BGW43 black Impressive backlighting, exceptional airflow be quiet! Pure Base 500 FX Black offers impressive backlighting and maximum airflow for high cooling performance. ARGB backlighting on the front and inside of the case as well as on the fans Multiple colours and modes for an individual look 4 Light Wings PWM fans for high airflow and quiet operation ARGB PWM Hub for the synchronisation of up to 6 ARGB components or 6 PWM fans Front panel and top cover with high airflow USB 3.2 Gen. 2 Type C for the latest hardware Possibility to install water cooling radiators up to 360 mm 3-year manufacturer's warranty
Description - PURE BASE 500 FX Black IMPRESSIVE LIGHTING, EXCEPTIONAL AIRFLOW The be quiet! Pure Base 500 FX Black offers impressive lighting with multiple modes and maximum airflow for high cooling performance. ARGB lighting at the fans, the front and inside the case Multiple colors and modes for an individual look 4 Light Wings PWM fans for high airflow and quiet operation ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and 6 PWM fans High airflow intake front panel and top cover for maximum performance USB 3.2 Gen. 2 Type C for latest hardware Ready for radiators of up to 360mm
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - Illumination location - Case fans, Front
Design - Illumination location - Front
Design - LED indicators - Yes
Design - Material - Acrylonitrile butadiene styrene (ABS)
Design - Material - Acrylonitrile butadiene styrene (ABS), Steel
Design - Material - Steel
Design - Maximum CPU cooler height - 19 cm
Design - Maximum graphics card length - 36.9 cm
Design - Maximum PSU length - 25.8 cm
Design - Number of 2.5" bays - 4
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ITX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Type - PC
Design features - CPU cooler: 190; PSU: 258 / 225 (depending on position of the HDD cage); GPU: 369
dimensionalWeight - 14935
dimension depth - 295 mm
dimension height - 510 mm

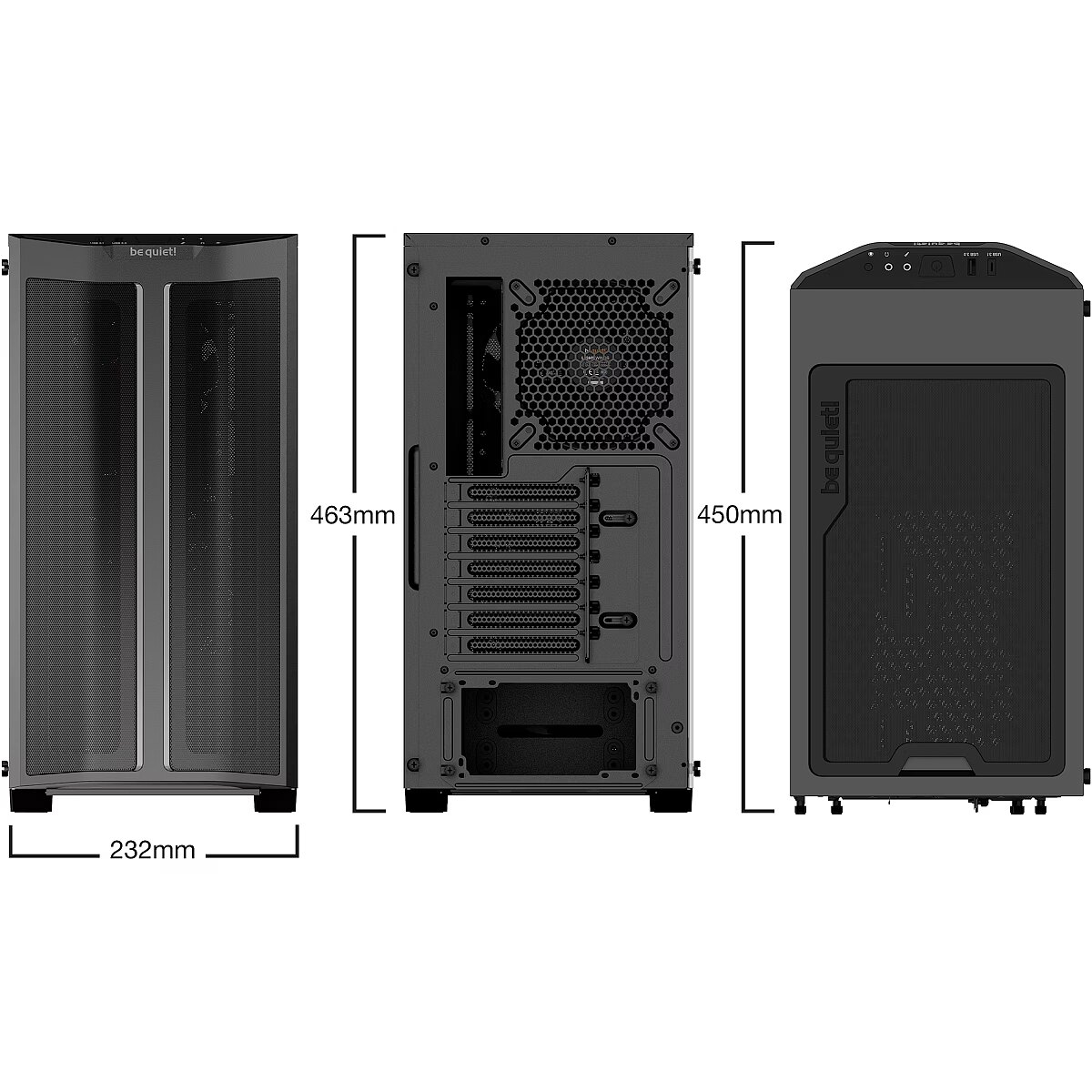

Dimensions - 450 x 232 x 443 mm
Dimensions - 450 x 232 x 443mm
dimension weight - 9500 g
dimension width - 520 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 4
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 4260052189054
EAN - 4260052189054
EANCode - 4260052189054
Eans - 4260052189054
EAN_code - 4260052189054
Fan - 12 cm
Fan - 14 cm
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x USB 3.0
Front panel connectors - 1 x USB Typ C
Full Description Line - Pure Base 500 FX|CPU cooler: 190; PSU: 258 / 225 (depending on position of the HDD cage); GPU: 369|MidiTower|PSU Not included|Front: 3x Light Wings PWM 120 / 1700; Rear: 1x Light Wings PWM 140 / 1500|Dimensions 450 x 232 x 443mm
Gewicht - 9.42
GRUPPE1 - Computer Systems
GRUPPE2 - Computer Cabinets
GTIN - 4260052189054
guarantee - 36
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0
HSTNUMMER - BGW43
Laenge - 0
LongDesc - IMPRESSIVE LIGHTING, EXCEPTIONAL AIRFLOWThe be quiet! Pure Base 500 FX Black offers impressive lighting with multiple modes and maximum airflow for high cooling performance.IMPRESSIVE LIGHTINGLots of illumination possibilitiesLight Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front and inside the case offer multiple colors and modes to individualize the look from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.PERFECT AIRFLOWThanks to 4 PWM fansWith optimization for maximum airflow, the Light Wings PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan to provide the performance that is needed, even in demanding configurations.HIGH AIRFLOW AND MAXIMUM PERFORMANCEAll parts optimized for airflow and performanceThe extremely permeable front is perfect for everyone who strives for maximum performance with water-cooled systems in particular. The airflow-optimized top cover underlines the performance orientated claim of Pure Base 500 FX Black. The dust filters on the front panel and bottom can be easily removed for cleaning.ONE HUB, MANY POSSIBILITIESSynchronization of up to 6 ARGB- and PWM-componentsThe ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components: Preinstalled on the backside of the motherboard tray it supports a neat interior and cable management.MODERN I/O PORTState-of-the-art technology for your systemA USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.SOPHISTICATED DESIGNGenerous space for high-end hardwareThe Pure Base 500 FX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Radiators of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm. EYE-CATCHING FEATURESAnd great cable routing possibilitiesPure Base 500 FX Black offers various options for installing up to 4 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.FUNCTIONAL PSU SHROUDOffering a neat interiorThe PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the provided PSU bracket.TEMPERED GLASS WINDOWA perfect view inside your PCThe high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
LongProductName - Midi-Tower, ATX / M-ATX / Mini-ITX, 4mm Tempered Glass, ATX PS/2, Steel, ABS
LongSummaryDescription - be quiet! PURE BASE 500 FX Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 232 mm, Depth: 450 mm, Height: 463 mm
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BGW43
MicroATX Mainboard Form Factor - Yes
Microphone Input/Output connectors - 1
MiniITX Mainboard Form Factor - Yes
Model - BGW43
Model name - Pure Base 500 FX
MPN - BGW43
Name - be quiet! Pure Base 500 FX, czarna, z oknem
Name - Be quiet! Pure Base 500 FX, tower case (black, tempered glass)
name - be quiet! Pure Base 500 FX Midi-Tower - schwarz
name - Computer case Pure Base 500 FX ARGB BGW43 black
Name - Midi be quiet! PURE BASE 500 FX ARGB
No. of drive bays - 6
Number of expansion slots - 7
Other features - Fans installed: Front: 3x Light Wings PWM 120 / 1700 mm/rpm Rear: 1x Light Wings PWM 140 / 1500 mm/rpm Maximum number of fans: Front: 2x 140 / 3x 120 mm Top: 2x 140 / 2x 120 mm Optional heatsinks: Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 240 mm Rear: 120 / 140 mm
Other features - Air pressure - 1.66 mmH2O
Other features - Fan connector - 4-pin
Other features - Mean time between failures (MTBF) - 60000 h
Other features - Screws included - Yes
Packaging data - LED controller - Yes
Packaging data - Package depth - 510 mm
Packaging data - Package height - 494 mm
Packaging data - Package weight - 9.2 kg
Packaging data - Package width - 285 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX
Power supply - Supported power supply form factors - ATX, PS2
Power supply - Supported power supply form factors - PS2
producer - Be quiet!
Producer - be quiet!
producerCode - BGW43
ProducerCode - BGW43
productName - be quiet! PURE BASE 500 FX Black Midi Tower
ProductName - PURE BASE 500 FX Black
productSize - Normal
PSU - Not included
PSU location - Bottom
Shipping Box Depth Shipping/Package Box Dimensions - 51.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 50.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 9.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.5 cm
ShortDescription - Midi Tower | czarny | bez zasilacza | 1 x USB 3.2 1 x USB 3.2 typ C | 450mm x 231mm x 463mm
ShortSummaryDescription - be quiet! PURE BASE 500 FX Black, Midi Tower, PC, Black, ATX, micro ATX, Mini-ITX, Acrylonitrile butadiene styrene (ABS), Steel, Gaming
Side panel - Tempered Glass
sizeX - 515
sizeY - 500
sizeZ - 290
Stck_Kart - 1
Stck_Pal - 13
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5"
Storno - N
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - CE, RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - be quiet! PURE BASE 500 FX Black Midi Tower
Unit Box Height - 0.505
Unit Box Length - 0.515
Unit Box Width - 0.295
Unit Brutto Volume - 0.07672 cubm
Unit Gross Weight - 9.4 kg
Unit Net Weight - 8 kg
URL - https://www.bequiet.com/en/download/cases/3737?utm_source=newsletter
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 1
Vendor Homepage - www.bequiet.com/en/case/3736
vendpn - BGW43
Warranty - 36 months
WarrantyInfo - 3-year manufacturer’s warranty
warrantyLength - 36
warrantyType - F
Weight - 8 kg
Weight - 9,50
Weight - 9.43
weight - 9200
Weight & dimensions - Depth - 450 mm
Weight & dimensions - Height - 463 mm
Weight & dimensions - Weight - 8 kg
Weight & dimensions - Width - 232 mm
