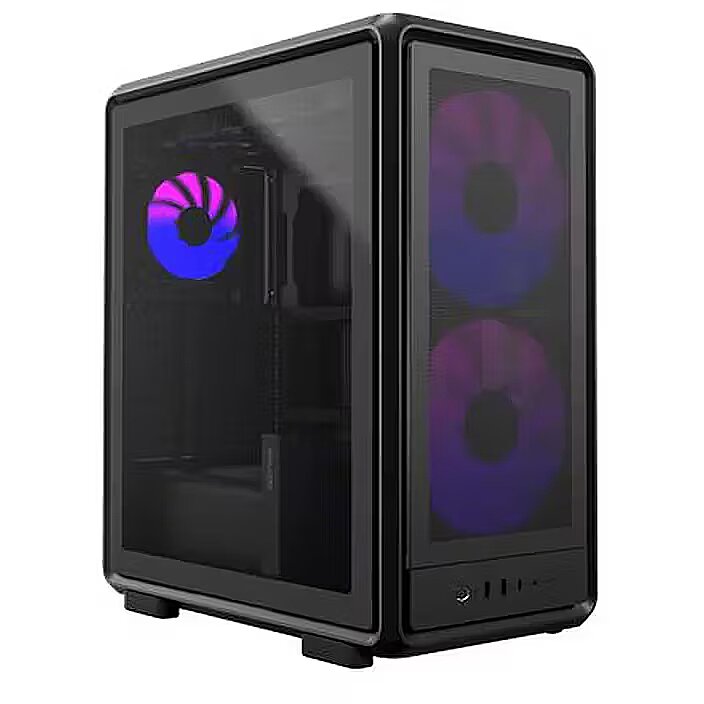

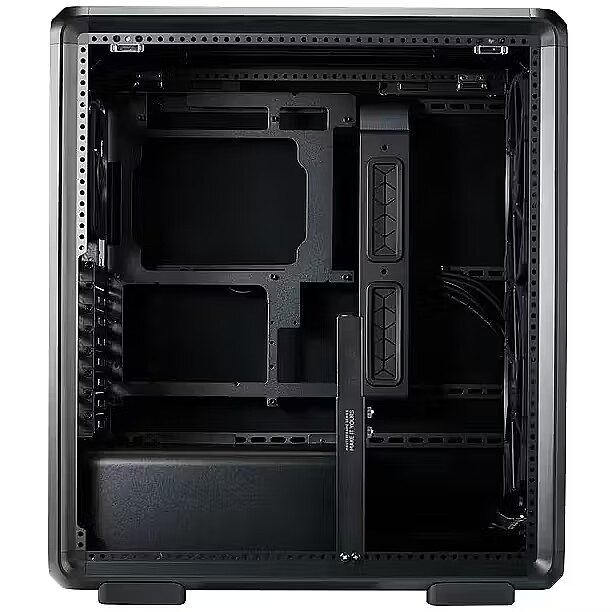

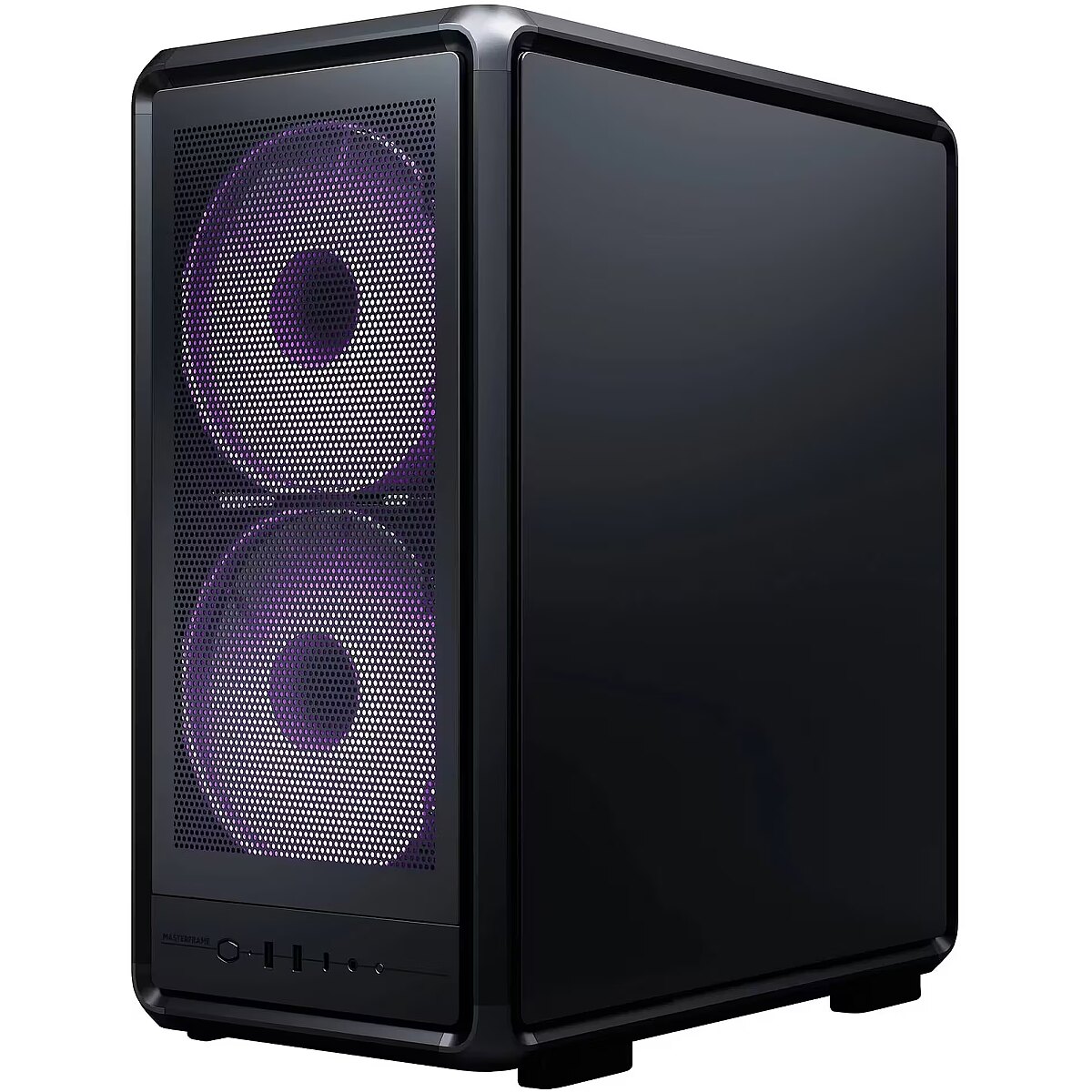

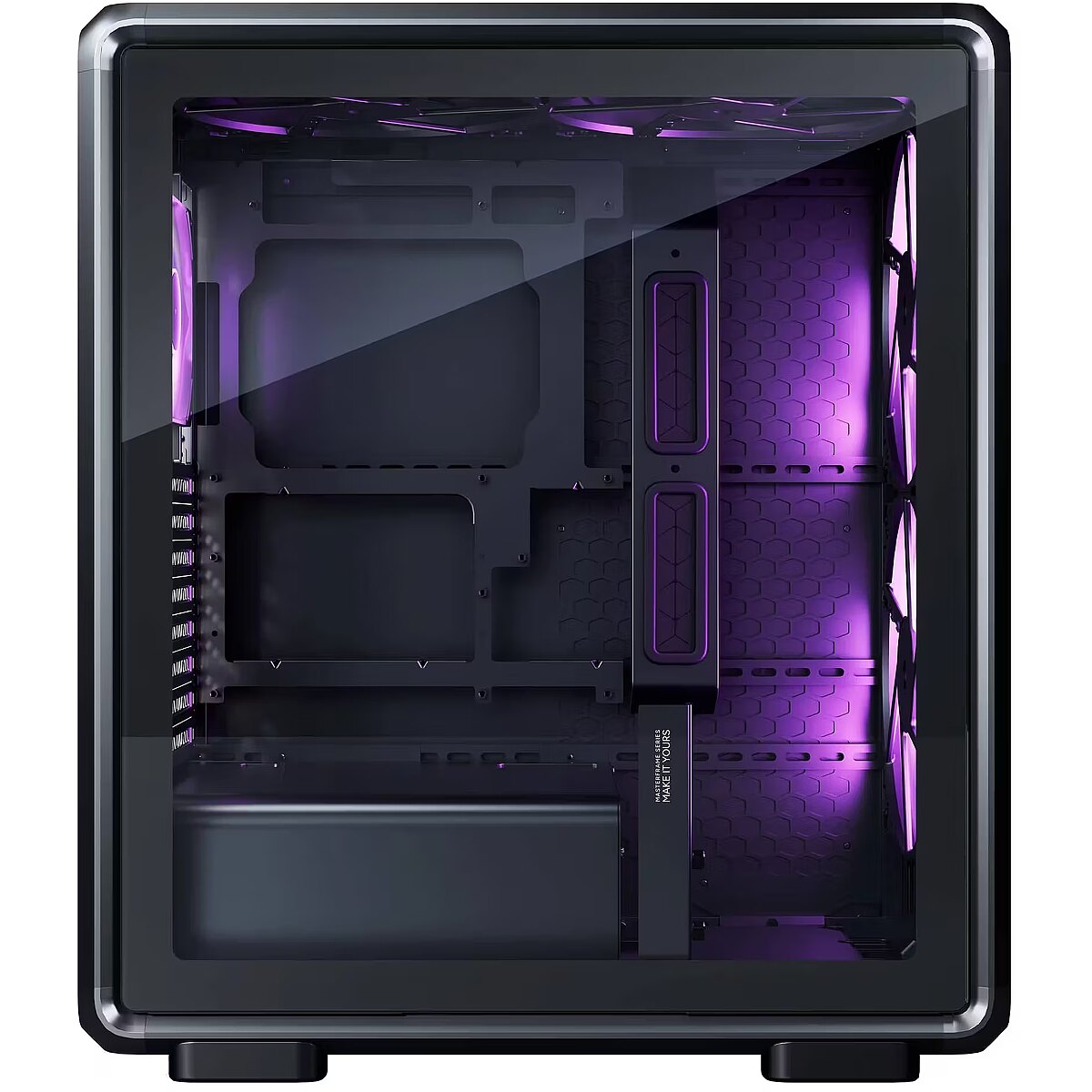

Cooler Master MasterFrame 500 Mesh ARGB, Tempered Glass, Black

Chassis type - Midi Tower
Color - Black
Compatible power supply standard - ATX
Computer case backlight - ARGB
Description - MasterFrame 500 Mesh Premium open-frame ATX case designed for modular builds, extreme cooling, and total customization through the FreeForm 2.0 platform. MasterFrame 500 Mesh
The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design. Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style. Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations. Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance. Ample GPU Clearance
Accommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs. Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades. Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Designation - CE+WEEE
dimension depth - 575 mm
dimension height - 650 mm
Dimensions - 471 x 261 x 544 mm
dimension weight - 14000 g
dimension width - 370 mm
Drive bays 2.5'' intern. - 1
Drive bays 3.5'' intern. - 1
ean - 4719512160909
Fans installed - 1 x 120 mm ARGB (back)
Fans installed - 2 x 120 mm ARGB (front)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - mini-DTX
Form-factor - Mini ITX
Form-factor - SSI-CEB
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x UBS 3.2 Gen 2x2 Type-C
Front panel connectors - 2 x USB 3.2 Gen1
Front panel connectors - Power
guarantee - 24
guarantee_type - normal
Maximum CPU cooling height - 190 mm
Maximum length of the graphics card - 390 mm
Maximum length of the power supply - 235 mm
Maximum number of fans - 8
name - Case MasterFrame 500 Mesh black ARGB
No. of drive bays - 1
Number of fans installed - 3
Number of slots for expansion cards - 8
Ooptional water cooling - 1 x 120 mm (bottom)
Ooptional water cooling - 1 x 120 mm (front)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 140 mm (top)
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (front)
Ooptional water cooling - 1 x 360 mm (top)
Optional fans - 1 x 120 mm (back)
Optional fans - 1 x 120 mm (dół)
Optional fans - 3 x 120 mm lub 2 x 140 mm lub 2 x 180 mm lub 1 x 200 mm (top)
Optional fans - 3 x 120 mm lub 2 x 140 mm lub 2 x 180 mm lub 2 x 200 mm (front)
producer - Cooler Master
Side panel - Tempered Glass
vendpn - MF500M-KHNN-S01
