MSI MAG PANO 130R PZ, Tempered Glass, Black

Brand - MSI
BrandPartCode - MAG PANO 130R PZ
Case product features - Transparent panel
Category - Computer Cases
Category Code - CAS
Chassis type - Midi Tower
Color - Black
Combo headphone/mic port Ports & interfaces - Yes
Compatible power supply standard - ATX
Computer case backlight - ARGB
Computer case backlight - Yes
Cooling - Liquid cooling capability - Yes
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of side fans supported (max) - 3
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans installed - 1x 120 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Side fans installed - 3x 120 mm
Cooling - Side radiator sizes supported - 120

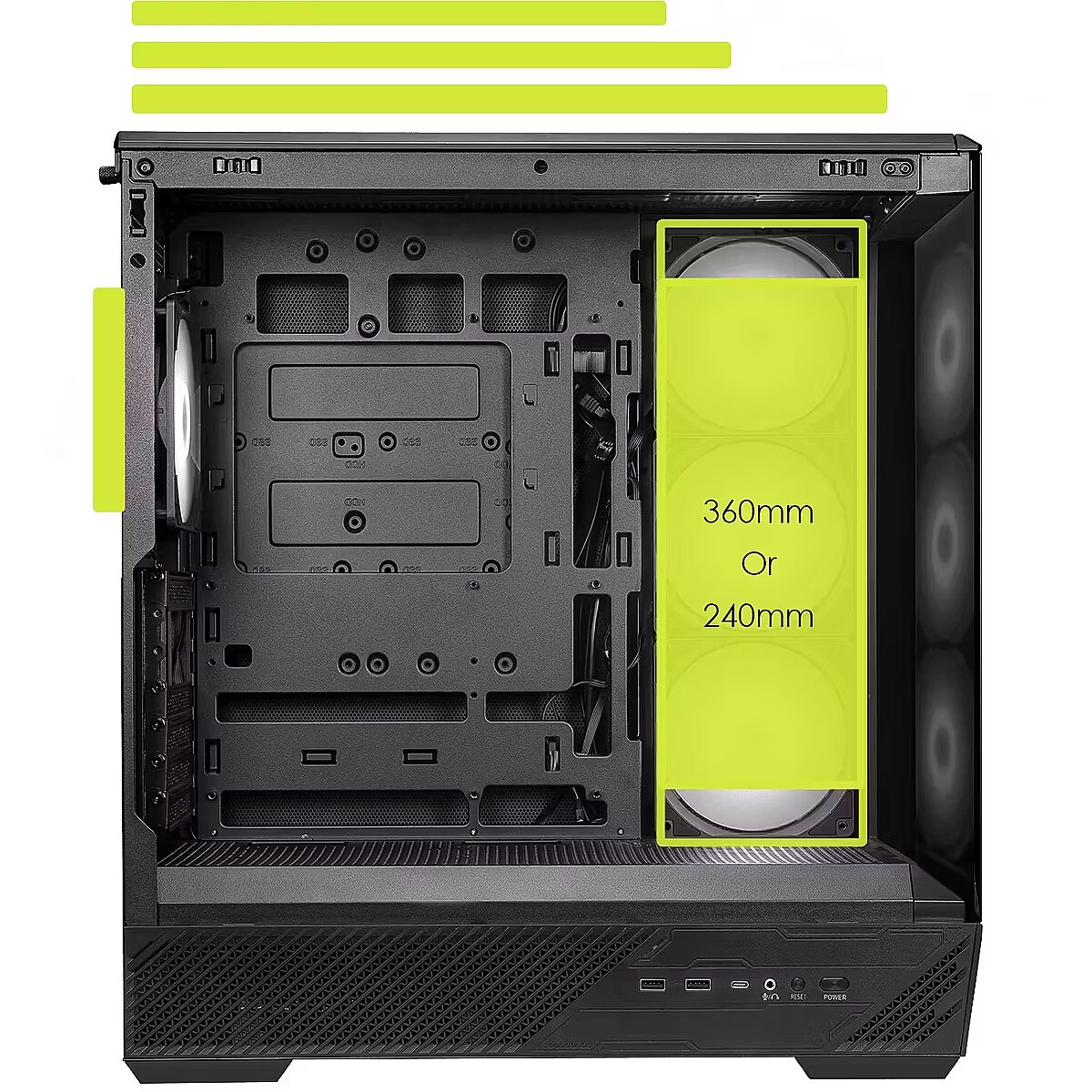

Cooling - Side radiator sizes supported - 120,140,360 mm
Cooling - Side radiator sizes supported - 140
Cooling - Side radiator sizes supported - 360 mm
Cooling - Top radiator sizes supported - 120
Cooling - Top radiator sizes supported - 120,140,240,280,360 mm
Cooling - Top radiator sizes supported - 140
Cooling - Top radiator sizes supported - 240 mm
Cooling - Top radiator sizes supported - 280
Cooling - Top radiator sizes supported - 360 mm
Depth Weight & dimensions - 460 mm
Description - MAG PANO 130R PZ Back-Connect Motherboard Support: The case supports Back-Connect ATX and Micro-ATX motherboards compatible with PROJECT ZERO, simplifying cable management and ensuring a neat, organized, and elegant build. Improved Airflow Design: The case supports up to 10 fans and allows for the installation of 360mm water cooling radiators on the top and sides. The lower chamber is surrounded by vents that further improve heat dissipation for optimal performance. Rotatable Graphics Card Bracket: One handle, two orientations. A quick 90° rotation allows you to instantly change the graphics card mounting position from horizontal to vertical or vice versa. Dust Filter: The magnetically attached top and removable bottom dust filters improve airflow, keeping your system clean and protecting its internal components from dust accumulation. Pre-installed Reverse Airflow Fans: Pre-installed reverse airflow fans are located on the side of the case, allowing you to admire the beautiful illumination of the internal ARGB fans. The MSI MAG series epitomizes stability and durability. It is built to withstand even the most intense gaming sessions. The entire lineup features a solid construction and excellent heat dissipation system, ensuring stable operation for all critical gaming components.

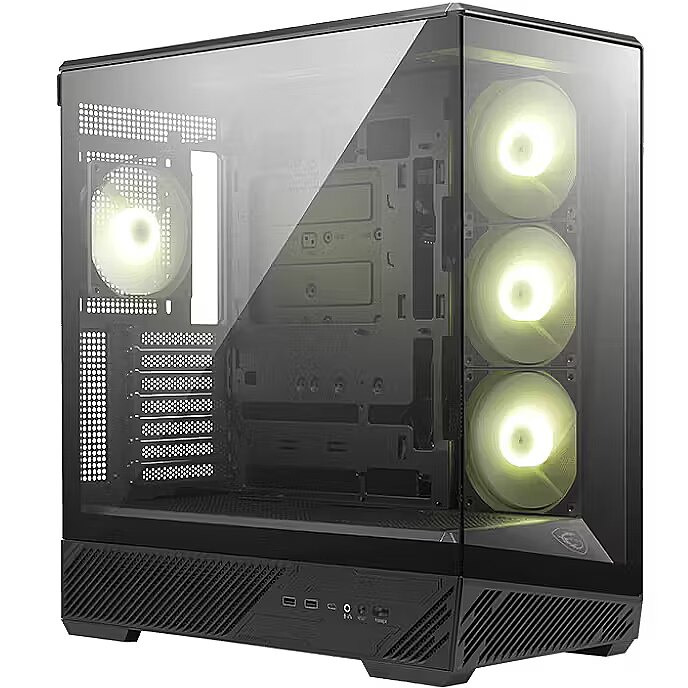

Panoramic Side Panel
To meet the needs of gamers who want to showcase the innards of their ARGB-lit PCs, the MAG PANO 130R series cases were created. They offer a 270-degree panoramic side panel that allows for a complete view of the entire system. This enhances not only the aesthetics but also the clarity of the design.
MAG Series Design
The case is designed with a cohesive aesthetic in mind. It features bold, diagonal lines and sharp angles, perfectly complementing MAG series motherboards, liquid cooling systems, and power supplies. This creates a seamless, elegant look throughout your computer.
Swiveling Graphics Card Bracket
One handle, two orientations. A quick 90° rotation of the bracket allows you to instantly change the graphics card's mounting position from horizontal to vertical, or vice versa. (A riser cable for vertical mounting is sold separately.)
The case is designed with a consistent aesthetic in mind. It features bold, diagonal lines and sharp angles, perfectly complementing MAG series motherboards, liquid cooling systems, and power supplies. This creates a seamless, elegant look throughout your computer.
Description - MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components. Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup. Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance. Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations. Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup. Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
Design - Form factor - Midi Tower
Design - Maximum CPU cooler height - 16.5 cm
Design - Maximum graphics card length - 40 cm
Design - Maximum PSU length - 18 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Number of storage drives supported - 3
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ATX
Design - Type - PC
Designation - CE+WEEE
dimensionalWeight - 22200
dimension depth - 330 mm
dimension height - 550 mm
Dimensions - 460 x 232 x 490 mm
dimension weight - 9960 g
dimension width - 590 mm
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' intern. - 2
ean - 4711377365758
Fans installed - 1 x 120 mm ARGB (back)
Fans installed - 3 x 120 mm ARGB (side)
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Form factor Design - Midi Tower
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x UBS 3.2 Gen 2x2 Type-C
Front panel connectors - 2 x USB 3.2 Gen1
Front panel connectors - Power
Front panel connectors - Reset
GTIN - 4711377365758
guarantee - 24
guarantee_type - normal
Height Weight & dimensions - 490 mm
Illumination location Design - Case fans
LongDesc - MAG msi arsenal gamingMSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.Panoramic DisplayTo fulfill the desire for showcasing an ARGB PC build, the MAG PANO 130R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.MAG Design LanguageBuilt with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.Rotatable GPU BracketOne bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.(Riser cable sold separately)Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.
LongProductName - Mid-Tower, ATX, Micro-ATX, Mini-ITX, 460 x 232 x 490 mm
LongSummaryDescription - MSI MAG PANO 130R PZ. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Rear fans installed: 1x 120 mm, Side radiator sizes supported: 120,140,360 mm. Supported HDD sizes: 2.5,3.5". Width: 232 mm, Depth: 460 mm, Height: 490 mm
Material Design - Tempered glass
Maximum CPU cooling height - 165 mm
Maximum length of the graphics card - 400 mm
Maximum length of the power supply - 180 mm
Maximum number of fans - 10
Model name - MAG PANO 130R PZ
name - Case MAG PANO 130R PZ Tempered glass
No. of drive bays - 3
Number of 2.5" bays Design - 3
Number of expansion slots Design - 7
Number of fans installed - 4
Number of internal 3.5" bays Design - 2
Number of slots for expansion cards - 7
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 120 mm (side)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (top)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 240 mm (side)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (side)
Ooptional water cooling - 1 x 360 mm (top)
Optional fans - 1 x 120 mm (back)
Optional fans - 3 x 120 mm (bottom)
Optional fans - 3 x 120 mm (side)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Packaging data - Package weight - 10 kg
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Ports & interfaces - USB Type-C ports quantity - 1
Power supply - Supported power supply form factors - ATX
producer - MSI
producerCode - 306-7G32R21-HH9
Product colour Design - Black/Transparent
ProductName - MAG PANO 130R PZ
productName - MSI MAG PANO 130R PZ computer case Midi Tower Black
productSize - Normal
Rear fans diameters supported Cooling - 120 mm
Rear radiator sizes supported Cooling - 120 mm
Reset button Design - Yes
ShortSummaryDescription - MSI MAG PANO 130R PZ, Midi Tower, PC, Black, ATX, micro ATX, Mini-ATX, 16.5 cm, 40 cm
Side fans diameters supported Cooling - 120 mm
Side fans installed Cooling - 3x 120 mm
Side panel - Tempered Glass
Side radiator sizes supported Cooling - 120/240/360 mm
sizeX - 559
sizeY - 591
sizeZ - 336
Storage - HDD/SSD combo cage - Yes
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5"
Supported motherboard form factors Design - ATX/micro ATX/Mini-ITX
Supported power supply form factors Power supply - ATX
Tempered glass panel(s) Design - Yes
Title - MSI MAG PANO 130R PZ computer case Midi Tower Black
Top fans diameters supported Cooling - 120/140 mm
Top radiator sizes supported Cooling - 120/140/240/280/360 mm
Unit Box Height - 0.56
Unit Box Length - 0.58
Unit Box Width - 0.335
Unit Calculated Volume - 0.1088 cubm
Unit Calculated Weight - 10.1 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.msi.com/PC-Case/MAG-PANO-130R-PZ/Overview
USB 2.0 ports quantity Ports & interfaces - 2
USB Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - www.msi.com/PC-Case/MAG-PANO-130R-PZ
vendpn - MAG PANO 130R PZ
Warranty - 24 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 8.37 kg
weight - 9970
Weight & dimensions - Depth - 460 mm
Weight & dimensions - Height - 490 mm
Weight & dimensions - Weight - 8.37 kg
Weight & dimensions - Width - 232 mm
Weight Weight & dimensions - 8370 g
Width Weight & dimensions - 232 mm
