Brand - MSI
BrandPartCode - MAG PANO 130R PZ WHITE
Category - Computer Cases
Category Code - CAS
Combo headphone/mic port Ports & interfaces - Yes
Cooling - Liquid cooling capability - Yes
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of side fans supported (max) - 3
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans installed - 1x 120 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Side fans installed - 3x 120 mm
Cooling - Side radiator sizes supported - 120,140,360 mm
Cooling - Top radiator sizes supported - 120,140,240,280,360 mm
Depth Weight & dimensions - 460 mm
Description - MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components. Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup. Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance. Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations. Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup. Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
Design - Form factor - Midi Tower
Design - Maximum CPU cooler height - 16.5 cm
Design - Maximum graphics card length - 40 cm
Design - Maximum PSU length - 18 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Number of storage drives supported - 3
Design - On/off button - Yes
Design - Product colour - White
Design - Reset button - Yes
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
Design - Type - PC
Form factor Design - Midi Tower
GTIN - 4711377373302
Height Weight & dimensions - 490 mm
Illumination location Design - case fans
LongDesc - MAG msi arsenal gamingMSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.Panoramic DisplayTo fulfill the desire for showcasing an ARGB PC build, the MAG PANO 130R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.MAG Design LanguageBuilt with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.Rotatable GPU BracketOne bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.(Riser cable sold separately)Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.
LongProductName - Mid-Tower, ATX, Micro-ATX, Mini-ITX, 460 x 232 x 490 mm
LongSummaryDescription - MSI MAG PANO 130R PZ WHITE. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Rear fans installed: 1x 120 mm, Side radiator sizes supported: 120,140,360 mm. Supported HDD sizes: 2.5,3.5". Width: 232 mm, Depth: 460 mm, Height: 490 mm
Material Design - Tempered glass
Model name - MAG PANO 130R PZ
Number of 2.5" bays Design - 3
Number of expansion slots Design - 7
Number of internal 3.5" bays Design - 2
Packaging data - Package weight - 10 kg
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Ports & interfaces - USB Type-C ports quantity - 1
Power supply - Supported power supply form factors - ATX
Product colour Design - Transparent/White
ProductName - MAG PANO 130R PZ WHITE
Rear fans diameters supported Cooling - 120 mm
Rear radiator sizes supported Cooling - 120 mm
Reset button Design - Yes
ShortSummaryDescription - MSI MAG PANO 130R PZ WHITE, Midi Tower, PC, White, ATX, micro ATX, Mini-ATX, 16.5 cm, 40 cm
Side fans diameters supported Cooling - 120 mm
Side fans installed Cooling - 3x 120 mm
Side radiator sizes supported Cooling - 120/240/360 mm
Storage - HDD/SSD combo cage - Yes
Storage - Supported HDD sizes - 2.5,3.5"
Supported motherboard form factors Design - ATX/micro ATX/Mini-ITX
Supported power supply form factors Power supply - ATX

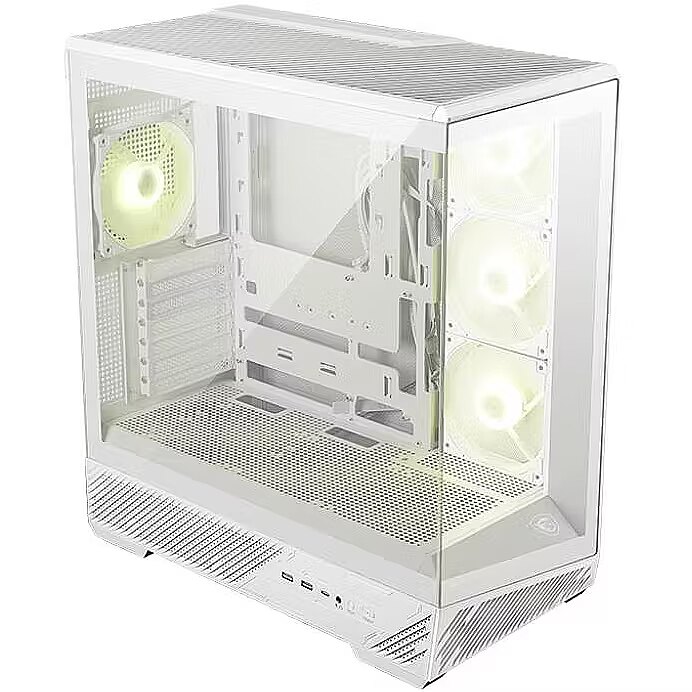

Title - MSI MAG PANO 130R PZ WHITE computer case Midi Tower
Top fans diameters supported Cooling - 120/140 mm
Top radiator sizes supported Cooling - 120/140/240/280/360 mm
Unit Calculated Volume - 0.09086 cubm
Unit Calculated Weight - 14.1 kg
Units per Shipping Box - 1
URL - https://www.msi.com/PC-Case/MAG-PANO-130R-PZ/Overview
USB 2.0 ports quantity Ports & interfaces - 2
USB Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - www.msi.com/PC-Case/MAG-PANO-130R-PZ
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 460 mm
Weight & dimensions - Height - 490 mm
Weight & dimensions - Weight - 8.37 kg
Weight & dimensions - Width - 232 mm
Weight Weight & dimensions - 8370 g
Width Weight & dimensions - 232 mm
