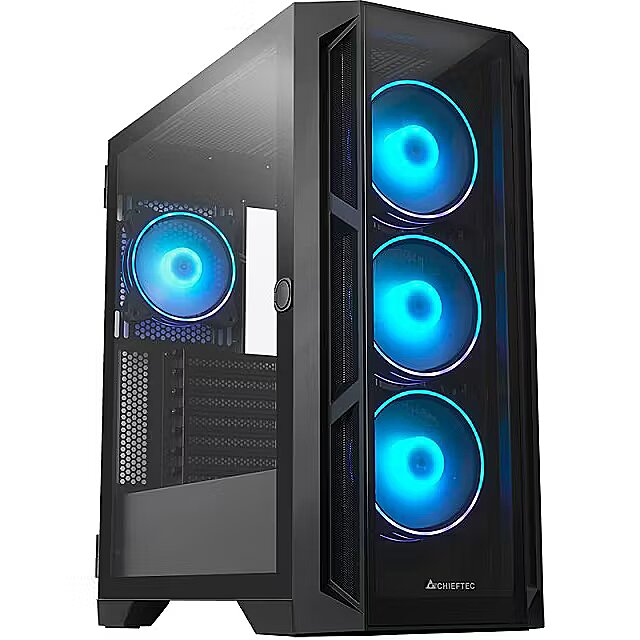

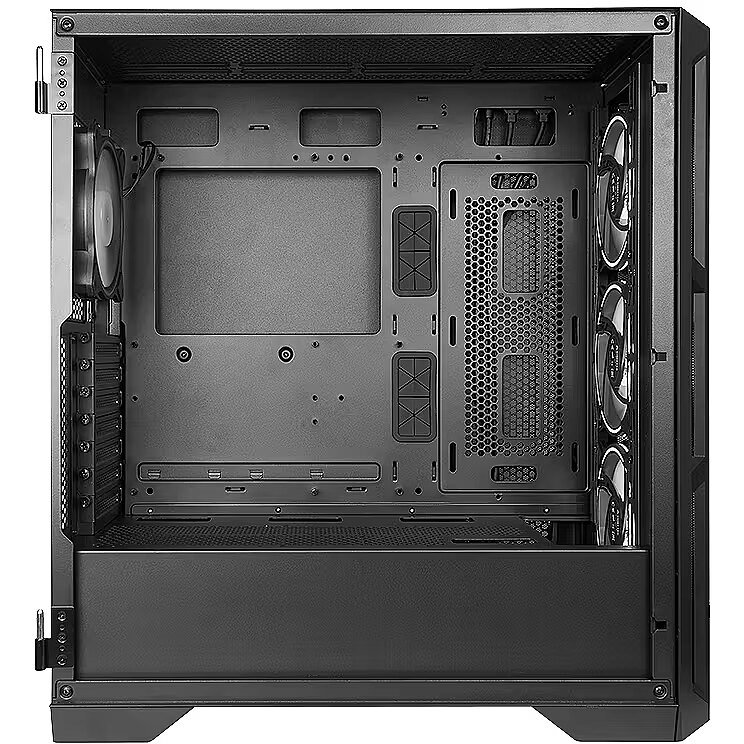

Chieftec APEX A-RGB, Tempered Glass, Black

2.5" Internal Drive Bays - 3
3.5" Internal Drive Bays - 2
ATX Mainboard Form Factor - Yes
AV-In Input/Output connectors - 1
AV-out Input/Output connectors - 1
Brand - Chieftec
BrandPartCode - GA-01B-TG-OP
Case Type - MidiTower
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Chassis type - Big Tower
Color - Black
Colour - Black
Computer case backlight - ARGB
Cooling - Bottom fans diameters supported - 120 mm
Cooling - Fan speed control - Yes
Cooling - Front fans diameters supported - 120 mm
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans diameters supported - 140 mm
Cooling - Front fans installed - 3x 120 mm
Cooling - Front radiator sizes supported - 240
Cooling - Front radiator sizes supported - 240,280,360,420 mm
Cooling - Front radiator sizes supported - 280 mm
Cooling - Front radiator sizes supported - 360 mm
Cooling - Front radiator sizes supported - 420 mm
Cooling - Liquid cooling capability - Yes
Cooling - Liquid cooling installed - No
Cooling - Number of bottom fans supported (max) - 2
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of side fans supported (max) - 2
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans diameters supported - 140 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Side radiator sizes supported - 240 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 240,280,360 mm
Description - APEX GA-01B-TG-OP A-RGB control hub with M/B sync and fan speed control Front & Side panel made of TEMPERED GLASS 4x 120mm A-RGB fans pre-installed The CHIEFTEC APEX presents an E-ATX chassis with full clean tempered glass on the front and side panels, including four pre-installed 120mm ARGB fans that provide impressive style and cooling. APEX with 4 pre-installed rainbow ARGB fans connected to a control hub that allows for ARGB M/B sync and fan speed control. The case is generous with space, offering support for GPUs up to 400 mm in length, CPU coolers up to 175mm in height, and radiator support up to 360mm on the top and up to 420mm on the front. CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
Description - CHIEFTEC APEX ma obudowę E-ATX z całkowicie czystym szkłem hartowanym na panelu przednim i bocznym, w tym cztery fabrycznie zainstalowane wentylatory ARGB 120 mm, które zapewniają imponujący styl i chłodzenie.
APEX z 4 fabrycznie zainstalowanymi wentylatorami Rainbow ARGB podłączonymi do koncentratora sterującego, który umożliwia synchronizację ARGB M/B i kontrolę prędkości wentylatora.
Obudowa jest obszerna i oferuje obsługę procesorów graficznych o długości do 400 mm, chłodnic procesora o wysokości do 175 mm oraz obsługę radiatorów o wysokości do 360 mm na górze i do 420 mm z przodu.
CHIEFTEC APEX AIR jest gotowy, aby zapewnić większy przepływ powietrza i lepsze chłodzenie w nowoczesnych systemach do gier. Koncentrator sterujący A-RGB z synchronizacją M/B i kontrolą prędkości wentylatora Panel przedni i boczny wykonany ze SZKŁA HARTOWANEGO Zainstalowane fabrycznie 4 wentylatory 120 mm A-RGB

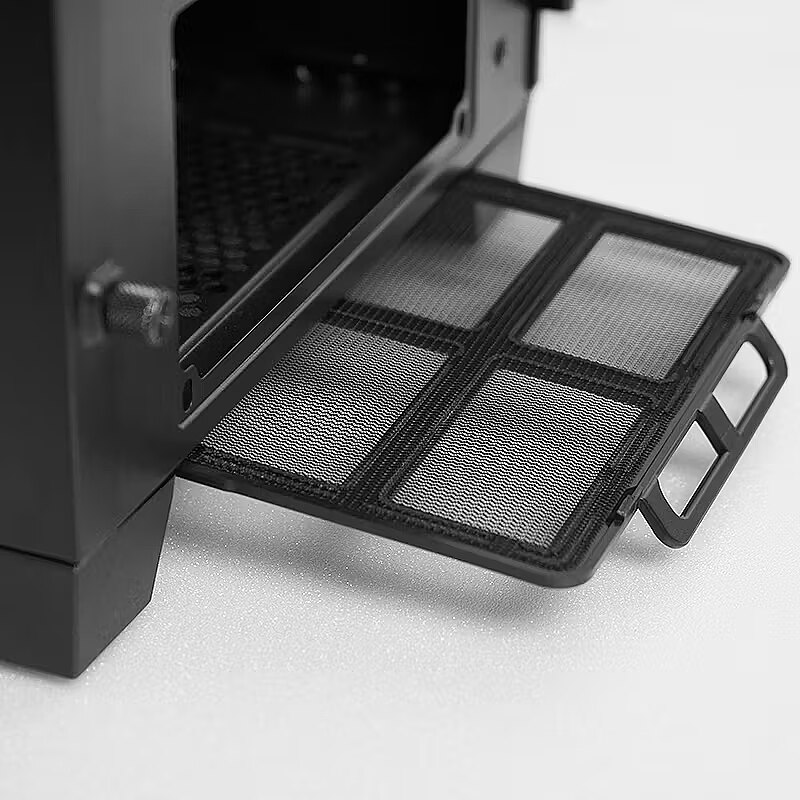

Design - Anti-dust filter - Yes

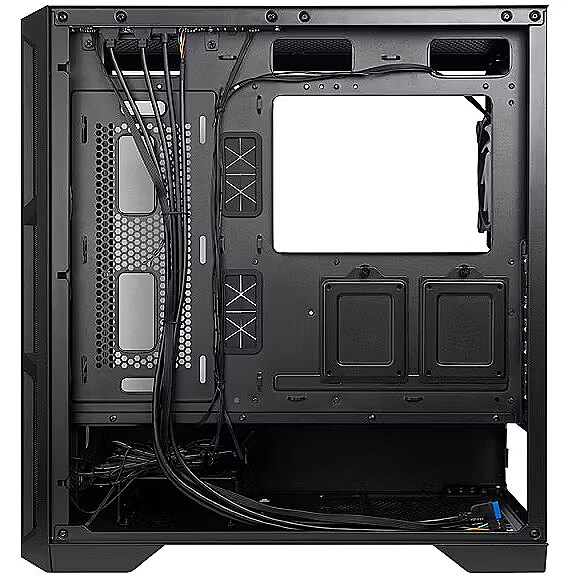

Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Full-Height expansion slots - 7
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - Material - Metal
Design - Material - SPCC
Design - Material - Tempered glass
Design - Maximum CPU cooler height - 17.5 cm
Design - Maximum graphics card length - 40 cm
Design - Maximum PSU length - 22 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Number of internal 3.5" bays - 2
Design - Number of storage drives supported - 5
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - RGB control button - Yes
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ATX, EATX, ITX, micro ATX, Mini-ITX
Design - Supported motherboard form factors - E-ATX
Design - Supported motherboard form factors - Micro-ITX
Design - Supported motherboard form factors - micro ATX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
dimensionalWeight - 17676
dimension depth - 550 mm
dimension height - 550 mm
Dimensions - 465 x 230 x 495 mm
dimension weight - 9500 g
dimension width - 300 mm
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' intern. - 2
ean - 0753263078520
Eans - 0753263078520
Fans installed - 1 x 120 mm ARGB (back)

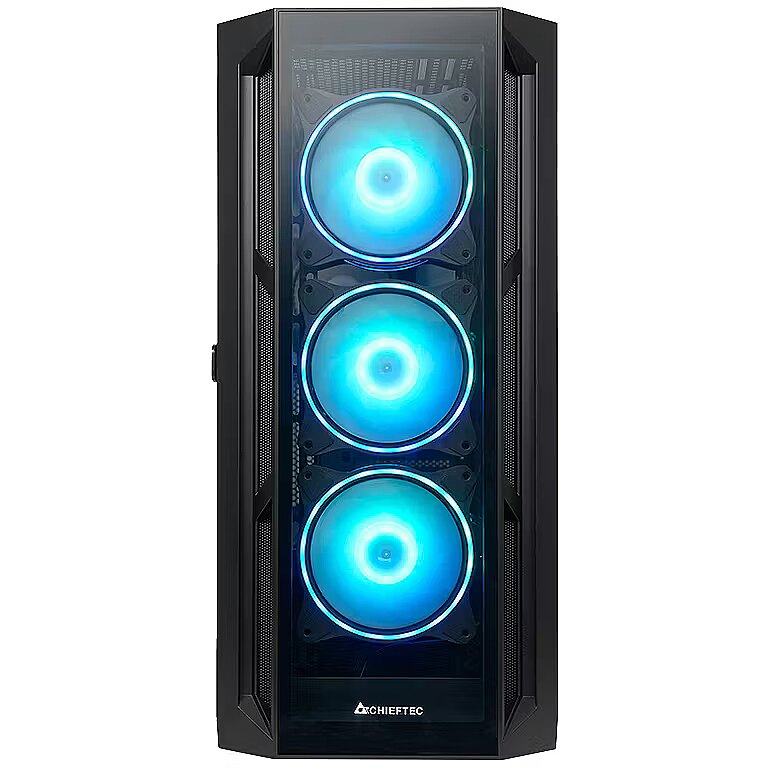

Fans installed - 3 x 120 mm ARGB (front)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x headphones
Front panel connectors - 1 x USB 3.1 Typ C
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 3.0
Front panel connectors - Fan controller
Full Description Line - GA-01B-TG-OP|MidiTower|PSU Not included|Dimensions 465 x 230 x 495 mm
guarantee - 24
guarantee_type - normal
Included Accessories - Set of screws, instruction manual

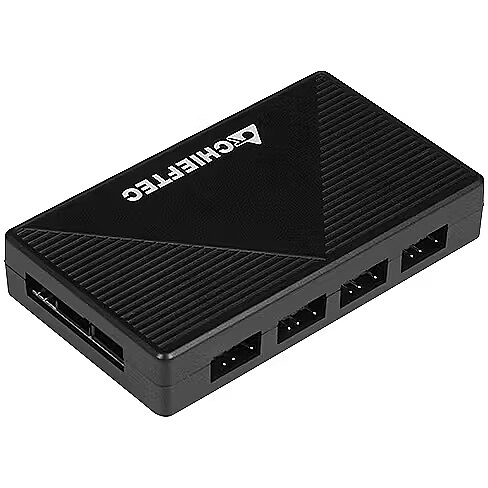

RGB control hub (DF-200) with 3PIN +5V M/B Sync and SATA power cable
Front: 3x 120mm A-RGB rainbow fans pre-installed
Rear: 1x 120mm A-RGB rainbow fan pre-installed
LongDesc - The CHIEFTEC APEX presents an E-ATX chassis with full clean tempered glass on the front and side panels, including four pre-installed 120mm ARGB fans that provide impressive style and cooling.APEX with 4 pre-installed rainbow ARGB fans connected to a control hub that allows for ARGB M/B sync and fan speed control.The case is generous with space, offering support for GPUs up to 400 mm in length, CPU coolers up to 175mm in height, and radiator support up to 360mm on the top and up to 420mm on the front.CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
LongProductName - Chieftec Apex GA-01B-TG-OP
LongSummaryDescription - Chieftec APEX GA-01B-TG-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm
Maximum CPU cooling height - 175 mm
Maximum length of the graphics card - 400 mm
Maximum number of fans - 11
MicroATX Mainboard Form Factor - Yes
MiniITX Mainboard Form Factor - Yes
Model name - APEX ARGB
name - Case APEX GA-01B-TG-OP 4xFans ARGB
Name - Chieftec Apex GA-01B-TG-OP
No. of drive bays - 5
Number of expansion slots - 7
Number of fans installed - 4
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (front)
Ooptional water cooling - 1 x 360 mm (top)
Ooptional water cooling - 1 x 420 mm (front)
Optional fans - 1 x 120 mm or 1 x 140 mm (rear)
Optional fans - 2 x 120 mm (power supply cover)
Optional fans - 2 x 120 mm (side)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Optional fans - 3 x 120 mm or 3 x 140 mm (front)
Other features -
Packaging content - Manual - Yes
Packaging data - LED controller - Yes
Packaging data - Package weight - 9.5 kg
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Type-C ports quantity - 1
Power supply - Failure
Power supply - Number of power supply units - 1
Power supply - Power supply included - No
Power supply - Power supply location - Bottom
producer - Chieftec
Producer - Chieftec
producerCode - GA-01B-TG-OP
ProducerCode - GA-01B-TG-OP
ProductName - APEX GA-01B-TG-OP ATX
productName - Chieftec APEX Midi Tower Black
productSize - Normal
PSU - Not included
ShortDescription - Middle Tower | czarna | 1x USB3.2 Gen2 Type C, 2x USB3.0| 465mm x 230mm x 495mm |
ShortSummaryDescription - Chieftec APEX GA-01B-TG-OP ATX, Midi Tower, PC, Black, ATX, EATX, ITX, micro ATX, Mini-ITX, SPCC, Gaming
Side panel - Tempered Glass
sizeX - 560
sizeY - 535
sizeZ - 295
Storage - SSD form factor - 2.5"
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5"
Title - Chieftec APEX GA-01B-TG-OP ATX Midi Tower Black
Unit Brutto Volume - 0.08445 cubm
Unit Gross Weight - 9.5 kg
Unit Net Weight - 8 kg
URL - https://www.chieftec.eu/products-detail/de/569/GA-01B-TG-OP
USB-C Input/Output connectors - 1
USB 3.0 Input/Output connectors - 2
Vendor Homepage - www.chieftec.eu/products-detail/569/GA-01B-TG-OP
vendpn - GA-01B-TG-OP
Video -
Warranty - 24 months
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 9.5 kg
weight - 9410
Weight & dimensions - Depth - 465 mm
Weight & dimensions - Height - 495 mm
Weight & dimensions - Material thickness - 0.6 mm
Weight & dimensions - Weight - 8 kg
Weight & dimensions - Width - 230 mm
