ID: 898651
Product code: R8R45A
In stock 7 units
Warranty: 2 years
(Warranty for business entities 1 year)

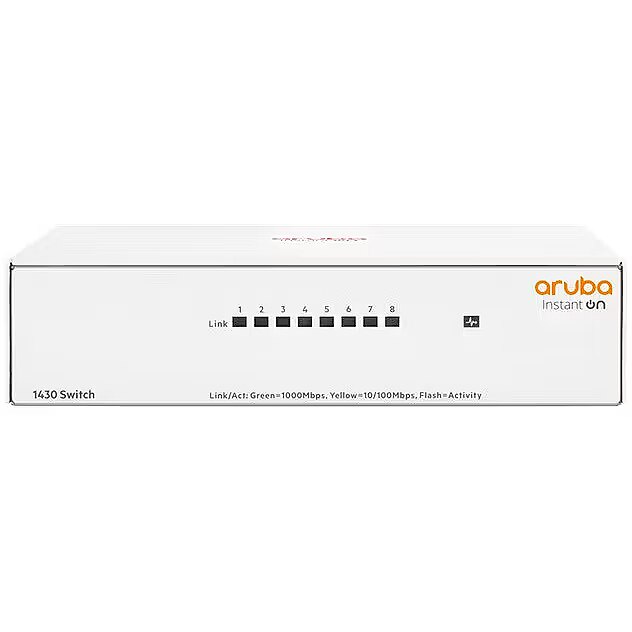

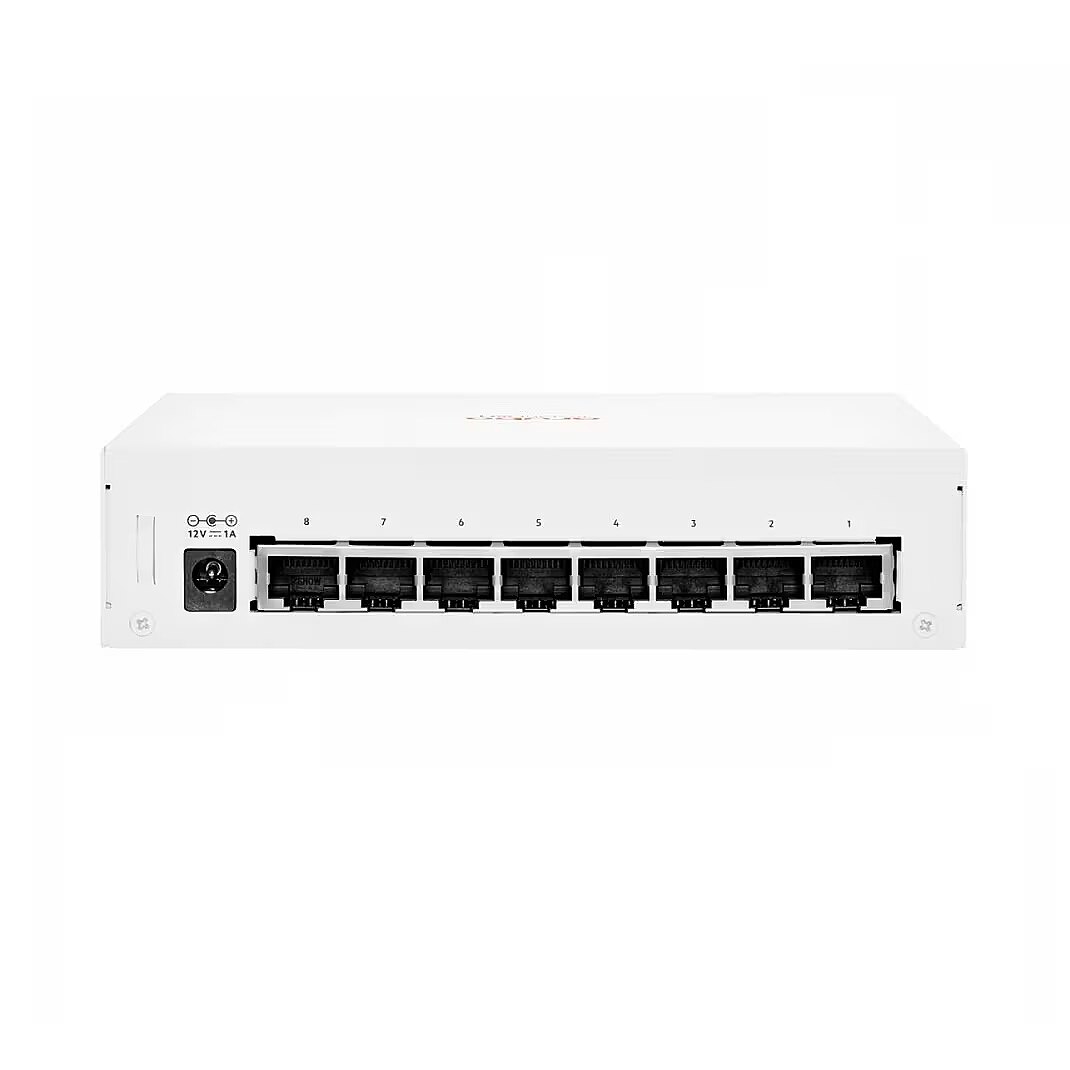

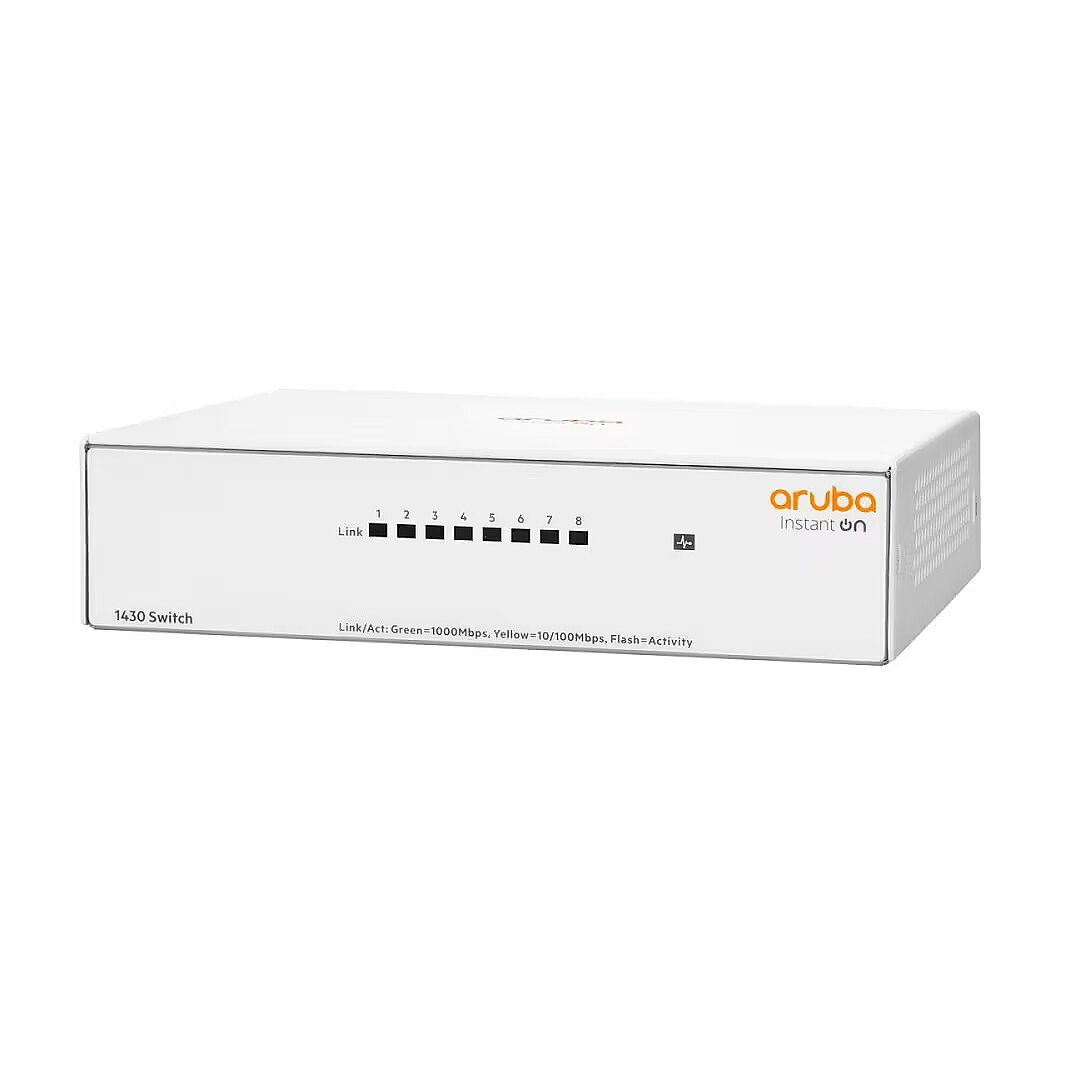

Hewlett Packard HPE Aruba IOn 1430 8G Sw
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 27.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 27.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.05.2024
- Delivery to address in Riga 3.99 €: 27.05.2024
- Delivery to address in Latvia 6.99 €: 27.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 23.05.2024 after 15:00
More detailed specification
10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
ARTIKEL1 - ION 1430 8G SW STOCK
ARTIKEL2 - .
Breite - 0.2
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - Safety: EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1 Emissions: EN 55032:2015/ CISPR 32, Class B FCC CFR 47 Part 15: 2018, Class B ICES-003, Class B VCCI-32, Class B CNS 13438, Class B KS C 9832, Class B AS/NZS CISPR 32, Class B Immunity BS/EN 55035, CISPR 35, KS C 9835 Generic EN 55035, CISPR 35 EN EN/IEC 61000-4-2 ESD EN/IEC 61000-4-3 Radiated EN/IEC 61000-4-4 EFT/Burst EN/IEC 61000-4-5 Surge EN/IEC 61000-4-6 Conducted EN/IEC 61000-4-8 Power frequency magnetic field EN/IEC 61000-4-11 Voltage dips and interruptions EN/IEC 61000-3-2 Harmonics EN /IEC 61000-3-3
Chassis type - Rack
Console port - No
Description - Aruba Instant On 1430 8G Switch (R8R45A)
dimension depth - 68 mm
dimension height - 295 mm
Dimensions - 138 x 157 x 37 mm
dimension weight - 983 g
dimension width - 200 mm
ean - 190017601571
EAN - 0190017601571
EANCode - 0190017537924
Environment requirements - Operating temperature: 0 °C to 40 °C Relative humidity during operation: 15% to 95% (40 °C) non-condensing Rest/storage temperature: -40°C to 70°C Relative humidity at rest/storage: 15% to 90% (65°C) non-condensing
Fan - No
Forwarding rate - 11.9 Mpps
Gewicht - 1
Gross Weight Kg - 0,7
GRUPPE1 - Network
GRUPPE2 - Switches Managed
guarantee - -1
guarantee_type - external
HERSTELLER - HPE
Hoehe - 0.07
HSTNUMMER - R8R45A
Jumbo frame size - 9.216 KB
L2 features -
L3 features -
Laenge - 0.3
MAC address table size - 8192
Management, monitoring, configuration -
Manufacturer - HP Enterprise
Manufacturer Code - R8R45A
Manufacturer Name - Hewlett Packard
MPN - R8R45A#ABB
Name - 8P HP Enterprise Aruba Instant ON 1430 8G Switch
name - Switch ARUBA Instant On 1430 8x1GbE R8R45A
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Other features - Processor and Memory: 128Kb EEPROM Packet buffer size: 2.0 Mb
Other functions -
Power consumption - 12 W
Power supply - Frequency: 50Hz/60Hz AC voltage: 100-240VAC Current: 0.3A (12VDC - 1A) Maximum rated power: 12W Idle power: 1,7 W
Power supply - External
producer - Hewlett Packard Enterprise
QoS - RFC 2474 QoS diffserv (DSCP) mapping
Security -
Short description - HPE Aruba Switch Instant On 1430 8G R8R45A
Stackability - No
Stck_Kart - 8
Stck_Pal - 96
Storno - Y
Supported protocols and standards - IEEE 802.3i 10 Mbps Ethernet IEEE 802.3u 100Base-T Ethernet IEEE 802.3z 1000 Mbps Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3af PoE1 (PoE models only) IEEE 802.3at PoE1 (PoE models only) IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switch layer - L2
Throughput - 16 Gb/s
vendpn - R8R45A
VLAN -
Weight - 0.59 kg
Weight - 0.98
