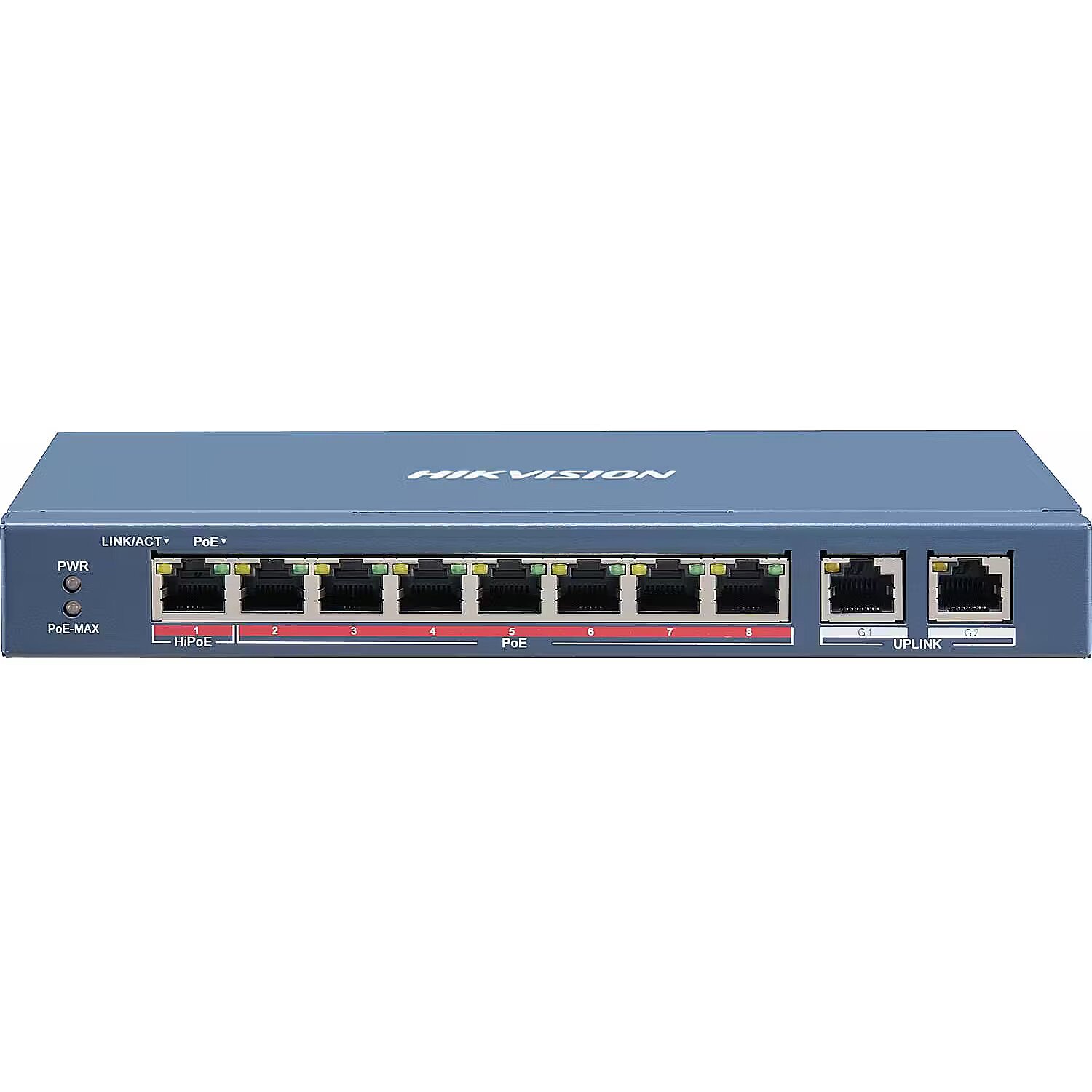

Hikvision Switch DS-3E0310HP-E

brand - HikVision
category - Mājas un biroju tīkli > Komutatori > PoE komutatori
Data transmission - Forwarding rate - 4.166 Mpps
Data transmission - MAC address table - 16000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 5.6 Gbit/s
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Blue
dimensionalWeight - 576
EAN - 6954273693350
height - 0.09 m
length - 0.24 m
Management features - Switch type - Unmanaged
mpn - DS-3E0310HP-E
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package weight - 1.22 kg
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Power - DC input voltage - 48 V
Power - Input current - 2.5 A
Power - Power consumption (max) - 120 W
Power - Power consumption (typical) - 10 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 60 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 110 W
producerCode - DS-3E0310HP-E
productName - Hikvision DS-3E0310HP-E network links Non-managed Fast Ethernet (10/100) PoE support Blue
productSize - Normal
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
sizeX - 240
sizeY - 100
sizeZ - 120
title - Hikvision komutators DS-3E0310HP-E
warrantyLength - 36
warrantyType - F
weight - 1.3 kg
weight - 1255
Weight & dimensions - Depth - 103.3 mm
Weight & dimensions - Height - 27.8 mm
Weight & dimensions - Weight - 550 g
Weight & dimensions - Width - 217.6 mm
width - 0.113 m
