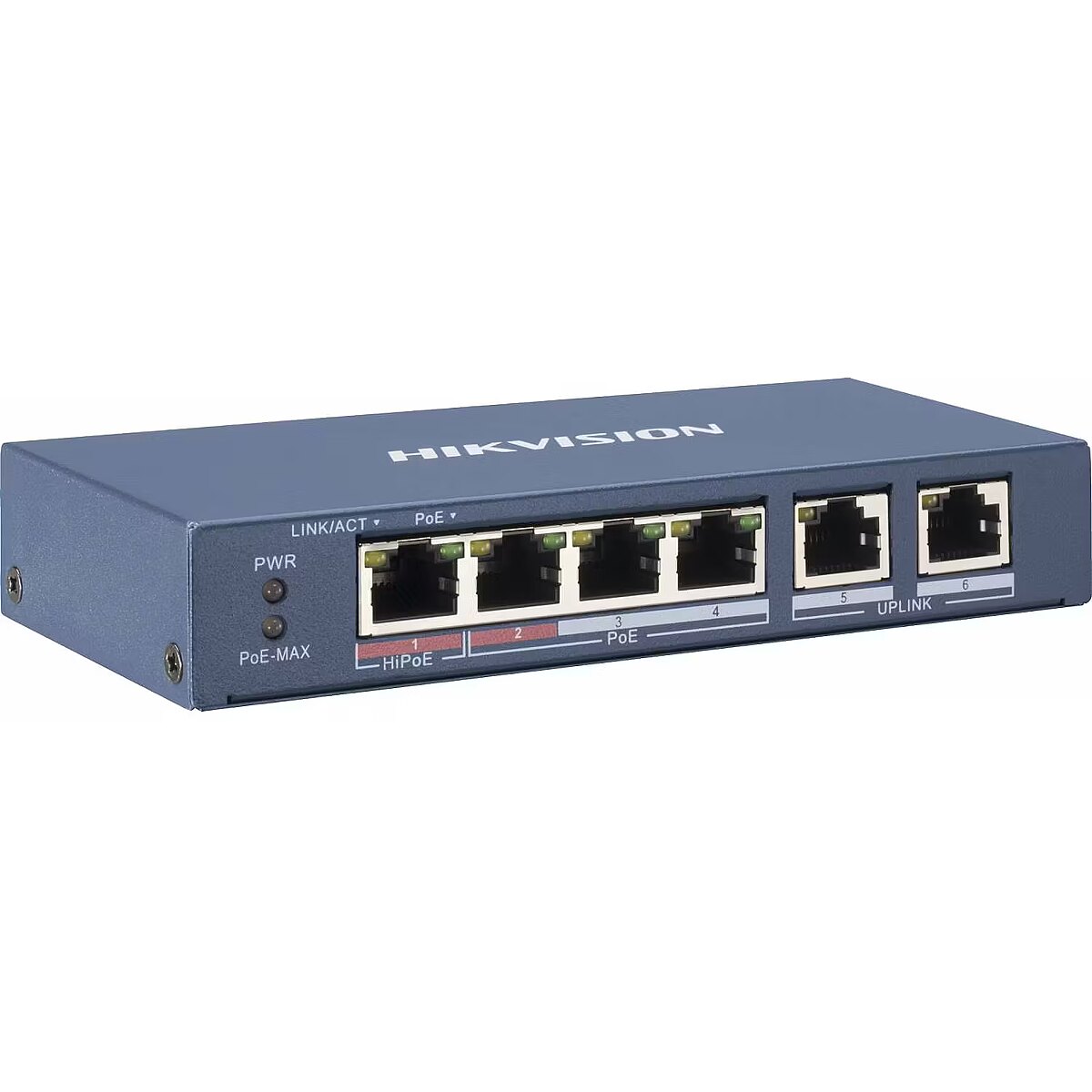

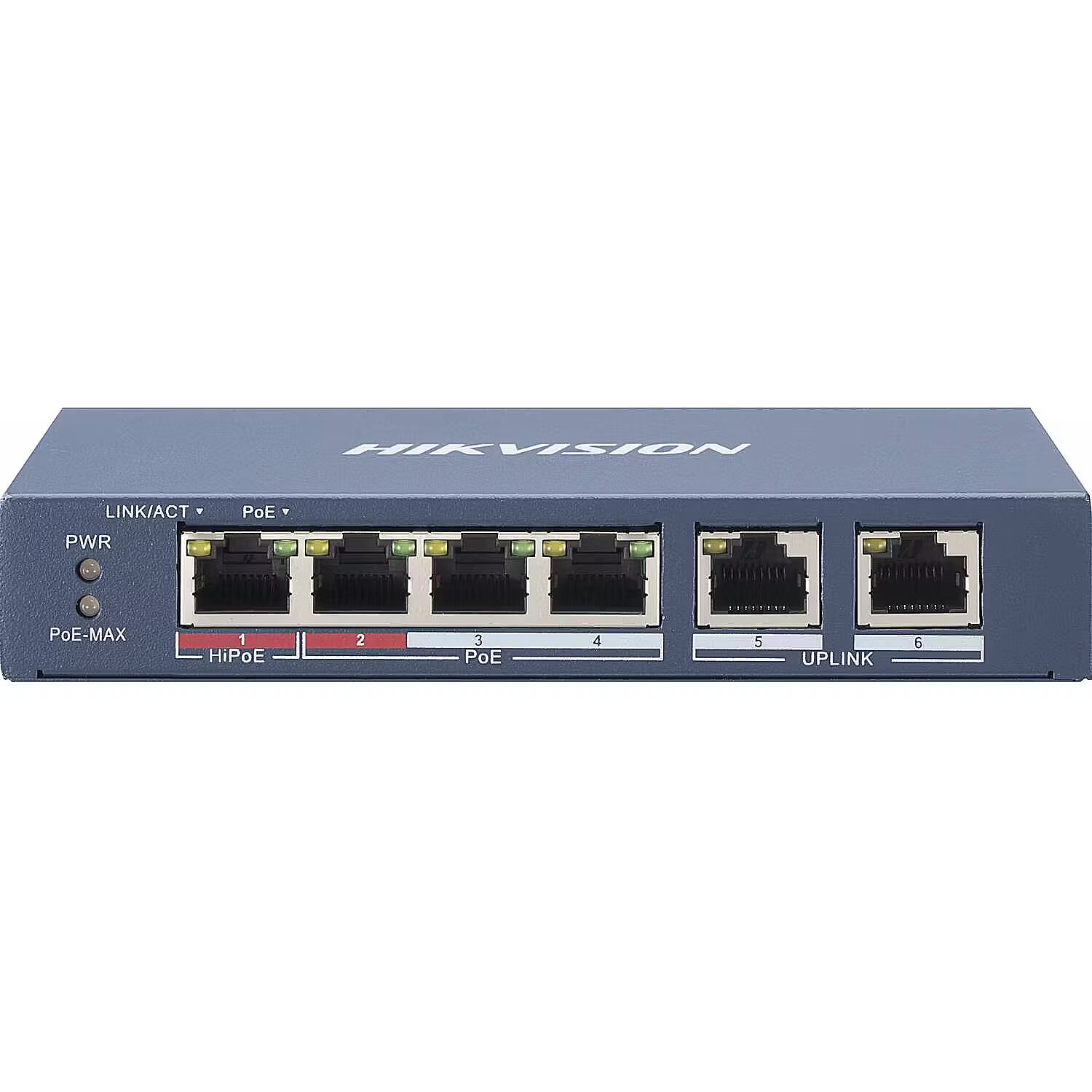

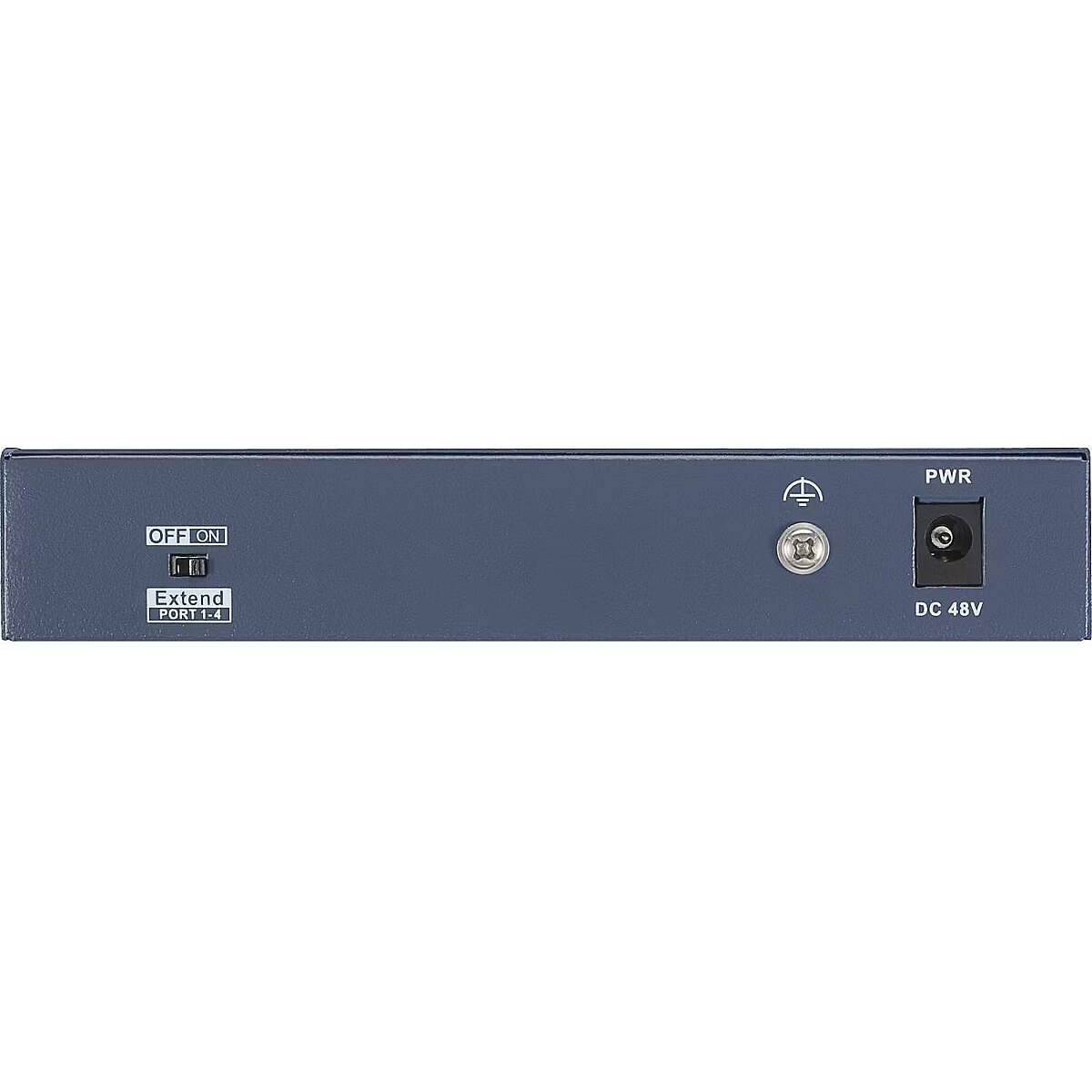

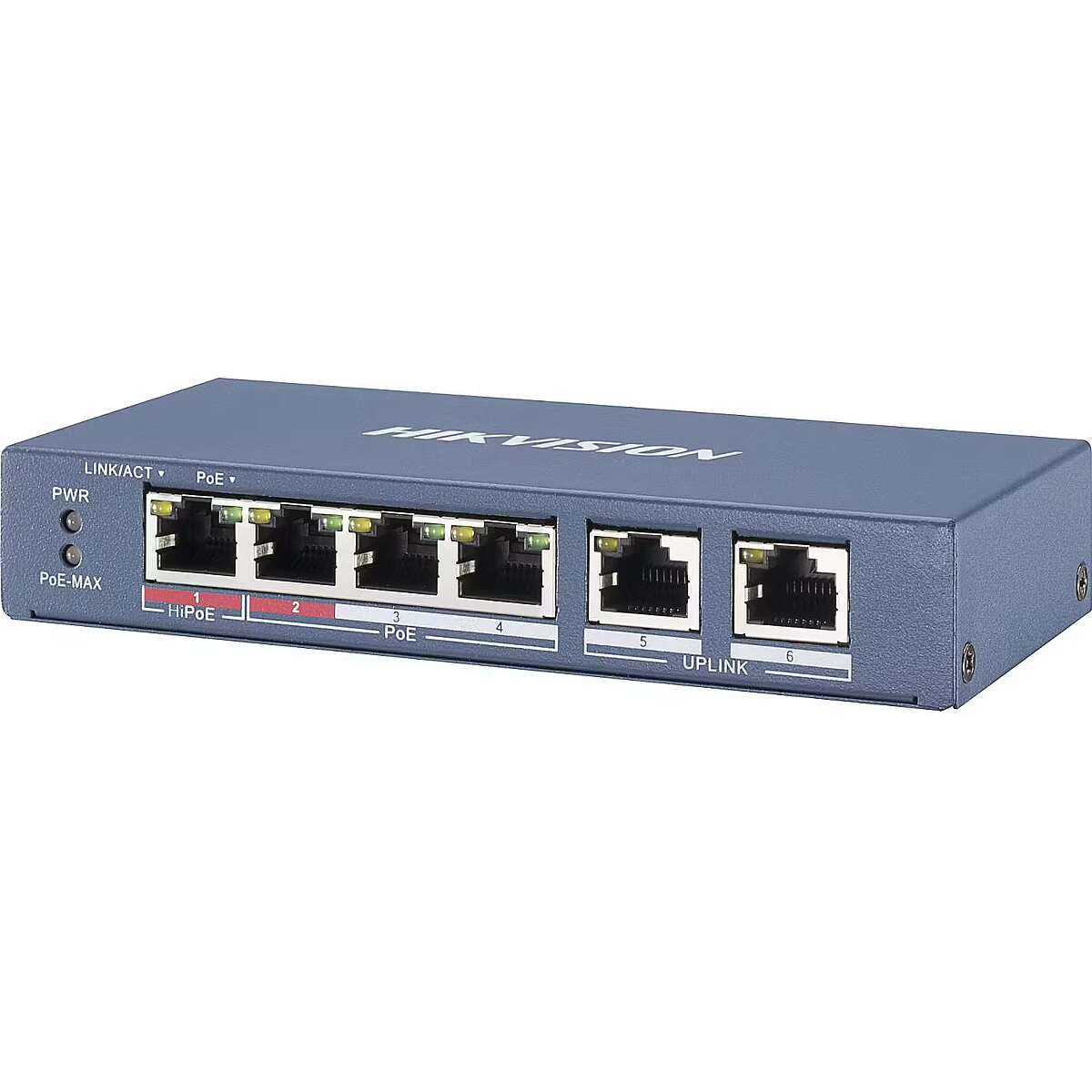

Hikvision Switch DS-3E0106HP-E

brand - HikVision
category - Mājas un biroju tīkli > Komutatori > PoE komutatori
Code - SWITCHDS3E0106HPE
Data transmission - Forwarding rate - 0.893 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1.2 Gbit/s
Design - Housing material - Metal
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - Product colour - Blue
Design > Form factor - Desktop
dimensionalWeight - 407
EAN - 6954273693343
height - 0.11 m
length - 0.2 m
Link - https://www.hikvision.com/en/products/transmission/Network-Switches/Pro-Series/DS-3E0106HP-E/
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
mpn - DS-3E0106HP-E
Name - Hikvision | DS-3E0106HP | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 6
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 195 mm
Package features > Gross height (mm) - 105 mm
Package features > Gross width (mm) - 92 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 917 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.0018837 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package weight - 770 g
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 6
Ports & interfaces > POE - PoE 802.3 af and PoE+ 802.3 at
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - DC input voltage - 48 V
Power - Input current - 1.35 A
Power - Power consumption (max) - 65 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 60 W
producerCode - DS-3E0106HP-E
Producer product name - DS-3E0106HP
productName - Hikvision DS-3E0106HP-E Network Links Unmanaged Fast Ethernet (10/100) PoE Support Blue
productSize - Normal
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
sizeX - 195
sizeY - 95
sizeZ - 110
Technical details > Gross weight - 0.795 kg
Technical details > Net weight - 0.595 kg
Technical details > Other features - PoE power budget 60W;Provides up to 30 watts per PoE port; 6kV
Technical details > Producer - Hikvision
title - Hikvision komutators DS-3E0106HP-E
Warranty - 6
Warranty - 6 month(s)
warrantyLength - 36
warrantyType - F
weight - 0.8 kg
weight - 750
Weight & dimensions - Depth - 68.5 mm
Weight & dimensions - Height - 25.6 mm
Weight & dimensions - Weight - 240 g
Weight & dimensions - Width - 145 mm
width - 0.1 m
