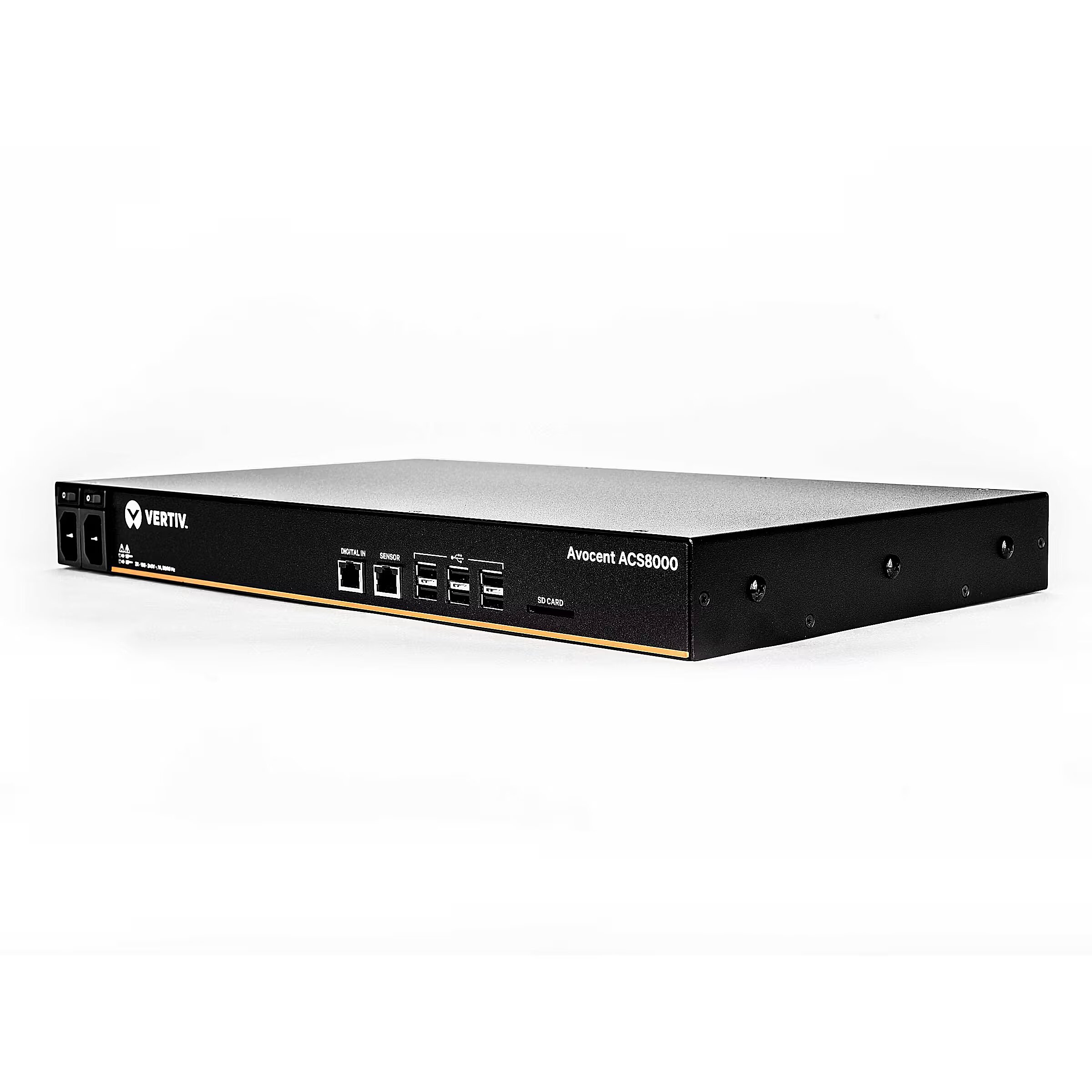

ARTIKEL1 - 48-PORT ACS8000 CONSOLE SYSTEM
ARTIKEL2 - WITH DUAL AC POWER SUPPLY
Brand - Vertiv
BrandPartCode - ACS8048DAC-404
Category - Console Servers
Certificates - Certification - FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
EANCode - 0636430086415
GRUPPE1 - Network
GRUPPE2 - Terminal Servers
GTIN - 0636430086415
GTIN - 636430086415
HERSTELLER - VERTIV
HSTNUMMER - ACS8048DAC-404
LongDesc - The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).
LongProductName - 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404
LongSummaryDescription - Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404. Management protocols: CLI, HTTP/ HTTPS, SNMP. Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP), Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3,.... Console port: RJ-45, AC outlet types: C13 coupler. Operating system installed: Embedded LINUX. Dimensions (WxDxH): 438.2 x 241.3 x 44.5 mm, Weight: 3.4 kg
Management features - Management protocols - CLI, HTTP/ HTTPS, SNMP
Memory - eMMC capacity - 16 GB
Memory - Flash memory - 16000 MB
Memory - RAM capacity - 1024 MB
Memory - RAM type - DDR3L
Network - Cable types supported - Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-T, 1000BASE-T
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - -10 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - Safety - UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Serial ports quantity - 48
Ports & interfaces - SFP module slots quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 8
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 108 - 240 V
Power - Input current - 0.1 A
Power - Number of power supply units - 2
Power - Power consumption (max) - 35 W
Power - Power consumption (typical) - 20 W
Power - Power source type - AC
Processor - Processor architecture - ARM Cortex-A9
Processor - Processor cores - 2
Processor - Processor family - ARM Cortex-A9
Processor - Processor frequency - 667 MHz
ProductName - 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404
Security - Authentication method - LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Security - IP address filtering - Yes
Security - One-time password (OTP) - Yes
Security - Security algorithms - 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
ShortSummaryDescription - Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404, CLI, HTTP/ HTTPS, SNMP, LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP), 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3,..., RJ-45, C13 coupler, Embedded LINUX
Software - Operating system installed - Embedded LINUX
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Technical details - Internal modem - No
Technical details - Product colour - Black
Technical details - Rack mounting - Yes
Technical details - Temperature sensor - Yes
Technical details - Web-based management - Yes
Technical details - Zero Touch Provisioning (ZTP) - Yes
Title - Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404
URL - https://www.vertiv.com/
WarrantyInfo -
Weight & dimensions - Dimensions (WxDxH) - 438.2 x 241.3 x 44.5 mm
Weight & dimensions - Weight - 3.4 kg
