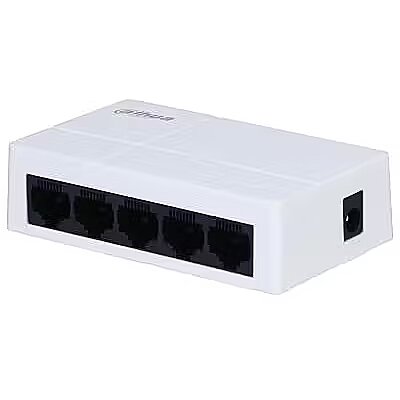

Dahua NET SWITCH 5PORT 10/100M/1G/SG1005L-EUR

10G support Network - No
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 5
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Category Code - SWI
Compliance certificates Certificates - CE
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-T, 1000BASE-T
DC input voltage Power - 5 V
Depth Weight & dimensions - 52 mm
Description - The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation. Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop. Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on. Optimized Performance
All ports can transmit streams at high speeds without delay. Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Forwarding rate Data transmission - 7.44 Mpps
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 5
Height Weight & dimensions - 23 mm
Housing material Design - Plastic
Input current Power - 1 A
MAC address table Data transmission - 2000 entries
Model - SG1005L-EUR
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - 0 - 45 °C
Package depth Packaging data - 94 mm
Package height Packaging data - 67 mm
Package weight Packaging data - 230 g
Package width Packaging data - 111 mm
Packet buffer memory Data transmission - 1 MB
Power consumption (max) Power - 1.5 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - DC
Power supply included Power - Yes
Product colour Design - White
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Summary - Dahua Technology SG1005L-EUR. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. DC input voltage: 5 V
Switching capacity Data transmission - 10 Gbit/s
Switch layer Management features - L2
Switch type Management features - Unmanaged
Unit Box Height - 0.065
Unit Box Length - 0.115
Unit Box Width - 0.095
Unit Calculated Volume - 0.000852 cubm
Unit Calculated Weight - 0.2 kg
Units per Pallet - 0
Units per Shipping Box - 30
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/SG1005L
Warranty - 36 months
Weight Weight & dimensions - 120 g
Width Weight & dimensions - 86.4 mm
