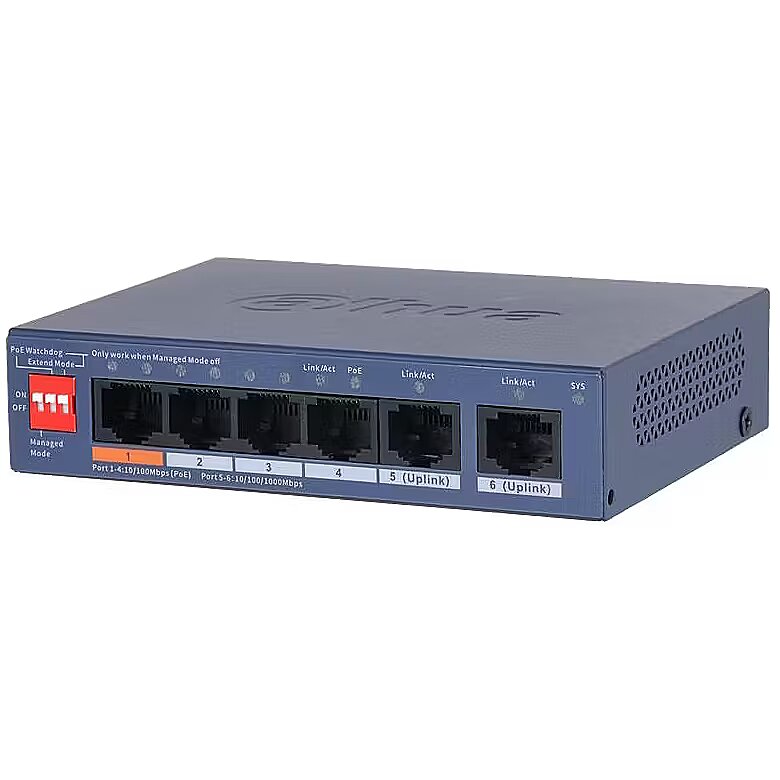

Dahua Switch|DAHUA|DH-CS4006-4ET2GT-60|Type L2|PoE ports 4|CS4006-4ET2GT-60

10G support Network - No
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 6
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - Dahua Technology
BrandPartCode - CS4006-4ET2GT-60
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Category - Network Switches
Category Code - SWI
Cloud-managed Management features - Yes
Data transmission - Forwarding rate - 3.57 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Switching capacity - 4.8 Gbit/s
DC input voltage Power - 53 V
Depth Weight & dimensions - 115 mm
Description - 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange portDIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoEWide operating temperature ranging from –10 °C to 55 °CSupports VLAN and loop protectionWEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the networkEasy config to auto detect and set up network and security systems
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Blue
Design - Rack mounting - No
Design - Reset button - Yes
Design - Wall mountable - Yes
DHCP features Security - DHCP client
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Fast Ethernet (copper) ports quantity Ports & interfaces - 4
Flow control support Network - Yes
Forwarding rate Data transmission - 3.57 Mpps
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 2
GTIN - 6939554921773
Height Weight & dimensions - 27 mm
Housing material Design - Metal
Input current Power - 1.22 A
IP-MAC-Port binding Security - Yes
Jumbo frames Data transmission - 9216
Jumbo frames support Data transmission - Yes
LED indicators Design - Yes
LongDesc -
LongProductName - Managed, Layer 2, 6x RJ-45, 4.8 Gbps Switching Capacity, PoE
LongSummaryDescription - Dahua Technology CS4006-4ET2GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Loop protection Security - Yes
MAC address table Data transmission - 2000 entries
Management features - Cloud-managed - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Mean time between failures (MTBF) Performance - 2037751.2 h
Model name - CS4006-4ET2GT-60
Multicast features - Multicast support - Yes
Multicast support Multicast features - Yes
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q
Network - Number of VLANs - 32
Network - Port mirroring - Yes
Network - VLAN support - Yes
Networking standards Network - IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package depth Packaging data - 195 mm
Package height Packaging data - 83 mm
Package weight Packaging data - 760 g
Package width Packaging data - 114 mm
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 195 mm
Packaging data - Package height - 83 mm
Packaging data - Package weight - 760 g
Packaging data - Package width - 114 mm
Packet buffer memory Data transmission - 4 MB
Performance - Mean time between failures (MTBF) - 2037751.2 h
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 4
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Ports & interfaces - Power connector - DC-in jack
Power - DC input voltage - 53 V
Power - Input current - 1.22 A
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power connector Ports & interfaces - DC-in jack
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 60 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 4
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power source Power - DC/PoE
Power supply included Power - Yes
Product colour Design - Blue
ProductName - CS4006-4ET2GT-60
Quick start guide Packaging content - Yes
Rack mounting Design - No
Reset button Design - Yes
Security - DHCP features - DHCP client
Security - IP-MAC-Port binding - Yes
Security - Loop protection - Yes
ShortSummaryDescription - Dahua Technology CS4006-4ET2GT-60, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Dahua Technology CS4006-4ET2GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Switching capacity Data transmission - 4.8 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
Title - Dahua Technology CS4006-4ET2GT-60 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 60 W
Unit Box Height - 0.08
Unit Box Length - 0.195
Unit Box Width - 0.115
Unit Calculated Volume - 0.002545 cubm
Unit Calculated Weight - 0.783 kg
Units per Pallet - 0
Units per Shipping Box - 12
URL - https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4006-4et2gt-60
Vendor Homepage - https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4006-4et2gt-60
VLAN support Network - Yes
Wall mountable Design - Yes
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Depth - 115 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 200 g
Weight & dimensions - Width - 84 mm
Weight Weight & dimensions - 200 g
Width Weight & dimensions - 84 mm
