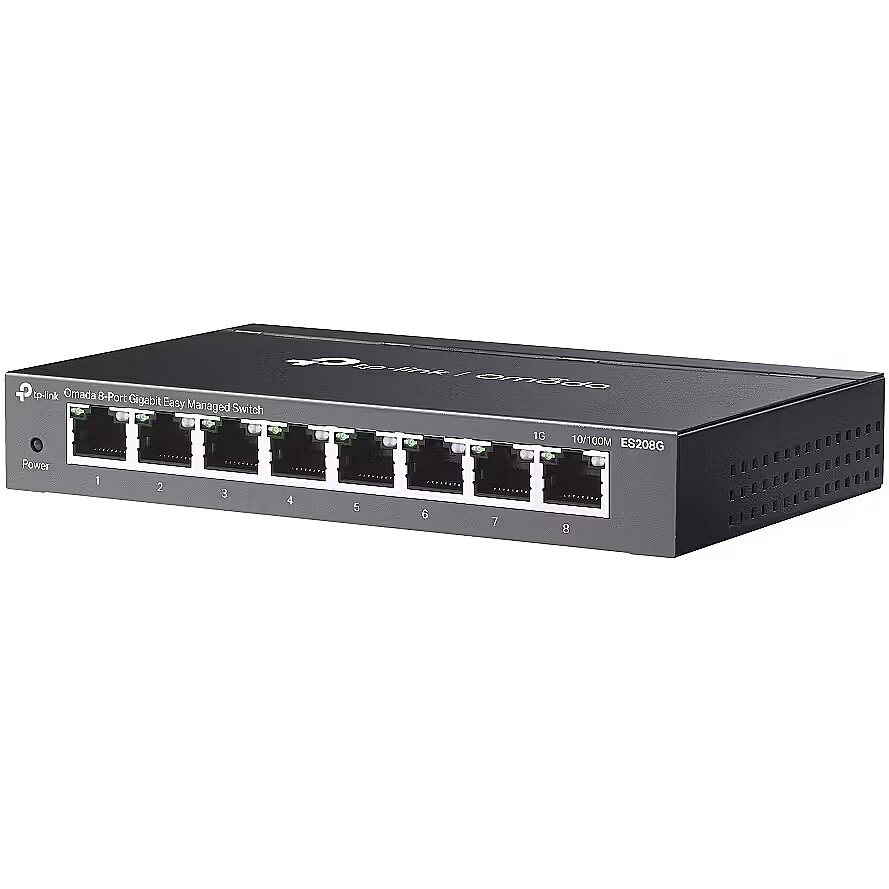

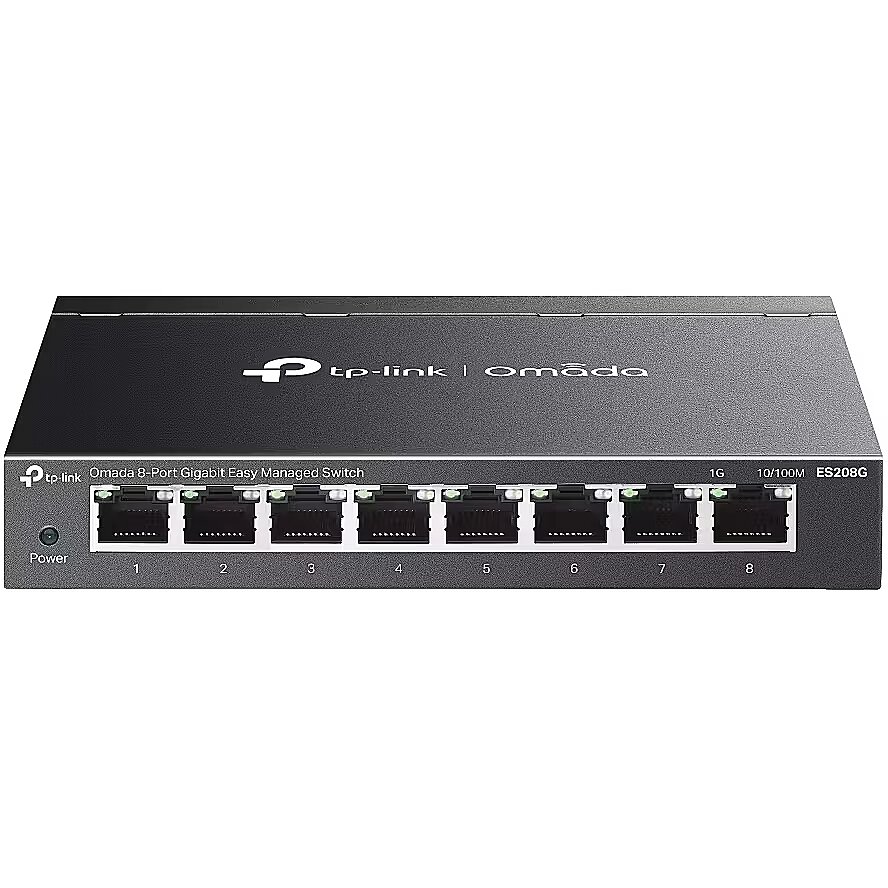

TP-LINK NET SWITCH 8PORT 10/100/1000M/OMADA ES208G

10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 8
Accessories included - ES208G Zasilacz Gumowe nóżki Instrukcja instalacji
Application - Home and small office
Brand - TP-Link
BrandPartCode - ES208G
Category - Network Switches
Category Code - SWI
Certificates - FCC, CE, RoHS
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Chassis type - Desktop
Console port - No
Data transmission - Forwarding rate - 11.9 Mpps
Data transmission - Jumbo frames - 15000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 16 Gbit/s
Description - Omada 8-portowy gigabitowy przełącznik Easy Managed 8× 10/100/1000 Mb/s portów RJ45 Łatwy w użyciu: obsługuje technologię plug-and-play w celu natychmiastowej łączności i prostej konfiguracji w celu uzyskania dodatkowych funkcji Centralne zarządzanie chmurą przez Internet lub aplikację Omada VLAN, izolacja portów, test kabli, QoS dla niezawodnej sieci nadzoru Automatyczne zapobieganie pętli i podsłuchiwanie IGMP Konstrukcja bez wentylatora zapewniająca cichą pracę Trwała metalowa obudowa i konstrukcja do montażu na biurku/ścianie Omada Cloud Essentials bezpłatne i łatwe zarządzanie siecią w chmurze
Omada Cloud Essentials to bezpłatna, łatwa w użyciu wersja kontrolera Omada Cloud. Zapewnia scentralizowane zarządzanie i monitorowanie w chmurze dla systemu sieciowego Omada, obejmującego punkty dostępowe, przełączniki i bramy, idealne dla sieci nadzoru i małych firm.
Description - TP-LINK OMADA ES208G Omada 8-Port Gigabit Easy Managed Switch 8× 10/100/1000Mbps RJ45 ports Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app† VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking Automatic Loop Prevention and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Designation - CE+WEEE
dimensionalWeight - 495
dimension depth - 100 mm
dimension height - 130 mm
Dimensions - 158 × 101 × 25 mm
Dimensions - 158 × 101 × 25mm
dimension weight - 654 g
dimension width - 190 mm
ean - 1210002600668
Environment requirements - Temperatura pracy: -5~45 Temperatura przechowywania: -40~70 Wilgotność pracy: 10%~90% bez kondensacji Wilgotność przechowywania: 5%~90% bez kondensacji
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 11.9 Mpps
Forwarding rate - 11.9 Mpps
GTIN - 0840460600293
GTIN - 840460600293
GTIN - 1210002600668
GTIN - 1210002600675
guarantee - 60
guarantee_type - normal
Jumbo frame size - 15 KB
L2 features - Agregacja statycznych łączy Zapobieganie pętli / wykrywanie pętli zwrotnej Kontrola przepływu Kontrola przepływu 802.3x Mirrorowanie Mirrorowanie portów Jeden do jednego Wiele do jednego Przychodzące/wychodzące/oba Statystyki portów Statystyki ruchu 802.1ab LLDP
L3 features -
LongDesc - Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
LongProductName - Omada 8-Port Gigabit Easy Managed Switch
LongSummaryDescription - TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q. DC input voltage: 5 V. Wall mountable
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Unified static configuration - Yes
Management features - Web-based management - Yes
Memory buffer - 4 MB
Model name - ES208G
name - TP-Link ES208G
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Fast leave - Yes
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 32
Network - Port mirroring - Yes
Network - Virtual LAN features - MTU VLAN
Network - Virtual LAN features - MTU VLAN, Port-based VLAN, Tagged VLAN
Network - Virtual LAN features - Port-based VLAN
Network - Virtual LAN features - Tagged VLAN
Network - VLAN support - Yes
Network - Zero Touch Provisioning (ZTP) - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Heat dissipation - 9.09 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package type - Box
Performance - Fanless - Yes
Performance - Firmware upgradeable - Yes
Performance - Flash memory - 64 MB
Performance - Mean time between failures (MTBF) - 1141726 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Power - DC input voltage - 5 V
Power - Input current - 0.6 A
Power - Power consumption (max) - 2.7 W
Power - Power source - DC
Power - Power supply included - Yes
Power - Surge protection - Yes
Power - Surge protection voltage - 6 kV
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - Zasilacz prądu stałego (Wyjście: 5 V DC / 0,6 A)
Primary port count - 8
producer - TP-LINK
producerCode - ES208G
ProductName - ES208G
productName - TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Product Net Weight - 0.63 kg
productSize - Normal
QoS - QoS oparty na porcie/802.1p/DSCP 8 kolejek priorytetowych Tryb harmonogramu priorytetowego WRR (Weighted Round Robin) Konfiguracja wagi kolejki Kontrola przepustowości Limit oceny oparty na porcie Kontrola burzy Wiele trybów kontroli (kbps/pps) Kontrola rozgłaszania/multicast/nieznanego-jednokierunkowego
Security -
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
Series - Omada
ShortSummaryDescription - TP-Link Omada ES208G, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable
sizeX - 92
sizeY - 198
sizeZ - 136
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 16 Gbps
Switching method - Store-and-forward
Switch layer - L2
Switch type - L2
Throughput - 16 GB/s
Title - TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Unit Box Height - 0.13
Unit Box Length - 0.19
Unit Box Width - 0.09
Unit Calculated Volume - 0.002223 cubm
Unit Calculated Weight - 0.654 kg
Units per Shipping Box - 1
URL - https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es208g/
Vendor Homepage - www.tp-link.com/pk/business-networking/omada-switch-agile/es208g/
vendpn - ES208G
VLAN - MTU VLAN VLAN oparty na portach VLAN z tagami 802.1Q Maks. 32 grupy VLAN 4K VID
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 660
Weight & dimensions - Depth - 100.7 mm
Weight & dimensions - Height - 25.4 mm
Weight & dimensions - Width - 158 mm
