10Base-T / 100Base-TX / 1000Base-T Ports - 4
Accessories included -
Application - Home and small office
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Rack
Console port - Yes
Console Ports - 1
Description - Build and expand your network with Ubiquiti Networks® EdgeSwitch ™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

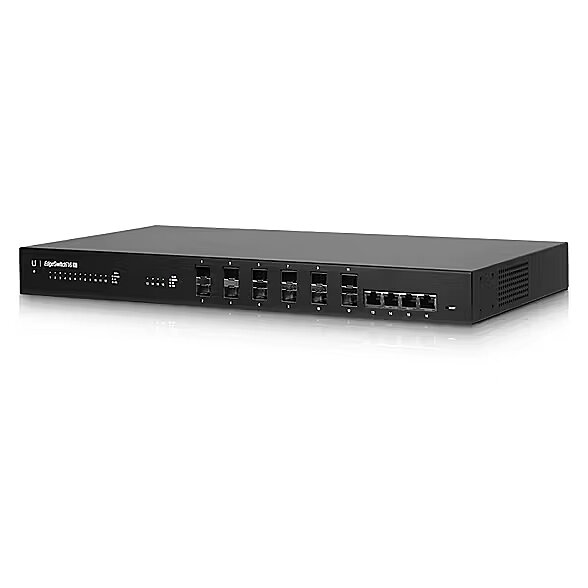

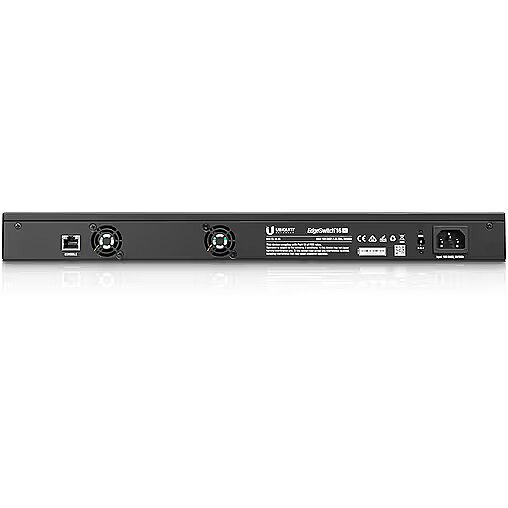

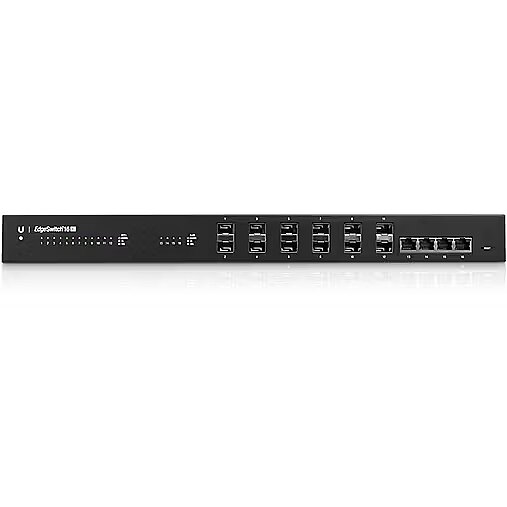

Description - Switch 16xSFP+ ES-16-XG 10G 16-Port Managed Aggregation Switch
Available with sixteen 10G ports, the high-performance EdgeSwitch enhances network capacity and provides high-bandwidth services to growing networks. 10G High-Capacity Links
The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds. Powerful Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, nonblocking throughput, the EdgeSwitch supports up to 160 Gbps. Advanced Enterprise Switching
The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.
Designation - CE+WEEE
dimension depth - 75 mm
dimension height - 450 mm
Dimensions - 443 x 221 x 43 mm
Dimensions - 443 x 221 x 43 mm 1U
dimension weight - 3500 g
dimension width - 265 mm
ean - 810354024535
EAN_code - 0810354024535
Fan - Yes
Forwarding rate - 238.1 Mpps
Forwarding rate - 238.1 Mpps
guarantee - 12
guarantee_type - normal
L2 features -
L3 features -
Management, monitoring, configuration -
Manufacturer - Ubiquiti
Manufacturer_code - ES-16-XG
name - Switch 16xSFP+ ES-16-XG
Name - Ubiquiti ES-16-XG XG/XG/MAN/16 - 12x SFP+ , 4x XG RJ45
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 1
Number of 10Gb ports - 16
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 12
Number of SFP ports - None
Other features -
Other functions -
Power consumption - 36 W
Power supply - AC/DC, 56W DC
Power supply - Internal
Primary port count - 4
producer - UBIQUITI
Product Net Weight - 2.62 kg
QoS -
Rack 1U Mounting Type - Yes
Security -
SFP+ Ports - 12
Stackability - Yes
Supported protocols and standards -
Support for Jumbo frames - No
Switch class - Managed
Switching capacity - 320 Gbps
Switch layer - L3
Technical_details - 12x SFP+ 4x 10GBase-T 1x RJ-45 management port Special features: rackmountable, 1U, supports IPv6
Throughput - 160 Gb/s
Unit Box Height - 0.08
Unit Box Length - 0.545
Unit Box Width - 0.265
Unit Calculated Volume - 0.01155 cubm
Unit Calculated Weight - 3.65 kg
Units per Shipping Box - 1
Vendor Homepage - www.ubnt.com/edgemax/edgeswitch-16-xg/
vendpn - ES-16-XG-EU
VLAN -
Warranty - 12 months
Warranty - 12 months warranty from the date of sale
Weight - 2.62 kg
Weight - 4,00
