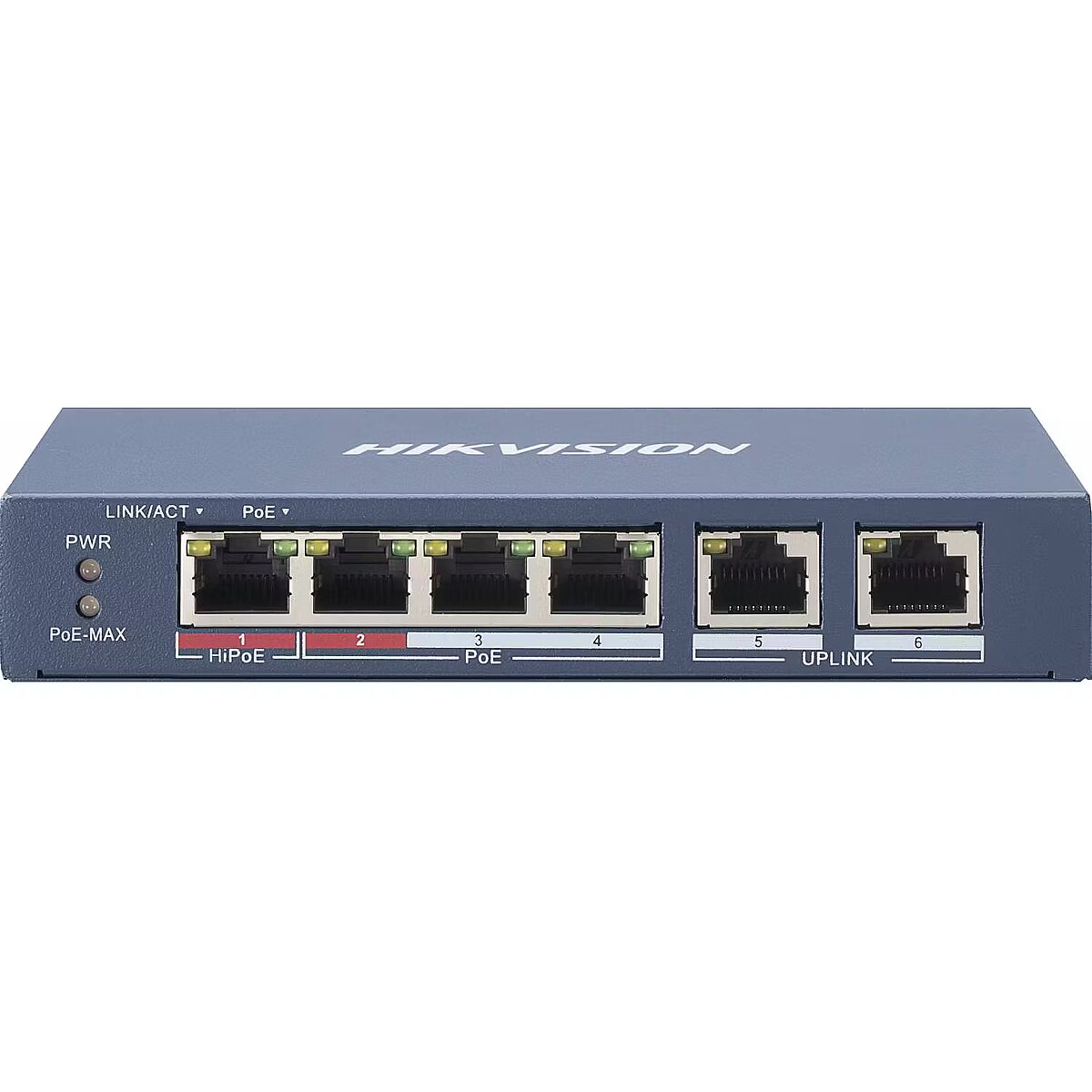

Hikvision DS-3E0105P-E/M(B)

Name: Hikvision DS-3E0105P-E/M(B)
Brand: Hikvision
SKU: 1150200
Price: 49.87 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1150200 Product code: DS-3E0105P-E/M

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Base-T speed: 10/100
RJ-45 Ports: 4

Similar Products

Ports and equipment
	This product Hikvision DS-3E0105P-E/M(B)	Hikvision DS-3E0106P-E/M 6x100Mb PoE	Esperanza ENS105 6-port Poe	Dahua PFS3006-4ET-36 4PORT 4POE	Dahua PFS3206-4P-96
Show similar specs. Hide similar specs.	49.87 €	50.33 €	28.34 €	44.30 €	94.13 €
Base-T speed	10/100	10/100	10/100	10/100	10/100/1000
PoE Ports	4	2	4	4	4
RJ-45 Ports	4	6	6	6	4
SFP Ports		N/A	N/A	N/A	2
Specifikācija
Number of fans	Fanless	Fanless	Fanless	Fanless	Fanless
PoE Per-Port Power Budget	30 W	30 W	30 W	30 W	30 W
PoE Support	Ir	Ir	Ir	Ir	Ir
PoE Total Power Budget	35 W	35 W	60 W	35 W	90 W
Weight (g)	200 g	265 g	800 g	560 g	480 g

Ports and equipment

Base-T speed : 10/100

PoE Ports : 4

RJ-45 Ports : 4

Specifikācija

Number of fans : Fanless

PoE Per-Port Power Budget : 30 W

PoE Support : Ir

PoE Total Power Budget : 35 W

Weight (g) : 200 g

More detailed specification

Data transmission - Forwarding rate - 0.744 Mpps
Data transmission - MAC address table - 1000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1 Gbit/s
Design - Housing material - Metal
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Grey
dimensionalWeight - 392
Management features - Switch layer - L2
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package weight - 480 g
Performance - Fanless - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 1
Ports & interfaces - Power connector - DC-in jack
Power - DC input voltage - 48 V
Power - Input current - 0.8 A
Power - Power consumption (max) - 38 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 35 W
producerCode - DS-3E0105P-E/M(B)
productName - Hikvision DS-3E0105P-E/M(B) network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
productSize - Normal
sizeX - 193
sizeY - 107
sizeZ - 95
warrantyLength - 24
warrantyType - F
weight - 670
Weight & dimensions - Depth - 83.1 mm
Weight & dimensions - Height - 27.6 mm
Weight & dimensions - Weight - 200 g
Weight & dimensions - Width - 105 mm
