Antenna - Frequency range (EU) - 1880 - 1900 MHz
Antenna - Frequency range (US) - 1920 - 1930 MHz
Antenna - Maximum indoor range - 50 m
Antenna - Maximum outdoor range - 300 m
ARTIKEL1 - W80DM DECT IP MULTI-CELL SYSTEM
ARTIKEL2 - DECT PHONE ACCESSORIES
Brand - Yealink
BrandPartCode - W80DM
Call management - Anonymous call - Yes
Call management - Anonymous call rejection - Yes
Call management - Caller ID - Yes
Call management - Call forwarding - Yes
Call management - Call history - Yes
Call management - Call hold - Yes
Call management - Call transfer - Yes
Call management - Call waiting - Yes
Call management - Conference call - Yes
Call management - Do not disturb function - Yes
Call management - Emergency call - Yes
Call management - Integrated voicemail - Yes
Call management - Message Waiting Indication (MWI) function - Yes
Call management - Mute function - Yes
Call management - Number of NB calls per base supported (max) - 8
Call management - Number of parallel conferences - 3
Call management - Number of simultaneous calls (max) - 100
Call management - Number of simultaneous calls per handset - 2
Call management - Number of WB calls per base supported (max) - 8
Call management - Phonebook capacity (per handset) - 100 entries
Call management - Phonebook search/import/export function - Yes
Call management - Redialing - Yes
Call management - Remote phonebook - Yes
Call management - Reset function - Yes
Call management - Shared Call Appearance (SCA) - Yes
Call management - Speed dialling - Yes
Call management - Switching between calls - Yes
Call management - System log export - Yes
Category - DECT Base Stations
Category 1 - Netzwerk
Category 2 - Voice over IP
Design - Full duplex - Yes
Design - LED indicators - Yes
Design - Product colour - White
Design - Wall mountable - Yes
EAN - 6938818305373
EANCode - 6938818305373
GRUPPE1 - Network
GRUPPE2 - Ip Phones
GTIN - 6938818305373
HERSTELLER - YEALINK
HSTNUMMER - 1302013
Logistics data - Harmonized System (HS) code - 85177900
Logistics data - Master (outer) case gross weight - 3.13 kg
Logistics data - Master (outer) case height - 187 mm
Logistics data - Master (outer) case length - 375 mm
Logistics data - Master (outer) case width - 336 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Cordless DECT IP Multi-Cell SystemThe Yealink W80 DECT IP Multi-Cell System, consisting of two elements - a base station W80B and a DECT Manager W80DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi-cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 100 handsets and 100 simultaneous calls, that not only ensures one call in each handset, but also allows you to get rid of the limited wireless coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, CP930W and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W80B and W80DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full-duplex technology and Opus, that setting free your ears and giving you an elaborate audio experience.Key Features and BenefitsSecurity & StabilityBased on Yealink DECT technology, W80 DECT IP Multi-Cell System provides you with both the stable call and the seamless roaming and handover. Wireless data transmission over-the-air is ensured by the DECT encryption and the wirelessly eavesdropping on a conversation is not possible either. At the same time, TLS and SRTP play a pivotal role in secure SIP communication. Pack Yealink W80 DECT IP Multi-Cell System with the powerful Grayscale Upgrade feature, when you perform upgrade for one handset, other handsets are free from this process and the whole system still runs in safety and stability.Advanced DECT ContactsWhen a call is coming, the receiver can obtain the caller information, including the caller number and caller name, from the phone screen easily and clearly rather than just a row of digits. Better compatibility with several PBX platforms makes the contacts from different platforms reachable on the Yealink W80 DECT IP Multi-Cell System, like Xsi directory, XML contacts. Besides, LDAP and Remote Phonebook.Efficient Provisioning & Unified ManagementThe W80 DECT IP Multi-Cell System inherits the Yealink powerful Auto-p mechanism from W60B, that the efficient provisioning and effortless mass deployment can be simply implemented via Yealink’s Redirection and Provisioning Service (RPS) and auto provisioning. Moreover, you can configure and manage the entire multi-cell system on the web portal of DECT Manager, making the deployment, maintenance and upgrade to be trouble-free as well as saving even more time and IT costs for businesses.Easy Setup and DeploymentIn the multicast network, administrators profit from zero touch provisioning that the system is established as soon as the base station is powered on and connected to the network. Do not worry if you are in the non-multicast network environment, just configure the IP address of the DECT Manager via the web user interface of the base station to complete the deployment. How to quickly identify the right position for any of the W80B base stations? Try the Yealink Deployment ToolKit and it will be your right hand for planning of large deployments.Compatible with Multiple DevicesYealink W80 DECT IP Multi-Cell System is compatible with multiple Yealink DECT devices, including W56H, W53H, CP930W and DD Phone, that all of those devices can be connected to one single or multi-cell DECT system from Yealink and a complete DECT ecosystem is just at your fingertips.
LongProductName - 1 x RJ-45 10/100M, PoE, 50 m max indoor, 300 m max outdoor, VLAN, SNTP/NTP, DHCP, Open VPN, HTTPS, 2.56 kg
LongSummaryDescription - Yealink W80 DECT IP Multi-Cell system. Management protocols: TFTP/FTP/HTTP/HTTPS/RPS, Supported network protocols: SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS, Security algorithms: AES, HTTPS, SHA-256, SHA-384, SHA-512, SRTP, TLS. Phonebook capacity (per handset): 100 entries. Frequency range (EU): 1880 - 1900 MHz, Frequency range (US): 1920 - 1930 MHz, Maximum indoor range: 50 m. Product colour: White. Input voltage: 100 - 240 V, Output voltage: 5 V, Output current: 1.2 A
Manufacturer - Yealink
MPN - 1302013

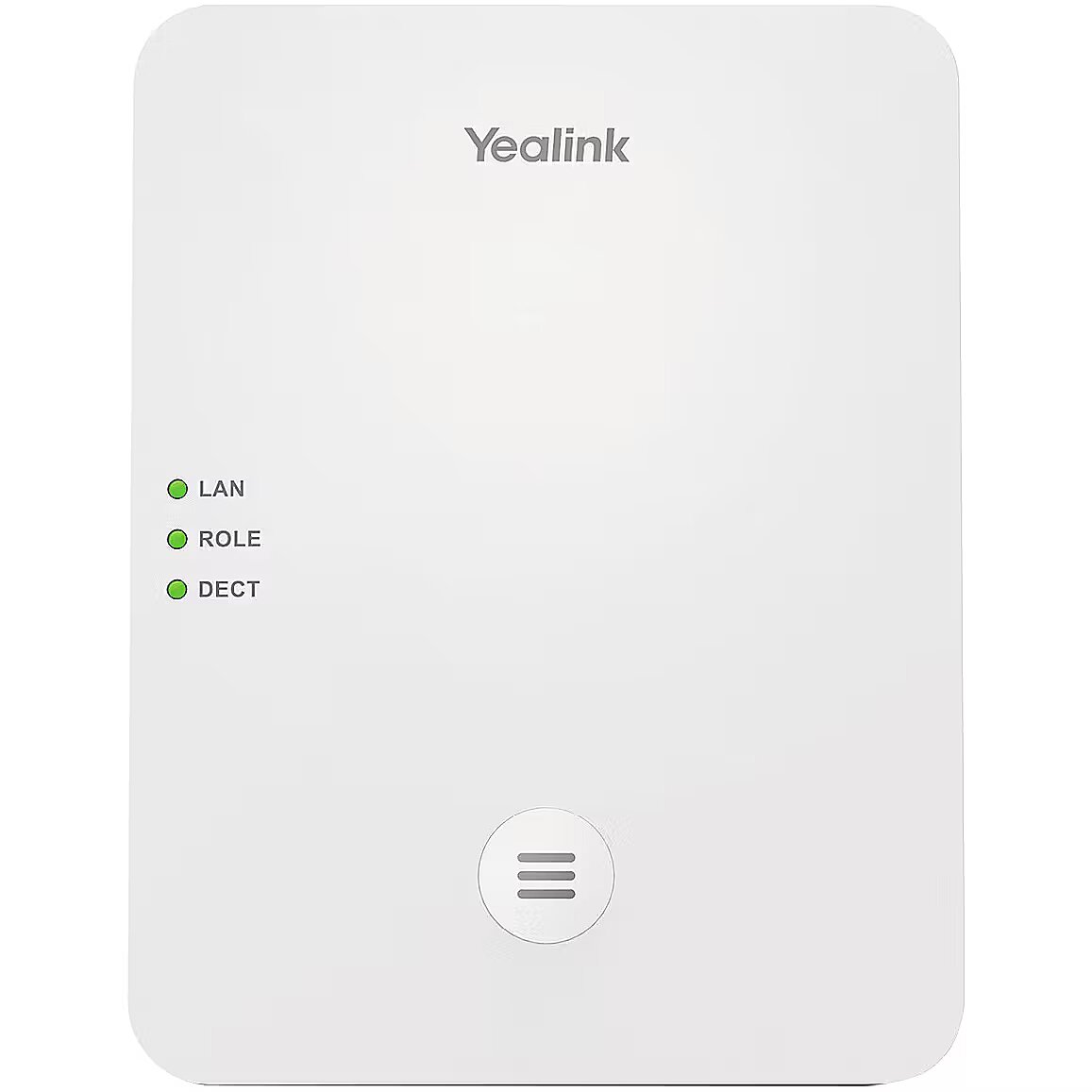

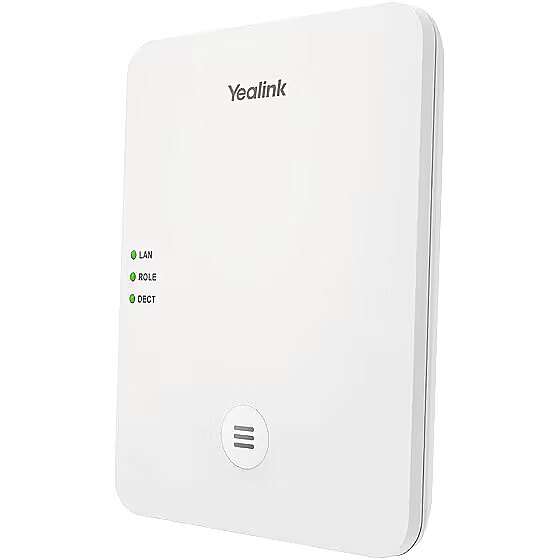

Name - Yealink W80DM - DECT Manager
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Power adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging content - Screws included - Yes
Performance - Auto-provision - Yes
Performance - Dual-Tone Multi-Frequency (DTMF) - Yes
Performance - Hearing aid compatibility - Yes
Performance - IPUI registration - Yes
Performance - Keypad lock - Yes
Performance - Management protocols - TFTP/FTP/HTTP/HTTPS/RPS
Performance - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Performance - Number of bases supported (max) - 30
Performance - Number of carrier frequencies - 2
Performance - Number of handsets supported (max) - 100
Performance - Number of VoIP accounts - 100
Performance - Over the Air Updates (OTA) - Yes
Performance - Security algorithms - AES, HTTPS, SHA-256, SHA-384, SHA-512, SRTP, TLS
Performance - Supported network protocols - SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
Performance - User access level - Yes
Performance - Voice codecs - AGC, AJB, AMR-NB, AMR-WB, CNG, G.722, G.726, G.729, OPUS, PCMA, PLC, VAD, iLBC
Performance - Wireless synchronization - Yes
Performance - XML browser - Yes
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Input voltage - 100 - 240 V
Power - Output current - 1.2 A
Power - Output voltage - 5 V
Power - Power over Ethernet (PoE) - Yes
ProductName - W80 DECT IP Multi-Cell system
ShortSummaryDescription - Yealink W80 DECT IP Multi-Cell system, TFTP/FTP/HTTP/HTTPS/RPS, SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS, AES, HTTPS, SHA-256, SHA-384, SHA-512, SRTP, TLS, AGC, AJB, AMR-NB, AMR-WB, CNG, G.722, G.726, G.729, OPUS, PCMA, PLC, VAD, iLBC, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, 100 entries
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Yealink W80 DECT IP Multi-Cell system
URL - https://www.yealink.com/product/voice-communication-w80
WarrantyInfo -
Weight - 0.24
Weight & dimensions - Dimensions (WxDxH) - 130 x 100 x 25.1 mm
Weight & dimensions - Package depth - 180 mm
Weight & dimensions - Package height - 63 mm
Weight & dimensions - Package width - 174 mm
Weight & dimensions - Weight - 2.56 kg
