Axagon CRE-SM2, 4-slot Smart card reader (Smart/ID Card, SIM, SD, microSD, MMC)

Accessories included - USB card reader with 1.3 m hardwired cable,
printed installation guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
Andmed - Juhtme pikkus - 130 cm
Andmed - Kaal - 91 g
Andmed - Kõrgus (mm) - 77
Andmed - Laius (mm) - 54
Andmed - Sügavus (mm) - 52
Application area Features - Access control, Banking & payments, Healthcare
barcode - 8595247904300
Bluetooth Ports & interfaces - No
Box Weight Brutto (kg) - 1 kg
Brand - Axagon
brand - Axagon
BrandPartCode - CRE-SM2
Built-in Devices - LED Indicator
Built-in display Design - No
Cable length Design - 1.3 m
category - PC Components|Drives|Card Readers
Category - Smart Card Readers
Category Code - CRE
category_en - Accessories
category_et - Tarvikud
category_ru - Аксессуары
Certification Sustainability - CE, RoHS
code - CRE-SM2
Code - CRE-SM2
Color - Black
Compatible memory cards Features - MMC, MMC Mobile, MMC+, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC, SmartMedia
Compliance certificates Technical details - RoHS, CE
Connectivity - Connector - USB 2.0
Connectivity - Suitable operating systems - Linux
Connectivity - Suitable operating systems - Mac OS
Connectivity - Suitable operating systems - Microsoft Windows
Country of origin Design - China
Depth (mm) - 54 mm
Depth Weight & dimensions - 52 mm

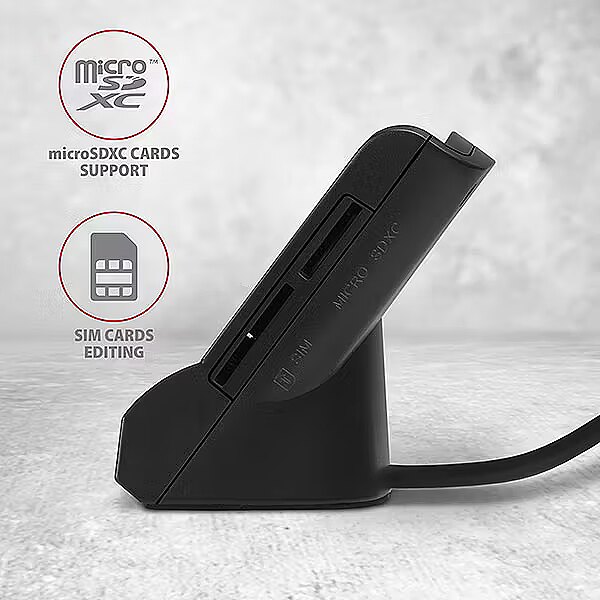

Description - Desktop stand reader Smart card / ID card AXAGON CRE-SM2 with USB 2.0 interface include SD, microSD and SIM card slots. Card reader supports all common contact Smart cards formats, chip cards and other contact cards including payment cards or contact electronic ID cards *. The reader is compatible with most national applications for eID (electronic ID cards). Thanks to the SIM card slot with SIM management software, SD slot, microSD slot, the reader can be used for backup and data transfer. Compatibility with all common OS such as Windows, Linux and Mac OS allows wide range of applications. Sophisticated design, high-quality manufacturing, anti-slip pads and long cable ensure easy and trouble-free use. Input:
USB 2.0 CCID protocol.
Backward compatible with USB 1.1.
Connection via USB 2.0 type A male connector. Card reader:
Four slot reader supports the following formats:
Smart Card slot supports ATM / CAC / ID / IC / SIS contact cards,
Micro SD slot supports microSD / microSDHC / microSDXC / TransFlash cards,
SD slot supports SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC cards, miniSD, miniSDHC, MMC Micro cards with adapter,
SIM slot supports standard size SIM cards (microSIM and nanoSIM with adapter). Smart Cards specification support:
Supports ISO 7816 Class A, B and C contact Smart cards (5V, 3V and 1.8V).
Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
Supports protocols T 0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
PC/SC 2.0 PC Smart Card support.
Microsoft Smart Card for Windows support.
Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
Microsoft WHQL USB Smart Card Reader compliant.
FIPS 201 standard compliant.
420 Kbps Smart Card interface speed (depends on card). Memory Cards specification support:
SD 1.0/1.1 (SD - Secure Digital, up to 2GB) compliant.
SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB) compliant.
SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB) compliant.
MMC and eMMC 3.x/4.0/4.1/4.2 compliant. Other features:
Microsoft USB-CCID driver compatible.
Plug and Play support.
Simultaneous SIM and microSD slot usage.
Smart card insert detection.
SIMedit SW for edit and backup contacts download from Product Support tab on www.axagon.eu.
Reader power via USB bus (bus-power).
Green LED indicates computer USB port connection (steady).
Red LED indicates card insertion (steady) and data transfer (flashing).
Dimensions 77 x 54 x 52 mm, cable length 130 cm.
Weight 91 g. Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit Windows OS versions supported), Mac OS X 10.x and later, Linux with 2.4.x kernel and later. * Note: The reader only supports contact cards that have visible contacts on the surface. The card without contacts is therefore RFID and cannot be used in the reader. Package contains:
USB card reader with 1.3 m hardwired cable,
printed installation guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
Description - Desktop stand reader Smart card / ID card AXAGON CRE-SM2 with USB 2.0 interface include SD, microSD and SIM card slots. Card reader supports all common Smart cards formats, chip cards and other contact cards including payment cards. The reader is fully compatible with eID application. Thanks to the SIM card slot with SIM management software, SD slot, microSD slot, the reader can be used for backup and data transfer. Compatibility with all common OS such as Windows, Linux and Mac OS allows wide range of applications. Sophisticated design, high-quality manufacturing, anti-slip pads and long cable ensure easy and trouble-free use. Input:
• USB 2.0 CCID protocol.
• Backward compatible with USB 1.1.
• Connection via USB 2.0 type A male connector. Card reader:
• Four slot reader supports the following formats:
• Smart Card slot supports ATM / CAC / ID / IC / SIS cards,
• microSD slot supports microSD / microSDHC / microSDXC / TransFlash cards,
• SD slot supports SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC cards, miniSD, miniSDHC, MMC Micro cards with adapter,
• SIM slot supports standard size SIM cards (microSIM and nanoSIM with adapter). Smart Cards specification support:
• Supports ISO 7816 Class A, B and C smart cards (5V, 3V and 1.8V).
• Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
• Supports protocols T 0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• PC/SC 2.0 PC Smart Card support.
• Microsoft Smart Card for Windows support.
• Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
• Microsoft WHQL USB Smart Card Reader compliant.
• FIPS 201 standard compliant.
• 420 Kbps Smart Card interface speed (depends on card). Memory Cards specification support:
• SD 1.0/1.1 (SD - Secure Digital, up to 2GB) compliant.
• SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB) compliant.
• SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB) compliant.
• MMC and eMMC 3.x/4.0/4.1/4.2. Other features:
• Microsoft USB-CCID driver compatible.
• Plug and Play support.
• Simultaneous SIM and microSD slot usage.
• Smart card insert detection.
• SIMedit SW for edit and backup contacts – download from „Product Support“ tab on www.axagon.eu.
• Reader power via USB bus (bus-power).
• Green LED indicates computer USB port connection (steady).
• Red LED indicates card insertion (steady) and data transfer (flashing).
• Dimensions 77 x 54 x 52 mm, cable length 130 cm.
• Weight 91 g. Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit Windows OS versions supported), Mac OS X 10.x and later, Linux with 2.4.x kernel and later. Package contains:
• USB card reader with 1.3 m hardwired cable,
• printed installation guide,
• packed in a cardboard box.
description_en - The Axagon 4in1 CRE-SM2 smart card reader is a secure helper, for example, when logging in to the internet bank and digitally signing documents. It supports ATM/CAC/ID/IC/SIS cards. The ID card reader supports Windows, Linux, and Mac OS operating systems. The device also reads SD, microSD, and SIM memory cards. You can communicate with government agencies, banks, and e-service providers at home or at work without leaving your computer. You can also use an ID card to enter almost all major e-service environments in Estonia, which is the safest and most convenient way to log in. It is no longer necessary to remember different passwords and usernames for different services, an ID card, a card reader, and an ID card PIN code are sufficient.
description_et - Axagon 4in1 CRE-SM2 ID-kaardi lugeja on turvaline abimees näiteks internetipanka sisselogimisel ja dokumentide digiallkirjastamisel. See toetab ATM/CAC/ID/IC/SIS kaarte. ID-kaardi lugeja toetab nii Windows, Linux kui ka Mac OS operatsioonisüsteeme. Lisaks loeb seade ka SD, microSD ja SIM mälukaarte. Riigiasutuste, pankade ja e-teenuste pakkujatega saab suhelda kodus või töökohal ilma arvuti tagant lahkumata. Samuti saab pea kõikidesse Eesti suuremate e-teenuste keskkondadesse sisenemiseks kasutada ID-kaarti, mis on kõige turvalisem ja mugavam sisselogimise võimalus. Ei ole vaja enam meeles pidada erinevaid paroole ja kasutajanimesid eri teenustele, piisab ID-kaardist, kaardilugejast ja ID-kaardi PIN-koodist.
description_short_en - USB smart card reader Also reads SD, microSD, and SIM cards Practical LED indicator Detects the ID card automatically 130 cm cable
description_short_et - USB ühendusega ID-kaardi lugeja Loeb lisaks SD-, microSD- ja SIM-kaarte Praktiline LED-indikaator Tuvastab ID-kaardi automaatselt 130 cm kaabel
Design - Built-in display - No
Design - Cable length - 1.3 m
Design - Country of origin - China
Design - Housing material - Plastic
Design - LED indicators - Activity, Check, Link, Ready
Design - Placement supported - Indoor
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 120 mm
Dimensions - 77 x 54 x 52 mm
dimension weight - 120 g
dimension width - 100 mm
EAN - 8595247904300
ean - 8595247904300
EAN Code - 8595247904300
Easy to use Features - Yes
External Color - Melna
External power adapter Power - No
Features - Application area - Access control, Banking & payments, Healthcare
Features - Compatible memory cards - MMC, MMC Mobile, MMC+, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC, SmartMedia
Features - Easy to use - Yes
Features - Plug and Play - Yes
Features - Product type - Universal smart card reader
Features - SIM card support - Yes
feature_group_en - Smartcard readers
feature_group_et - ID-kaardi lugejad
feature_group_ru - Считыватели ID-карты
Flash Types Supported - MMC SD Mini SD SIM Card RS MMC MMC mobile Micro SD Mini SDHC Micro SDHC Micro SDXC Smart Card
Form Factor - External
GTIN - 8595247904300
guarantee - 24
guarantee_type - normal
Height (mm) - 77 mm
Height Weight & dimensions - 77 mm
Housing material Design - Plastic
I/O connectors - 1 x Smart-Slot
Interface - USB 2.0
Interface Ports & interfaces - USB 2.0
LED indicators Design - Activity, Check, Link, Ready
Link - https://www.axagon.eu/en/produkty/cre-sm2
Linux operating systems supported System requirements - Yes
LongDesc - Desktop stand reader Smart card / ID card AXAGON CRE-SM2 with USB 2.0 interface include SD, microSD and SIM card slots.Card reader supports all common Smart cards formats, chip cards and other contact cards including payment cards. The reader is fully compatible with eID application.Thanks to the SIM card slot with SIM management software, SD slot, microSD slot, the reader can be used for backup and data transfer.Compatibility with all common OS such as Windows, Linux and Mac OS allows wide range of applications. Sophisticated design, high-quality manufacturing, anti-slip pads and long cable ensure easy and trouble-free use.Input:• USB 2.0 CCID protocol.• Backward compatible with USB 1.1.• Connection via USB 2.0 type A male connector.Card reader:• Four slot reader supports the following formats:• Smart Card slot supports ATM / CAC / ID / IC / SIS cards,• microSD slot supports microSD / microSDHC / microSDXC / TransFlash cards,• SD slot supports SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC cards, miniSD, miniSDHC, MMC Micro cards with adapter,• SIM slot supports standard size SIM cards (microSIM and nanoSIM with adapter).Smart Cards specification support:• Supports ISO 7816 Class A, B and C smart cards (5V, 3V and 1.8V).• Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.• Supports protocols T 0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).• PC/SC 2.0 PC Smart Card support.• Microsoft Smart Card for Windows support.• Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.• Microsoft WHQL USB Smart Card Reader compliant.• FIPS 201 standard compliant.• 420 Kbps Smart Card interface speed (depends on card).Memory Cards specification support:• SD 1.0/1.1 (SD - Secure Digital, up to 2GB) compliant.• SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB) compliant.• SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB) compliant.• MMC and eMMC 3.x/4.0/4.1/4.2.Other features:• Microsoft USB-CCID driver compatible.• Plug and Play support.• Simultaneous SIM and microSD slot usage.• Smart card insert detection.• SIMedit SW for edit and backup contacts – download from „Product Support“ tab on www.axagon.eu.• Reader power via USB bus (bus-power).• Green LED indicates computer USB port connection (steady).• Red LED indicates card insertion (steady) and data transfer (flashing).• Dimensions 77 x 54 x 52 mm, cable length 130 cm.• Weight 91 g.Supported operating systems:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit Windows OS versions supported), Mac OS X 10.x and later, Linux with 2.4.x kernel and later.Package contains:• USB card reader with 1.3 m hardwired cable,• printed installation guide,• packed in a cardboard box.
LongProductName - 4-Slot Universal desktop USB Smart / ID and SD / microSD / SIM card reader
LongSummaryDescription - Axagon CRE-SM2 Universal desktop USB contact Smart / ID and SD / microSD / SIM card reader.. Interface: USB 2.0. Cable length: 1.3 m, Product colour: Black. Weight: 91 g
Mac compatibility System requirements - Yes
Mac operating systems supported System requirements - Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Ti
Manual Packaging content - Yes
manufacturer_code - CRE-SM2
Memory card - microSD
Memory card - miniSD
Memory card - MMC
Memory card - MMCmobile
Memory card - RS-MMC
Memory card - SD
Memory card - SM
Memory card - TF
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Model - CRE-SM2
name - AXAGON CRE-SM2 USB card smart + SD/microSD/SIM
name - AXAGON CRE-SM2 USB Smart Card und SD/microSD/SIM Card Reader - USB 2.0
Name - AXAGON Universal desktop USB contact Smart/ID and SD/microSD/SIM card reader | CRE-SM2
name_en - Axagon smart card reader 4in1 CRE-SM2
name_et - Axagon ID-kaardi lugeja 4in1 CRE-SM2
Near Field Communication (NFC) Ports & interfaces - No
Nominal Weight - 91 g
Operating voltage Power - 5 V
Other features -
Other operating systems supported System requirements - Yes
Package depth Packaging data - 125 mm
Package features > Embeeded battery - No
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 23.20 g
Package features > Plastic (No PET) - 5.80 g
Package features > Tare weight (kg) - 0.03 kg
Package features > WEEE tax - No
Package height Packaging data - 40 mm
Package Type - Retail
Package type Packaging data - Box
Package weight Packaging data - 120 g
Package width Packaging data - 100 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 125 mm
Packaging data - Package height - 40 mm
Packaging data - Package type - Box
Packaging data - Package weight - 120 g
Packaging data - Package width - 100 mm
Packaging data - Quick installation guide - Yes
Packaging data - Smart card included - No
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.5 kg
Peripheral Type - Card Reader
Pieces in pack - 1
Placement supported Design - Indoor
Plug and Play Features - Yes
Ports & interfaces - Bluetooth - No
Ports & interfaces - Interface - USB 2.0
Ports & interfaces - Near Field Communication (NFC) - No
Ports & interfaces - Supported protocols - T=0, T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)
Power - External power adapter - No
Power - Operating voltage - 5 V
Power - Power source - USB
Power - USB powered - Yes
Power source Power - USB
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=200323111604330249&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - CRE-SM2
Product colour Design - Black
ProductDescription - Axagon desktop stand reader Smart card / ID card AXAGON CRE-SM2 with USB 2.0 interface include SD, microSD and SIM card slots.
ProductName - CRE-SM2 Universal desktop USB contact Smart / ID and SD / microSD / SIM card reader.
ProductType - Adaptors
Product type Features - Universal smart card reader
Quick installation guide Packaging data - Yes
Requires Operating System - Microsoft Windows Server 2008 Linux 2.4.0 or Later Microsoft Windows XP Microsoft Windows Vista Microsoft Windows 7 Microsoft Windows 8 Microsoft Windows Server 2012 Microsoft Windows 8.1 Microsoft Windows 10 M
Retail Packaging Net Weight Carton - 0.5 kg
Retail Packaging Net Weight Plastic - 0.5 kg
ShortSummaryDescription - Axagon CRE-SM2 Universal desktop USB contact Smart / ID and SD / microSD / SIM card reader., USB 2.0, 1.3 m, Black, 91 g
SIM card support Features - Yes
Smart card included Packaging data - No
Smart Card reader - Yes
Special functions -
Specifications - Cable length - 130 cm
Specifications - Depth (mm) - 52
Specifications - Height (mm) - 77
Specifications - Weight - 91 g
Specifications - Width (mm) - 54
Summary - Axagon CRE-SM2 Universal desktop USB contact Smart / ID and SD / microSD / SIM card reader.. Interface: USB 2.0. Cable length: 1.3 m, Product colour: Black. Weight: 91 g
Supported operating systems - Android
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Mobile
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
Supported protocols Ports & interfaces - T=0, T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)
Sustainability - Certification - CE, RoHS
System requirements - Linux operating systems supported - Yes
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
System requirements - Other operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1 Pro, Windows 8.1 x64, Windows Vista, Windows Vista Home Premium x64, Windows XP, Windows XP Home x64
Technical details - Compliance certificates - RoHS, CE
Technical details - Warranty period - 2 year(s)
Technical details > Gross weight - 0.12 kg
Technical details > Net weight - 0.09 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - Universal desktop USB contact Smart/ID and SD/microSD/SIM card reader
Technical details > Producer product name - CRE-SM2
Title - Axagon CRE-SM2 Universal desktop USB contact Smart / ID and SD / microSD / SIM card reader.
Unit Box Height - 0.12
Unit Box Length - 0.04
Unit Box Width - 0.1
Unit Calculated Volume - 0.00048 cubm
Unit Calculated Weight - 0.12 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/cre-sm2
USB powered Power - Yes
Vendor - AXAGON
Vendor Homepage - https://www.axagon.eu/en/produkty/cre-sm2
vendpn - CRE-SM2
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty period Technical details - 2 year(s)
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 91 g
Weight & dimensions - Depth - 52 mm
Weight & dimensions - Height - 77 mm
Weight & dimensions - Weight - 91 g
Weight & dimensions - Width - 54 mm
Weight Weight & dimensions - 91 g
Width (mm) - 52 mm
Width Weight & dimensions - 54 mm
Windows operating systems supported System requirements - Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1 Pro, Windows 8.1 x64, Windows Vista, Windows Vista Home Premium x64, Windows XP, Windows XP Home x64
Ühenduvus - Sobivad operatsioonisüsteemid - Linux
Ühenduvus - Sobivad operatsioonisüsteemid - Mac OS
Ühenduvus - Sobivad operatsioonisüsteemid - Microsoft Windows
Ühenduvus - Ühendus - USB 2.0
Соединение - Совместимые оп-системы - Linux
Соединение - Совместимые оп-системы - Mac OS
Соединение - Совместимые оп-системы - Microsoft Windows
Соединение - Соединение - USB 2.0
Спецификации - Вес - 91 г
Спецификации - Высота (мм) - 77
Спецификации - Глубина (мм) - 52
Спецификации - Длина кабеля - 130 см
Спецификации - Ширина (мм) - 54
