Brand - ICY BOX
BrandPartCode - 60740
Category - Computer Cooling Systems
Category_1 - Computer Cases and Cooling
Category_2 - Coolers for HDD
Design - Fan connector - 4-pin
Design - Material - Aluminium, Silicone
Design - Number of fans - 1 fan(s)
Design - Number of fins - 8
Design - Product colour - Black, Grey
EAN_code - 4250078170709
GTIN - 4250078170709
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Thanks to the cooling finWith its 8 cooling fins, which increase the surface area of the heat sink, the IB-M2HSF-703 can optimally dissipate the heat of the M.2 SSD to the environment.Clever combinationMaximise the performance of your M.2 SSD without fear of overload. Thanks to the combination of a solid aluminium heat sink and a 20 mm fan, the IB-M2HSF-703 can achieve a reduction of the M.2 SSD temperature by up to 25%.Thermal padA thermal pad serves - similar to thermal paste - to better dissipate the heat lost by electronic components and thus makes a significant contribution to heat dissipation.
LongProductName - 20 mm fan, 10000 rpm, 4-pin 12V DC, 75x24x13 mm
LongSummaryDescription - ICY BOX IB-M2HSF-703. Type: Heatsink/Radiator, Fan diameter: 2 cm, Number of speeds: 1, Rotational speed (max): 10000 RPM. Voltage: 12 V. Width: 75 mm, Depth: 24 mm, Height: 13 mm. Product colour: Black, Grey
Manufacturer - Icy Box
Manufacturer_code - 60740

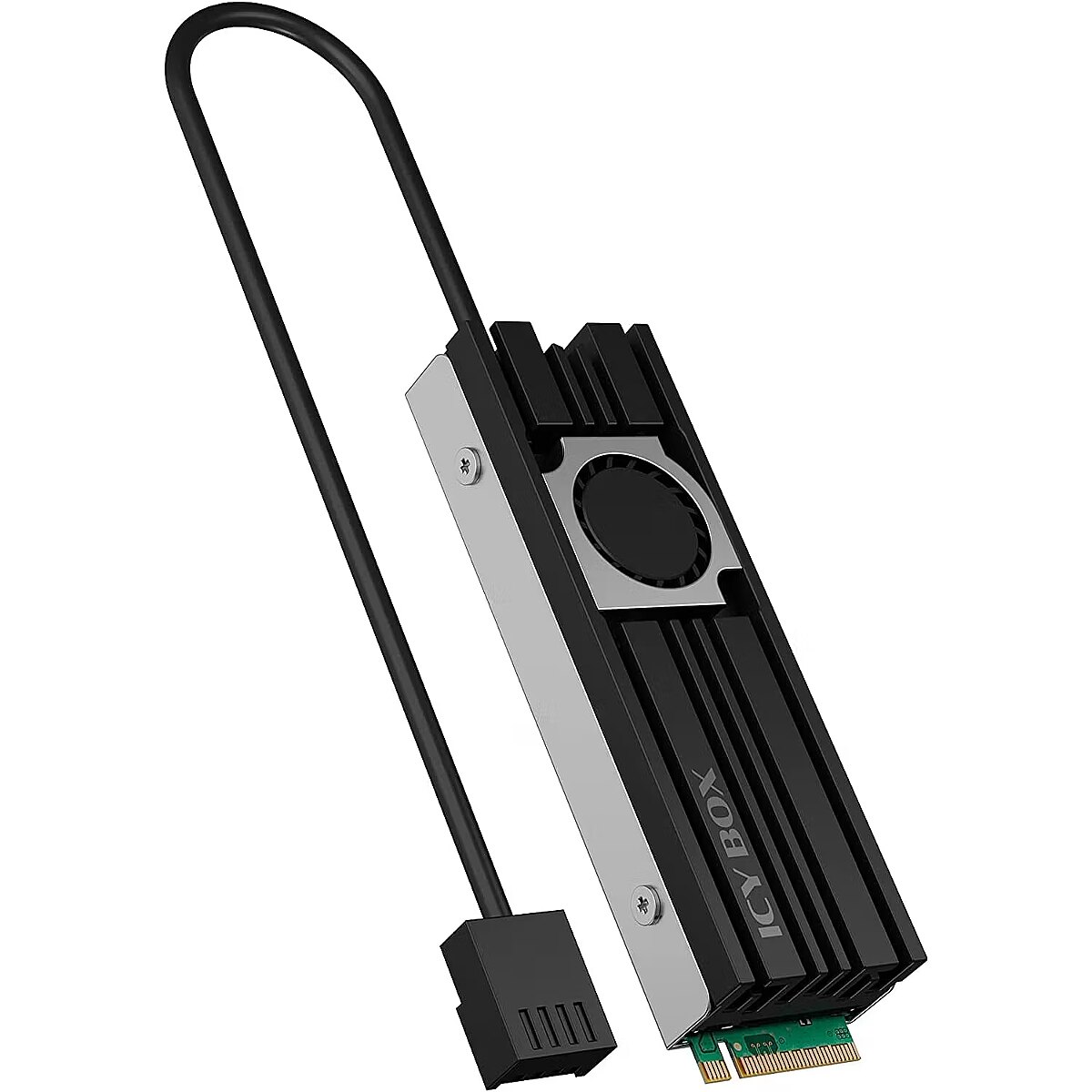

Name - ICY BOX IB-M2HSF-703, heatsink (black)
Packaging content - Screws included - Yes
Packaging content - Thermal pad included - Yes
Performance - Fan diameter - 2 cm
Performance - Number of speeds - 1
Performance - Operating temperature (T-T) - -20 - 180 °C
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 10000 RPM
Performance - Suitable location - Solid-state drive
Performance - Thermal conductivity - 1.5 W/m·K
Performance - Type - Heatsink/Radiator
Power - Rated current - 0.04 A
Power - Voltage - 12 V
ProductName - IB-M2HSF-703
ShortSummaryDescription - ICY BOX IB-M2HSF-703, Heatsink/Radiator, 2 cm, 10000 RPM, Black, Grey
Technical_details - Type: Heatsink with fan Color: Black EAN: 4250078170709 Manufacturer No.: 60740 Type: Hard disk cooler (drive) Usage: for M.2 2280 SSD Material heat sink: aluminum Feature: Improve the heat distribution of the M.2 SSD Additional information: Material: aluminum, silicone Accessories: 1x counter plate, 2x thermal pad, 1x screwdriver, 1x screw set, 1x quick installation guide Dimensions: Width: 24mm x Height: 13mm x Depth: 75mm Weight : 51 grams
Title - ICY BOX IB-M2HSF-703 Solid-state drive Heatsink/Radiator 2 cm Black, Grey 1 pc(s)
URL - https://icybox.de/en/product.php?id=403
WarrantyInfo -
Weight - 0,12
Weight & dimensions - Depth - 24 mm
Weight & dimensions - Fan dimensions (W x D x H) - 20 x 20 x 6 mm
Weight & dimensions - Height - 13 mm
Weight & dimensions - Package depth - 200 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 123 g
Weight & dimensions - Package width - 105 mm
Weight & dimensions - Weight - 51 g
Weight & dimensions - Width - 75 mm
