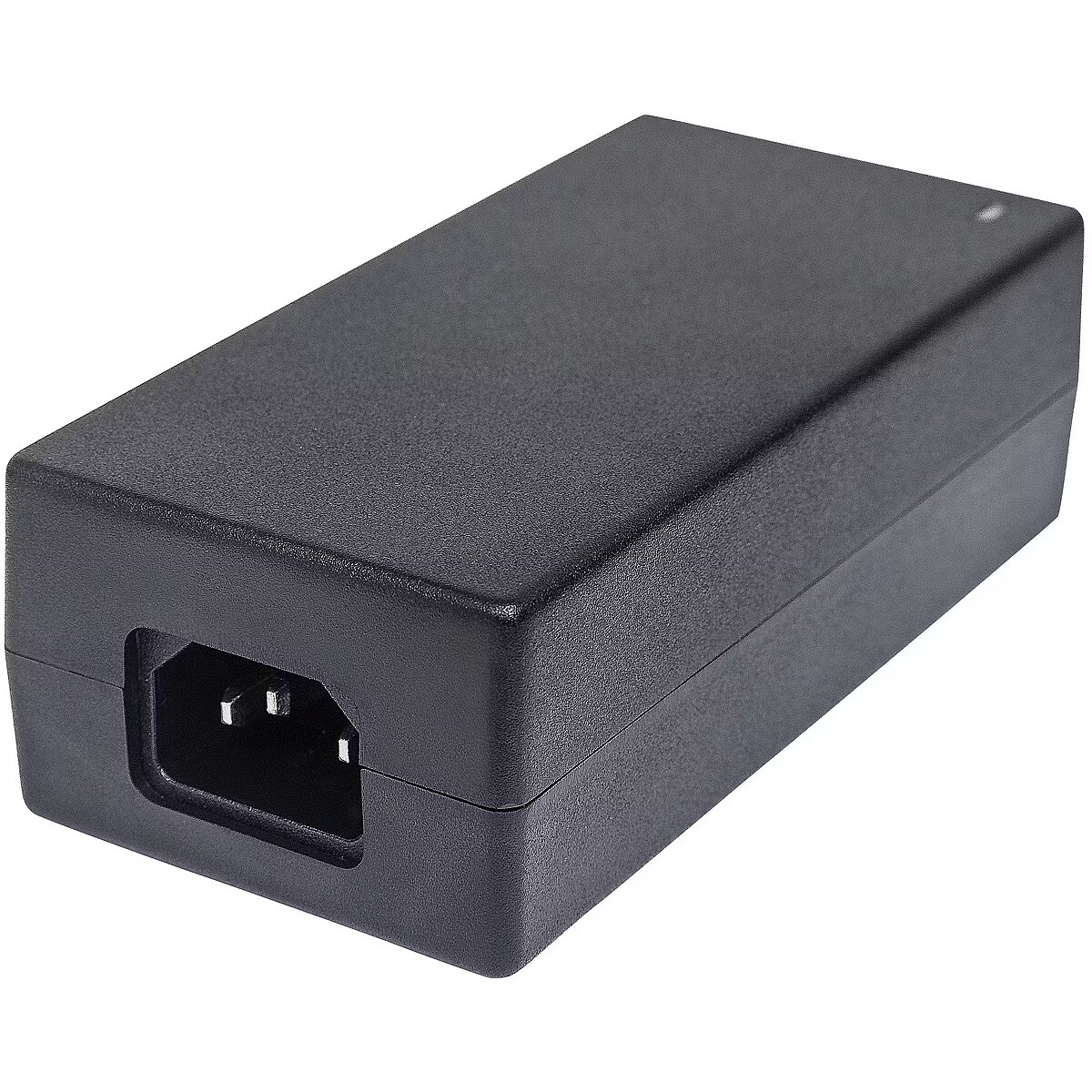

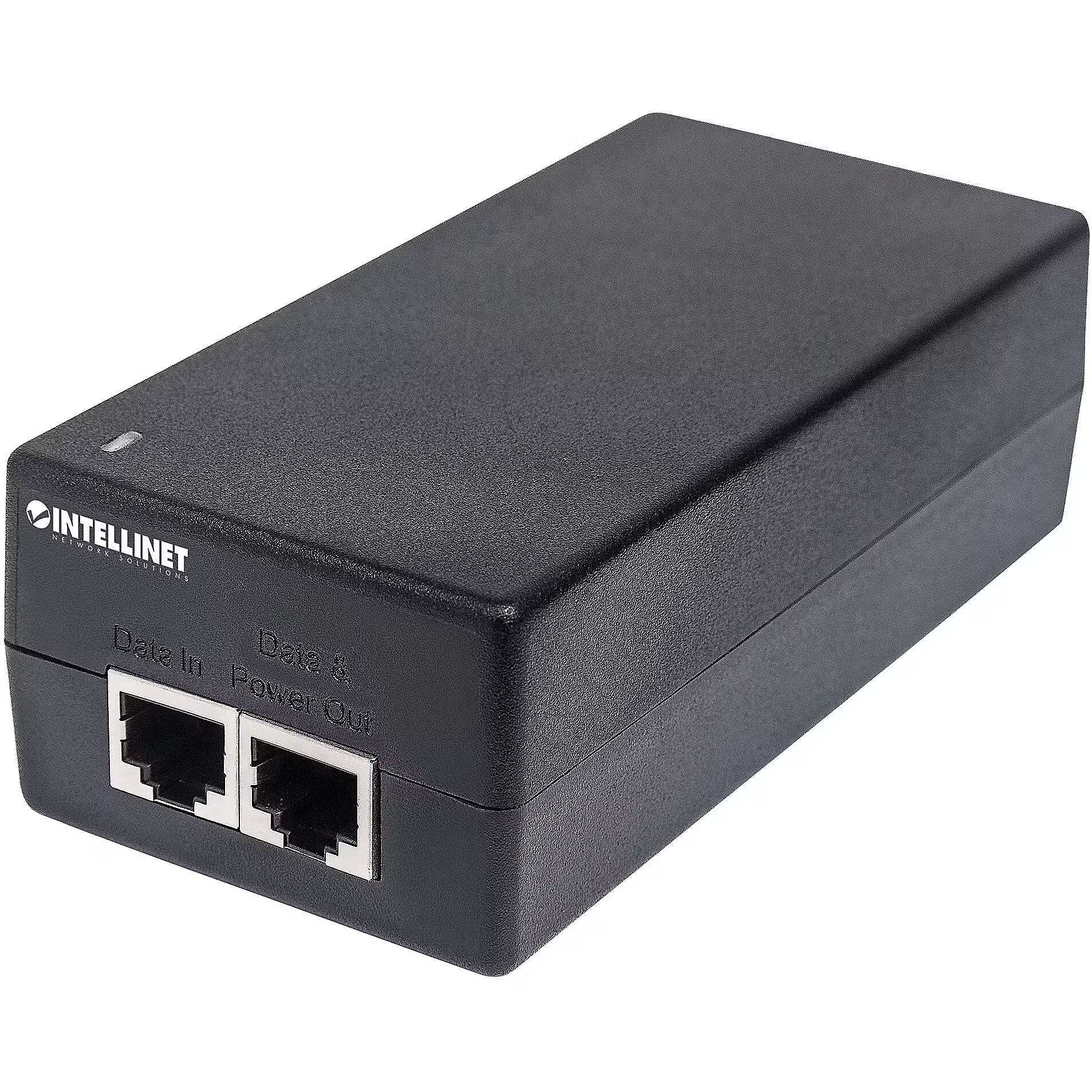

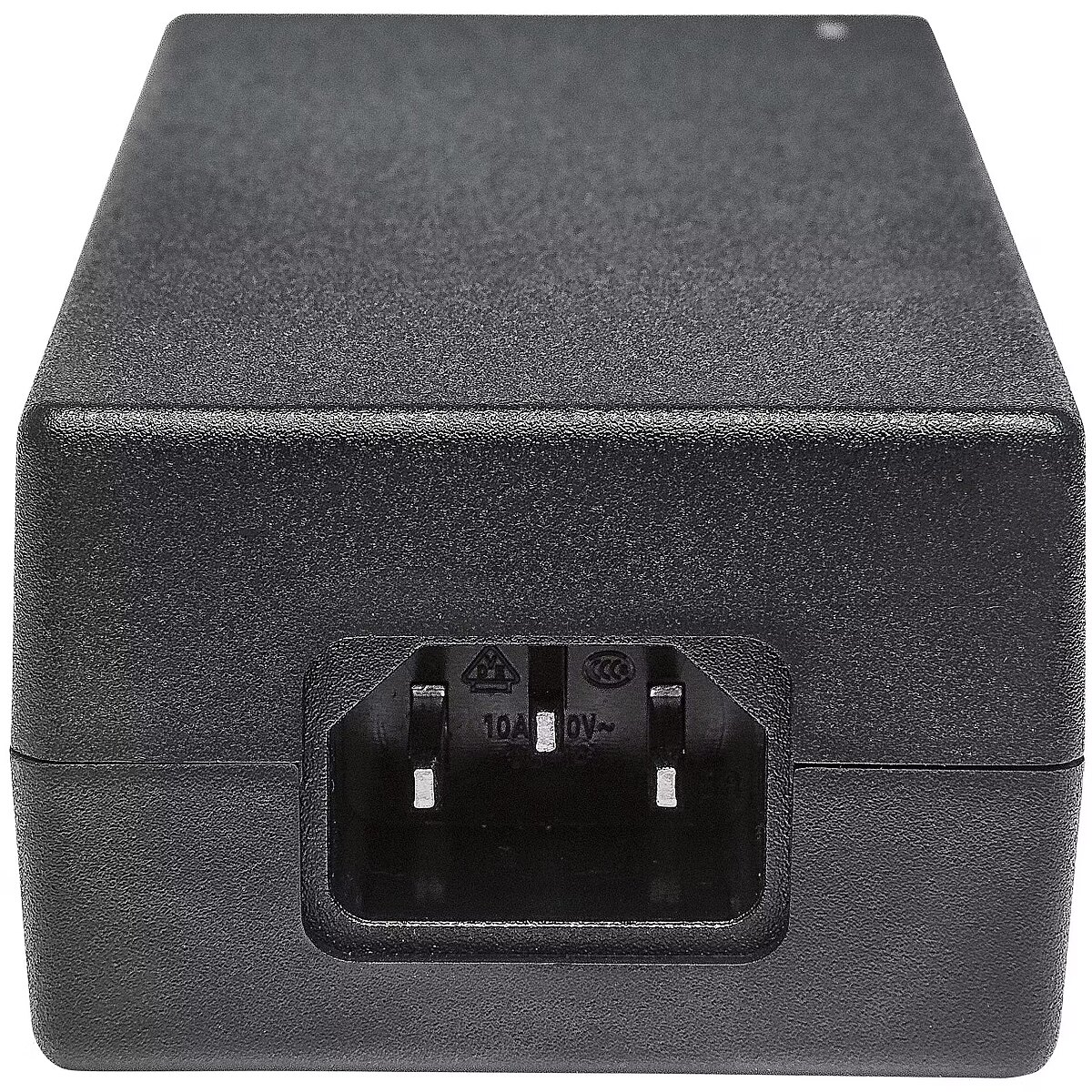

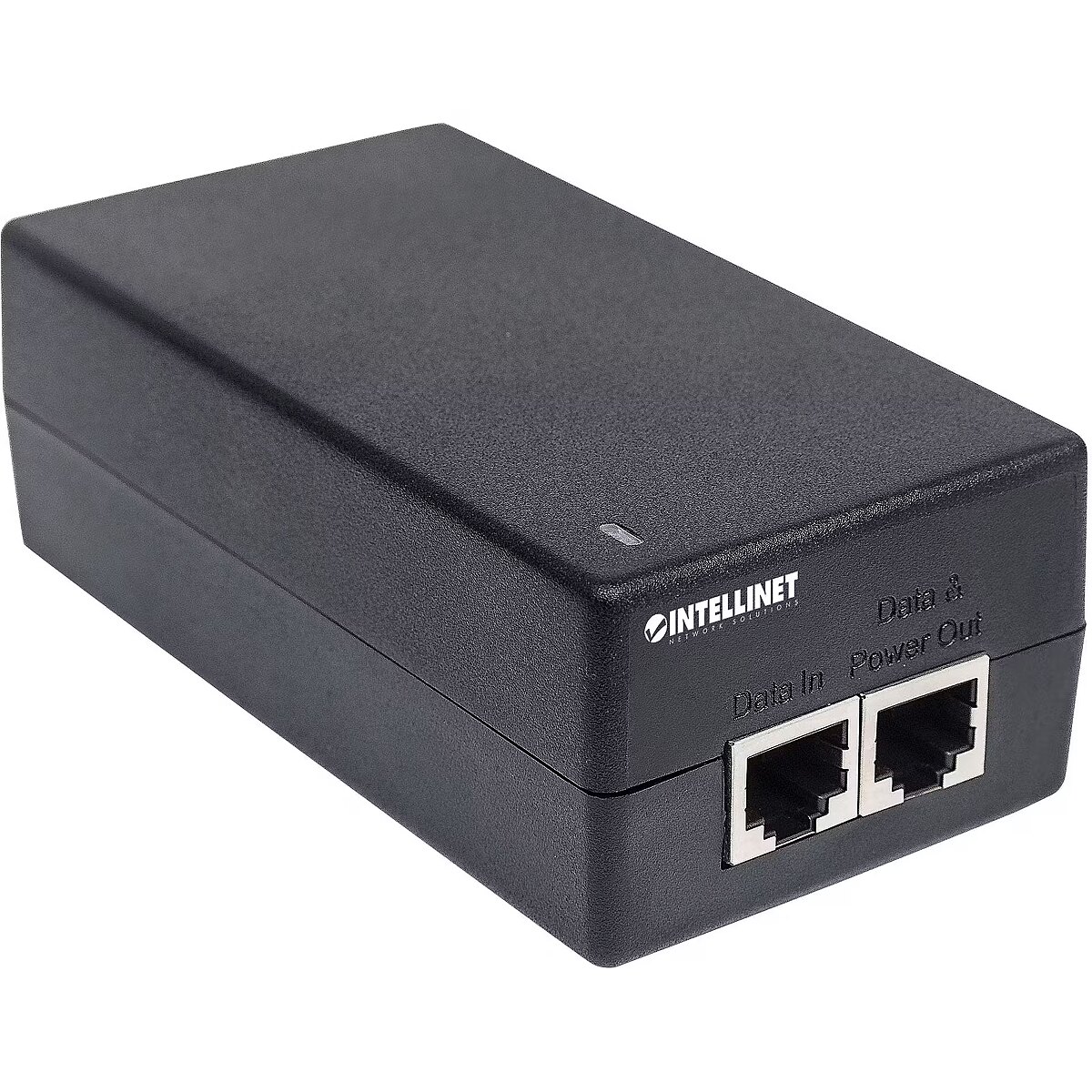

Manhattan INTELLINET Gigabit PoE+ Injector One 30 W Port IEEE 802.3at/af Compliant Plastic Housing

Brand - Intellinet
BrandPartCode - 561235
Category - PoE Adapters
Certificates - Certification - FCC , CE
Features - Product colour - Black
GTIN - 766623561235
GTIN - 0766623561235
Logistics data - Harmonized System (HS) code - 85044095
LongDesc - 60 Watts of Power for the Internet of things (IoT)!The Intellinet Network Solutions Gigabit High-Power PoE Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. As many new powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit High-Power PoE Injector.Full Compatibility with Existing IEEE 802.3af/at PoE Powered DevicesThe Intellinet Network Solutions Gigabit High-Power PoE Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.Reduced Wiring CostsIt's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.Protect Your EquipmentOnce DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.
LongProductName - Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing
LongSummaryDescription - Intellinet Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Product colour: Black. Power over Ethernet (PoE) voltage: 48 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC , CE. Width: 61 mm, Depth: 123 mm, Height: 40 mm
Network - Cable types supported - Cat5e
Network - Duplex system - Full
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Network - Power over Ethernet (PoE) - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Operating temperature (T-T) - 32 - 104 °F
Operational conditions - Storage temperature (T-T) - -20 - 80 °C
Packaging content - Manual - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Power cord included - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - AC adapter frequency - 50/60 Hz
Power - AC adapter input voltage - 100 - 240 V
Power - Output current - 1.25 A
Power - Power consumption (max) - 60 W
Power - Power over Ethernet (PoE) voltage - 48 V
ProductName - Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing
ShortSummaryDescription - Intellinet Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, Full, Cat5e, Black
Title - Intellinet Gigabit Ultra PoE+ Injector, 1 x 60 W Port, IEEE 802.3bt and IEEE 802.3at/af Compliant, Plastic Housing
URL - https://intellinetnetwork.eu/products/intellinet-en-gigabit-ultra-poe-injector-561235
WarrantyInfo - Three-Year Warranty
Weight & dimensions - Depth - 123 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 290 g
Weight & dimensions - Width - 61 mm
