Brand - TP-Link
BrandPartCode - XGZ030
Category - Network Terminals/Units
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Design - LED indicators - Yes
Design - On/off switch - Yes
Design - Product colour - White
Design - Product type - Optical network terminal (ONT)
dimensionalWeight - 153
GTIN - 1210002604000
GTIN - 4897098685563
GTIN - 4897098688601
LongDesc -
LongProductName - 1x XGS-PON, 1x 10G RJ45, 0–20 Km Max, 120 × 120 × 27.85 mm
LongSummaryDescription - TP-Link 1-Port XGS-PON Terminal. Product type: Optical network terminal (ONT), Product colour: White. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE..., ITU standards: G.988, G.9907.1, Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Security algorithms: AES. Fiber optic connector: SC/APC. Output voltage: 9 V, Output current: 0.85 A
Management features - Reset button - Yes
Management features - Web-based management - Yes
Network - Downstream data rate - 10000 Mbit/s
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000,10000 Mbit/s
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - ITU standards - G.988
Network - ITU standards - G.988, G.9907.1
Network - ITU standards - G.9907.1
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - QinQ VLAN support - Yes
Network - Tagged VLAN - Yes
Network - Transmission distance (max) - 20 km
Network - Upstream data rate - 10000 Mbit/s
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick start guide - Yes

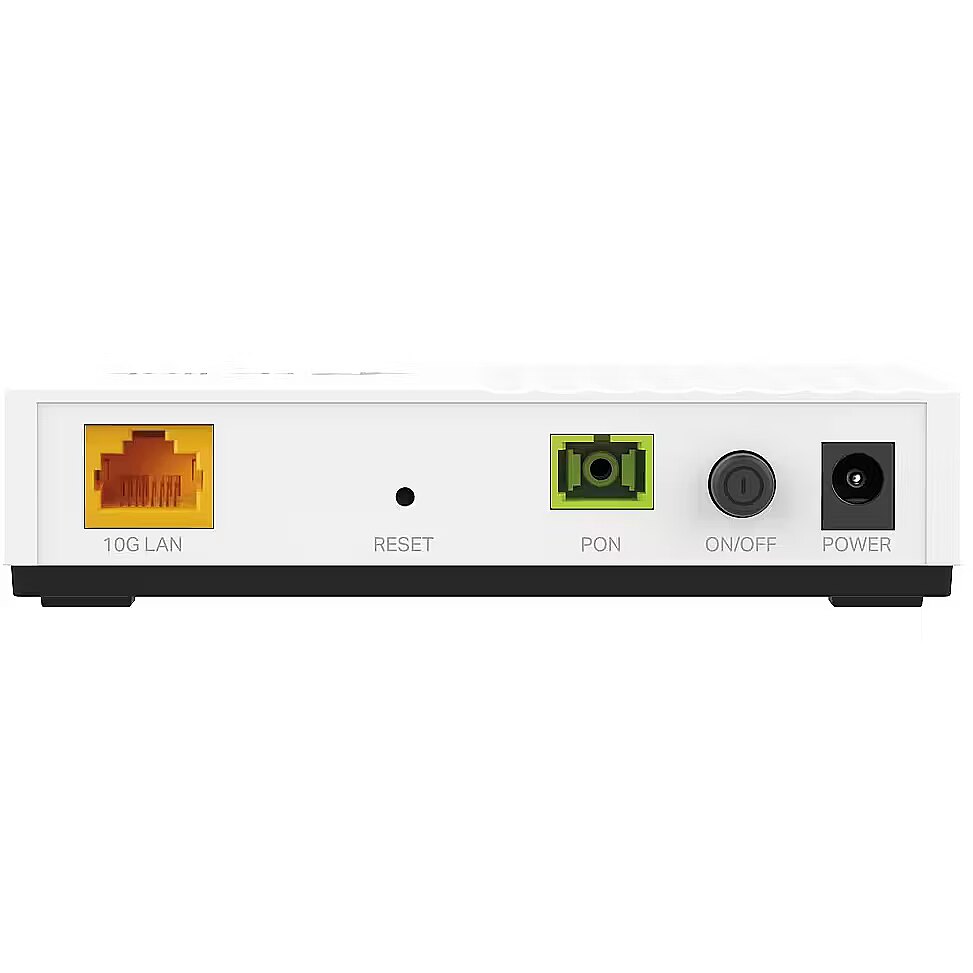

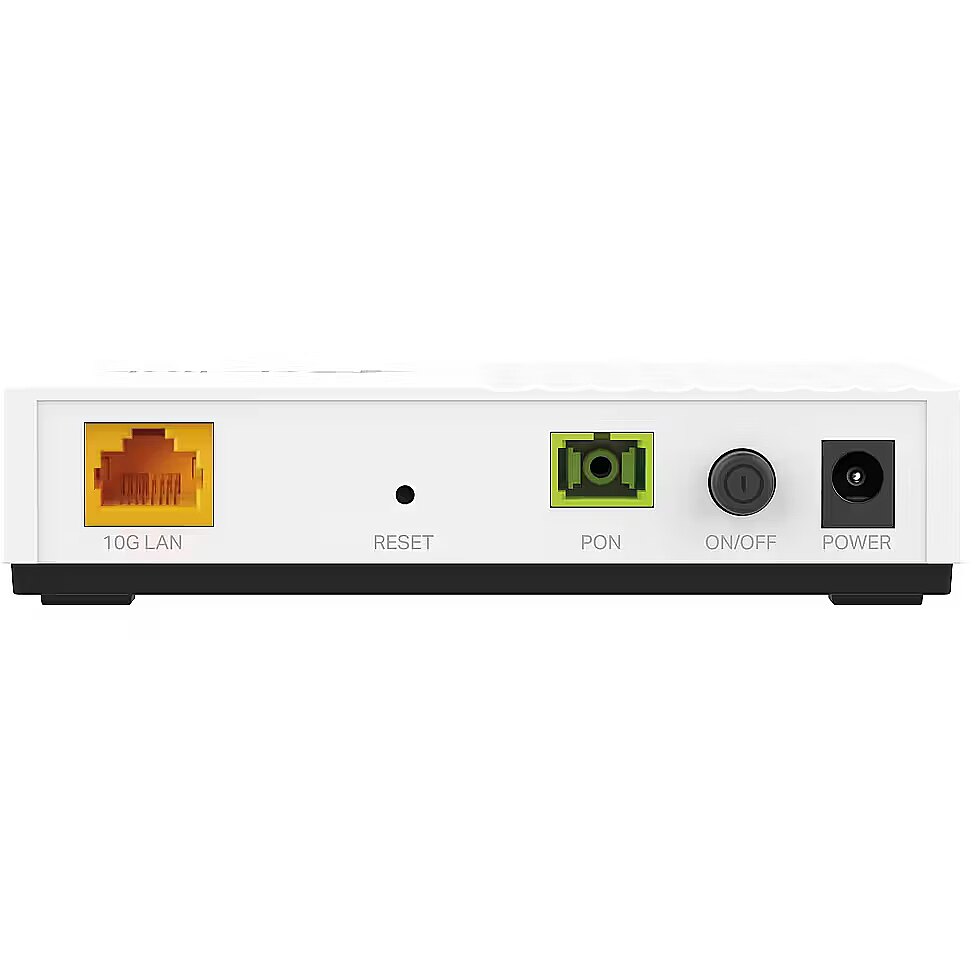

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SC/APC
Ports & interfaces - Fiber ports quantity - 1
Power - Output current - 0.85 A
Power - Output voltage - 9 V
producerCode - 1722213

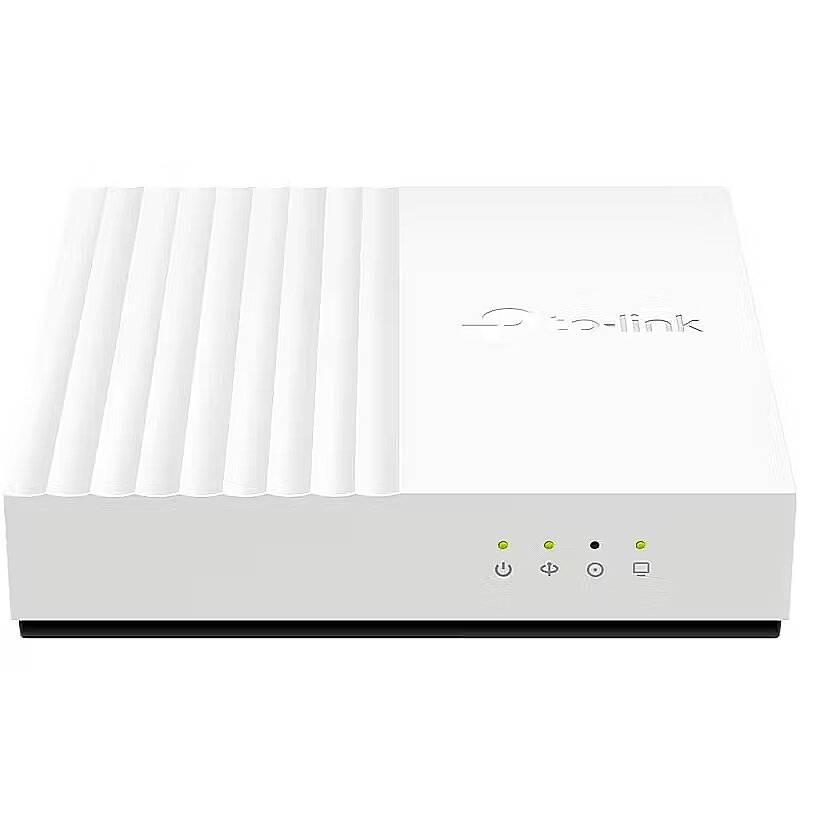

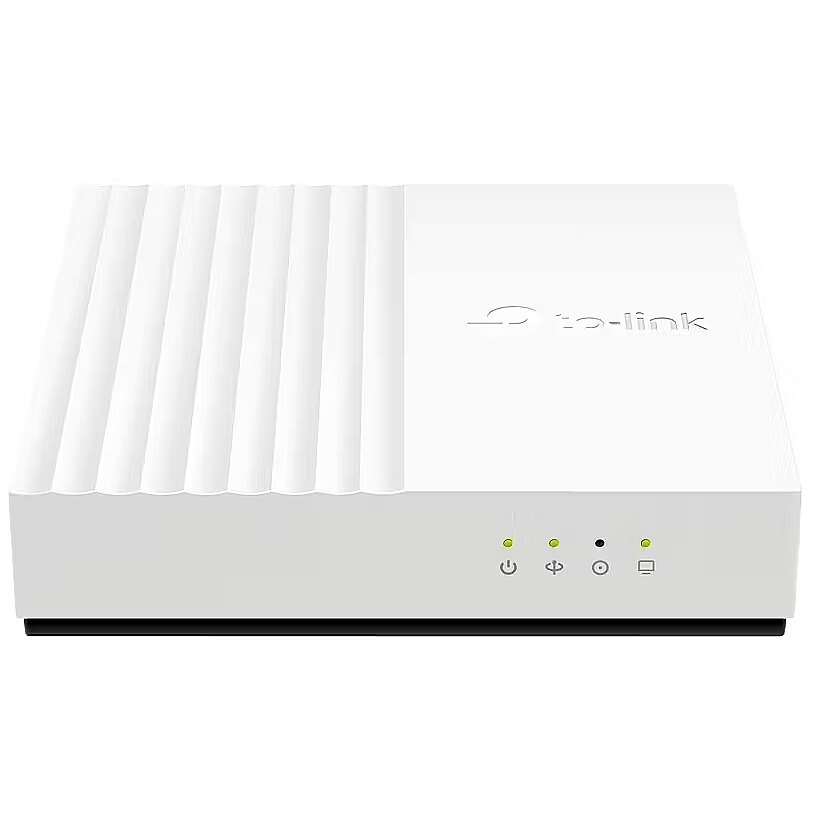

ProductName - 1-Port XGS-PON Terminal
productName - TP-Link 1-Port XGS-PON Terminal
productSize - Normal
Safety warning - Warnings - The product may contain small parts which may be hazardous to children.
Safety warning - Warnings - The product may generate heat, avoid contact with flammable materials.
Safety warning - Warnings - The product must be used in accordance with the instructions for use to avoid damage.
Security - Security algorithms - AES
ShortSummaryDescription - TP-Link 1-Port XGS-PON Terminal, Optical network terminal (ONT), White, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE..., G.988, G.9907.1, 10,100,1000,10000 Mbit/s, 10000 Mbit/s
sizeX - 100
sizeY - 85
sizeZ - 90
Title - TP-Link 1-Port XGS-PON Terminal
URL - https://www.tp-link.com/uk/service-provider/gpon/xgz030/
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 190
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 27.9 mm
Weight & dimensions - Width - 120 mm
Wireless LAN features - Wi-Fi - No
