Startech 2-PORT SERIAL PCIE CARD .

ARTIKEL1 - 2-PORT SERIAL PCIE CARD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - 2S232422485-PC-CARD
Breite - 0
Category - Interface Cards/Adapters
Design - Internal - Yes
Design - Product colour - Black
EANCode - 0065030900270
Features - Baud rate - 921.6 Kbit/s
Features - Chipset - ASIX - AX99100
Features - Data bits - 5, 6, 7, 8, 9
Features - FIFO (First In, First Out) - 256 B
Features - Flow control support - Yes
Features - Parity bit - Even, Mark, No, Odd, Space
Features - Stop bits - 1, 1.5, 2
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Drive Controllers
GTIN - 0065030900270
GTIN - 065030900270
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 2S232422485-PC-CARD
Laenge - 0
Logistics data - Master (outer) case height - 306 mm
Logistics data - Master (outer) case length - 345 mm
Logistics data - Master (outer) case width - 685 mm
Logistics data - Products per master (outer) case - 75 pc(s)

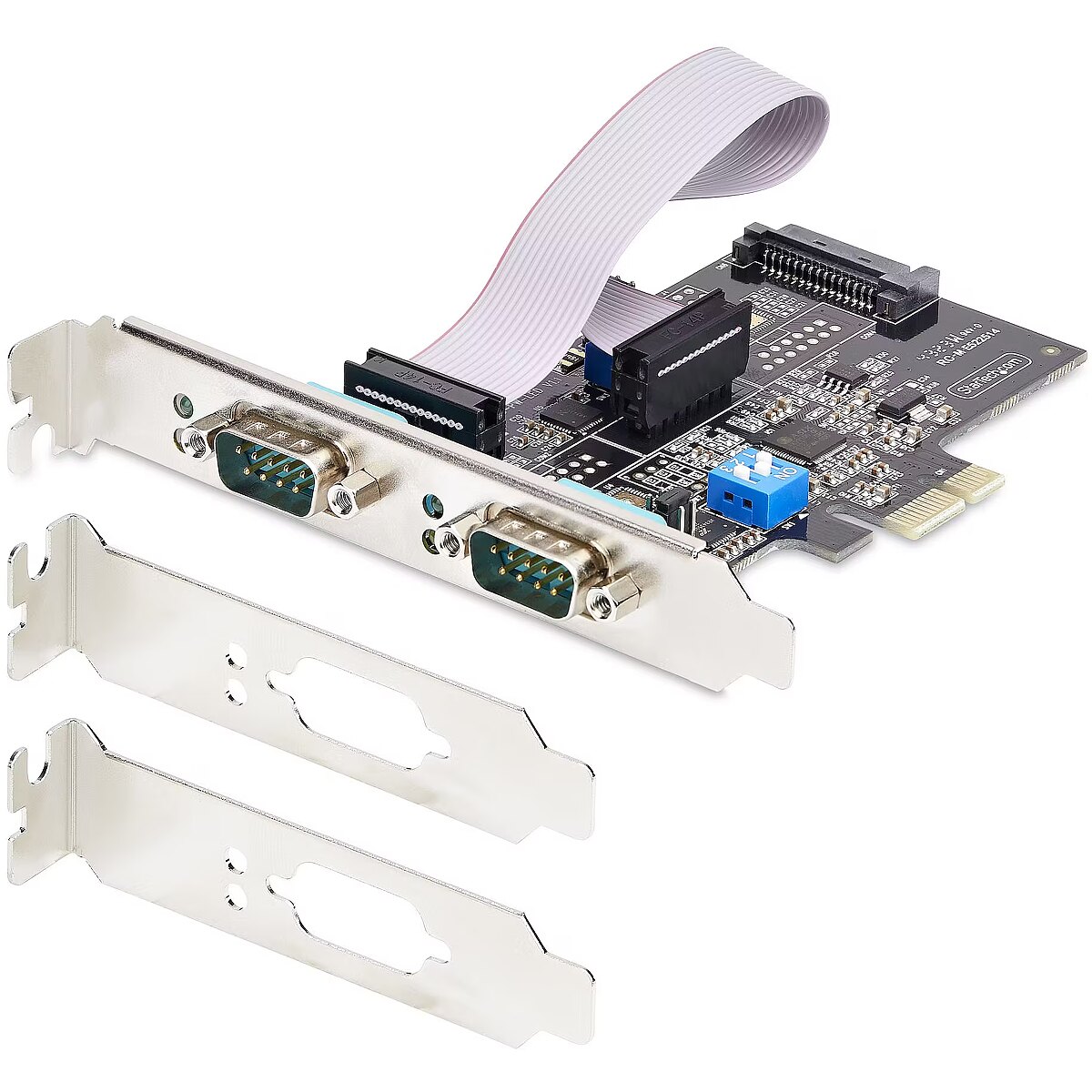

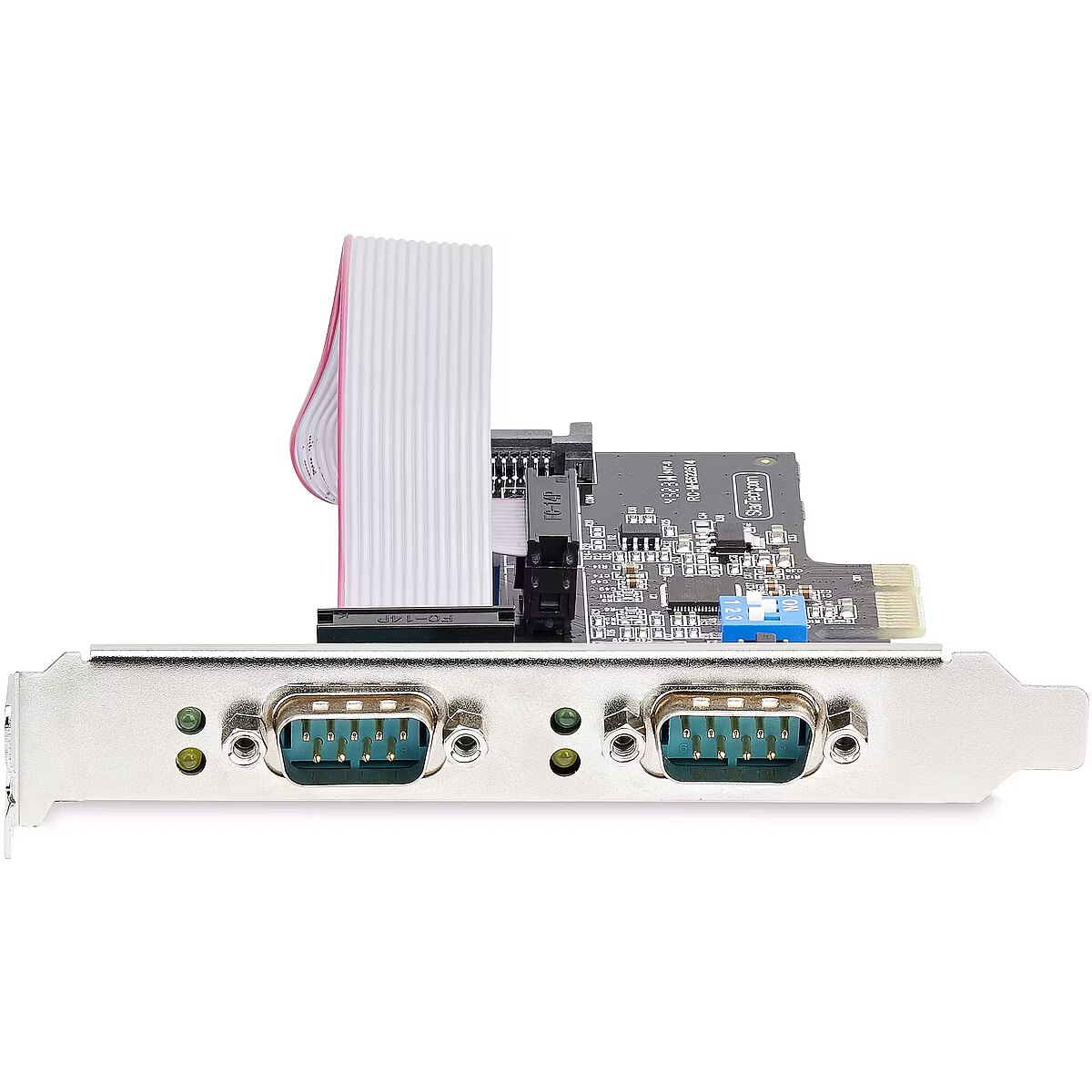

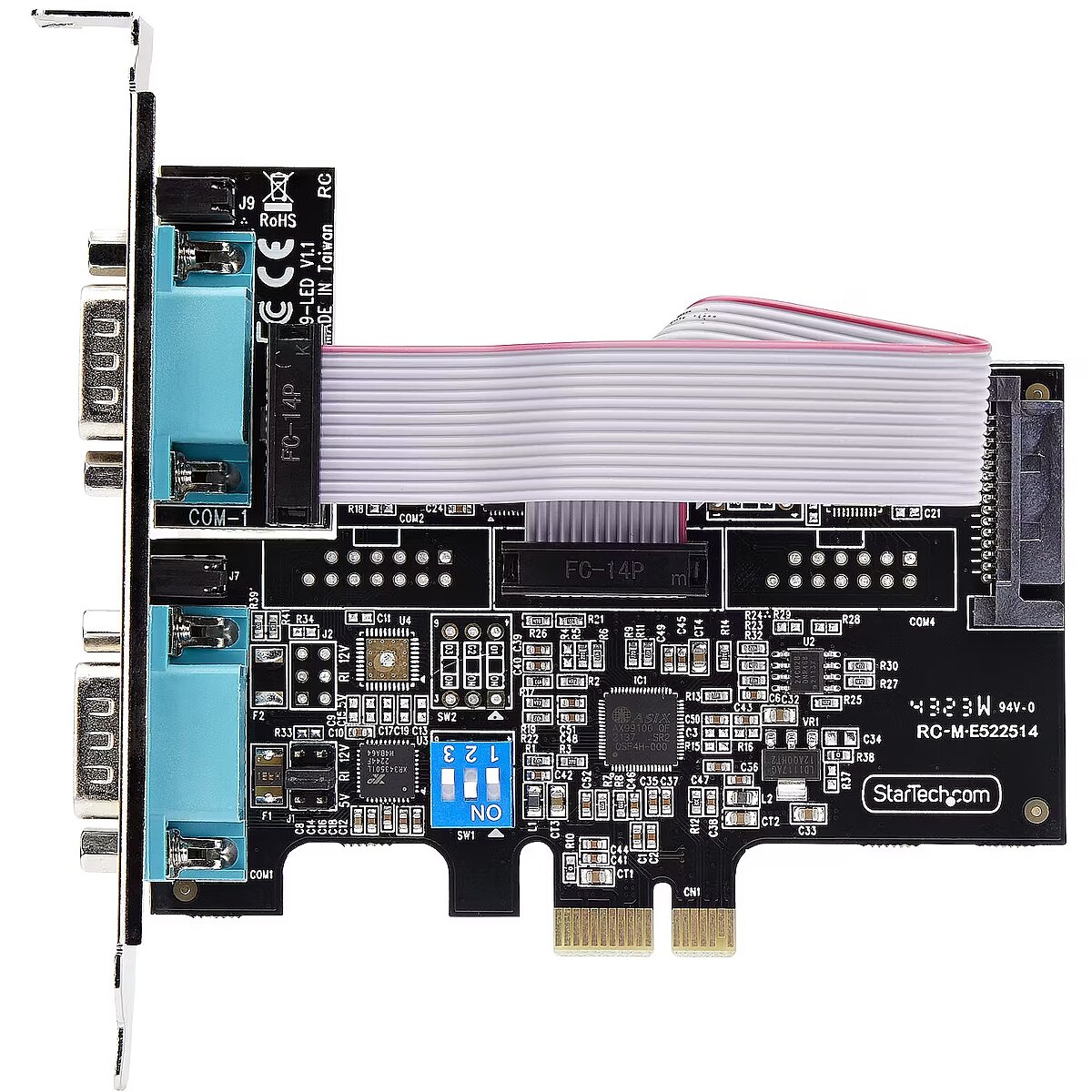

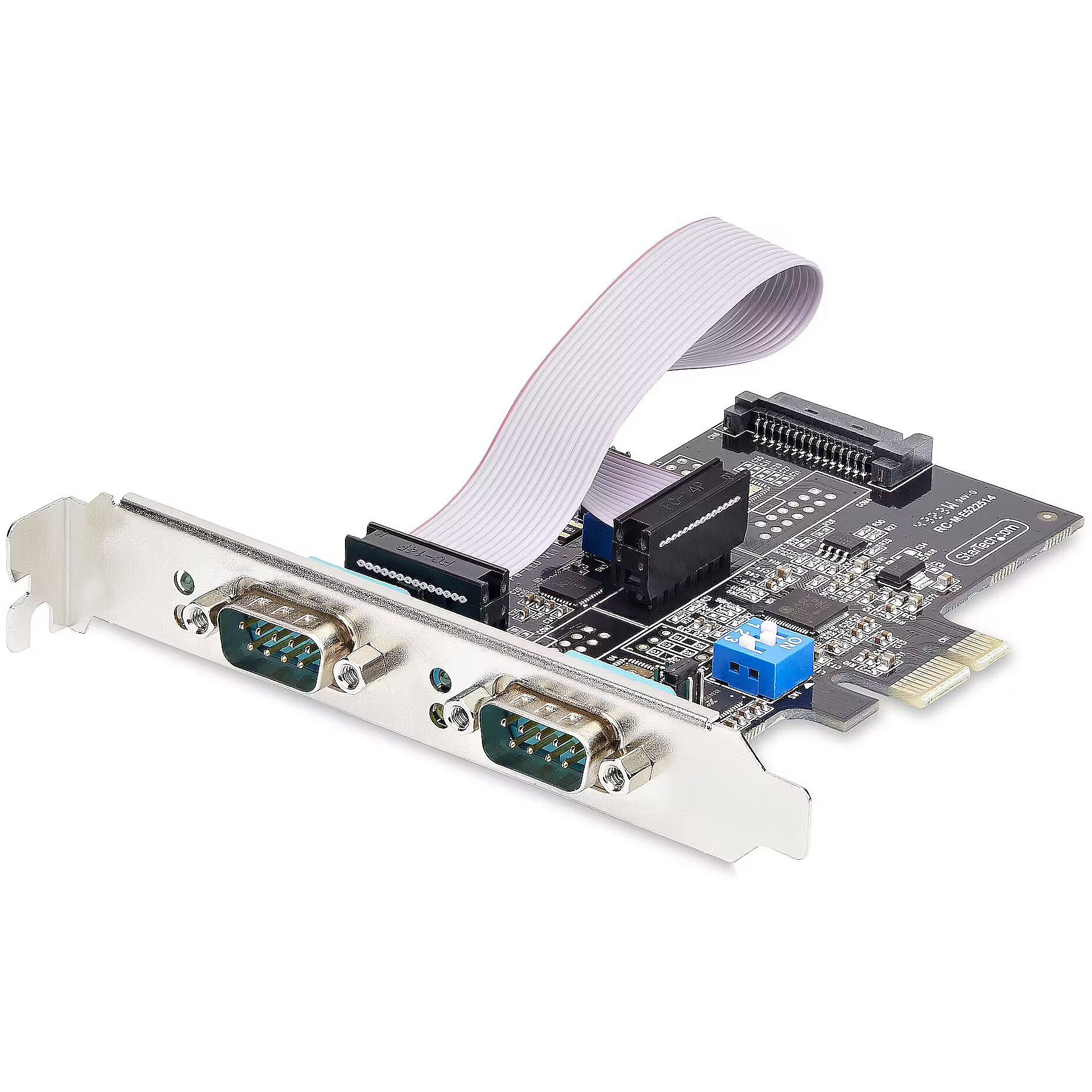

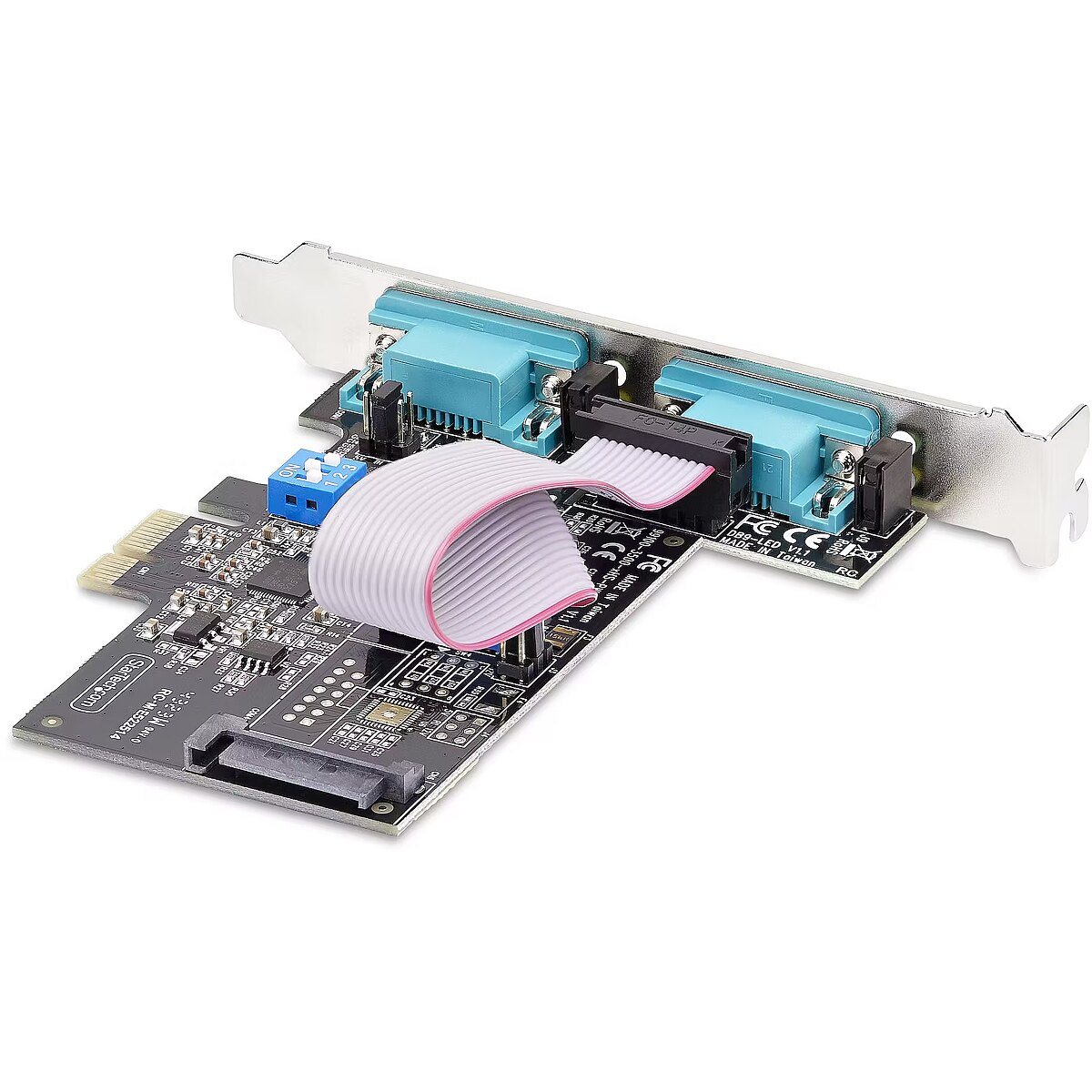

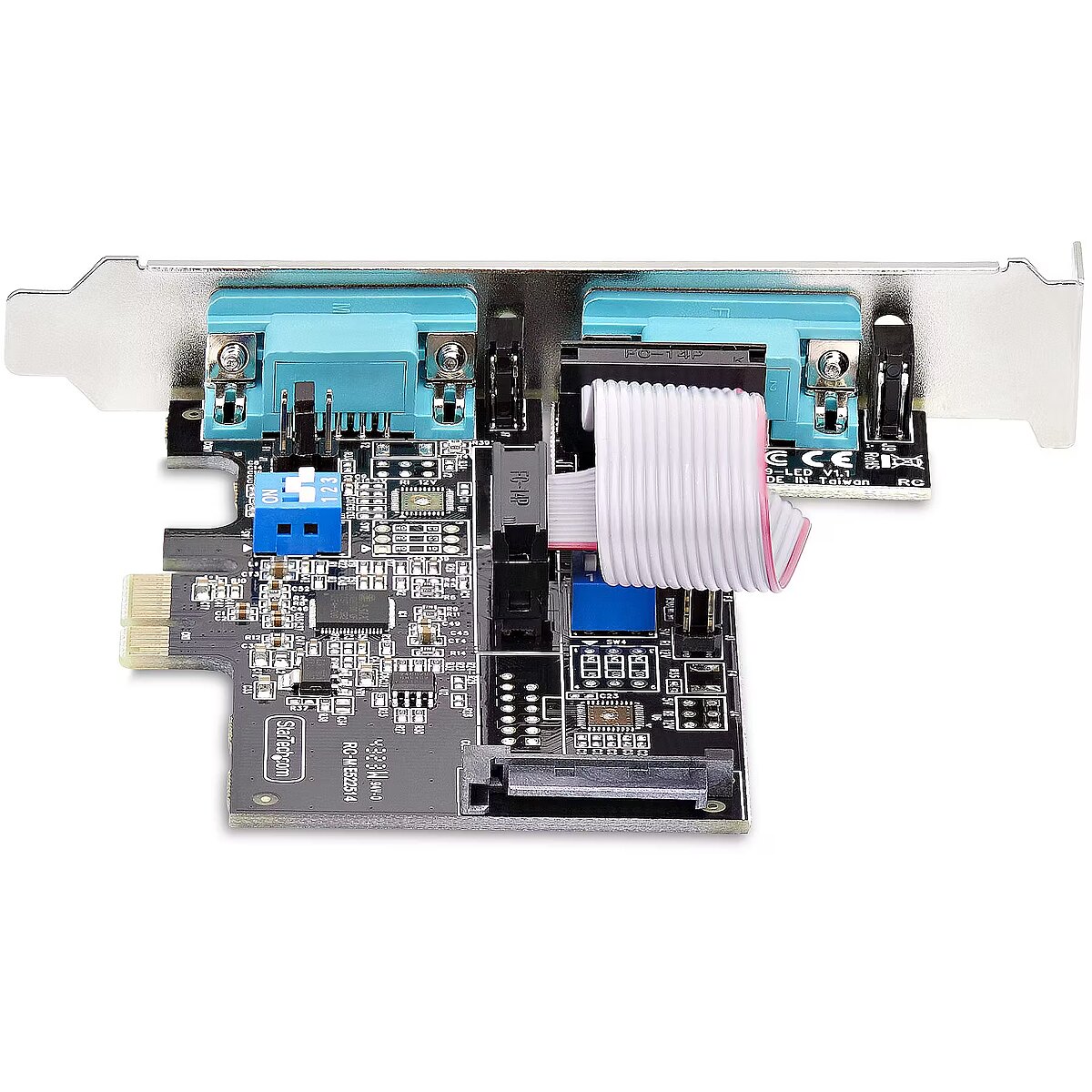

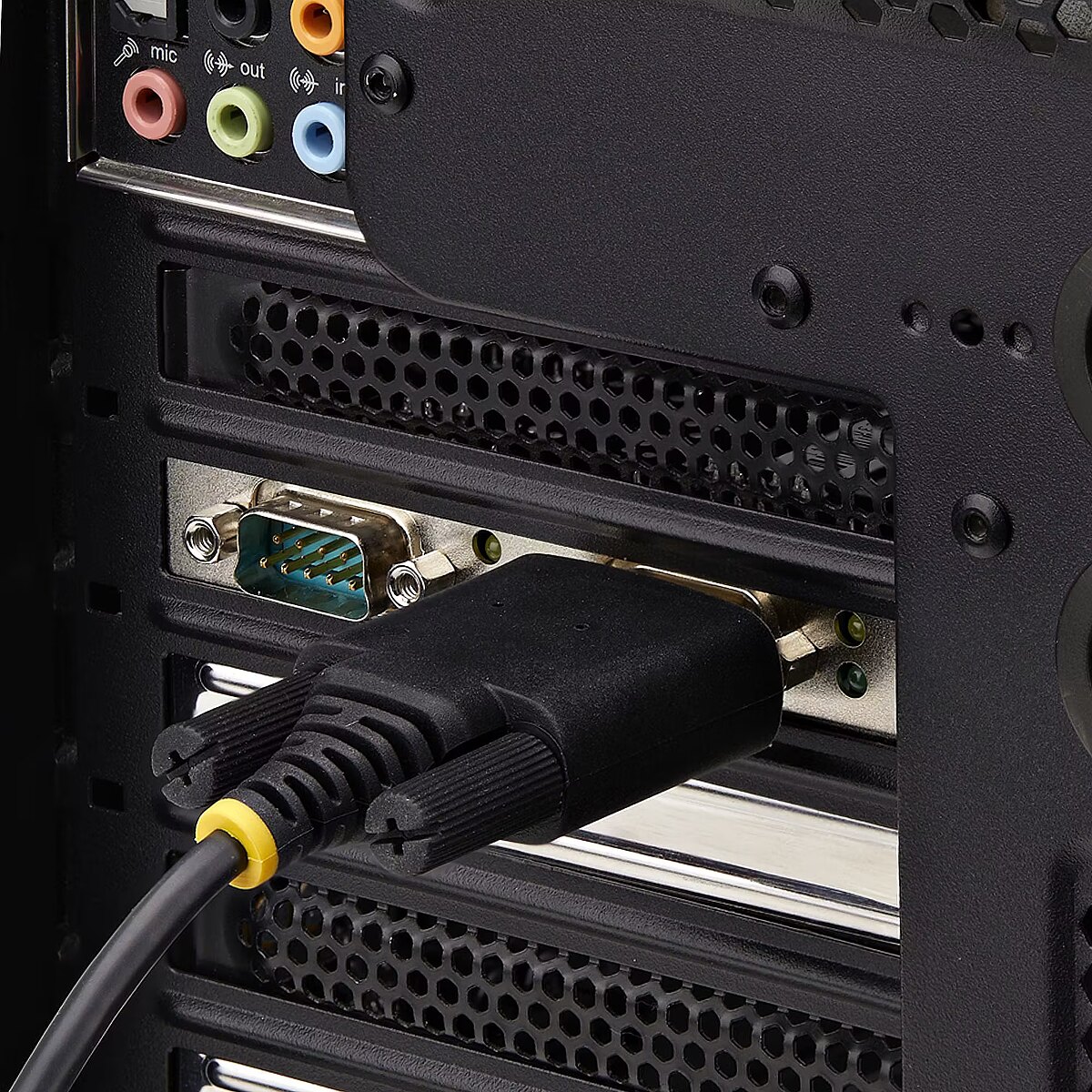

LongDesc - Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion CardAdd serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.Per-Port Serial ConfigurationThis PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.Configurable External SATA PowerThe PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.Legacy ConnectivityThis serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).The StarTech.com Advantage
LongProductName - StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (2S232422485-PC-CARD)
LongSummaryDescription - StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 2.0. Product colour: Black. Chipset: ASIX - AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11..., Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022. Width: 102 mm, Depth: 105 mm, Height: 16 mm
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -20 - 80 °C
Other features - Electrostatic Discharge (ESD) protection - 15 kV
Packaging data - Cables included - Ribbon cable

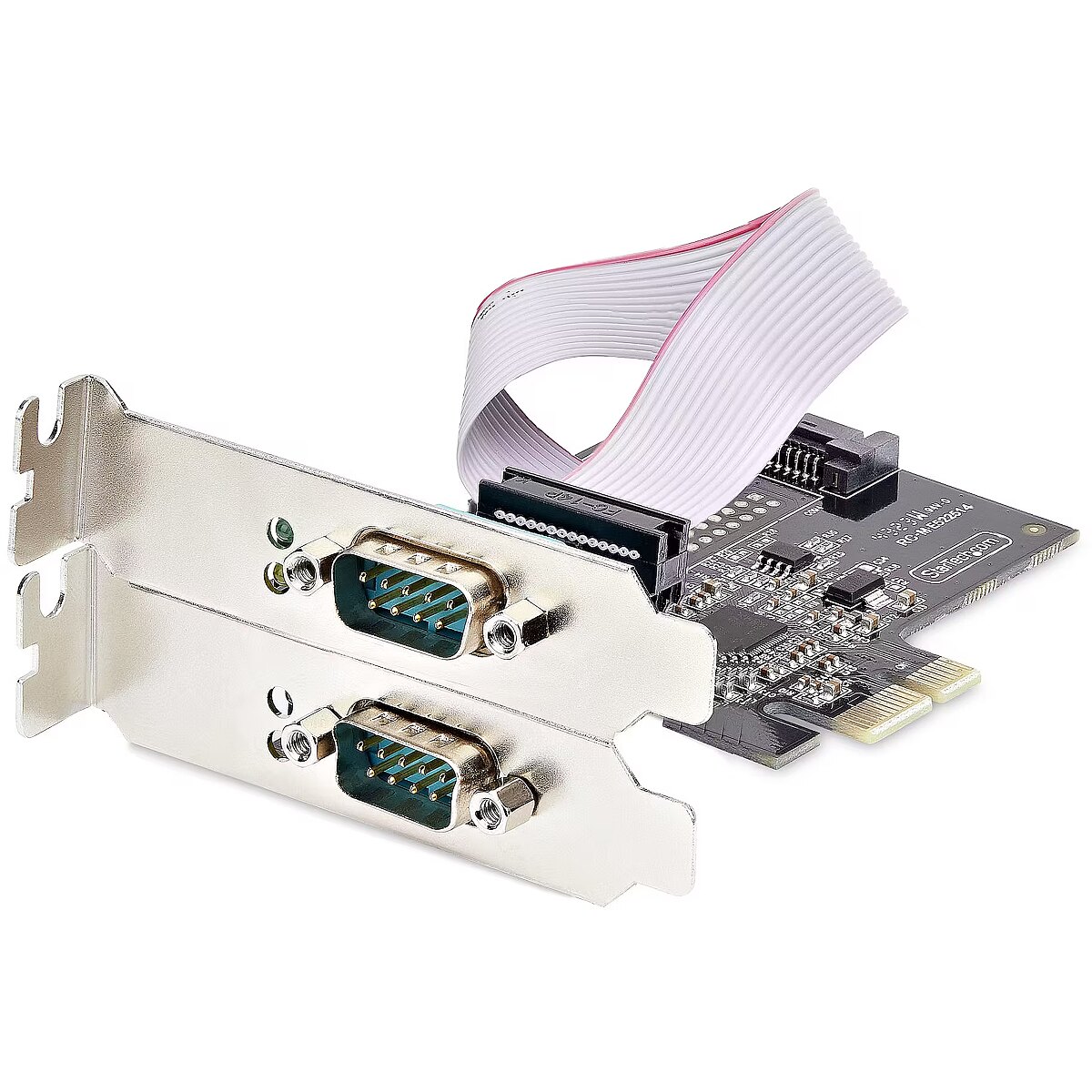

Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 170 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 147.6 g
Packaging data - Package width - 142 mm
Packaging data - Quick installation guide - Yes
Ports & interfaces - Expansion card standard - PCIe 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - Serial
Ports & interfaces - Serial interface type - RS-232/422/485
Ports & interfaces - Serial ports quantity - 2
ProductName - 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
ShortSummaryDescription - StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection, PCIe, Serial, PCIe 2.0, RS-232/422/485, Black, ASIX - AX99100
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2016, Windows Server 2019, Windows Server 2022
System requirements - Windows operating systems supported - Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Technical details - Compliance certificates - RoHS, Trade Agreements Act (TAA)
Technical details - Sustainability compliance - Yes
Title - StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
URL - https://www.startech.com/en-us/2S232422485-PC-CARD
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 105 mm
Weight & dimensions - Height - 16 mm
Weight & dimensions - Weight - 57 g
Weight & dimensions - Width - 102 mm
