Accessories included -
Brand - ICY BOX
BrandPartCode - 20680
Category - Storage Drive Enclosures
Color - Black
Connectors - 1 x USB 3.0
Connectors - eSATA
Description - CY BOX IB-3680SU3
External 8x JBOD enclosure for 8x 3.5" SATA I/II/III HDDs
The new chipset supports UASP and SATA III 6 Gb/s, thanks to which the actual transfer is 3-4 times higher than the normal speed in external enclosures from USB 3.0.

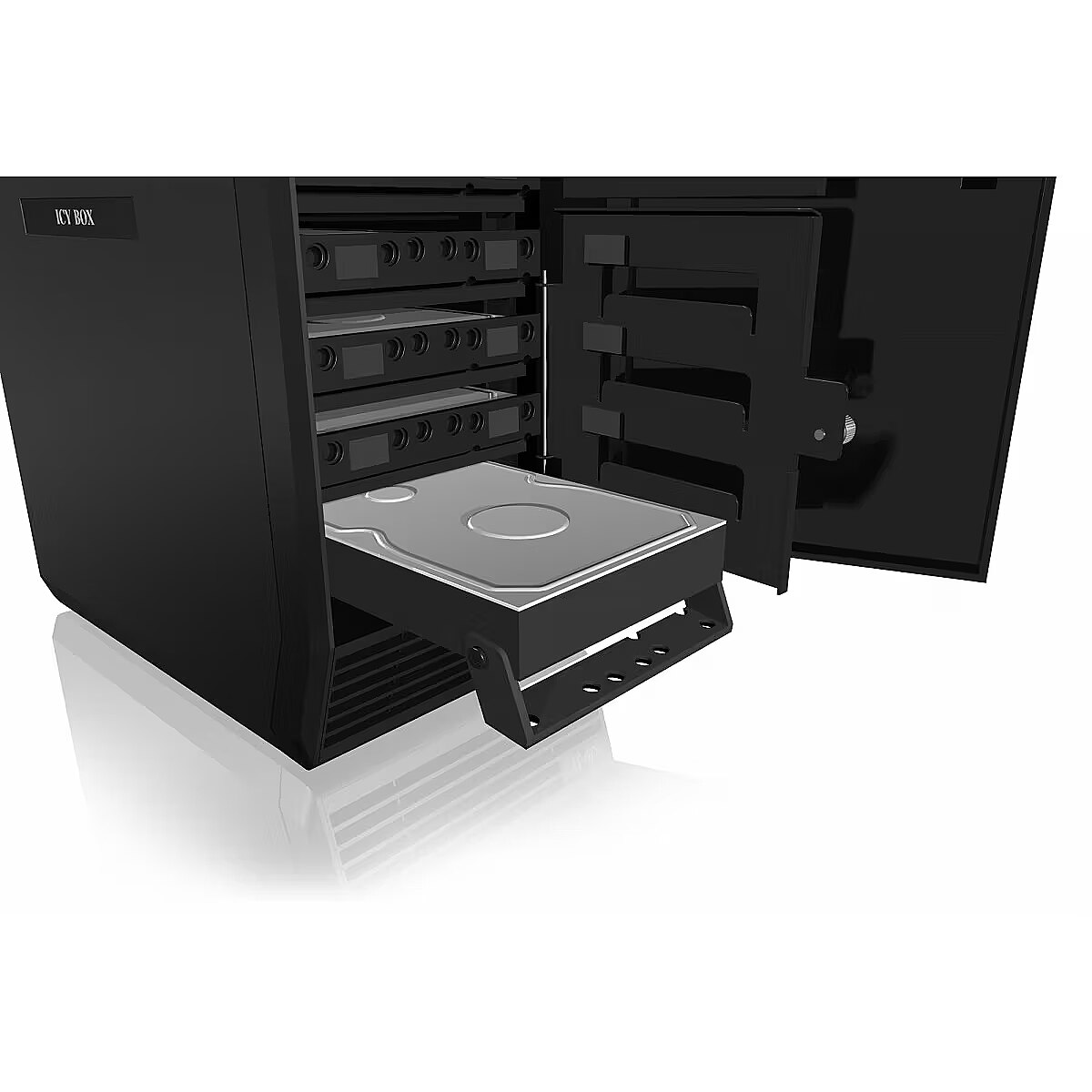

The EasySwap mechanism enables fast replacement of the hard disk - without screws - open the cover, eject the hard disk, mount a new hard disk drive, close the lid - it's ready!
Design - Fan diameter - 8 cm
Design - Key lock - Yes
Design - LED indicators - Yes
Design - Material - Aluminium, Plastic
Design - Number of fans - 2 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - HDD enclosure
Designation - CE+WEEE
dimension depth - 240 mm
dimension height - 330 mm
Dimensions - 253x155x352 mm
dimension weight - 6500 g
dimension width - 460 mm
ean - 4250078188865
Form factor (width) - 3,5'' (LFF)
GTIN - 4250078188865
guarantee - 24
guarantee_type - normal
HDD interface - SATA I - 1,5 Gb/s
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - A real storage giantThe IB-RD3680 is the largest RAID/JBOD enclosure we offer currently. Eight HDDs can fill up this enclosure. It is available in two varieties, the one is a non RAID where the other is a RAID enclosure with support to RAID 0/5/10/50/BIG (Spanning).Faster exchangeThanks to HotSwap and Plug & Play, replacing an HDD is very easy and comfortable, but transfering data is as fast as comfortable. The internal SATA interface combines with the external eSATA and USB 3.0 provide a fast and reliable solution.Cooling please!The enclosure is made completely of aluminumup except of the front cover. This high-quality material always ensures a passive heat dissipation to the ambient air. In addition, it provides a silent operation thanks to the temperature-controlled fan, which actively ensures air circulation.
LongProductName - SINGLE enclosure for 8x HDD with USB 3.0 Type-A interface and fan
LongSummaryDescription - ICY BOX IB-3680SU3. Product type: HDD enclosure. Number of storage drives supported: 8, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 5 Gbit/s. RAID levels: JBOD, Hot-swap. Product colour: Black. USB connector type: USB Type-B
name - IB-3680SU3 3,5; HDD case
Other features - Features Silent operation by thermal controlled fan
Energy saving by supporting sleep modus!
Easy assembling by trayless design!
HDD capacity unlimited
External data interface: USB 3.0, eSATA
Plug & Play and Hot Swap
Windows 7/8.x, MAC OS X > 10.5
Packaging content - Cables included - AC, USB
Packaging content - Quick installation guide - Yes
Packaging content - Screws included - Yes
Performance - Data transfer rate - 5 Gbit/s
Performance - Plug and Play - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-B
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Power - AC adapter input current - 2 A
Power - AC adapter input voltage - 100 - 240 V
Power - AC adapter output current - 6 A
Power - AC adapter output voltage - 12 V
Power - Power source type - AC
producer - IcyBox
ProductName - IB-3680SU3
ShortSummaryDescription - ICY BOX IB-3680SU3, HDD enclosure, 3.5", Serial ATA, Serial ATA II, Serial ATA III, 5 Gbit/s, Hot-swap, Black
Storage - Hot-swap - Yes
Storage - Number of storage drives supported - 8
Storage - RAID levels - JBOD
Storage - Storage drive size - 3.5"
Storage - Supported storage drive interfaces - Serial ATA, Serial ATA II, Serial ATA III
Stuff - Aluminum
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 7, Windows 8
Title - ICY BOX IB-3680SU3 HDD enclosure Black 3.5"
Type - External enclosure
URL - https://icybox.de/en/product.php?id=298
vendpn - IB-3680SU3
WarrantyInfo -
Weight - 0.56 kg
Weight & dimensions - Depth - 253 mm
Weight & dimensions - Height - 352 mm
Weight & dimensions - Package depth - 234 mm
Weight & dimensions - Package height - 240 mm
Weight & dimensions - Package weight - 5.7 kg
Weight & dimensions - Package width - 98 mm
Weight & dimensions - Weight - 5 kg
Weight & dimensions - Width - 155 mm
