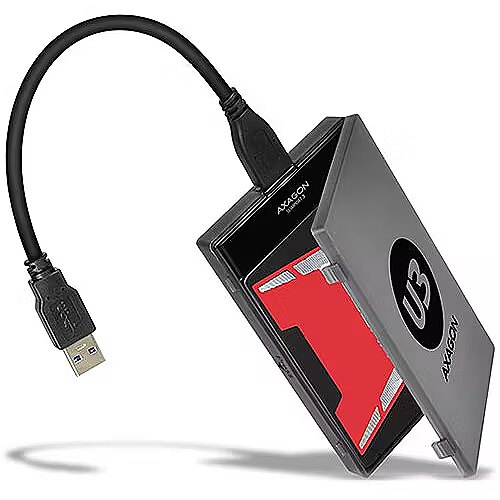

Axagon ADSA-1S6 USB3.0 - SATA 6G UASP HDD External Adapter Incl. Case

Abbreviated Description - HDD External Adapter Incl. Case
Accessories included - USB 3.0 - SATA 6G adapter, USB 3.0 cable 10 cm, plastic case for 2.5" disk and USB adapter, foam pads for 7 mm HDDs and SSDs, printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, Packed in a cardboard box.
Box Weight Brutto (kg) - 6.3 kg
Brand - Axagon
BrandPartCode - ADSA-1S6
Cabinet Material - Plastic
Cable Included - USB 3.0 Cable
category - PC Components|Drives|Accessories|HDD Converters
Category - Storage Drive Enclosures
code - ADSA-1S6
Code - ADSA-1S6
Connectors - 1 x USB 3.0
Data Channel - USB 3.0
Depth (mm) - 19 mm
Description - A compact AXAGON ADSA-1S6 SLIMport6 high-speed adapter with USB 3.0 and SATA 6G interface intended for easy connection of SSD or 2.5" SATA disk. A handy tool to quickly connect a SSD or laptop disk, including boot support. The UASP support significantly increases transmission rates especially when working with small files in the queue. The TRIM feature support limits the gradual degradation of SSD performance over time. Reading of S.M.A.R.T. information monitoring the condition of the connected disks. Supports spinning down of connected disks as well as an adapter. The installation can be handled even by a layman - the disk connects to the adapter and the adapter to the computer's USB port; the rest is done automatically. Minimum dimensions and weight, along with an enclosed disc case, make the product ideally suited even for mobile use. Features:
Compatible with USB 3.0 and backward compatible with USB 2.0.
Supports transmission rates 12 / 480 / 5000 Mb/s (low / full / high speed).
Supports 2.5" SATA III / II / I disks of all capacities.
Compliant with Serial ATA 3.1 specification (SATA/600), transmission rates of up to 6 Gb/s.
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
The total bandwidth / transmission rate of the adapter is determined by the USB 3.0 interface used (theor. 5 Gbit/s).
Supports UASP (USB Attached SCSI Protocol) and BOT (Bulk-Only Transport).
Supports booting from SSD/HDD connected via an USB adapter.
HDD Auto Spindown - automatic spindown of a disk after period of inactivity lasting 22 minutes.
HDD Turn Off - turns off the disk after removing the device or spinning down the PC.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Connection via USB 3.0 micro B female connector.
USB 3.0 cable USB 3.0 Type A male / USB 3.0 Type B male 10 cm long is included.
Supplying the power via USB 3.0 bus up to 900mA from one USB port is sufficient in all cases.
A blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).
Compact adapter dimensions 70 x 21 x 10 mm.
Adapter weight only 11 g, weight of USB cable 18 g.
Simple plastic case holds 2.5" disk max. 9.5 mm high with USB adapter connected (USB cable is led out through hole in the case).
For thin 7mm SSDs/HDDs foam pads are included for better fit in the case.
The case can also serve to transport or store the adapter itself without the disk, with the USB cable inside the case.
Case dimensions 122 x 78 x 19 mm.
Case weight 40 g. Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.  Package contains:
USB 3.0 - SATA 6G adapter,
USB 3.0 cable 10 cm,
plastic case for 2.5" disk and USB adapter,
foam pads for 7 mm HDDs and SSDs,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
Packed in a cardboard box.
Design - Certification - CE
Design - LED indicators - Yes
Design - Material - Plastic
Design - Product colour - Black
Design - Product type - HDD/SSD enclosure
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 130 mm
Dimensions - Adapter dimensions 70 x 21 x 10 mm Case dimensions 122 x 78 x 19 mm Case weight 40 g Weight of adapter 11 g Weight of USB cable 18 g
dimension weight - 130 g
dimension width - 180 mm
Drive Cabinet Features - UASPTRIM SupportS.M.A.R.T. SupportBoot from Connected DiskHot PlugPlug and PlayScrewless Installation
Drive Cabinet Type - External
EAN - 8595247903075
ean - 8595247903075
EAN Code - 8595247903075
External Color - Melna
GTIN - 8595247903075
guarantee - 24
guarantee_type - normal
Height (mm) - 78 mm
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190312150011877840.jpg
Internal Data Interface - SATA III
Link - https://www.axagon.eu/en/produkty/adsa-1s6
LongDesc - A compact AXAGON ADSA-1S6 SLIMport6 high-speed adapter with USB 3.0 and SATA 6G interface intended for easy connection of SSD or 2.5" SATA disk.A handy tool to quickly connect a SSD or laptop disk, including boot support.The UASP support significantly increases transmission rates especially when working with small files in the queue.The TRIM feature support limits the gradual degradation of SSD performance over time.Reading of S.M.A.R.T. information monitoring the condition of the connected disks. Supports spinning down of connected disks as well as an adapter.The installation can be handled even by a layman - the disk connects to the adapter and the adapter to the computer's USB port; the rest is done automatically.Minimum dimensions and weight, along with an enclosed disc case, make the product ideally suited even for mobile use.Features:• Compatible with USB 3.0 and backward compatible with USB 2.0.• Supports transmission rates 12 / 480 / 5000 Mb/s (low / full / high speed).• Supports 2.5" SATA III / II / I disks of all capacities.• Compliant with Serial ATA 3.1 specification (SATA/600), transmission rates of up to 6 Gb/s.• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).• The total bandwidth / transmission rate of the adapter is determined by the USB 3.0 interface used (theor. 5 Gbit/s).• Supports UASP (USB Attached SCSI Protocol) and BOT (Bulk-Only Transport).• Supports booting from SSD/HDD connected via an USB adapter.• HDD Auto Spindown - automatic spindown of a disk after period of inactivity lasting 22 minutes.• HDD Turn Off - turns off the disk after removing the device or spinning down the PC.• Possibility to connect your device while running thanks to the Hot Plug support.• Full Plug and Play support.• Connection via USB 3.0 micro B female connector.• USB 3.0 cable USB 3.0 Type A male / USB 3.0 Type B male 10 cm long is included.• Supplying the power via USB 3.0 bus up to 900mA from one USB port is sufficient in all cases.• A blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).• Compact adapter dimensions 70 x 21 x 10 mm.• Adapter weight only 11 g, weight of USB cable 18 g.• Simple plastic case holds 2.5" disk max. 9.5 mm high with USB adapter connected (USB cable is led out through hole in the case).• For thin 7mm SSDs/HDDs foam pads are included for better fit in the case.• The case can also serve to transport or store the adapter itself without the disk, with the USB cable inside the case.• Case dimensions 122 x 78 x 19 mm.• Case weight 40 g.Supported OSs:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available. Package contains:• USB 3.0 - SATA 6G adapter,• USB 3.0 cable 10 cm,• plastic case for 2.5" disk and USB adapter,• foam pads for 7 mm HDDs and SSDs,• Packed in a cardboard box with the installation procedure included.
LongProductName - ADSA-1S6 USB 3.0 - 2.5" HDD SATA, 10 cm
LongSummaryDescription - Axagon ADSA-1S6. Product type: HDD/SSD enclosure. Number of storage drives supported: 1, Storage drive size: 2.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 5 Gbit/s. Hot-swap. Product colour: Black. USB connector type: USB Type-A
Mounting Capability - Desktop
name - AXAGON ADSA-1S6 SLIMPort6 Adapter, USB 3.0, 2,5" SSD/HDD, SATA 6G - mit Case
name - AXAGON ADSA-1S6, USB 3. 2 Gen 1 SATA 6G UASP HD
Name - AXAGON USB 3.0 - 2.5" HDD SATA | ADSA-1S6 | SATA 6G | USB 3.0
Nominal Weight - 0.04 kg
Number of bays - 1
Other features -
Other features - Compatible operating systems - MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 130.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 177.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1877 pc(s)
Package features > Paper/Pasteboard - 64.80 g
Package features > Plastic (No PET) - 16.20 g
Package features > Tare weight (kg) - 0.08 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging content - Manual - Yes
Packaging content - Package type - Box
Packs in Box - 40
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.139 kg
Performance - Country of origin - China
Performance - Data transfer rate - 5 Gbit/s
Performance - Plug and Play - Yes
Performance - S.M.A.R.T. support - Yes
Performance - TRIM support - Yes
Performance - UASP support - Yes
Pieces in pack - 1
Ports & interfaces - Integrated USB cable - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Male
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Power - Power source type - USB
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190311080202662388&THEME=asbis&LANG=lv
ProductCategory - Cabinets
ProductCode - ADSA-1S6
ProductDescription - AXAGON ADSA-1S6 USB3.0 - SATA 6G UASP HDD External Adapter Incl. Case
ProductName - ADSA-1S6
ProductType - HDD Cabinet
Provides Internal Drive Bay Dimension - 2.5"
Retail Packaging Net Weight Carton - 0.139 kg
Retail Packaging Net Weight Plastic - 0.139 kg
ShortSummaryDescription - Axagon ADSA-1S6, HDD/SSD enclosure, 2.5", Serial ATA, Serial ATA II, Serial ATA III, 5 Gbit/s, Hot-swap, Black
Storage - Hot-swap - Yes
Storage - Number of storage drives supported - 1
Storage - NVMe - No
Storage - Storage drive size - 2.5"
Storage - Supported storage drive heights - 5,7,9.5 mm
Storage - Supported storage drive interfaces - Serial ATA, Serial ATA II, Serial ATA III
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Mobile operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details > Gross weight - 0.14 kg
Technical details > Hard drive interface - SATA 6G
Technical details > Net weight - 0.06 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - USB 3.0 - 2.5" HDD SATA
Technical details > Producer product name - ADSA-1S6
Technical details > Standard interfaces - USB 3.0
Title - Axagon ADSA-1S6 storage drive enclosure HDD/SSD enclosure Black 2.5"
URL - https://www.axagon.eu/en/produkty/adsa-1s6
USB 3.0 - 1 (micro-USB (type B));
Vendor - AXAGON
vendpn - ADSA-1S6
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight & dimensions - Cable length - 0.1 m
Weight & dimensions - Depth - 78 mm
Weight & dimensions - Height - 19 mm
Weight & dimensions - Package depth - 177 mm
Weight & dimensions - Package height - 40 mm
Weight & dimensions - Package weight - 139 g
Weight & dimensions - Package width - 130 mm
Weight & dimensions - Weight - 40 g
Weight & dimensions - Width - 122 mm
Width (mm) - 122 mm
