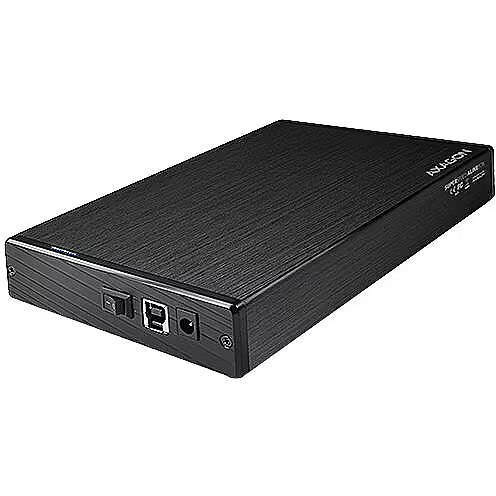

Axagon EE35-XA3 USB3.0 - SATA 3.5" External ALINE Box

Abbreviated Description - External ALINE Box
Accessories included - USB 3.2 Gen 1 SATA 3.5" external enclosure USB-B - USB-A cable, length 80 cm Power adapter 100-240V / 12V-2A Mounting strips, screws and screwdriver Stand for using the case standing up Printed manual Packed in a cardboard box
Box Weight Brutto (kg) - 13.5 kg
Brand - Axagon
BrandPartCode - EE35-XA3
Cabinet Material - Aluminium/Plastic
Cable Included - USB 3.0 Cable
category - PC Components|Drives|External HDD Enclosures
Category - Storage Drive Enclosures
code - EE35-XA3
Code - EE35-XA3
Color - Black
Connectors - 1 x USB 3.0 (Type B)
Data Channel - USB 3.0
Depth (mm) - 32 mm
Description - The compact aluminum AXAGON EE35-XA3 ALINE external box with a high-speed USB 3.2 Gen 1 (USB 3.0) interface intended for 3.5" SATA disks. The UASP support allows you to enjoy the most possible speed of modern hard drives. Reading of S.M.A.R.T. information monitoring the condition of the external disk. Supports spinning down of connected disks as well as the box. Durable cast aluminum case for perfect mechanical protection of the disk and excellent heat dissipation. The decently shaped case with a brushed surface that provides elegant look and prevents unwanted fingerprints. Easy mounting of the hard disk as well as automatic installation can be handled even by a layman and easily create an external disk. Input:
USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB transmission rates up to 5 Gbit/s.
Connection via micro USB type B female conector. Device support:
SATA II - 3 Gb/s (300 MB/s) interface,
Supports 3.5" HDD. Features:
Compatible with USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 and backward compatible with USB 2.0.
Supports transmission rates 5000 / 480 Mbit/s (SuperSpeed / HighSpeed).
Supports 3.5" SATA III / II / I disks of all capacities without limitation.
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
The total bandwidth / transmission rate of the box is determined by the SATA/300 interface used (theor. 3 Gbit/s).
Supports UASP (USB Attached SCSI Protocol).
SSD/HDD boot support in external box.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
HDD Auto Spindown support - automatic spindown of a disk after period of inactivity lasting 10 minutes.
HDD Turn Off - turns off the disk after removing the device or spinning down the PC.
Connection via durable large USB 3.2 Gen 1 Type B female connector.
An USB-B / USB-A cable 80 cm long is included.
A blue, decent LED indicates the connection to the computer's USB port (permanent light) and the data transmission (blinking).
The durable box body is a cast aluminum alloy, the box faces are plastic.
Simple disk installation - the guides are mounted on the disk, the disk is plugged directly into the SATA connector of the motherboard, and inserted into the box body; the front panel is fastened with two screws using a screwdriver that is included.
Compact adapter dimensions 180 x 120 x 32 mm.
External box weight 244 g (without cables and disk). Power supply:
Power supply via a compact external AC/DC adapter 12V - 2A (24 W) with a 150 cm long supply cable.
Power switch on the rear panel of the box.
AC adapter dimensions 74 x 36 x 91 mm (incl. fork).
AC adapter weight 128 g (incl. supply cable).   Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available. Package contains:
USB 3.2 Gen 1 external box for 3.5" SATA disk,
USB-B - USB-A cable 80 cm long,
power adapter 100-240V / 12V-2A,
mounting strips, screws and the screwdriver,

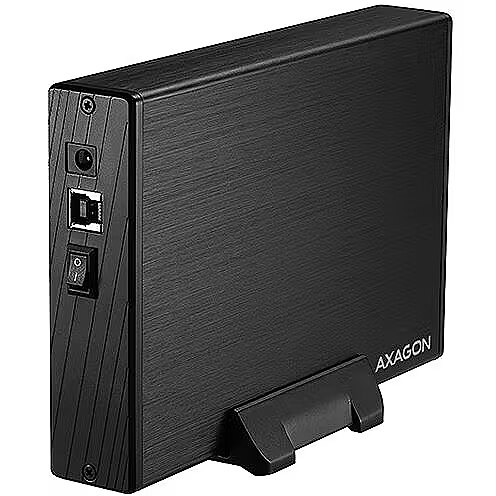

a stand that allows the box to be operated in upright position,
printed installation guide in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Design - Certification - CE, FCC
Design - LED indicators - Yes
Design - Material - Aluminium, Plastic
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - HDD enclosure
Designation - CE+WEEE
dimension depth - 65 mm
dimension height - 190 mm
Dimensions - 180 x 120 x 32 mm
dimension weight - 605 g
dimension width - 260 mm
Drive Cabinet Features - S.M.A.R.T. SupportBoot from Connected DiskHot PlugPlug and Play
Drive Cabinet Type - External
EAN - 8595247902863
ean - 8595247902863
EAN Code - 8595247902863
External Color - Melna
Form factor (width) - 3,5'' (LFF)
GTIN - 8595247902863
guarantee - 24
guarantee_type - normal
HDD interface - SATA
HDD interface - SATA I - 1,5 Gb/s
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
Height (mm) - 120 mm
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190314170009299737.jpg
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190314170009308958.jpg
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190314170009317359.jpg
Included Accessories - Power AdapterScrewsScrewdriver
Internal Data Interface - SATA III
Link - https://www.axagon.eu/en/produkty/ee35-xa3
LongDesc - The compact aluminium AXAGON EE35-XA3 ALINE external box with a high-speed USB 3.2 Gen 1 (USB 3.0) interface intended for 3.5" SATA disks.The UASP support allows you to enjoy the most possible speed of modern disks.Reading of S.M.A.R.T. information monitoring the condition of the external disk. Supports spinning down of connected disks as well as the box.Durable cast aluminum case for perfect mechanical protection of the disk and excellent heat dissipation.The decently shaped case with a brushed surface that provides elegant look and prevents unwanted fingerprints.Easy installation of the hard disk as well as automatic installation can be handled even by a layman and easily create an external disk.Input:• USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB transmission rates up to 5 Gbit/s.• Connection via micro USB type B female conector.Device support:• SATA II - 3 Gb/s (300 MB/s) interface, • Supports 3,5“ HDD.Features:• Compatible with USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 and backward compatible with USB 2.0.• Supports transmission rates 5000 / 480 Mbit/s (SuperSpeed / HighSpeed).• Supports 3.5" SATA III / II / I disks of all capacities without limitation.• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).• The total bandwidth / transmission rate of the box is determined by the SATA/300 interface used (theor. 3 Gbit/s).• Supports UASP (USB Attached SCSI Protocol).• SSD/HDD boot support in external box.• Possibility to connect your device while running thanks to the Hot Plug support.• Full Plug and Play support.• HDD Auto Spindown support - possibility to set the interval for disk spindown when idle.• HDD Turn Off - turns off the disk after removing the device or spinning down the PC.• Connection via durable large USB 3.2 Gen 1 Type B female connector.• An USB-B / USB-A cable 80 cm long is included.• A blue, decent LED indicates the connection to the computer's USB port (permanent light) and the data transmission (blinking).• The durable box body is a cast aluminum alloy, the box faces are plastic.• Simple disk installation - the guides are mounted on the disk, the disk is plugged directly into the SATA connector of the motherboard, and inserted into the box body; the front panel is fastened with two screws using a screwdriver that is included.• Compact adapter dimensions 180 x 120 x 32 mm.• External box weight 244 g (without cables and disk).Power supply:• Power supply via a compact external AC/DC adapter 12 V - 2.5 A (24 W) with a 150 cm long supply cable.• Power switch on the rear panel of the box.• AC adapter dimensions 74 x 36 x 91 mm (incl. fork).• AC adapter weight 128 g (incl. supply cable). Supported OSs:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.Package contains:• USB 3.2 Gen 1 external box for 3.5" SATA,• USB-B - USB-A cable 80 cm long,• power adapter 100-240V / 12V-2A,• mounting strips, screws and the screwdriver,• a stand that allows the box to be operated in upright position,• printed installation guide in CZ/DE/DK/ENG/ESP/FIN/FR/GR/HR/HU/IT/NL/PL/PT/RO/RU/SK/SWE/BG/CN/TR/ARA,• packed in a cardboard box.
LongProductName - EE35-XA3 USB 3.0 ALINE box 3.5", SATA, 3.5" HDD
LongSummaryDescription - Axagon EE35-XA3. Product type: HDD enclosure. Number of storage drives supported: 1, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 5 Gbit/s. Product colour: Black. USB connector type: USB Type-B
Mounting Capability - Desktop
name - AXAGON EE35-XA3 externes 3,5"-Gehäuse, USB 3.0, SATA II, Aluminium - schwarz
Name - AXAGON | Compact aluminum USB 3.2 Gen 1 external box SATA intended for 3.5" HDD | EE35-XA3
name - External ALINE Box EE35-XA3 USB 3.2 Gen 1 - SATA 3.5 inch
Nominal Weight - 0.244 kg
Number of bays - 1
Other features - Input: USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB with speeds of up to 5 Gbit/s. Connection via reversible USB type B female connector. Device support: SATA II interface - 3 Gb/s (300 MB/s),    Support of 3.5" HDD. Power supply: Power supply via compact external AC/DC 12V - 2A (24W) adapter with 150 cm long supply cable. Power switch on the rear panel of the enclosure. Dimensions of AC adapter 74 x 36 x 91 mm (including plugs). Weight of AC adapter 128 g (including supply cable).
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 163 mm
Package features > Gross height (mm) - 80 mm
Package features > Gross width (mm) - 200 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 663 pc(s)
Package features > Paper/Pasteboard - 117 g
Package features > Plastic (No PET) - 29 g
Package features > Tare weight (kg) - 0.146 kg
Package features > Volume (m3) - 0.002608 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging content - AC adapter included - Yes
Packaging content - Cables included - USB Type-A to USB Type-B
Packaging content - Manual - Yes
Packaging content - Package type - Box
Packaging content - Screwdriver included - Yes
Packaging content - Screws included - Yes
Packaging content - Stand included - Yes
Packs in Box - 20
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.629 kg
Performance - Data transfer rate - 5 Gbit/s
Performance - Plug and Play - Yes
Performance - S.M.A.R.T. support - Yes
Performance - UASP support - Yes
Pieces in pack - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-B
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Power - AC adapter input voltage - 100 - 240 V
Power - AC adapter output current - 2.5 A
Power - AC adapter output voltage - 12 V
Power - External power adapter - Yes
Power - Power source type - AC
Power Adapter - ExternalAC 100-220 V, 50/60 HzOutput: DC 12 V
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190311081834817407&THEME=asbis&LANG=lv
ProductCategory - Cabinets
ProductCode - EE35-XA3
ProductDescription - AXAGON EE35-XA3 USB3.0 - SATA 3.5" External ALINE Box
ProductName - EE35-XA3
ProductType - HDD Cabinet
Provides Internal Drive Bay Dimension - 3.5"
Retail Packaging Net Weight Carton - 0.629 kg
Retail Packaging Net Weight Plastic - 0.629 kg
ShortSummaryDescription - Axagon EE35-XA3, HDD enclosure, 3.5", Serial ATA, Serial ATA II, Serial ATA III, 5 Gbit/s, USB connectivity, Black
Storage - Number of storage drives supported - 1
Storage - Storage drive size - 3.5"
Storage - Supported storage drive interfaces - Serial ATA, Serial ATA II, Serial ATA III
Stuff - Aluminum
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Mobile operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.548 kg
Technical details > Net weight - 0.402 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - Compact aluminum USB 3.2 Gen 1 external box SATA intended for 3.5" HDD
Technical details > Producer product name - EE35-XA3
Title - Axagon EE35-XA3 storage drive enclosure HDD enclosure Black 3.5"
Type - External enclosure
URL - https://www.axagon.eu/en/produkty/ee35-xa3
USB 3.0 - 1 (USB 2.0 (type B));
Vendor - AXAGON
vendpn - EE35-XA3
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 244 g
Weight & dimensions - Cable length - 0.8 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 32 mm
Weight & dimensions - Package depth - 163 mm
Weight & dimensions - Package height - 80 mm
Weight & dimensions - Package weight - 548 g
Weight & dimensions - Package width - 202 mm
Weight & dimensions - Weight - 244 g
Weight & dimensions - Width - 180 mm
Width (mm) - 180 mm
