Axagon ADM2-CM USB-C adapter Gen 2 M.2 NVMe/SATA SSD

Accessories included - M.2 adapter with 10 cm fixed cable, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA, packed in a cardboard box with hanging hole.
Box Weight Brutto (kg) - 9.15 kg
Brand - Axagon
BrandPartCode - ADM2-CM
Cable Features - LED Indicator Plug&Play
Cable Functionality - USB-Type C to M.2 Adapter
Cable Length - 0.1 m
Category - Interface Cards/Adapters
category - PC Components|Drives|Accessories|Docking Stations
code - ADM2-CM
Code - ADM2-CM
Color - Black
Connectors - 1 x USB (Type C)

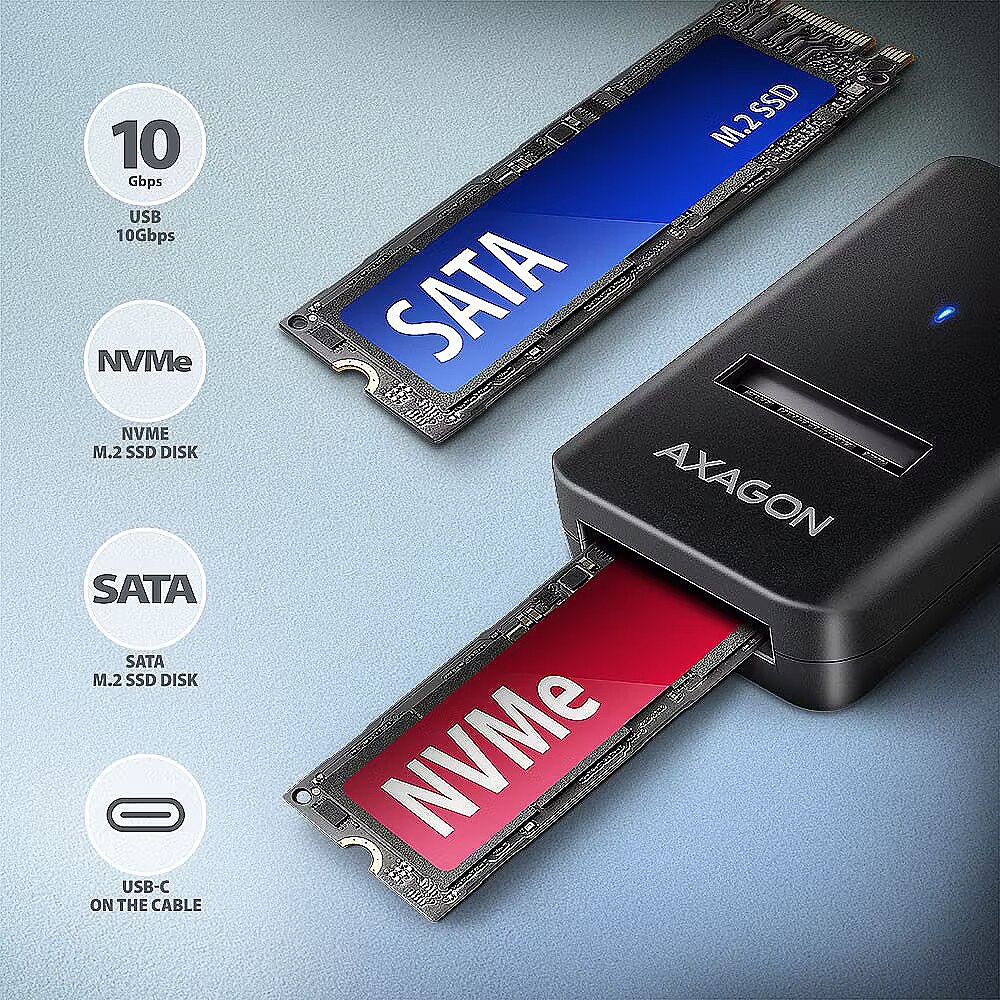

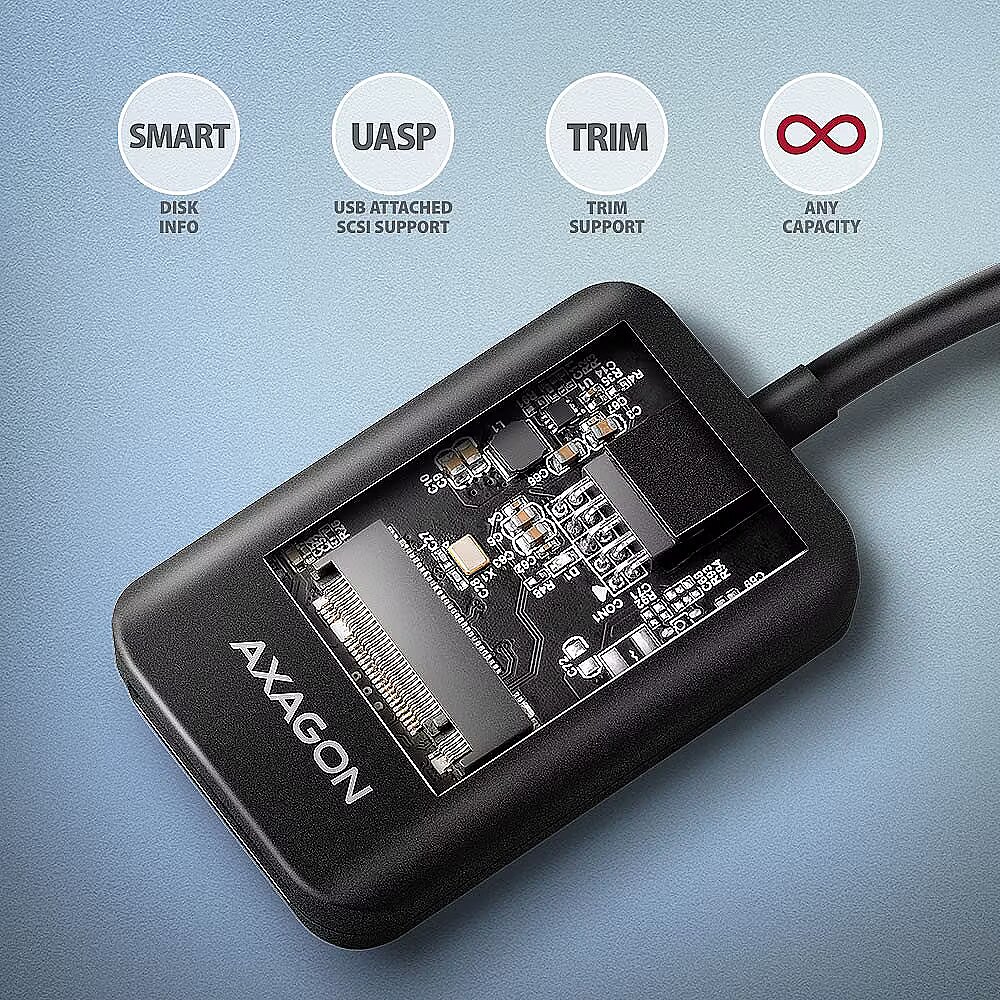

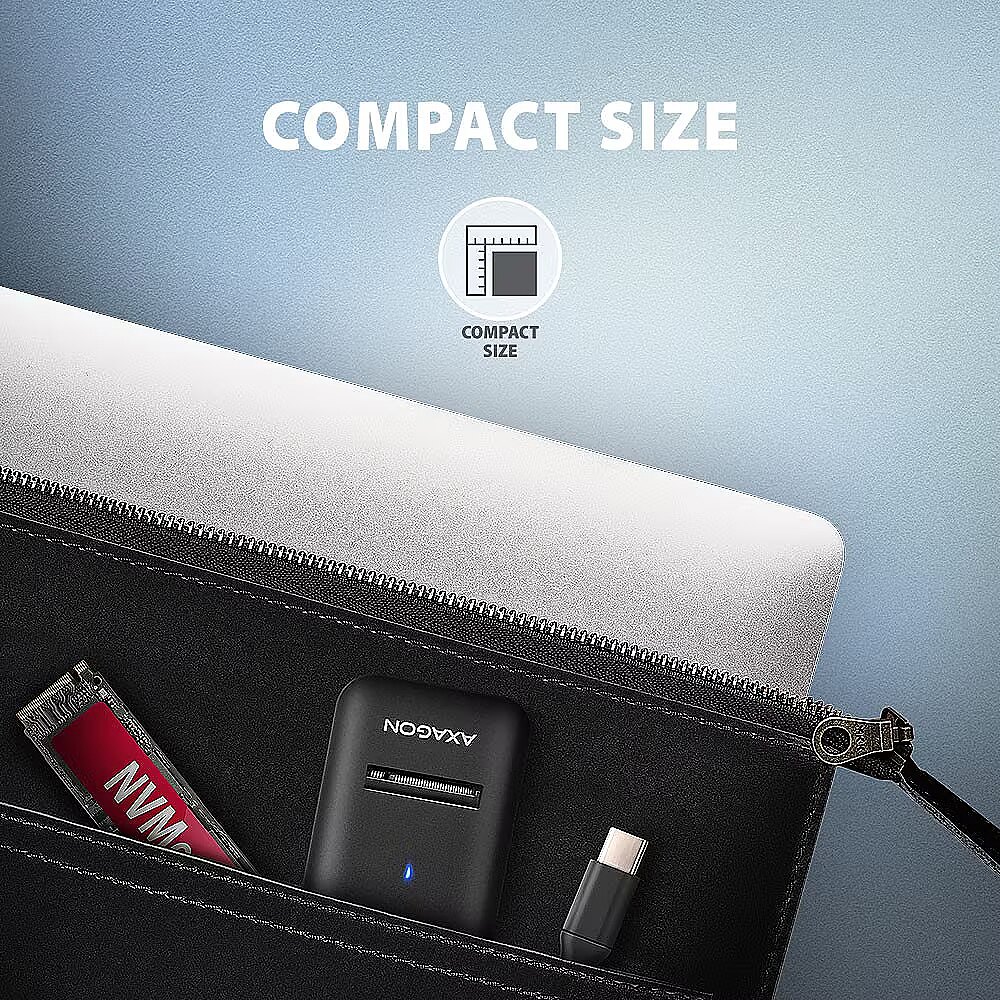

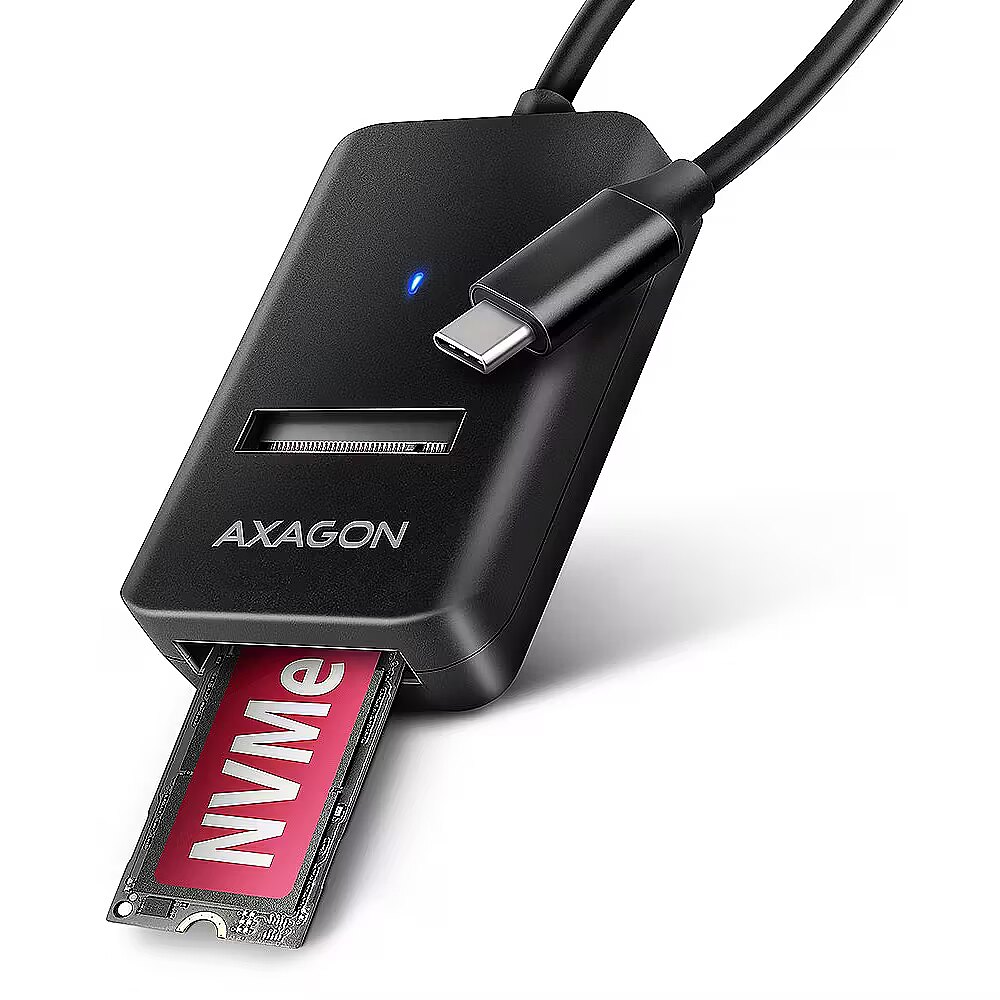

Description - Compact AXAGON ADM2-CM M.2 adapter with USB 10Gbps interface designed for easy use of M.2 NVMe or SATA SSDs. Reliable connection to a computer is possible thanks to a fixed USB-C cable with a length of 10 cm. The transmission rate is up to 10Gb/s thanks to the fast USB 3.2 Gen 2 interface. The second generation of fast USB interface allows you to enjoy the speed of modern M.2 SSD drives. The universal M.2 adapter also supports other modern features such as. UASP, TRIM and enables reading S.M.A.R.T. disk status monitoring information. Standby support when idle. A unique feature, thanks to the new chipset, is the possibility of using both M.2 NVMe and SATA disks. You don't have to think about which type of M.2 drive the adapter is designed for, it simply reads all types. Another advantage of the adapter is the ability to insert the disc into the adapter slot very quickly. Changing discs is also easy. These features make the adapter a very handy and useful tool for frequent work with different types of drives. This makes it an ideal tool for testing disks, transferring, backing up and restoring data, etc. Thanks to its small size, it can be readily at hand at any time. The adapter does not prevent heat dissipation from the disk, this prolongs its lifetime and also prevents the disk from slowing down the speed of the disk, so-called. Thermal Throttling. This USB-C to M.2 drive adapter can be used with computers and laptops as well as mobile phones and tablets. Input:
USB 10Gbps (USB 3.2 Gen 2), connector USB-C male.
Compatible with USB 3.2 Gen 1, USB4 a Thunderbolt 3/4. Device support:
NMVe M.2 SSD disks,
SATA M.2 SSD disks,
designed for M key or B+M key card formats,
NGFF 75-pin M key slot for M.2 drives. Other features:
Supports transmission rates 10.000 / 5.000 / 480 Mbit/s.
Support of M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitation.
Support for M.2 drive sizes - no length restrictions.
Support of both one-sided and double-sided M.2 SSDs.
Compliant with PCI Express Base Specification Revision 3.1a specification.
Compliant with NVM Express 1.3 specification.
Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).
Compliant with USB Mass Storage Class specification.
The total bandwidth / transmission rate of the adapter is determined by the USB interface used (theor. 10 Gbit/s).
The real adapter bandwidth / transmission rate is about 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface.
Supports BOT (Bulk-Only Transport).
Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
SSD boot support in external box.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Power supply via USB 3.0 bus up to 900mA from one USB port is sufficient in all cases.
A decent blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking). Other data:
Adapter dimensions 55 x 37 x 12 mm.
Adapter weight 19 g.
USB-C male cable length 10 cm. Supported operating systems:
Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on the operating system and device manufacturer support. Package contains:
M.2 adapter with 10 cm fixed cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

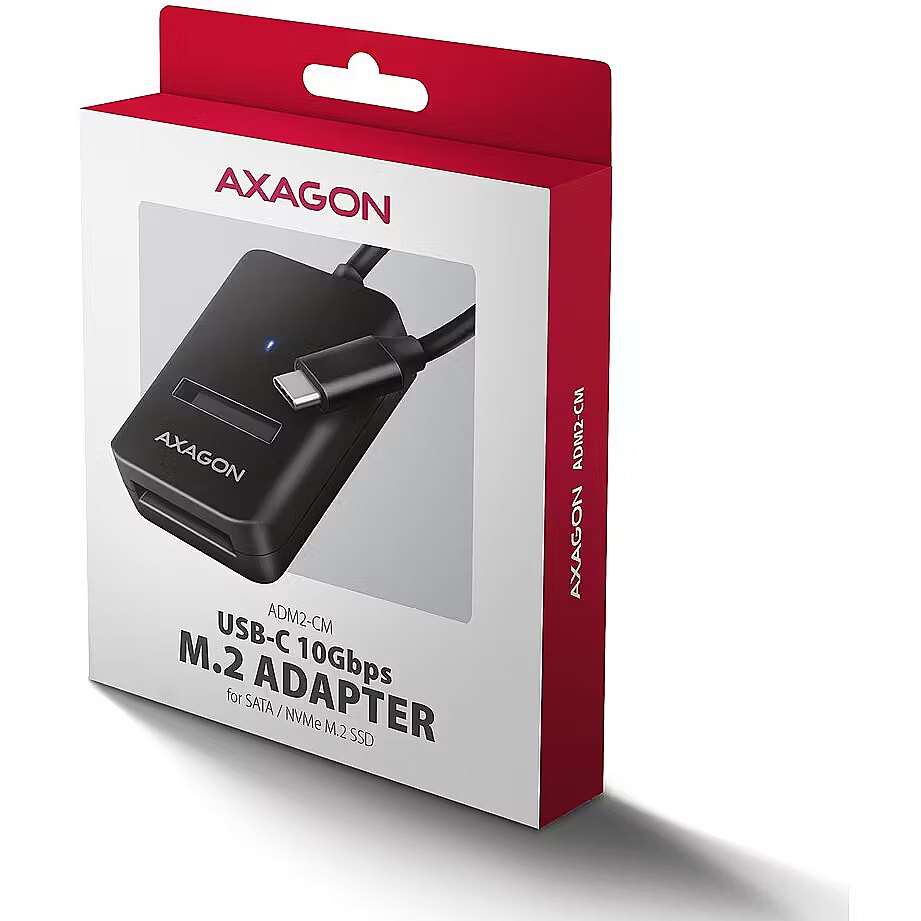

packed in a cardboard box with hanging hole.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Hot-Plug support - Yes
Design - Internal - No
Design - LED indicators - Yes
Design - Product colour - Black
Design - Purpose - PC / Notebook / Tablet
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 130 mm
Dimensions - 55 x 37 x 12 mm
dimension weight - 40 g
dimension width - 100 mm
EAN - 8595247908230
ean - 8595247908230
External Color - Melna
Features - Data transfer rate (max) - 10 Gbit/s
Features - Plug and Play - Yes
Features - S.M.A.R.T. support - Yes
Features - TRIM support - Yes
Features - UASP support - Yes
Form factor (width) - M.2
Form factor (width) - M.2 2230
Form factor (width) - M.2 2242
Form factor (width) - M.2 2260
Form factor (width) - M.2 2280
Form factor (width) - M.2 22110
GTIN - 8595247908230
guarantee - 24
guarantee_type - normal
HDD interface - NVMe
HDD interface - SATA
HDD interface - SATA III - 6 Gb/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250120210010199170.jpg
Left Connector - USB Type C (Male)
Link - https://www.axagon.eu/en/produkty/adm2-cm
LongDesc - Compact AXAGON ADM2-CM M.2 adapter with USB 10Gbps interface designed for easy use of M.2 NVMe or SATA SSDs. Reliable connection to a computer is possible thanks to a fixed USB-C cable with a length of 10 cm.The transmission rate is up to 10Gb/s thanks to the fast USB 3.2 Gen 2 interface. The second generation of fast USB interface allows you to enjoy the speed of modern M.2 SSD drives. The universal M.2 adapter also supports other modern features such as. UASP, TRIM and enables reading S.M.A.R.T. disk status monitoring information. Standby support when idle.A unique feature, thanks to the new chipset, is the possibility of using both M.2 NVMe and SATA disks. You don't have to think about which type of M.2 drive the adapter is designed for, it simply reads all types. Another advantage of the adapter is the ability to insert the disc into the adapter slot very quickly. Changing discs is also easy. These features make the adapter a very handy and useful tool for frequent work with different types of drives. This makes it an ideal tool for testing disks, transferring, backing up and restoring data, etc.Thanks to its small size, it can be readily at hand at any time. The adapter does not prevent heat dissipation from the disk, this prolongs its lifetime and also prevents the disk from slowing down the speed of the disk, so-called. „Thermal Throttling“. This USB-C to M.2 drive adapter can be used with computers and laptops as well as mobile phones and tablets.Input:• USB 10Gbps (USB 3.2 Gen 2), connector USB-C male.• Compatible with USB 3.2 Gen 1, USB4 a Thunderbolt 3/4.Device support:• NMVe M.2 SSD disks,• SATA M.2 SSD disks, • designed for M key or B+M key card formats,• NGFF 75-pin M key slot for M.2 drives.Other features:• Supports transmission rates 10.000 / 5.000 / 480 Mbit/s.• Support of M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitation.• Support for M.2 drive sizes - no length restrictions.• Support of both one-sided and double-sided M.2 SSDs.• Compliant with PCI Express Base Specification Revision 3.1a specification.• Compliant with NVM Express 1.3 specification.• Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).• Compliant with USB Mass Storage Class specification.• The total bandwidth / transmission rate of the adapter is determined by the USB interface used (theor. 10 Gbit/s).• The real adapter bandwidth / transmission rate is about 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface.• Supports BOT (Bulk-Only Transport).• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.• Supports TRIM functionality to limit gradual degradation of the SSD performance over time.• Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.• SSD boot support in external box.• Possibility to connect your device while running thanks to the Hot Plug support.• Full Plug and Play support.• Power supply via USB 3.0 bus up to 900mA from one USB port is sufficient in all cases.• A decent blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).Other data:• Adapter dimensions 55 x 37 x 12 mm.• Adapter weight 19 g.• USB-C male cable length 10 cm.Supported operating systems:• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.• Compatibility depends on the operating system and device manufacturer support.Package contains:• M.2 adapter with 10 cm fixed cable,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,• packed in a cardboard box with hanging hole.
LongProductName - ADM2-CM USB-C 10Gbps - M.2 NVMe & SATA SSD adapter
LongSummaryDescription - Axagon ADM2-CM USB-C 10Gbps - M.2 NVMe & SATA SSD adapter, 10cm USB-C cable. Host interface: USB Type-C, Output interface: M.2, SATA, Host interface gender: Male. Product colour: Black, Purpose: PC / Notebook / Tablet, Country of origin: China. Data transfer rate (max): 10 Gbit/s. Width: 55 mm, Depth: 37 mm, Height: 12 mm. Quantity per pack: 1 pc(s), Cables included: USB Type-C, Package width: 133 mm
name - ADM2-CM USB-C adapter Gen 2 M.2 NVMe/SATA SSD
name - AXAGON ADM2-CM M.2-Adapter, USB-C 3.2 Gen2 - NVMe / SATA SSD
Name - AXAGON USB-C 10Gbps adapter for fast connection of M.2 NVMe and SATA SSD, USB-C cable 10 cm | ADM2-CM
Other features -
Other features - Cable length - 0.1 m
Other features - Data transfer rate - 10 Gbit/s
Other features - Material - Plastic
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 17.00 mm
Package features > Gross height (mm) - 133.00 mm
Package features > Gross width (mm) - 98.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 7799 pc(s)
Package features > Paper/Pasteboard - 15.20 g
Package features > Plastic (No PET) - 3.80 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Cables included - USB Type-C
Packaging data - Manual - Yes
Packaging data - Package depth - 98 mm
Packaging data - Package height - 17 mm
Packaging data - Package type - Box
Packaging data - Package weight - 39 g
Packaging data - Package width - 133 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 200
Pack Weight Brutto (kg) - 0.03 kg
Pack Weight Netto (kg) - 0.039 kg
Pieces in pack - 1
Ports & interfaces - Host interface - USB Type-C
Ports & interfaces - Host interface gender - Male
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2, SATA
Power - External power adapter - No
Power - USB powered - Yes
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240918114309509143&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - ADM2-CM
ProductDescription - AXAGON ADM2-CM USB-C 3.2 Gen2 - 1x NVMe/SATA SDD Adapter
ProductName - AXAGON ADM2-CM USB-C 10Gbps - M.2 NVMe & SATA SSD adapter, 10cm USB-C cable
ProductType - Adaptors
Retail Packaging Net Weight Carton - 0.039 kg
Retail Packaging Net Weight Plastic - 0.039 kg
Right Connector - M.2 (Female)
ShortSummaryDescription - Axagon ADM2-CM USB-C 10Gbps - M.2 NVMe & SATA SSD adapter, 10cm USB-C cable, USB Type-C, M.2, SATA, Male, Black, PC / Notebook / Tablet, China
Stuff - PVC
Supported operating systems - Android
Supported operating systems - Chrome OS
Supported operating systems - iOS
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Home
Supported operating systems - Windows 11 Pro
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Other operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.04 kg
Technical details > Net weight - 0.02 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - USB-C 10Gbps adapter for fast connection of M.2 NVMe and SATA SSD, USB-C cable 10 cm
Technical details > Producer product name - ADM2-CM
Title - Axagon ADM2-CM USB-C 10Gbps - M.2 NVMe & SATA SSD adapter, 10cm USB-C cable
Type - External enclosure
URL - https://www.axagon.eu/en/produkty/adm2-cm
Vendor - AXAGON
vendpn - ADM2-CM
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 19 g
Weight & dimensions - Depth - 37 mm
Weight & dimensions - Height - 12 mm
Weight & dimensions - Weight - 19 g
Weight & dimensions - Width - 55 mm
