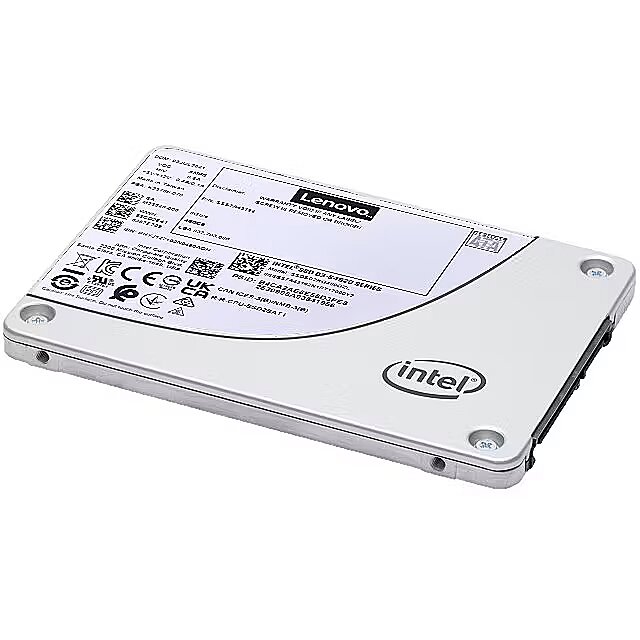

Lenovo THINKSYSTEM 2.5IN S4620 960GB MIXED USE SATA 6GB HS SSD

Name: Lenovo THINKSYSTEM 2.5IN S4620 960GB MIXED USE SATA 6GB HS SSD
Brand: Lenovo
SKU: 977944
Price: 1636.3 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 977944 Product code: 4XB7A17126

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Main product parameters All parameters

Capacity: 960 GB
Type: SATA
Read speed (sequential): 550 MB/s
Interface: SATA III (6Gb/s)

Similar Products

Basic information
	This product Lenovo THINKSYSTEM 2.5IN S4620 960GB MIXED USE SATA 6GB HS SSD	ADATA Ultimate SU650, 512GB	ADATA Ultimate SU650, 256GB	Patriot Burst Elite, 120GB	Lexar NM620, 512GB, M.2 Gen3 x4
Show similar specs. Hide similar specs.	1,636.30 €	64.95 €	48.32 €	27.86 €	103.42 €
Capacity	960 GB	512 GB	256 GB	120 GB	512 GB
Type	SATA	SATA	SATA	SATA	NVMe
Read speed (sequential)	550 MB/s	520 MB/s	520 MB/s	450 MB/s	3300 MB/s
Write speed (sequential)		450 MB/s	450 MB/s	320 MB/s	2400 MB/s
Functionality
Radiators		Nav	Nav	Nav	Nav
Lighting		Nav	Nav	Nav	Nav
Ports and equipment
Form factor		2.5"	2.5"	2.5"	M.2 80mm (2280)
Interface	SATA III (6Gb/s)	SATA III (6Gb/s)	SATA III (6Gb/s)	SATA III (6Gb/s)	PCIe 3.0 x4
Interface	SATA	SATA	SATA	SATA	M.2
Specifikācija
Memory type		TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	Not specified	TLC (Triple-Level Cell)
Random Read IOPS		40K	40K	50K	200K
Random Write IOPS		75K	75K	40K	256K
Endurance (TBW)		Not specified	560 TB	50 TB	250 TB

Basic information

Capacity 960 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : SATA

Read speed (sequential) 550 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Ports and equipment

Interface : SATA III (6Gb/s)

Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

More detailed specification

Additional information in manufacturers website Lenovo THINKSYSTEM 2.5IN S4620 960GB MIXED USE SATA 6GB HS SSD

ARTIKEL1 - THINKSYSTEM 2.5IN S4620 960GB
ARTIKEL2 - MIXED USE SATA 6GB HS SSD
Brand - Lenovo
BrandPartCode - 4XB7A17126
Breite - 0.13
Category - Internal Solid State Drives
EANCode - 0889488589258
Features - Certification - FCC Title 47, Part 15B, Class B
EN-55035:2017
EN-55022:2006
EN-55032:2012
Low Voltage Directive (LVD) 2014/35/EU
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
UL 60950-1, 2nd Edition, 2014-10-14
CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010
UL/CSA 62368-1, 2nd Edition
AS/NZ CISPR 32:2015
AS/NZ CISPR 22:2009 +A1:2010
Taiwan BSMI EMC standard CNS 13438
Korea KCC Article 11.1
Morocco Decree # 2574-14 (EMC)
Canada ICES-003
Japan VCCI
China EFUP
Features - Component for - Server/workstation
Features - Data transfer rate - 6 Gbit/s
Features - Hardware encryption - Yes
Features - Hot-swap - Yes
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D TLC NAND
Features - Random read (4KB) - 85000 IOPS
Features - Random write (4KB) - 56000 IOPS
Features - Read latency - 36 µs
Features - Read speed - 550 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 960 GB
Features - SSD form factor - 2.5"
Features - Write latency - 36 µs
Features - Write speed - 510 MB/s
Gewicht - 0.21
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0889488589258
GTIN - 889488589258
HERSTELLER - LENOVO
Hoehe - 0.07
HSTNUMMER - 4XB7A17126
Laenge - 0.17
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.
LongProductName - ThinkSystem 2.5" S4620 960GB Mixed Use SATA 6Gb HS SSD
LongSummaryDescription - Lenovo 4XB7A17126. SSD capacity: 960 GB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 510 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Operational conditions - Maximum operating altitude - 3050 m
Operational conditions - Non-operating shock - 1000 G
Operational conditions - Non-operating vibration - 3.13 G
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating shock - 1000 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 2.17 G
Packaging data - Package depth - 133 mm
Packaging data - Package height - 63 mm
Packaging data - Package weight - 434 g
Packaging data - Package width - 174 mm
Power - Power consumption (write) - 3 W
ProductName - 4XB7A17126
ShortSummaryDescription - Lenovo 4XB7A17126, 960 GB, 2.5", 550 MB/s, 6 Gbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Lenovo 4XB7A17126 internal solid state drive 960 GB 2.5" Serial ATA III 3D TLC NAND
URL - https://www.lenovo.com/
WarrantyInfo -
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 70 g
Weight & dimensions - Width - 70 mm
