ID: 1275326
Product code: WDS400T5B0E-00CPE0
Can be ordered 186 units Availability: 14 days after order approval
Warranty: 3 years

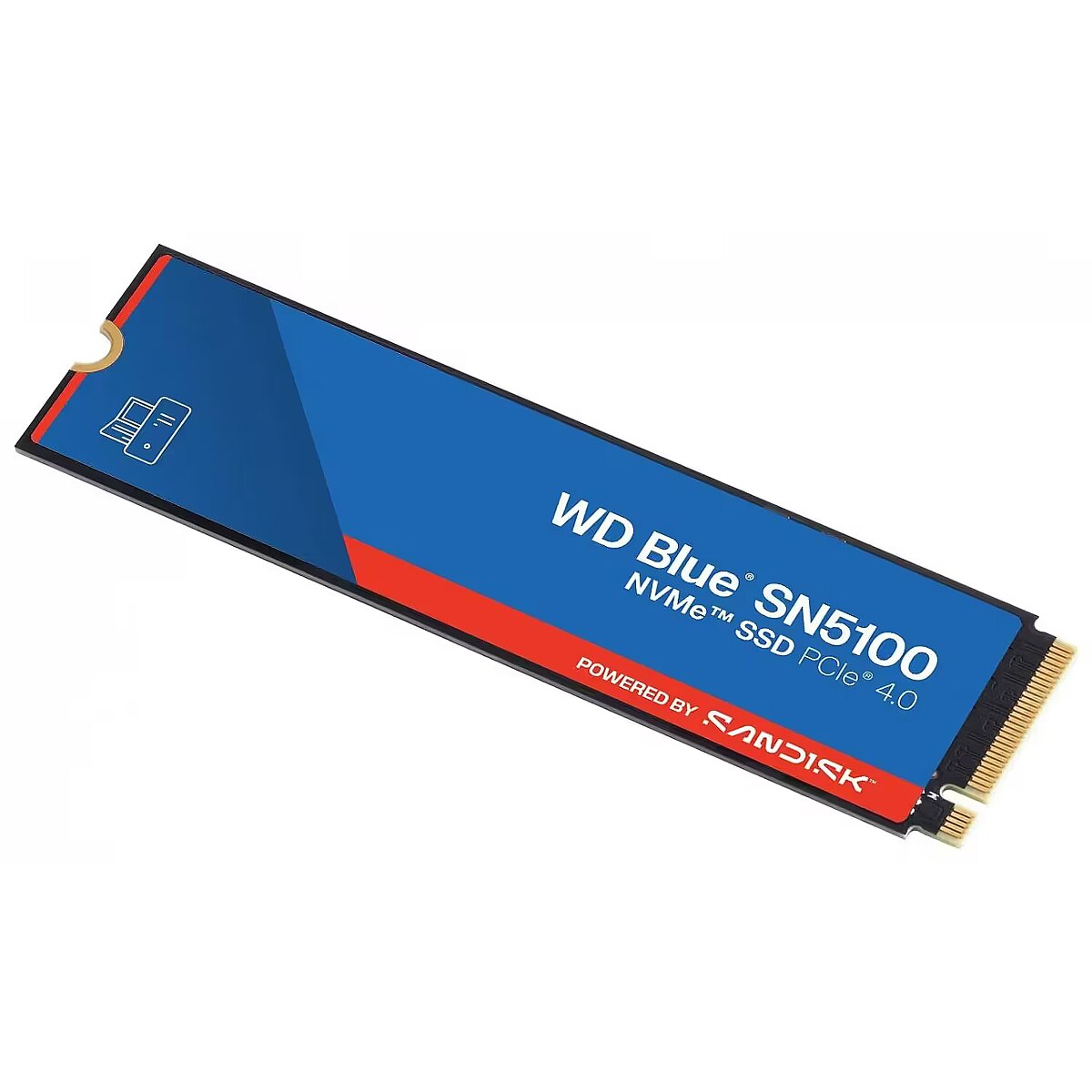

Western Digital Blue SN5100, 4TB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Unisend parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Capacity: 4 TB
- Type: NVME
- Max. reading speed (Seq. Read): 6900 MB/s
- Max. writing speed (Seq. Write): 6700 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Sandisk M.2 80mm (2280) format SSD disk with a large volume of 4 TB.
This disc uses the latest generation compact M.2 port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 6900 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 6700 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
This SSD disk has a PCIe 4.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
4 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVME
Max. reading speed (Seq. Read)
6900 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Max. writing speed (Seq. Write)
6700 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: None
Lighting
: None
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specification
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 900K
Random Write IOPS
: 1.1M
Endurance (TBW)
: 1200 TB
More detailed specification
Average power consumption (read) Power - 4.3 W
Average power consumption (write) Power - 4.3 W
Category1 - SSD
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Compliance certificates Other features - BSMI, CB, CE, Federal Communications Commission (FCC), ICES, KCC, RCM, RoHS, UKCA, UL, VCCI
Component for Features - PC/Laptop
Depth Weight & dimensions - 80 mm
Description - Harness the power of AI with the WD Blue® SN5100 NVMe™ SSD.
The WD Blue® SN5100 NVMe™ SSD with PCIe® Gen 4.0 delivers read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more with capacities up to 4TB on M.2 2280 built with our next generation SANDISK 3D CBA NAND technology. And with SANDISK nCache 4.0, you can copy large files or project folders faster than before. Speed up your projects
Accelerate your AI-enabled workflow and loading assets quicker with PCIe® Gen 4.0 read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more
Make more room for your masterpieces with capacities from 500GB up to 4TB on M.2 2280 deploying next generation SANDISK 3D CBA NAND technology. Work faster, wait less
Copy large files or project folders in blistering speeds thanks to our SANDISK nCache™ 4.0 technology. Create confidently
Your new drive comes with a 5-year limited warranty, giving you peace of mind that your hard work isn’t wasted. Free Acronis® True Image™ software
Download Acronis True Image™ for SANDISK data migration software to transfer your files to your new SSD. Monitor your new drive
Monitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application.PCIe® Gen 4.0, NVMe™ SSDSequential read speeds up to 7,100 MB/s and sequential write speeds up to 6,700 MB/s (1TB-2TB models)Random read speeds up to 1M IOPS and random write speeds up to 1.3M IOPS (1TB-2TB models)500GB, 1TB, 2TB, and 4TBSANDISK® QLC 3D CBA NANDSANDISK® nCache™ 4.0 Technology
Description1 - WD Hard Drive BLUE SN5100 - 4TB - PCIe GEN4x4 NVMe - Blue
Description2 - Harness the power of AI with the WD Blue® SN5100 NVMe™ SSD.The WD Blue® SN5100 NVMe™ SSD with PCIe® Gen 4.0 delivers read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more with capacities up to 4TB on M.2 2280 built with our next generation SANDISK 3D CBA NAND technology. And with SANDISK nCache 4.0, you can copy large files or project folders faster than before.Speed up your projectsAccelerate your AI-enabled workflow and loading assets quicker with PCIe® Gen 4.0 read speeds up to 7,100 MB/s, 30% faster than our prior generation.Create and store moreMake more room for your masterpieces with capacities from 500GB up to 4TB on M.2 2280 deploying next generation SANDISK 3D CBA NAND technology.Work faster, wait lessCopy large files or project folders in blistering speeds thanks to our SANDISK nCache™ 4.0 technology.Create confidentlyYour new drive comes with a 5-year limited warranty, giving you peace of mind that your hard work isn’t wasted.Free Acronis® True Image™ softwareDownload Acronis True Image™ for SANDISK data migration software to transfer your files to your new SSD.Monitor your new driveMonitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application.
EAN - 0718037906270
Gross Weight Kg - 0,05
Hardware encryption Features - Yes
Height Weight & dimensions - 2.38 mm
Interface Features - PCI Express 4.0
M.2 SSD size Features - 2280 (22 x 80 mm)
Manufacturer - SanDisk
Manufacturer - Western Digital
Manufacturer Code - WDS400T5B0E
ManufacturerID - WDS400T5B0E-00CPE0
Manufacturer Name - Western Digital
Mean time between failures (MTBF) Features - 1750000 h
Memory type Features - QLC 3D NAND
Model - WDS400T5B0E
MPN - WDS400T5B0E-00CPE0
Name - M.2 4TB WD Blue SN5100 NVMe PCIe 4.0 x4 NVMe – WDS400T5B0E-00CPE0
Name - SSD PCIE G4 M.2 NVME 4TB BLUE/SN5100 WDS400T5B0E SANDISK
Non-operating vibration Operational conditions - 4.9 G
NVMe Features - Yes
Operating shock Operational conditions - 1500 G
Operating temperature (T-T) Operational conditions - 0 - 85 °C
Operating vibration Operational conditions - 5 G
Package depth Packaging data - 21 mm
PackageHeight - 25
Package height Packaging data - 126 mm
PackageLength - 103
Package type Packaging data - Box
PackageWeight - 60
Package weight Packaging data - 49 g
PackageWidth - 143
Package width Packaging data - 101.6 mm
PCI Express interface data lanes Features - x4
Power consumption (idle) Power - 0.0045 W
Product Net Weight ELKO Verified Logistics Data - 0.0057 kg
Random read (4KB) Features - 900000 IOPS
Random write (4KB) Features - 1100000 IOPS
Read speed Features - 6900 MB/s
Security algorithms Features - TCG Pyrite
Shipping Box Depth ELKO Internal Logistics Data - 23 cm
Shipping Box Height ELKO Internal Logistics Data - 15 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.8 kg
Shipping Box Width ELKO Internal Logistics Data - 11.5 cm
Short description - WD SSD M.2 (2280) 4TB Blue SN5100 PCIe 4.0/NVMe (Di)
SSD capacity Features - 4 TB
SSD form factor Features - M.2
SSD series - Blue SN5100
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Summary - Western Digital 4TB WD Blue® SN5100 NVMe™ SSD. SSD capacity: 4 TB, SSD form factor: M.2, Read speed: 6900 MB/s, Write speed: 6700 MB/s, Component for: PC/Laptop
TBW rating Features - 1200
Unit Box Height - 0.105
Unit Box Length - 0.15
Unit Box Width - 0.03
Unit Calculated Volume ELKO Internal Logistics Data - 0.0003968 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.08 kg
Unit Depth ELKO Verified Logistics Data - 15 cm
Unit Height ELKO Verified Logistics Data - 10.5 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 10
Unit Width ELKO Verified Logistics Data - 3 cm
UPC - 718037906270
Vendor Homepage - https://shop.sandisk.com/products/ssd/internal-ssd/wd-blue-sn5100-nvme-ssd?sku=WDS400T5B0E-00CPE0
Warranty - 60L months
WEEE - DE83654239
Weight - 0.047
Weight Weight & dimensions - 5.7 g
Width Weight & dimensions - 22 mm
Write speed Features - 6700 MB/s
