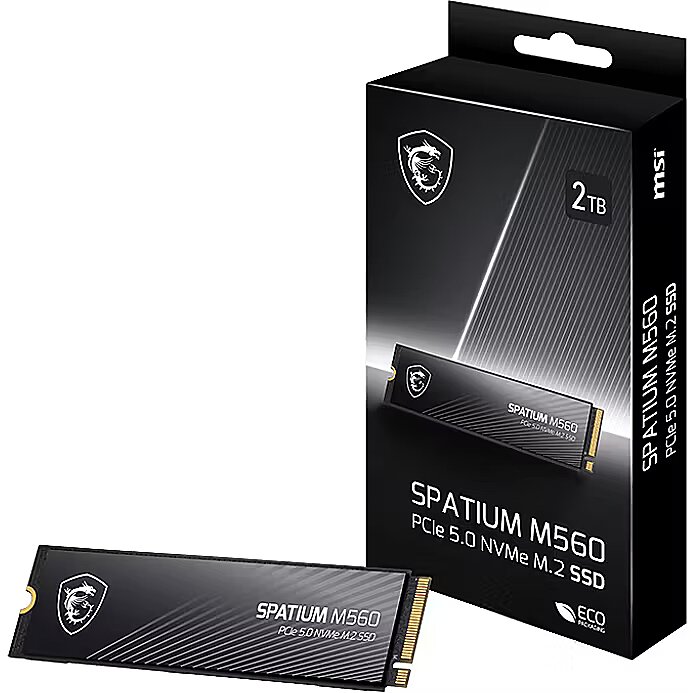

MSI SPATIUM M560, 2TB, M.2 Gen5 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1191483 Product code: S78-440Q940-P83
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Capacity: 2 TB
  • Type: NVMe
  • Read speed (sequential): 10300 MB/s
  • Write speed (sequential): 8700 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 5.0 x4
Similar Products
This product MSI SPATIUM M560, 2TB, M.2 Gen5 x4
Recommended Samsung 9100 PRO, 2TB, M.2 Gen5 x4
Recommended ADATA XPG Mars 980 Blade, 2TB, M.2 Gen5 x4
Recommended Samsung 9100 PRO, 1TB, M.2 Gen5 x4
Recommended Samsung 990 PRO, 2TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
238.69 €
343.68 €
287.09 €
223.31 €
249.75 €
Basic information
Capacity 2 TB 2 TB 2 TB 1 TB 2 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 10300 MB/s 14700 MB/s 14000 MB/s 14700 MB/s 7450 MB/s
Write speed (sequential) 8700 MB/s 13400 MB/s 13000 MB/s 13300 MB/s 6900 MB/s
Functionality
Radiators Nav Nav Nav Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 5.0 x4 PCIe 5.0 x4 PCIe 5.0 x4 PCIe 5.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 1.3M 1.85M 2M 1.85M 1.4M
Random Write IOPS 1.4M 2.6M 1.6M 2.6M 1.55M
Endurance (TBW) 1200 TB 1200 TB 1480 TB 600 TB 1200 TB
Description

This MSI brand SSD has a 2 TB capacity and a M.2 80mm (2280) format.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

This SSD disk read speed (Sequential read speed) is 10300 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

8700 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

The SSD drive has a PCIe 5.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 10300 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 8700 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 5.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 1.3M
Random Write IOPS : 1.4M
Endurance (TBW) : 1200 TB
More detailed specification
Additional information in manufacturers website MSI SPATIUM M560, 2TB, M.2 Gen5 x4
Brand - MSI
BrandPartCode - SPATIUM M560 PCIE 5.0 NVME M.2 2TB
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
Category Code - SSU
category_en - Computers & Components > Computer components > Hard Drives > SSD
category_lv - Datortehnika > Datoru komponentes > Cietie diski > SSD
category_ru - Datortehnika > Datoru komponentes > Cietie diski > SSD
Code - S78-440Q940-P83
Desc - Tips: SSD, Apjoms: 2 TB, Izmērs: M.2, Savietojamība: PCIe 5.0 x4, Rakstīšanas ātrums: 8700 MB/s, Lasīšanas ātrums: 10 300 Mb/s, Garantija: 2 gadi
Description - SPATIUM M560 PCIe 5.0 NVMe M.2.
description_en - Manufacturer:MSI
Model Name:Spatium M560
Capacity:2 TB
Type:Internal Solid State Drive (SSD)
Form Factor:M.2 2280 (Single-sided, Slim)
Interface:PCIe Gen 5.0 x4, NVMe 2.0
NAND Type:3D NAND Flash
Sequential Read Speed:Up to 10000 MB/s (10 GB/s)
Sequential Write Speed:Up to 9500 MB/s
TBW (Total Bytes Written):1400 TBW
DRAM:DRAM-less/HMB (Host Memory Buffer)
Thermal Solution:Designed for use with Motherboard/System Heatsink
Compatibility:Laptop, Desktop, PS5 (Check size compatibility)
description_lv - Ražotājs: MSI
Modeļa nosaukums: Spatium M560
Ietilpība: 2 TB
Tips: Iekšējais cietvielu disks (SSD)
Formas faktors: M.2 2280 (vienpusējs, plāns)
Saskarne: PCIe Gen 5.0 x4, NVMe 2.0
NAND tips: 3D NAND zibatmiņa
Secīgās lasīšanas ātrums: līdz 10000 MB/s (10 GB/s)
Secīgās rakstīšanas ātrums: līdz 9500 MB/s
TBW (kopējais ierakstīto baitu skaits): 1400 TBW
DRAM: bez DRAM/HMB (resursdatora atmiņas buferis)
Termiskais risinājums: paredzēts lietošanai ar mātesplati/sistēmas siltuma izkliedētāju
Saderība: klēpjdators, galddators, PS5 (pārbaudiet izmēru saderību)
description_ru - Производитель: MSI
Модель: Spatium M560
Ёмкость: 2 ТБ
Тип: Внутренний твердотельный накопитель (SSD)
Форм-фактор: M.2 2280 (односторонний, тонкий)
Интерфейс: PCIe Gen 5.0 x4, NVMe 2.0
Тип NAND: 3D NAND Flash
Скорость последовательного чтения: До 10 000 МБ/с (10 ГБ/с)
Скорость последовательной записи: До 9500 МБ/с
TBW (Общее количество записанных байт): 1400 TBW
DRAM: Без DRAM/HMB (буфер основной памяти)
Система охлаждения: Предназначена для использования с радиатором материнской платы/системы
Совместимость: Ноутбук, настольный компьютер, PS5 (уточняйте совместимость размеров)
dimensionalWeight - 53
EAN - 4711377275354
Features - Component for - PC
Features - Interface - PCI Express 5.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - Random read (4KB) - 1300000 IOPS
Features - Random write (4KB) - 1400000 IOPS
Features - Sequential read speed (ATTO) - 10300 MB/s
Features - Sequential write speed (ATTO) - 8700 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1200
Features - TRIM support - Yes
Form Factor - M.2
gross_weight - 0.1 kg
GTIN - 4711377275354
LargeDescHTML -
LongSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2. SSD capacity: 2 TB, SSD form factor: M.2, Component for: PC
Model -
MTBF - 1500000 hours
Name - SSD Disks MSI Spatium M560 2TB Gen5 NVMe
NAND flash technology - 3D NAND
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
PCIe Gen5 Interface - Yes
Power - Power consumption (idle) - 50 W
Power - Power consumption (max) - 5.9 W
Producer - MSI
producerCode - S78-440Q940-P83
ProductName - M560 PCIE 5.0 NVME M.2
productName - MSI Spatium M560 PCIE 5.0 NVME M.2 2 TB PCI Express 5.0 3D NAND
Product Net Weight - 0.02 kg
productSize - Normal
Read speed - 10300 MBytes/sec
ShortSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2, 2 TB, M.2
sizeX - 160
sizeY - 83
sizeZ - 20
SSD Capacity - 2TB
SSD series - SPATIUM M560
TBW - 1200 TB
Title - MSI Spatium M560 PCIE 5.0 NVME M.2 2 TB PCI Express 5.0 3D NAND
title_en - MSI Spatium M560 Hard Drive 2TB Gen5 NVMe
title_lv - MSI Spatium M560 Cietais disks 2TB Gen5 NVMe
title_ru - MSI Spatium M560 Жёсткий диск 2TB Gen5 NVMe
Unit Box Height - 0.02
Unit Box Length - 0.16
Unit Box Width - 0.085
Unit Calculated Volume - 0.0006652 cubm
Unit Calculated Weight - 0.065 kg
Units per Shipping Box - 20
Vendor Homepage - www.msi.com/Storage/SPATIUM-M560-PCIe-5.0-NVMe-M.2
Warranty - 36L months
warrantyLength - 60
warrantyType - G
weight - 0.007 kg
weight - 41
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.15 mm
Weight & dimensions - Width - 22 mm
Write speed - 8700 MBytes/sec
