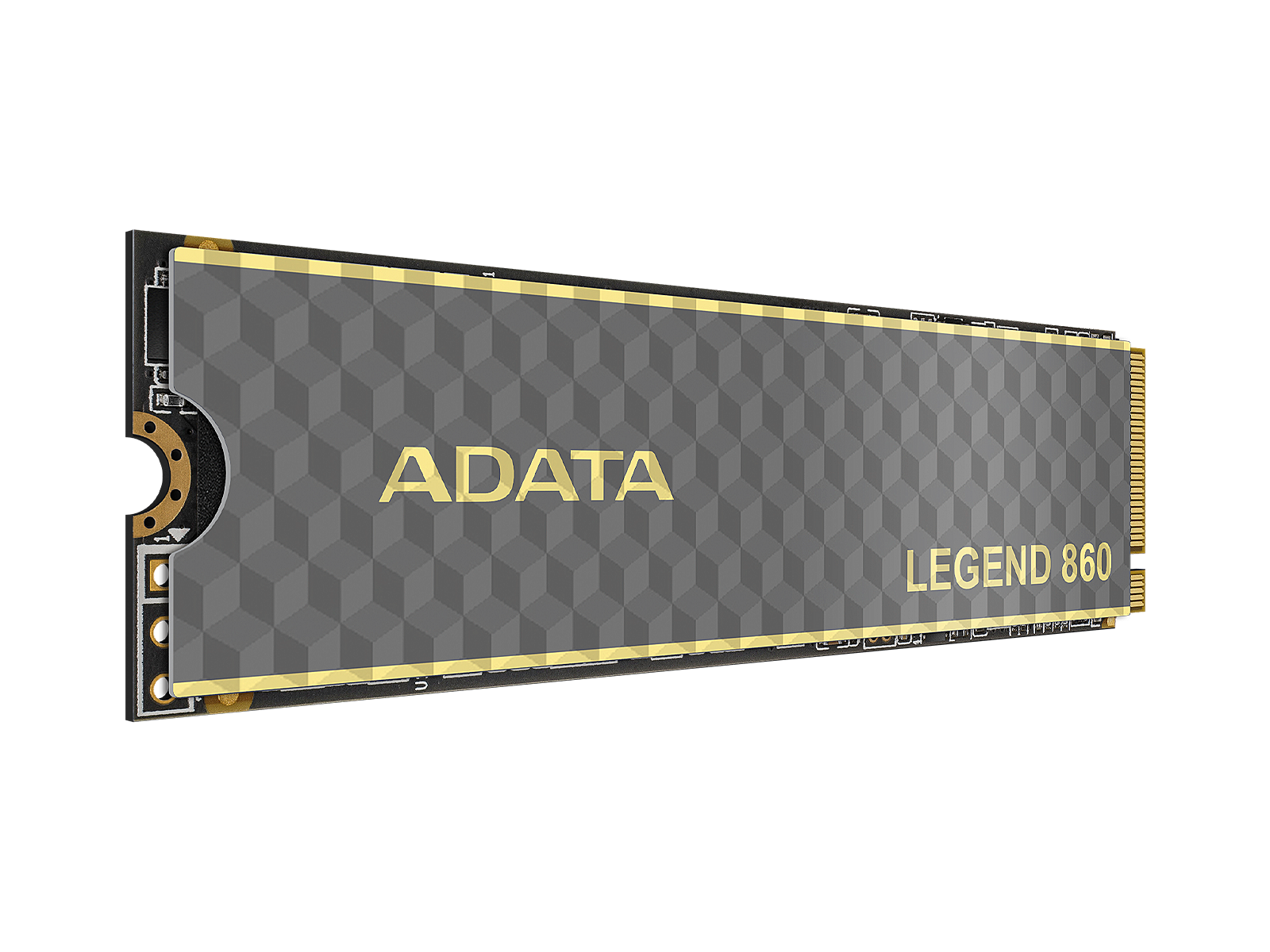

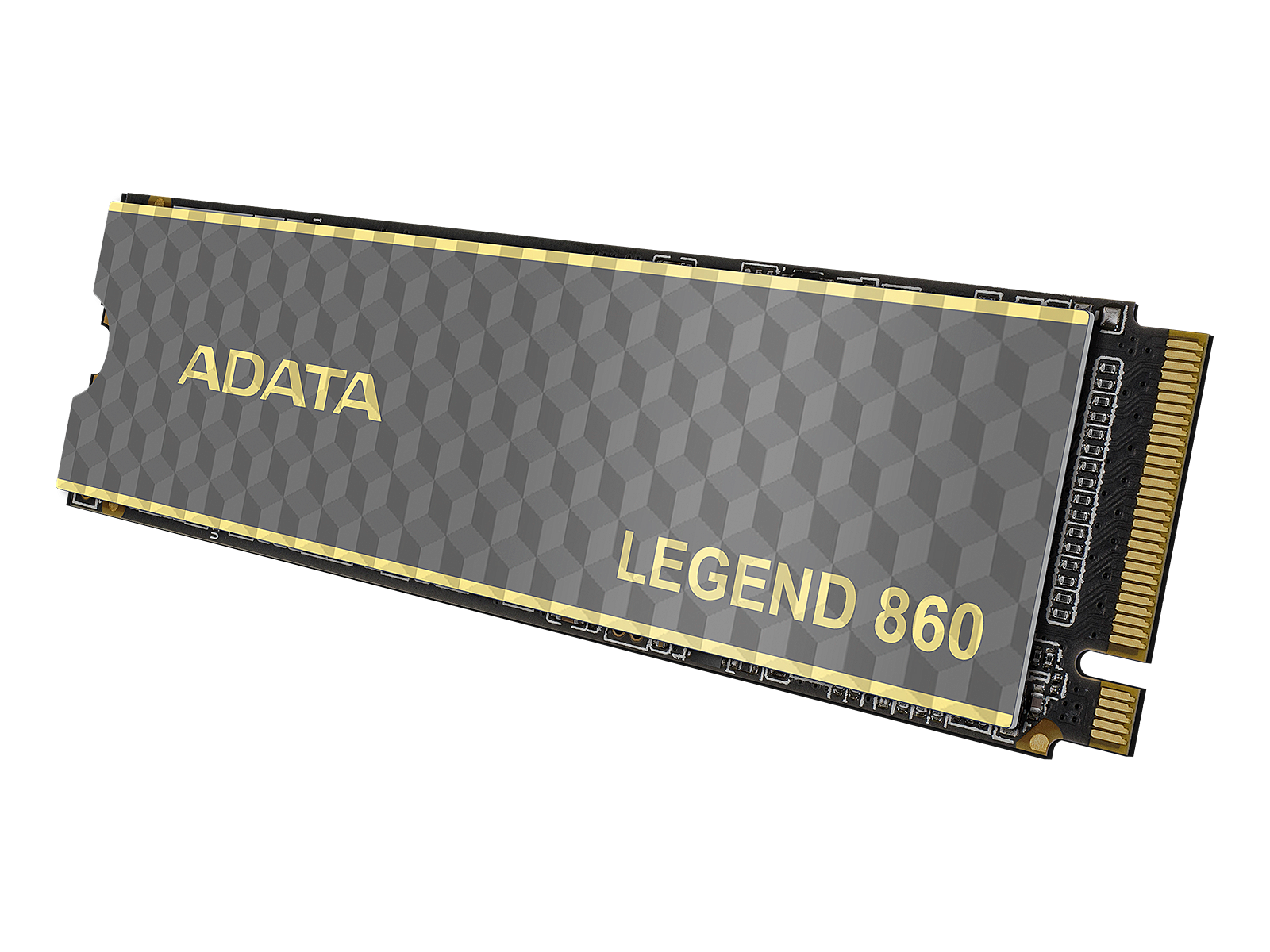

ADATA Legend 860, 2TB, M.2 Gen4 x4
-
Receiving goods at the Dateks office0.00 €
-
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 €
-
Parcel terminalWithin 1-2 working days0.00 €
-
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 €
-
SmartPosti parcel terminalWithin 1-2 working days0.00 €
-
Delivery throughout Latvia.Within 1-2 working days4.99 €
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 6000 MB/s
- Write speed (sequential): 5000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
This Adata brand SSD has a 2 TB capacity and a M.2 80mm (2280) format.
This disc uses the latest generation compact M.2 port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 6000 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
5000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
A stable data reading and writing speed during prolonged work is ensured by a cooler or heat sink with which this SSD drive is equipped. It helps to maintain memory chips at an optimal temperature. There is no particular need to worry if you choose a "fast" disc without a heat sink, as almost always (99% of cases) the system board will be equipped with a built-in M.2 slot cooling solution.
This is an SSD disk in the M.2 80mm (2280) format.
This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Brand-specific features - Brand specific technologies - SLC Caching
BrandPartCode - SLEG-860-2000GCS
Category - Internal Solid State Drives
Category - Root/Electronics/PC parts/Hard drives
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Dane fizyczne: Długość - 80 mm
Dane fizyczne: Kolor - szary
Dane fizyczne: Szerokość - 22 mm
Dane fizyczne: Waga - 6.5 g
Dane fizyczne: Wysokość - 2.15 mm
Dane techniczne: Format M.2 - 2280
Dane techniczne: Grupa produktowa - Dyski Adata
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Interfejs - M.2
Dane techniczne: Pojemność - 2000 GB
Dane techniczne: Producent - Adata
Dane techniczne: Rodzaj dysku - wewnętrzny
Dane techniczne: Typ - SSD
Dane techniczne: Wersja M.2 - PCIe 4.0
Depth - 80 mm
Description - Capacity: 2 TB Type: NVMe Read speed (sequential): 6000 MB/s Write speed (sequential): 5000 MB/s Form factor: M.2 80mm (2280) Interface: PCIe 4.0 x4
Description - LEGEND 860
Imagine it and get it instantly
The LEGEND 860 boasts sequential read/write speeds of 6000/5000 MB per second, which are 3x faster than standard PCIe Gen3 SSDs and 10x faster than SATA SSDs, and is backward compatible with current PCIe 3.0 platforms. This drive delivers excellent performance for mid- to high-end productions such as film and television animation, machine learning, and product modeling!
Enhance your PS5 experience
The LEGEND 860 utilizes the PCIe 4.0 transmission interface and can be installed in the PS5 as a secondary drive to address the issue of insufficient PS5 storage. The LEGEND 860 not only fits perfectly into the PS5's drive slot, but also ensures smooth, lag-free gaming, even with AAA titles.
*According to Sony, even though read and write speeds exceed the official standard, not all games will achieve the same performance as the PS5's built-in SSD.
**When used with the PS5, sequential read speeds are 5000 MB/s for all capacities.
Warning! Massive capacity is coming!
Impressive performance regardless of file size. The LEGEND 860 boasts an impressive capacity of up to 2000 GB and utilizes various data protection and error correction technologies that significantly increase its endurance and TBW (Total Bytes Written), making it ideal for a variety of storage applications.
Even More Elite
The LEGEND 860 utilizes the SLC caching algorithm and HMB (Host Memory Buffer) technology to provide superior caching, and features LDPC (Low Density Parity Check Code) error correction for accurate data transmission and file security.
5-Year Warranty for Peace of Mind
The LEGEND series SSDs are crafted from carefully selected, high-quality components designed to stand the test of time. The LEGEND 860 has undergone rigorous testing and quality control and is backed by a 5-year warranty for peace of mind!
Additional SSD Toolbox Software for Real-Time Health Monitoring
SSD Toolbox provides access to the latest firmware for peak performance, and its S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) attributes allow you to monitor the health and remaining lifespan of your SSD, as well as check the current operating temperature and memory capacity, allowing you to stay on top of your SSD's health.
Designation - CE+WEEE
dimensionalWeight - 40
dimension depth - 15 mm
dimension height - 130 mm
Dimensions - 80 x 22 x 3.13 mm
dimension weight - 30 g
dimension width - 105 mm
Disk type - SSD
Drive type - Internal
ean - 4711085949509
Eans - 4711085949509
EAN_code - 4711085949509
Features - Certification - morocco
Features - Component for - PC
Features - Component for - PC/Notebook/Game console
Features - ECC - Yes
Features - Hardware encryption - No
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Low-density parity-check (LDPC) - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Read speed - 6000 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 640
Features - Write speed - 5000 MB/s
Form Factor - M.2
Form factor (width) - M.2 2280
GTIN - 0842243034790
GTIN - 842243034790
GTIN - 4711085949509
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCIe 4.0
Height - 3.13 mm
Informacje dodatkowe: Dodatkowe informacje - bufor HMB
Informacje dodatkowe: Model - Adata LEGEND 860
Informacje dodatkowe: Zastosowane technologie - NVMe
Informacje dodatkowe: Zastosowane technologie - S.M.A.R.T.
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - Imagine it, achieve it instantlyThe LEGEND 860 boasts a sequential read/write speed of 6,000/5,000MB per second, 3 times faster than standard PCIe Gen3 SSDs and 10 times faster than SATA SSDs, and it is fully backward compatible with current PCIe 3.0 platforms. This drive provides excellent output for mid-to-high-end productions such as film and television animation, machine learning, and product modeling!Expand PS5 storage capacityThe LEGEND 860 utilizes a PCIe 4.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the LEGEND 860 fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces. Back up an entire resource libraryPowerful performance no matter the file size. The LEGEND 860 is available in a spacious 2000GB capacity and utilizes a variety of data protection and correction technologies to greatly increase its Total Bytes Written volume (TBW) and durability to meet the needs of various storage applications.Beyond EliteLEGEND 860 utilizes a SLC cache algorithm and HMB (Host Memory Buffer) technology to take advantage of caching and adopts LDPC (Low Density Parity Check Code) error correction mechanism to ensure the accuracy of data transmission and file security.5 Year Warranty for Peace of MindThe LEGEND series of solid-state hard drives are constructed with carefully selected high-quality components which can withstand the test of time. Rigorously verified and tested, the LEGEND 860 comes with a 5-year warranty to provide you with peace of mind!SSD Toolbox value-added software for real-time status monitoringSSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
LongProductName - 2TB, M.2 2280, 3D NAND, PCIe Gen4 x4, 6000/5000 MB/s, 0°C - 70°C, 1500G/0.5ms shock, 640 TBW, 2000000 MTBF, 80 x 22 x 3.13mm, 9.5g
LongSummaryDescription - ADATA LEGEND 860 SLEG-860-2000GCS. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 6000 MB/s, Write speed: 5000 MB/s, Component for: PC/Notebook/Game console
Manufacturer - ADATA
Manufacturer_code - SLEG-860-2000GCS
Model - LEGEND 860
Model - SLEG-860-2000GCS
MTBF - 200000 hours
Name - ADATA LEGEND 860 2TB (PCIe 4.0 x4, NVMe 2.0, M.2 2280)
Name - Adata LEGEND 860 M.2 NVMe PCIe4x4 2TB
name - SSD LEGEND 860 2TB PCIe 4x4 6000/5000 MB/s M.2
NAND flash technology - 3D NAND
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Compliance certificates - BSMI, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, UKCA
Packaging data - Package type - Box
PCIe Gen4 Interface - Yes
Producent: Nazwa producenta / importera - Adata
Laney
No. 553-539, Tanmei St.,
114044 Taipei City
producer - Adata
Producer - Adata
producerCode - SLEG-860-2000GCS
ProducerCode - SLEG-860-2000GCS
productName - Adata SSD LEGEND 860 2TB PCIe 4x4 6000/5000 MB/s M.2
ProductName - SLEG-860-2000GCS
Product Net Weight - 0.0095 kg
productSize - Normal
Reading speed - 6000 MB/s
Read speed - 6000 MBytes/sec
ShortDescription - SSD | 2TB |6000/5000MB/s | M.2 | 2280 | PCI-E 4.0x4 | NVMe |
ShortSummaryDescription - ADATA LEGEND 860 SLEG-860-2000GCS, 2 TB, M.2, 6000 MB/s
sizeX - 130
sizeY - 105
sizeZ - 15
SSD Capacity - 2TB
SSD series - M8S
TBW - 640 TB
TBW - 640 TB
Title - ADATA LEGEND 860 SLEG-860-2000GCS internal solid state drive 2 TB M.2 PCI Express 4.0 NVMe 3D NAND
Trwałość: Niezawodność MTBF - 2000000 godz.
Trwałość: TBW - 640 TB
Trwałość: Wytrzymałość na wstrząsy w czasie pracy - 1500 G
Trwałość: Wytrzymałość na wstrząsy w czasie spoczynku - 1500 G
Unit Box Height - 0.015
Unit Box Length - 0.13
Unit Box Width - 0.105
Unit Calculated Volume - 0.0002047 cubm
Unit Calculated Weight - 0.03 kg
Units per Shipping Box - 1
URL - https://www.adata.com/en/consumer/category/ssds/solid-state-drives-legend-860/?tab=description
Vendor Homepage - www.adata.com/en/consumer/category/ssds/solid-state-drives-legend-860/?tab=specification
vendpn - SLEG-860-2000GCS
Warranty - 36L months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Weight - 0,03
Weight - 9.5 g
weight - 35
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 9.5 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Write speed - 5000 MBytes/sec
Writing speed - 5000 MB/s
Wydajność: Prędkość obrotowa - nie dotyczy obr./min.
Wydajność: Szybkość odczytu - 6000 MB/s
Wydajność: Szybkość zapisu - 5000 MB/s
