category - Cases & Modding|Modding|Tools & Assembly|Measurement & Testing
Category_1 - Tools
Category_2 - Tools - Battery Devices - Multi Functional Devices
code - TG-WV-P18N
ean - 4260711990588
EAN_code - 4260711990588
Manufacturer - Thermal Grizzly
Manufacturer_code - TG-WV-P18N
name - Thermal Grizzly WireView GPU, 1x 8-Pin PCIe - Normal
Name - Thermal Grizzly WireView GPU 1x8Pin PCIe, Normal, Meter (black)

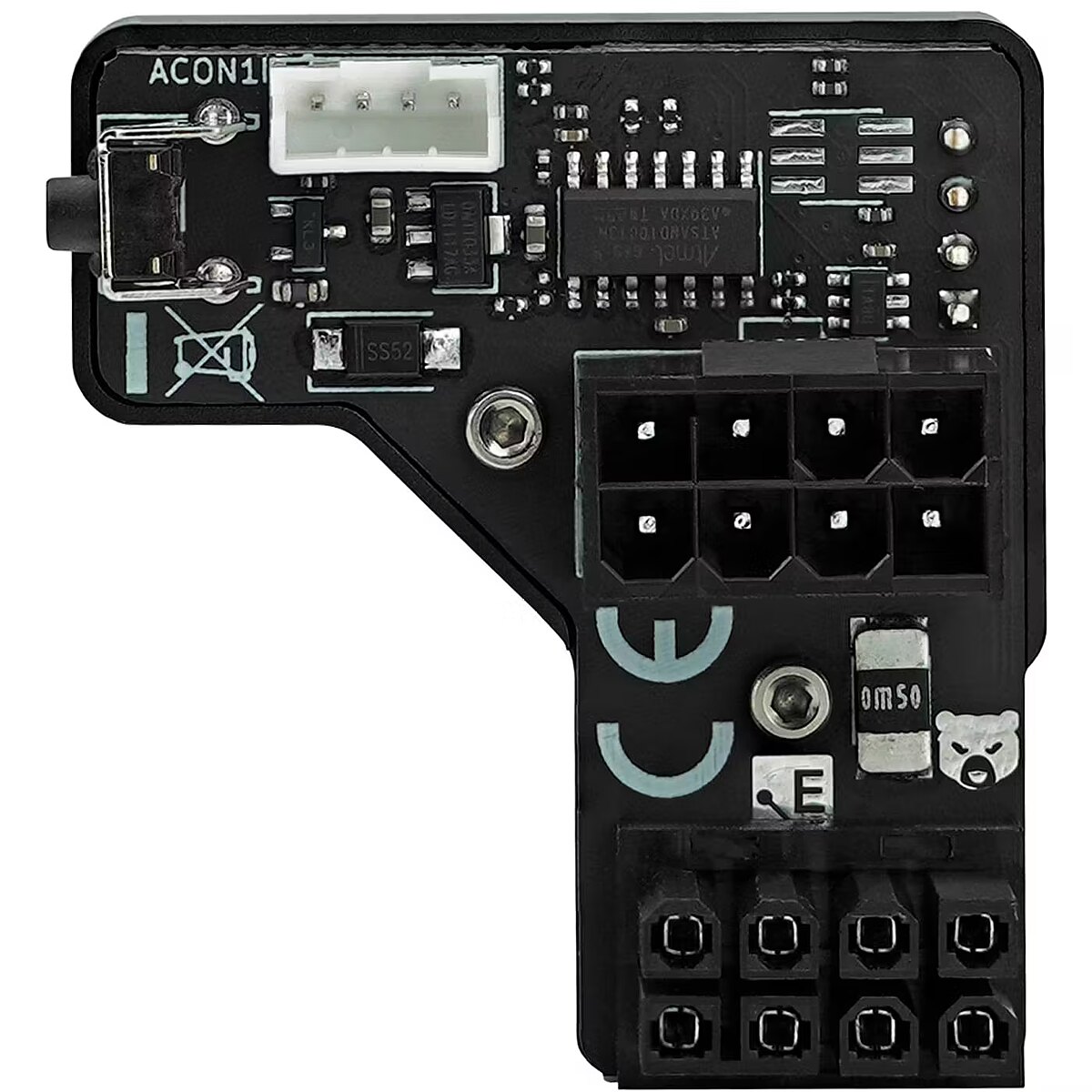

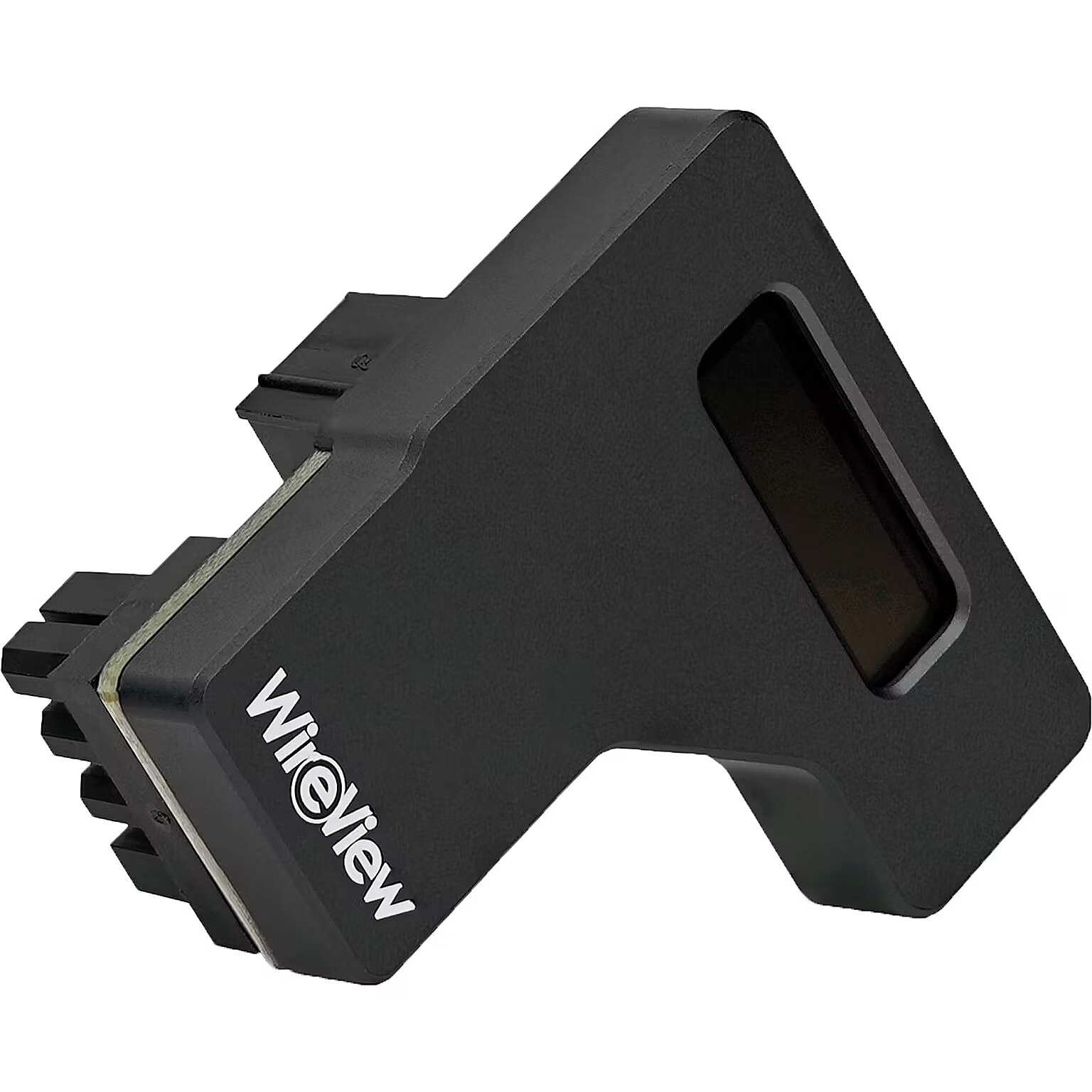

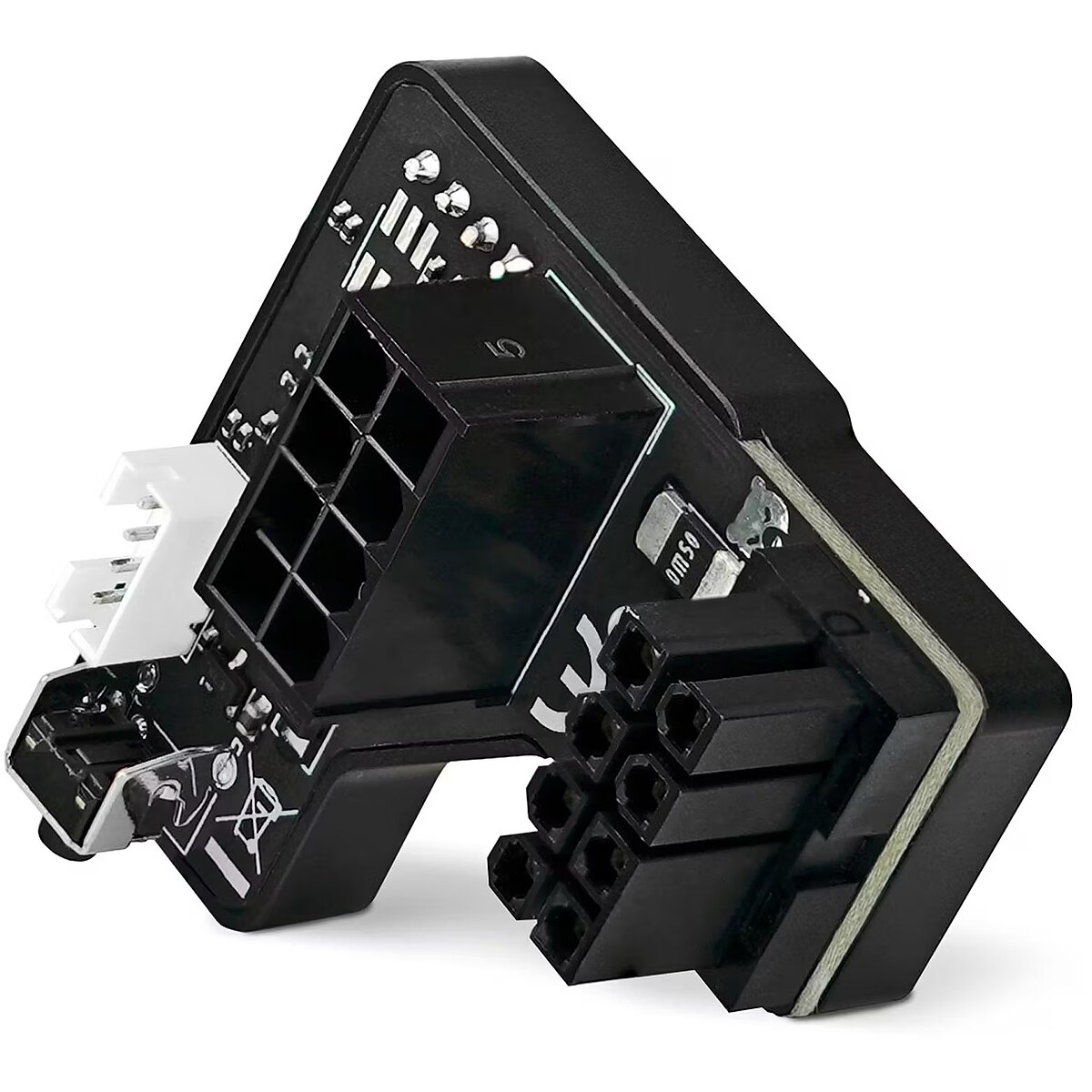

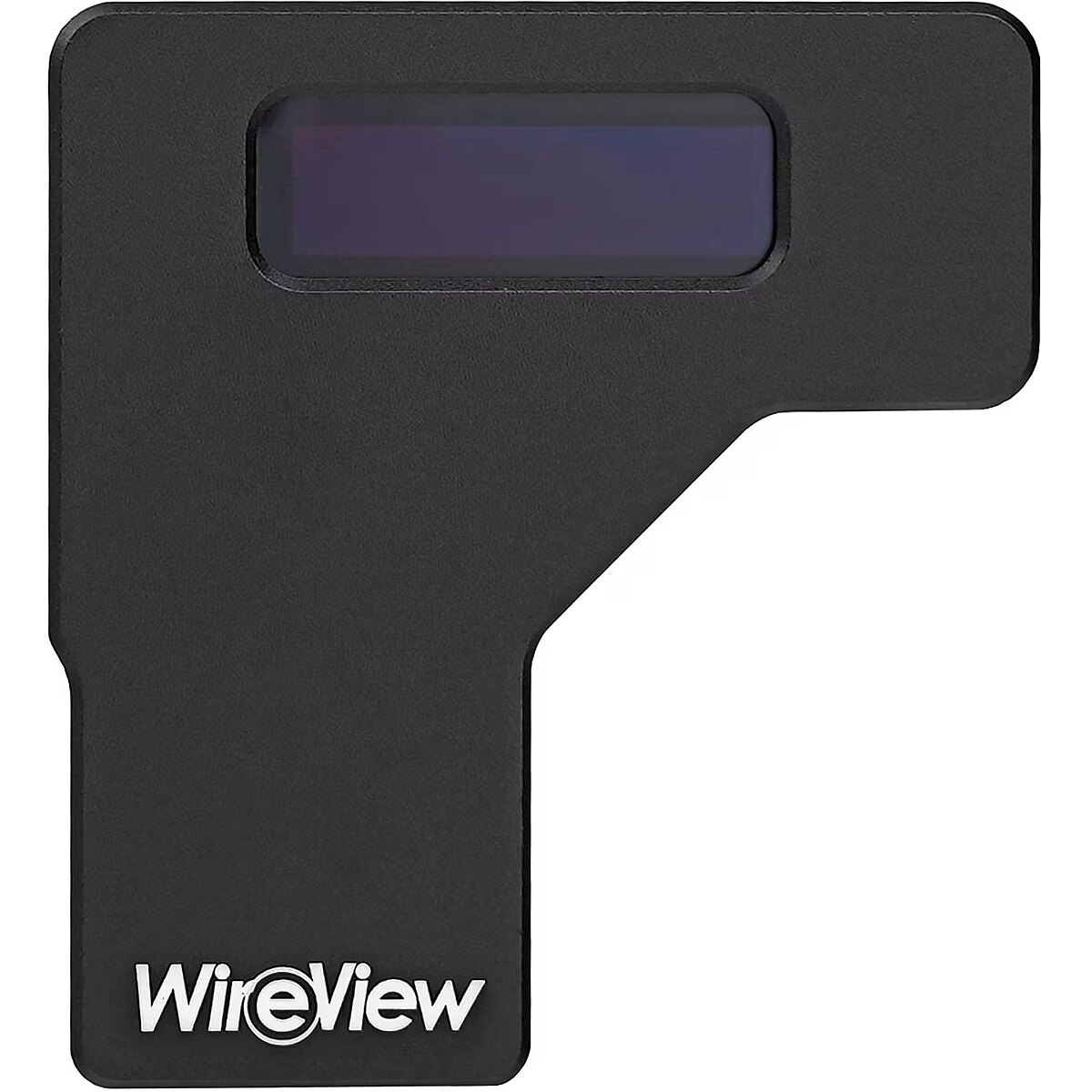

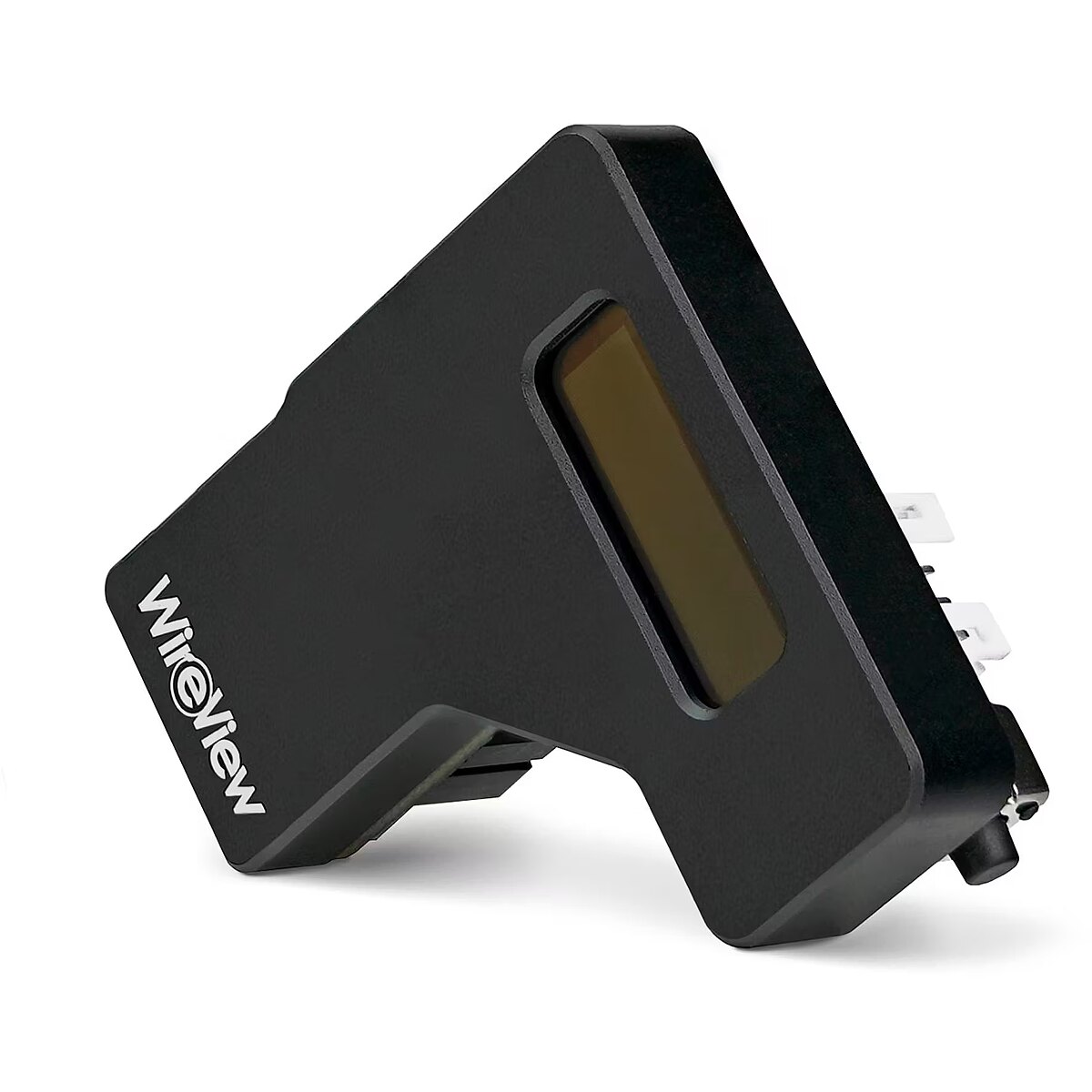

Technical_details - Thermal Grizzly's WireView GPU is a device for measuring the power consumption of GPUs. It is plugged into the PCIe power connectors on the graphics card and connected to the power supply via the PCIe power cables. The OLED display shows power consumption data. You can switch between the displayed values at the push of a button. At the same time, the WireView GPU takes on a cable management function because its “U” shape allows for optimized cable routing. The PCIe power cables are connected to the WireView GPU in such a way that they can be routed neatly over the backplate of the graphics card. This avoids cable bulges when laying power cables and simplifies cable management. Item no.: 100031608 Type measuring device Color: Black EAN 4260711990588 Manufacturer no. TG-WV-P18N Intended use For measuring the power consumption of graphics cards Mains connection operating mode Display/Display Current power consumption in watts [W], current voltage in volts [V], current current in amperes [A], minimum and maximum power consumption in watts [W], average power consumption over 60 seconds [AVG W] and total power consumption [ E] DC voltage measurements Calculation of energy consumption More Information The WireView GPU is available in "N" and "R" versions. "N" stands for the normal orientation of the PCIe connectors on the PCIe expansion card, "R" for the rotated (reversed) orientation. In the normal orientation (N), the connector retaining bracket faces away from the expansion card PCB. In the rotated orientation (R), the connector retaining clip faces the PCB.
Weight - 0,06
