10/100M LAN Ports - 1
Antenna Gain - 24 dB
brand - MikroTik
category - MikroTik > Bezvadu sistēmas > LHG
Category Code - WOD
CPU - AR9344 600 MHz

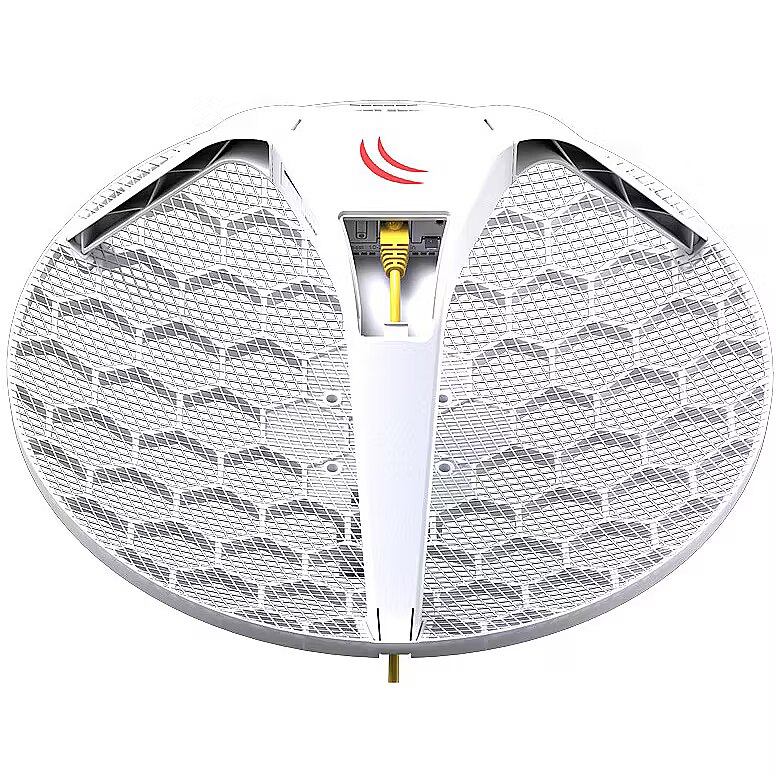

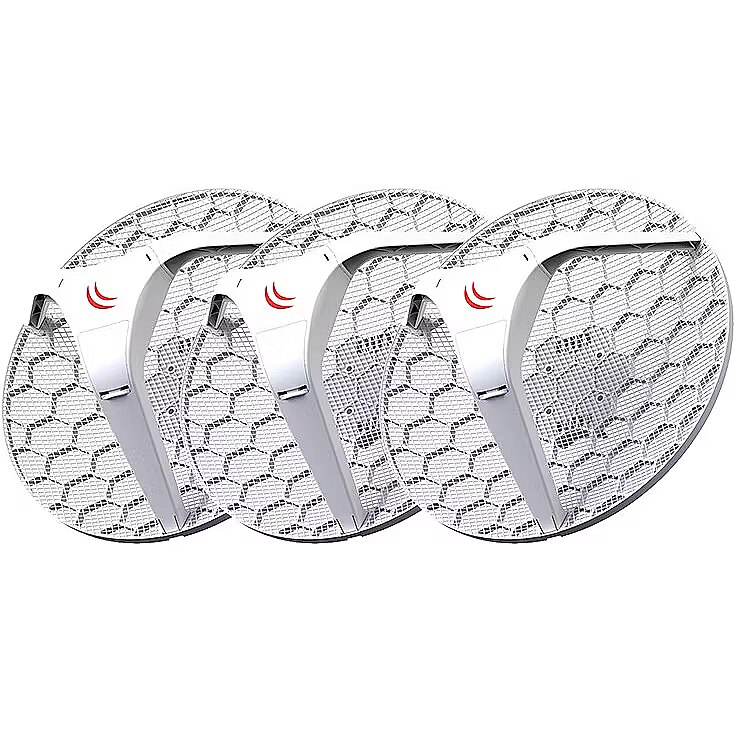

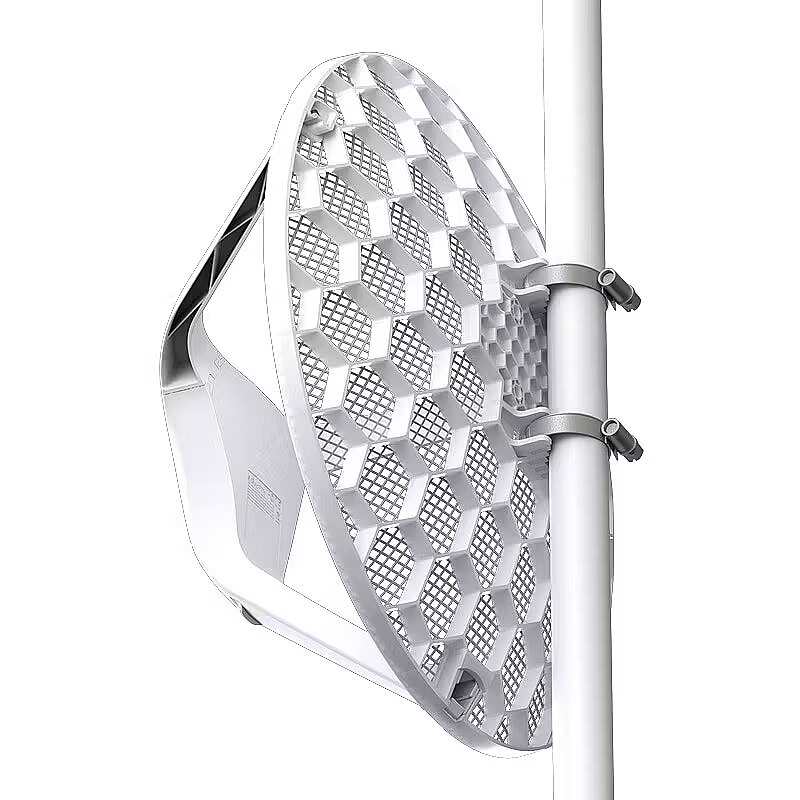

Description - MikroTik LHG 5 3-pack (RBLHG5kit) The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
dimensionalWeight - 10391
Dimensions - Ø 391 x 222 mm
EAN - 4752224003867
Features - Isolation - 20 dB
Features - Maximum cable loss with connectors - 10 dB
Features - Polarization - Dual polarization
Features - Product colour - White
Features - Sidelobes level - 25 dB
Features - Survival wind speed - 205 km/h
Features - Voltage Standing Wave Ratio (VSWR) - 1.925:1
Full Description Line - Network Device Type Wireless CPE|LHG 5 // RBLHG-5nD|IEEE 802.11a|IEEE 802.11n|Antenna Gain 24 dB|Dimensions Ø 391 x 222 mm
height - 0.25 m
IEEE 802.11a Network standard - Yes
IEEE 802.11n Network standard - Yes
length - 0.48 m
Model name - LHG 5 // RBLHG-5nD
mpn - RBLHG5kit
Network Device Type - Wireless CPE
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Packaging content - Manual - Yes
Packaging content - Quantity per pack - 3 pc(s)
Performance - Antenna gain level (max) - 24.5 dBi
Performance - Built-in processor - Yes
Performance - Cabling technology - 10/100Base-T(X)
Performance - Flash memory - 16 MB
Performance - Frequency band - 5 GHz
Performance - Gain - 24.5 dBi
Performance - Internal memory - 64 MB
Performance - Networking standards - IEEE 802.11a
Performance - Networking standards - IEEE 802.11n
Performance - Processor frequency - 600 MHz
Power - Input voltage - PoE 11 - 30
Power - Power consumption (max) - 6 W
Power - Power source type - AC, DC
Power consumption - 6 Watts
producerCode - RBLHG5KIT
productName - WRL CPE OUTDOOR/RBLHG5KIT MIKROTIK
Product Net Weight - 1.9 kg
productSize - Normal
RAM - 64 MB
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 47 cm
Shipping Box Weight Shipping/Package Box Dimensions - 3.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
sizeX - 243
sizeY - 472
sizeZ - 453
title - MikroTik LHG 5 3-pack
Unit Calculated Volume - 0.05302 cubm
Unit Calculated Weight - 3.9 kg
Units per Shipping Box - 1
Vendor Homepage - mikrotik.com/product/RBLHG-5nD
Warranty - 12 months
warrantyLength - 24
warrantyType - F
weight - 3.9 kg
weight - 3800
Weight & dimensions - Diameter - 39.1 cm
Weight & dimensions - Height - 222 mm
Weight & dimensions - Package depth - 450 mm
Weight & dimensions - Package height - 145 mm
Weight & dimensions - Package weight - 1.98 kg
Weight & dimensions - Package width - 450 mm
Weight & dimensions - Weight - 560 g
width - 0.47 m
