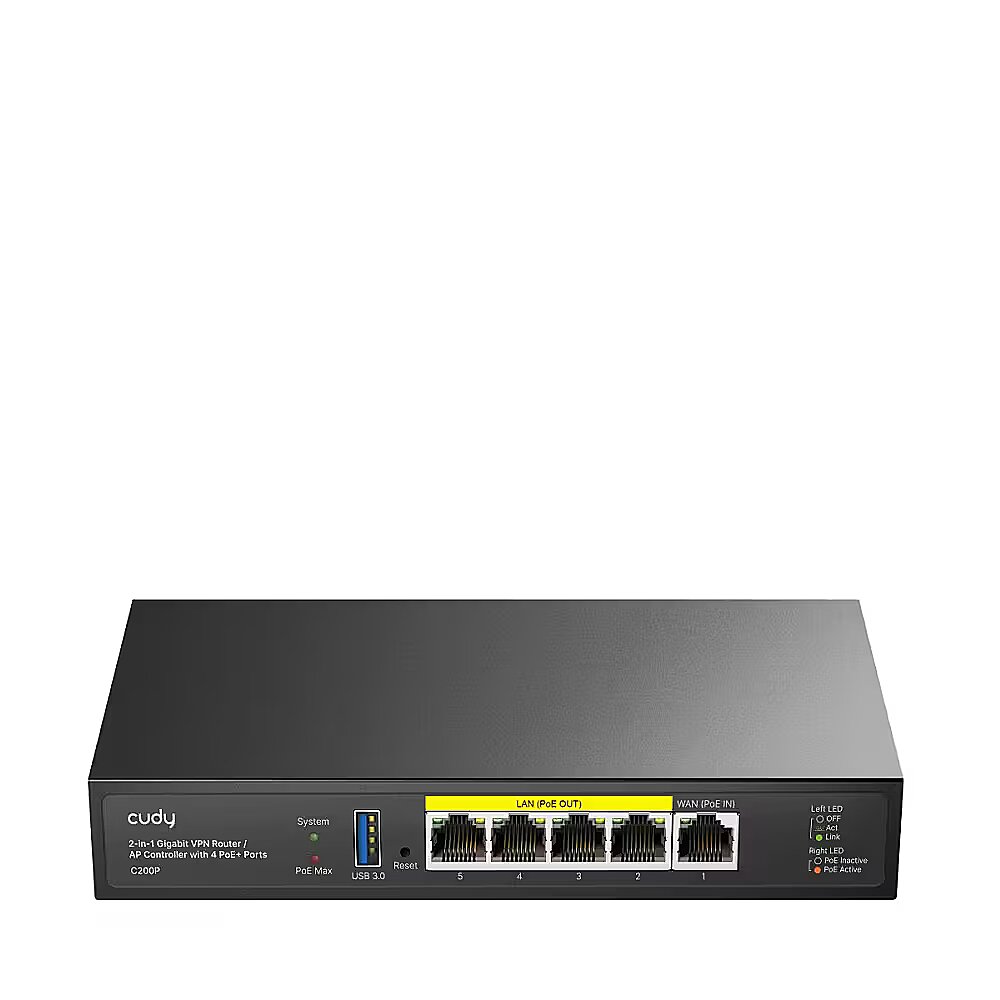

Cudy AP Controller 2-in-1 SMB Router / AP Controller, 1 Gigabit Ethernet + 4 Gigabit PoE+ PSE Por + 1 US

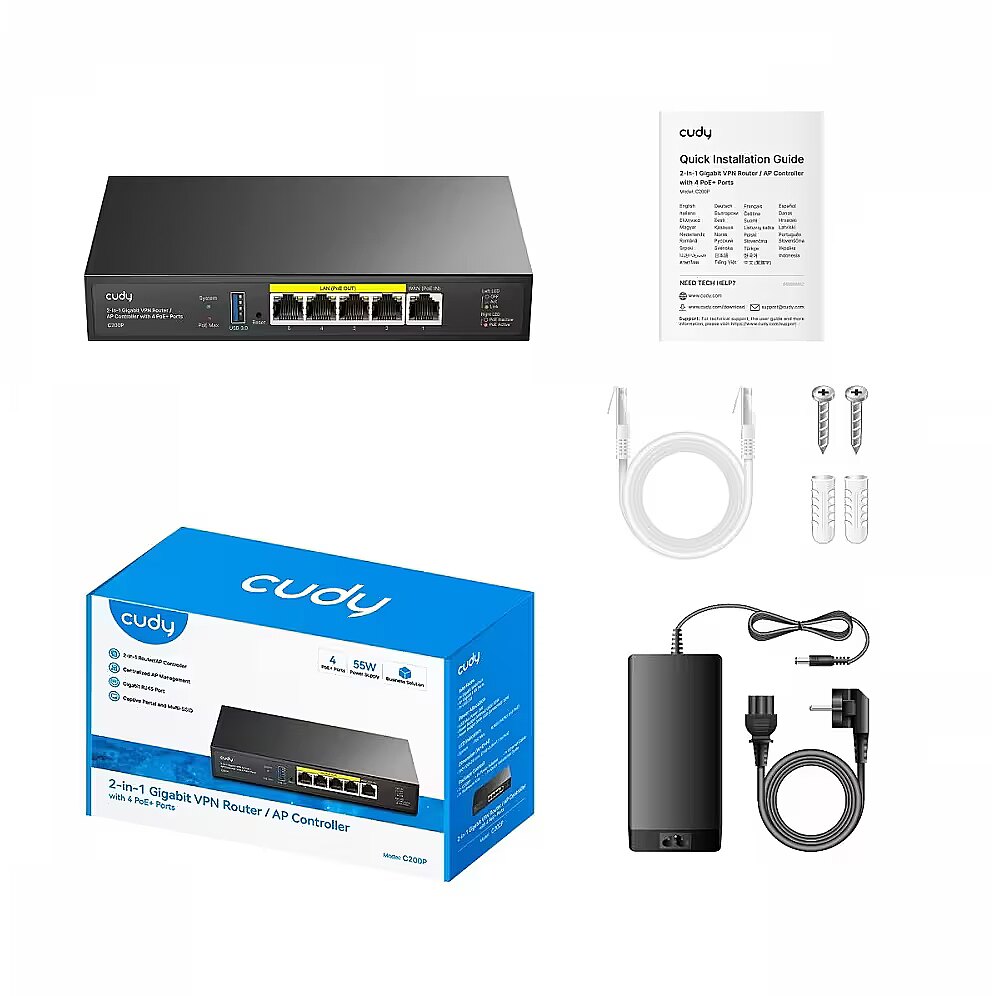

Accessories included - C200P Power adapter Ethernet cable Installation guide Mounting kit
Authentication and access protocols - QoS bandwidth control DHCP Address reservation DHCP client list Server IP versions IPv4/IPv6 IPv6 protocols Relay Dynamic (SLAAC/DHCPv6) Static (fixed IP address) Bandwidth 464XLAT MAP-E DS-Lite TTL adjustment Extension Spoofing Custom IGMP IGMP proxy server IGMP snooping Forwarding Port forwarding Port triggering UPnP DMZ Firewall SPI firewall DoS attack protection Ping blocking Application layer gateway IPSec bandwidth L2TP bandwidth PPTP bandwidth FTP bandwidth TFTP bandwidth H.323 bandwidth SIP bandwidth RTSP bandwidth
Color - Black
Data Act - Link
Description - 2-in-1 Router / AP Controller for Small and Medium Businesses with 4 PoE+ Ports Gigabit router that functions as a Cudy Access Point controller for Wi-Fi coverage throughout the home or office, equipped with four PoE outputs and Cudy Mesh features. Specifications: 4 × GbE ports with 802.3at/af Mode A PoE 1 × Gigabit Ethernet port 1 × USB 3.0 port 60W Power Supply Manage up to 200 APs Captive Portal Cudy Mesh, VPN Server and Client
Design - Housing material - Metal
Designation - CE+WEEE
dimensionalWeight - 486
dimension depth - 85 mm
dimension height - 135 mm
Dimensions -  190 x 100 x 28 mm
dimension weight - 1000 g
dimension width - 210 mm
ean - 6971690793470
Environment requirements - Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 5% ~ 95% non-condensing Storage humidity: 0% ~ 100% non-condensing
Features - Flash memory - 16 MB
Features - Internal memory - 256 MB
Features - Internal memory type - DDR3
guarantee - 24
guarantee_type - normal
I/O ports - 1 x USB 3.0
I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10/100/1000 Mbit/s PoE
Management, monitoring, configuration - Device management for all connected devices Wi-Fi scheduling MAC address filtering IP/MAC binding Individual device management Internet on/off control VPN on/off control Online scheduling Device renaming Content management Domain filtering IP filtering Access point management: Captive portal, Multi-SSID (up to 4 SSIDs per band)
Management features - Reset button - Yes
Management features - Universal Plug and Play (UPnP) - Yes
name - AP Controller 2-in-1 SMB Router / AP Controller, 1 Gigabit Ethernet + 4 Gigabit PoE+ PSE Por + 1 US
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Networking standards - IEEE 802.1af
Network - Networking standards - IEEE 802.3at
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 100%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Certifications: FCC CE
Packaging data - AC adapter included - Yes
Packaging data - Cables included - LAN (RJ-45)
Packaging data - Quick installation guide - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Number of USB 3.0 Type-A ports - 1
Ports & interfaces - WAN ports quantity - 1
Power supply - Power Methods DC 54 V 1.11 A 802.3at/af PoE Passive PoE 24/48 V Power Adapter Input: 100 ~ 240 V, 50 Hz AC Output: 54 V 1.11 A DC Maximum Power Consumption (W) Total: 60 W PoE: 55 W PoE (when a USB device is connected): 50 W Without PoE: 5 W Idle Power Consumption (W) 2 W
producer - Cudy
producerCode - C200P
productName - CUDY C200P Router
productSize - Normal
Protocols - DHCP server - Yes
Protocols - DMZ support - Yes
Safety warning - Warnings - Do not dismantle the unit yourself, there is a risk of electric shock.
Safety warning - Warnings - Do not expose the device to extreme temperatures.
Safety warning - Warnings - Do not expose the device to water or moisture.
Security - DoS attack prevention - Yes
Security - Firewall - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
sizeX - 212
sizeY - 135
sizeZ - 85
Standards - 802.3af
Standards - 802.3at
Supported no. of devices - 200
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - FCC
vendpn - C200P
warrantyLength - 24
warrantyType - G
weight - 1030
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Package depth - 132 mm
Weight & dimensions - Package height - 81.5 mm
Weight & dimensions - Package width - 209 mm
Weight & dimensions - Width - 190 mm
