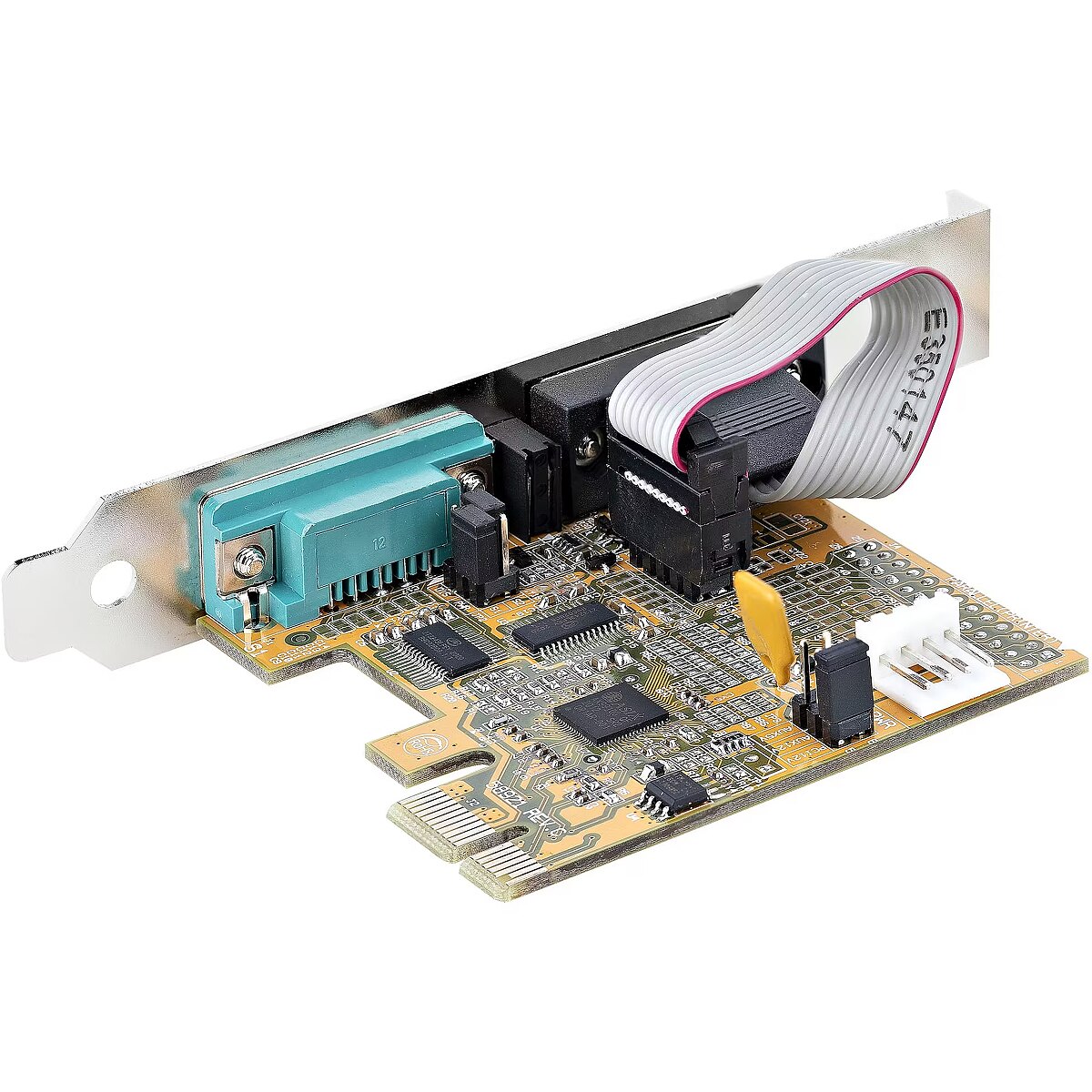

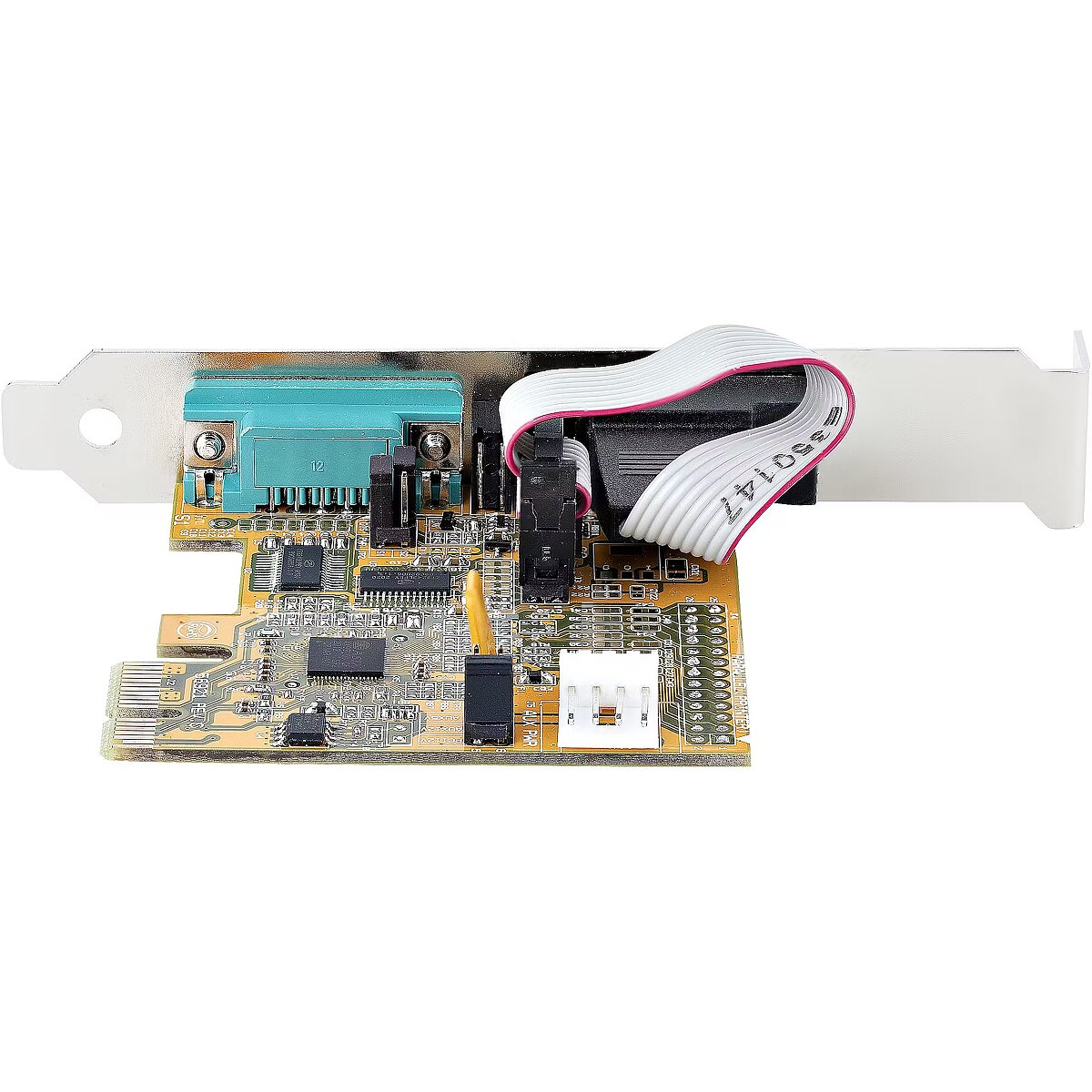

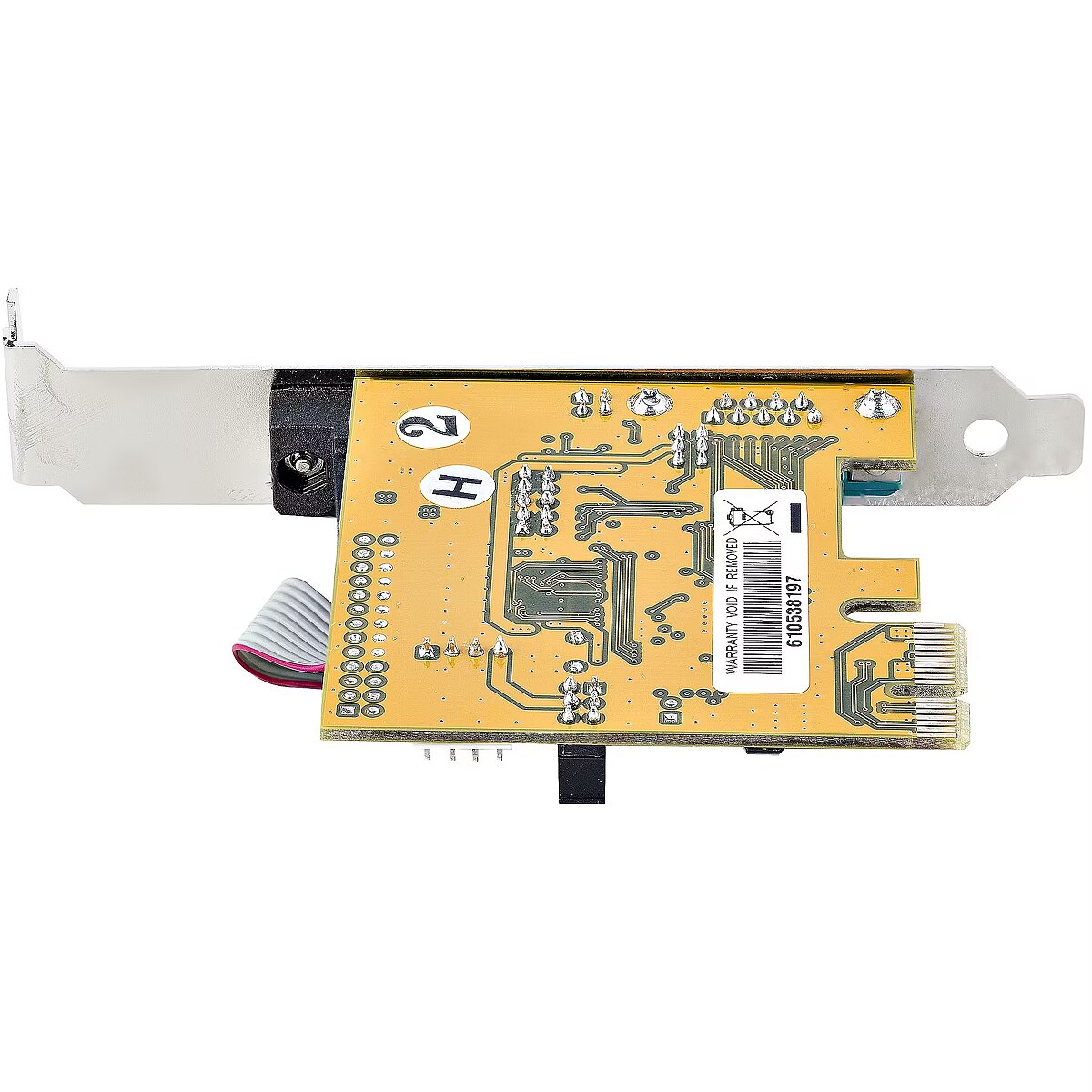

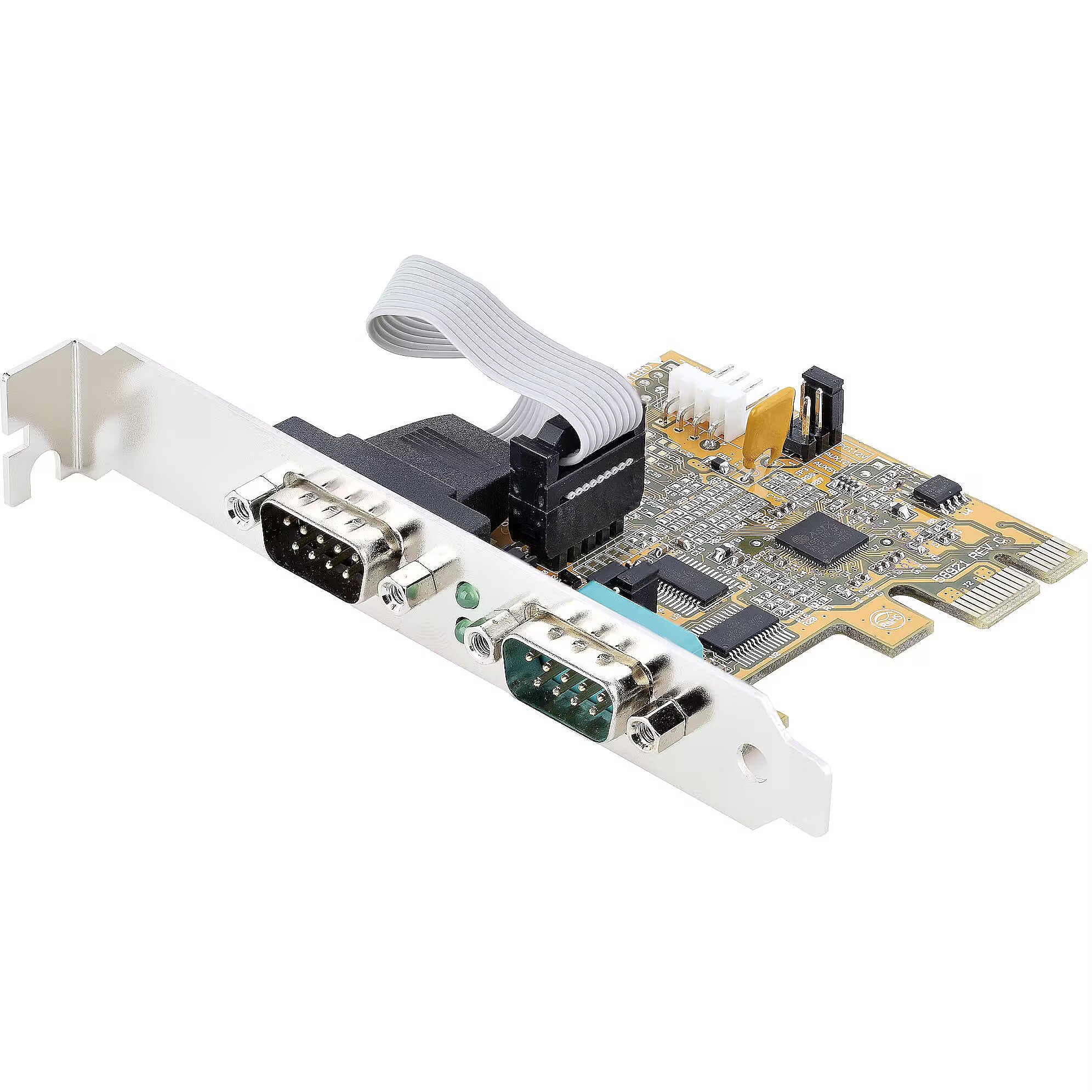

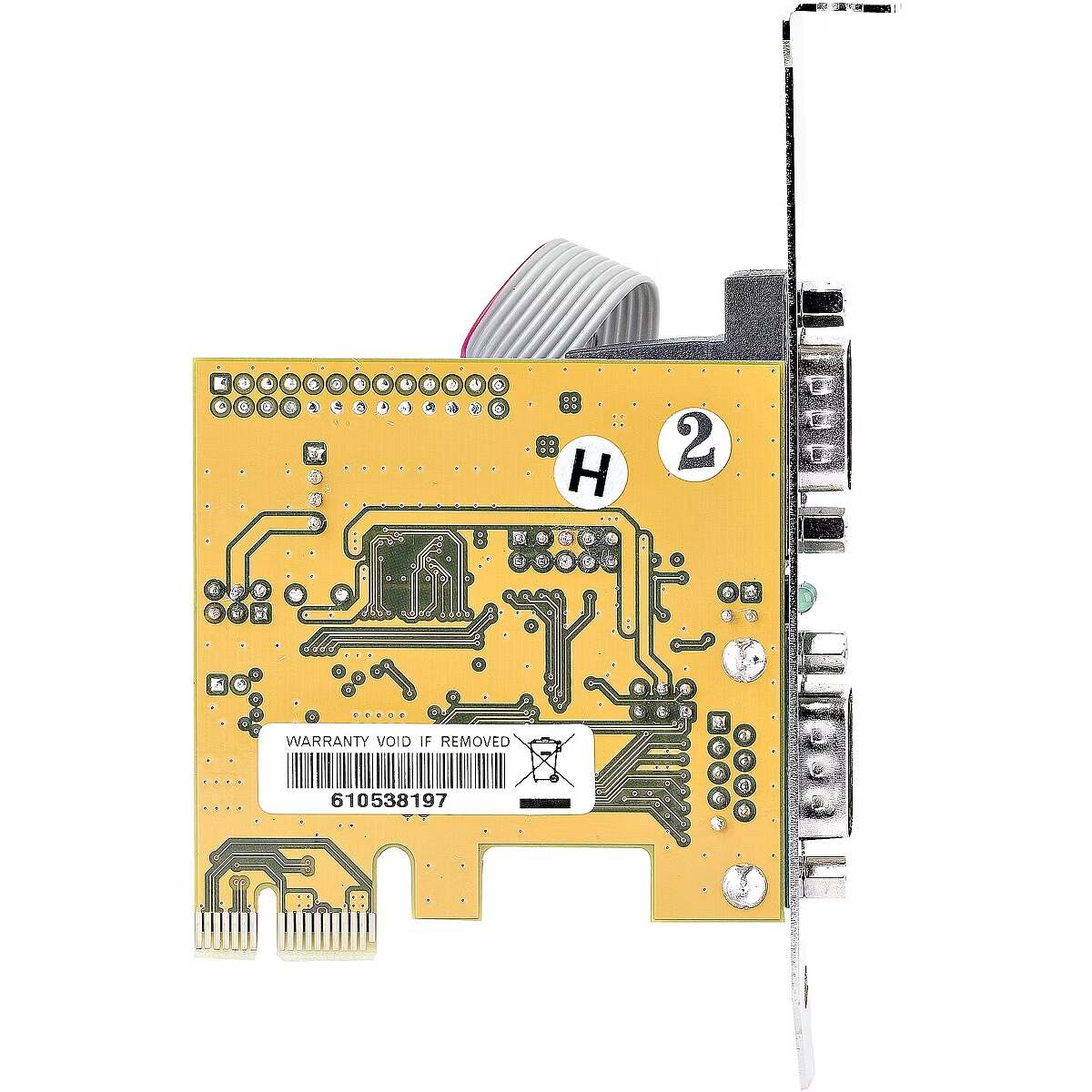

Startech 21050-PC-SERIAL-CARD PCIE DUAL SERIAL PORT CARD

ARTIKEL1 - PCIE DUAL SERIAL PORT CARD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - 21050-PC-SERIAL-CARD
Breite - 0
Category - Interface Cards/Adapters
Design - Internal - Yes

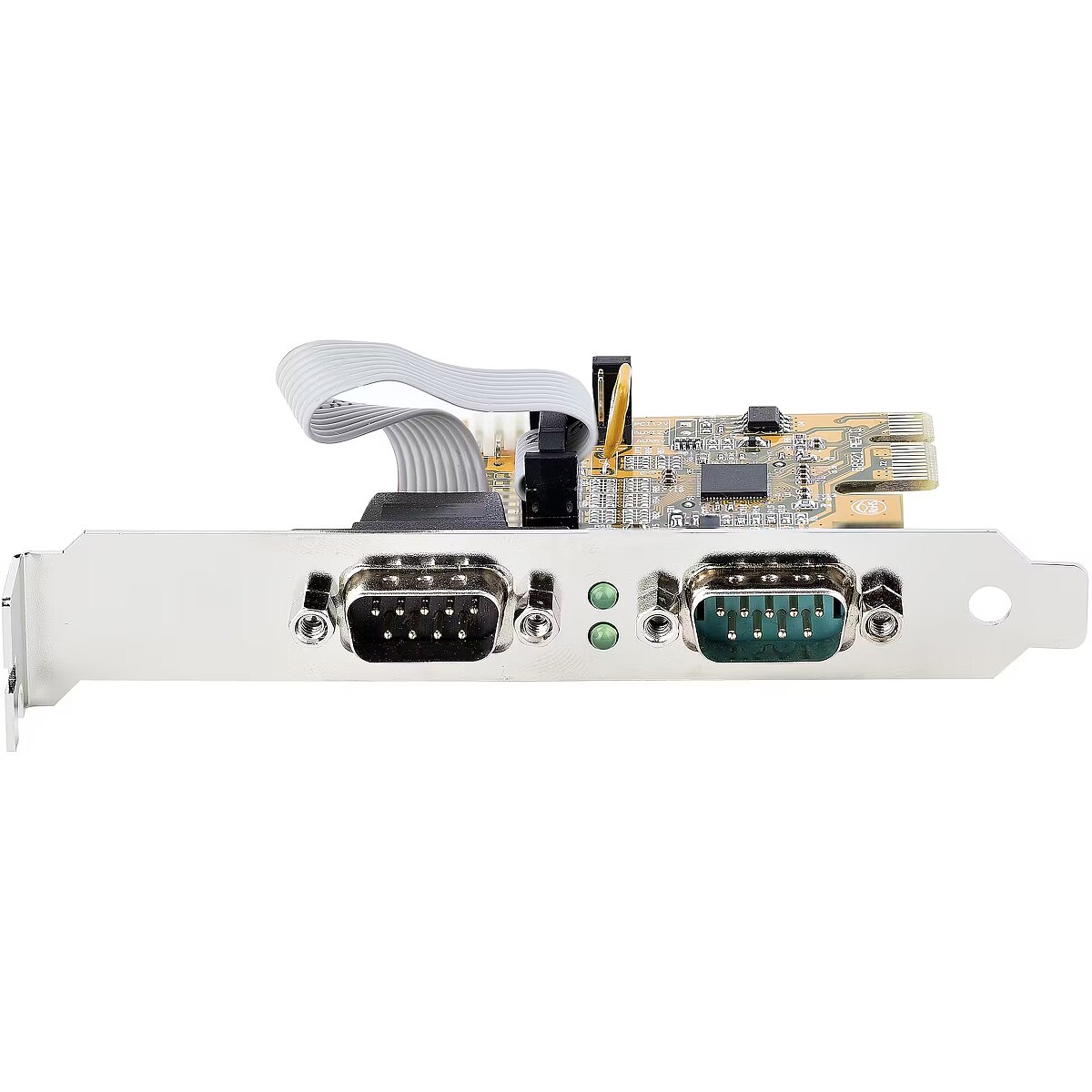

Design - LED indicators - Activity
Design - Product colour - Yellow
EANCode - 0065030894760
Features - Baud rate - 921.6 Kbit/s

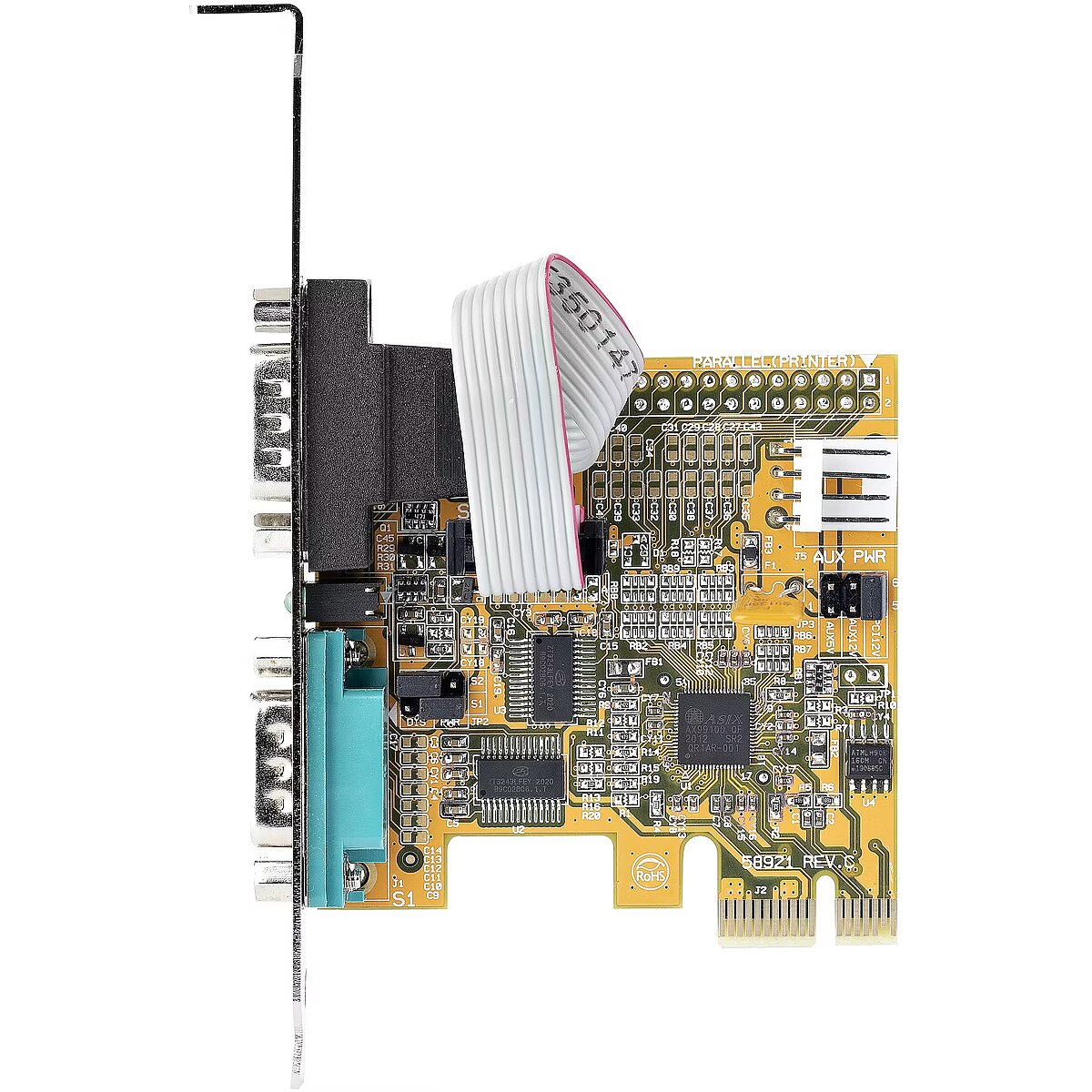

Features - Chipset - ASIX - AX99100, ASIX - ZT3243LFEY
Features - Data bits - 5, 6, 7, 8, 9
Features - FIFO (First In, First Out) - 256 B
Features - Flow control support - Yes
Features - Parity bit - Even, Mark, No, Odd, Space
GRUPPE1 - Network
GRUPPE2 - Firewire / Parallel / Serial
GTIN - 0065030894760
GTIN - 065030894760
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 21050-PC-SERIAL-CARD
Laenge - 0
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case height - 340 mm
Logistics data - Master (outer) case length - 440 mm
Logistics data - Master (outer) case width - 530 mm
Logistics data - Products per master (outer) case - 50 pc(s)

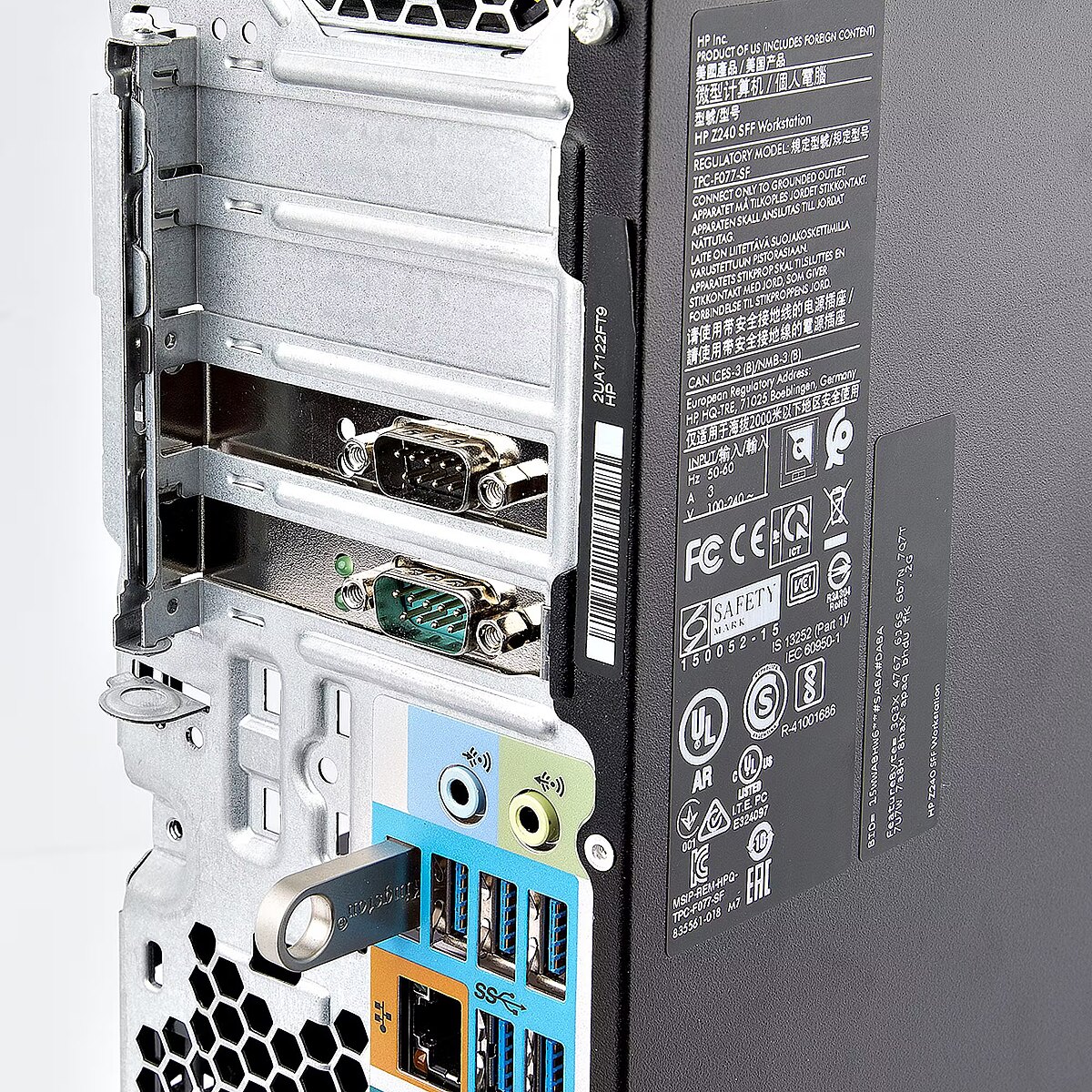

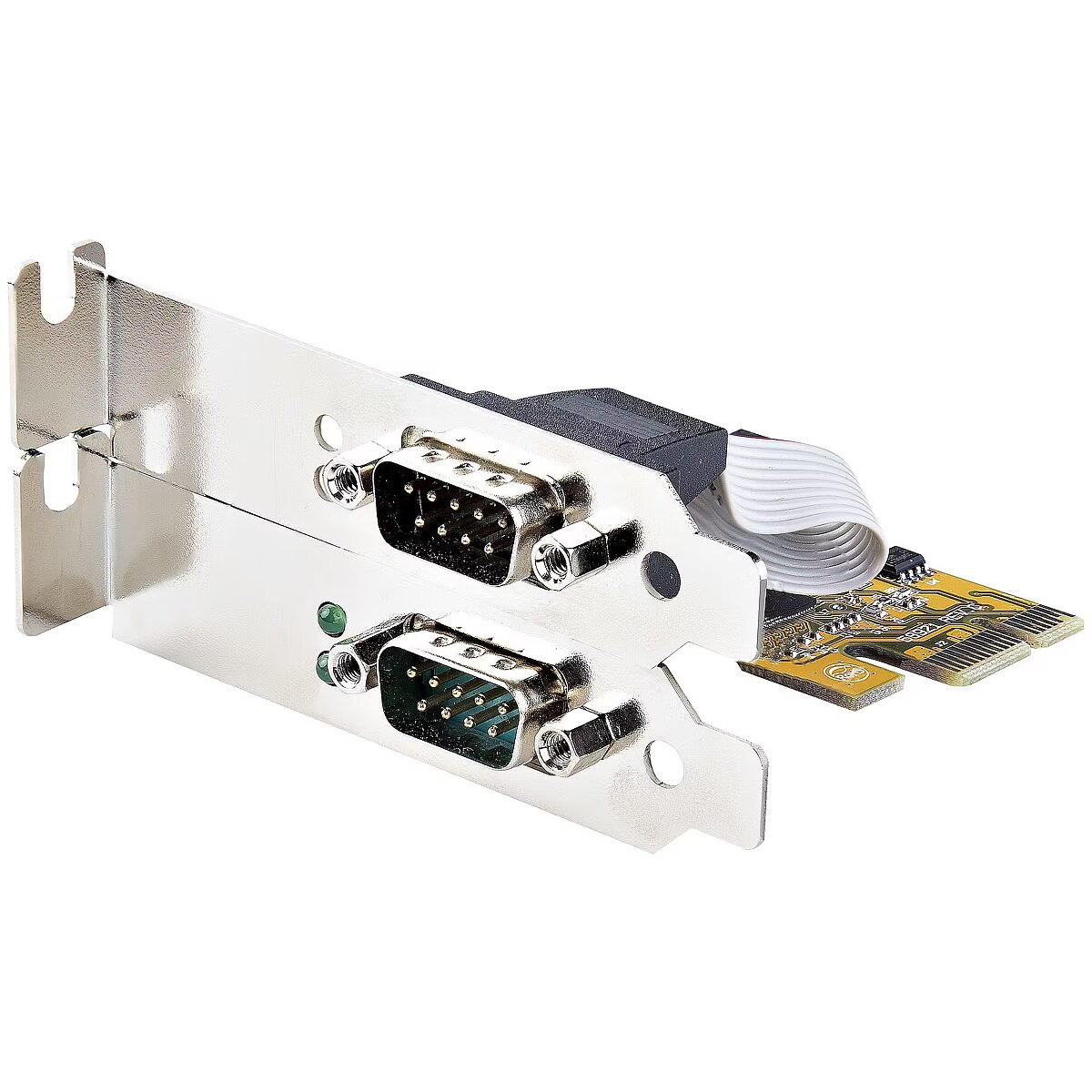

LongDesc - Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retention, For Windows/Linux (21050-PC-SERIAL-CARD)
LongSummaryDescription - StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 65 mm, Depth: 67 mm, Height: 18 mm
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 75 °C

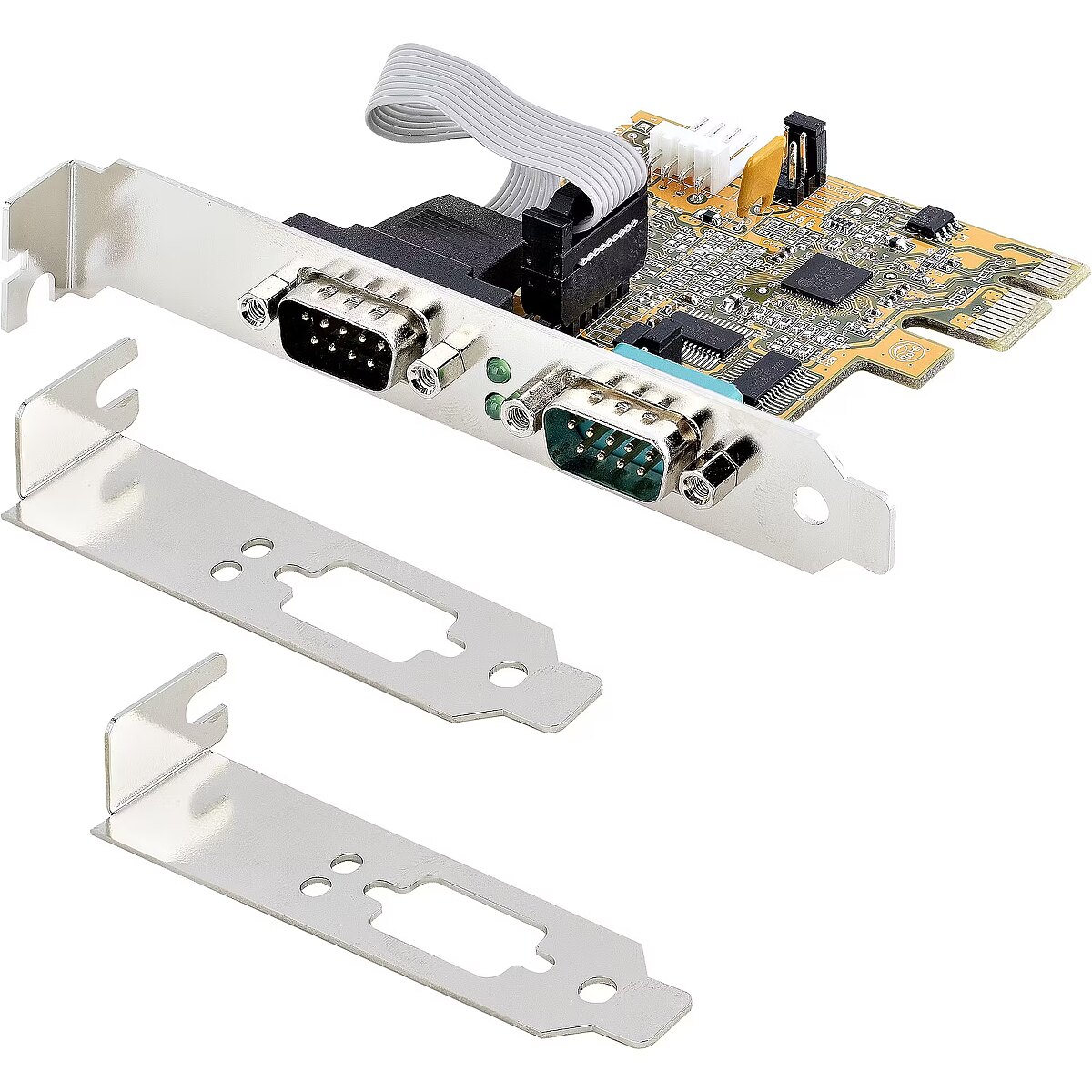

Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 144 mm
Packaging data - Package height - 38 mm
Packaging data - Package weight - 200 g
Packaging data - Package width - 207 mm
Packaging data - Quick installation guide - Yes
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCI 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - Serial
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 2
ProductName - 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux
ShortSummaryDescription - StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux, PCIe, Serial, Full-height / Low-profile, PCI 2.0, RS-232, Yellow
Stck_Kart - 50
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details - Compliance certificates - CE, RoHS
Title - StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux
URL - https://www.startech.com/en-us/21050-PC-SERIAL-CARD
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 67 mm
Weight & dimensions - Height - 18 mm
Weight & dimensions - Weight - 51 g
Weight & dimensions - Width - 65 mm
